Toro 59299 User manual

The Toro Company – 1998

FORM NO. 3322–318

INSTALLATION

INSTRUCTIONS

MODEL NO. 59299

RECYCLERMOWER BAGGING KIT

Para obtener una versión gratis de este manual en español, escriba a la dirección

indicada más abajo. Asegúrese de indicar el modelo y el número de serie de su producto.

Pour obtenir gratuitement une version en français de ce manuel, écrivez à l’adresse

ci-dessous. N’oubliez pas d’indiquer les numéros de modèle et de série de votre produit.

The Toro Company, Attn: Parts Dept., 8111 Lyndale Ave S, Bloomington, MN 55420–1196

Keep this material with your Operator’s Manual and refer

to both documents for instructions concerning safe

operation and proper maintenance procedures.

IMPORTANT: Your Recyclermower has been

updated to permit bagging. Make sure that your dealer

is aware of this whenever parts are ordered or

servicing is required.

Safety and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near

any area of potential danger. Replace any decal that is damaged or lost.

ON DISCHARGE TUNNEL

(Part No. 88–3360)

ON GRASS BAG

(Part No. 84–7810)

Kit Contents

DESCRIPTION QTY.

Discharge Tunnel Assembly 1

Screw, hex washer head 4

Screw, self-tapping 1

Grommet 4

Knob 1

Grass Bag Assembly 1

Installation Instruction Sheet 1

Assembly

Installing the Discharge Tunnel

1. Stop the engine and disconnect the spark plug wire.

2. Remove the knob and side cover clamp (Fig. 1).

m–4275

Figure 1

1. Knob

2. Side cover clamp 3. Side opening cover

3. Remove and save the three bolts securing the

discharge cover to the mower (Fig. 2). Save the cover

and bolts for future use.

m–4275

Figure 2

1. Discharge cover

2. Bolt (3) 3. Screw and nut

4. Remove the screw and nut from side of the mower

(Fig. 2). Save them for future use.

5. Install four grommets supplied with the grass catcher

into the four square holes in the mower (Fig. 3).

2009

Figure 3

1. Grommet (4)

6. Insert the tongue of the discharge tunnel into the

mower (Fig. 4).

7. Align the holes in the tunnel with the grommets in the

mower (Fig. 4).

8. Ensure that the hole in the tongue aligns with the hole

in the side of the mower (Fig. 4).

2010

Figure 4

1. Discharge tunnel

2. Tongue

3. Self-tapping screw

4. Bolt (3)

5. Discharge tunnel door

9. Install the self-tapping plastite screw supplied with the

grass catcher into the side hole and tongue, and

partially tighten the screw (Fig. 4).

10.Using three screws supplied with the grass catcher,

fasten the discharge tunnel to the mower (Fig. 4).

11. Secure the front, right corner of the discharge tunnel

and the side opening cover with the side cover clamp

removed previously and the long knob supplied with

the grass catcher (Fig. 5)

m–4274

Figure 5

1. Long knob

2. Side cover clamp 3. Side opening cover

DANGER

POTENTIAL HAZARD

•If the side opening cover is not securely

clamped in place, debris could be thrown out of

the side opening.

WHAT CAN HAPPEN

•Thrown debris can cause serious personal

injury or death to the operator or bystanders.

HOW TO AVOID THE HAZARD

•Always ensure that either the side opening

cover is closed and locked in place by the side

cover clamp or that the side discharge chute is

securely seated in place before starting the lawn

mower.

12.Tighten all four screws and the long knob.

13.Open and close the tunnel door to ensure that it moves

freely (Fig. 4).

Installing the Grass Bag

1. Stop the engine and wait for all moving parts to stop.

2. Ensure that the discharge door handle is fully forward

(door closed) (Fig. 6).

DANGER

POTENTIAL HAZARD

•Thrown objects may result if the discharge

door does not close completely.

WHAT CAN HAPPEN

•Thrown objects can cause serious personal

injury or death.

HOW TO AVOID THE HAZARD

•If the discharge door cannot be closed because

grass clippings clog the discharge area, stop the

engine and gently move the discharge door

handle back and forth until the door can be

closed completely. If door still cannot be closed,

remove the obstruction with a stick; not your

hand.

3. Fit the bag door opening over the discharge tunnel

opening as shown in Figure 6.

The bag door latches should straddle the door handle,

and the bag rod hook should be in front of the handle

bracket.

4. Set the rear of the bag frame onto the lower handle.

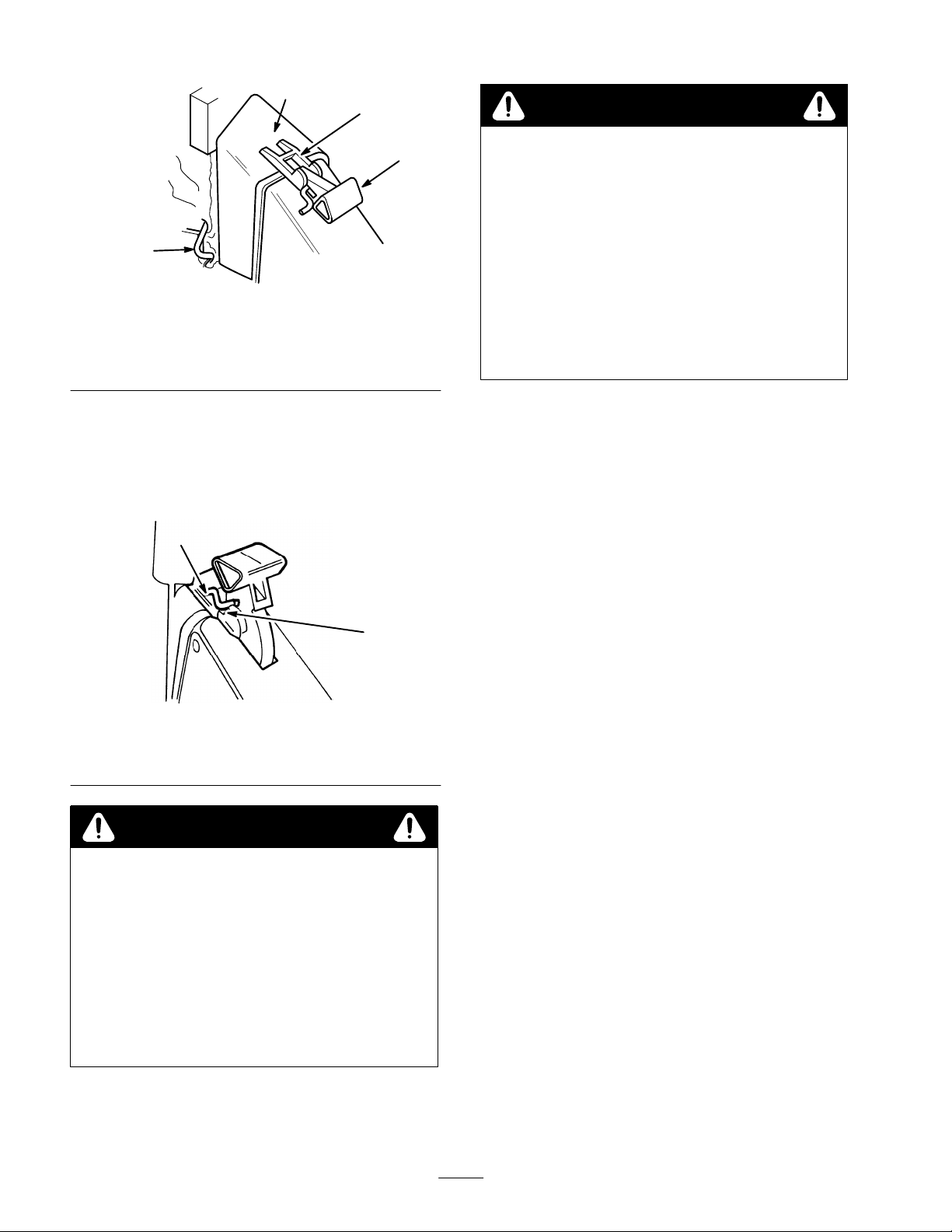

2022

Figure 6

1. Handle fully forward

2. Bag door

3. Bag door latch

4. Bag rod hook in front of

handle bracket

5. Pull the handle rearward until the handle latch locks in

the notch in the bag door latch (Fig. 7).

The discharge door in the mower housing is now open

and the bag is locked into position. The latch should

seat in bottom of the notch.

548

Figure 7

1. Handle latch locked in bag

notch 2. Notch in bag door latch

DANGER

POTENTIAL HAZARD

•Grass clippings and other objects can be

thrown from an open discharge tunnel.

WHAT CAN HAPPEN

•Objects thrown with enough force could cause

serious personal injury or death to the operator

or bystander.

HOW TO AVOID THE HAZARD

•Never open the door on the discharge tunnel

when the engine is running.

DANGER

POTENTIAL HAZARD

•A worn grass bag could allow small stones and

other similar debris to be thrown in operator’s

or bystander’s direction.

WHAT CAN HAPPEN

•Thrown objects can cause serious personal

injury or death to the operator or bystanders.

HOW TO AVOID THE HAZARD

•Check the grass bag frequently. If it is

damaged, install a new genuine Toro

replacement bag that has this or a similar

warning.

Emptying the Grass Bag

1. Stop the engine and wait for all moving parts to stop.

2. Lift the door latch until it clears the bag notch and

move the discharge door handle forward (Fig. 6).

3. Grasp the bag frame handle and the rear of the grass

bag and lift the bag off of the mower.

4. Gradually tip bag forward to empty clippings.

Maintenance

Cleaning

Always be sure that discharge tunnel door locks closed

when handle is released. If debris prevents discharge door

from locking closed, clean inside of discharge tunnel and

door thoroughly.

1. Stop engine and pull wire off spark plug. Remove key

from switch (key start models).

2. Remove fuel tank cap. Use a pump-type syphon to

drain fuel into a clean gas can.

Note: This is the only procedure recommended for

draining fuel.

3. Tip mower on side; refer to mower’s Operator’s

Manual for proper side to use. Avoid rotating blade

because starting problems may result.

4. Remove dirt and grass clippings that stick to housing

with a hardwood scraper. Avoid burrs and sharp edges.

5. Turn mower upright.

6. Remove debris from inside of discharge tunnel.

7. Refill fuel tank.
