The Handy 193875002 User manual
HAND PUSH 30CM (12”)
CYLINDER MOWER
Model No: THHM -- Product No: 193875002
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
IMPORTANT
Please read & understand this manual, payingattention to the safety instructions, before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only
INSTRUCTION MANUAL
CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
COMPONENTS
ASSEMBLY
OPERATION
MAINTENANCE & STORAGE
TROUBLE SHOOTING
PARTS DIAGRAM & LIST
WARRANTY
EC DECLARATION OF CONFORMITY
ASSEMBLY IS REQUIRED
This product requires assembly before use. See the “Assembly” section for instructions.
Please check that all parts required for the assembly of this spreader are included. If for any
reason you believe a part for the assembly is missing or damaged, please contact us.
If you require any assistance with regards to the contents or operation of
your machine, please contact us:
TEL: 01793 333212
(MON –FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)

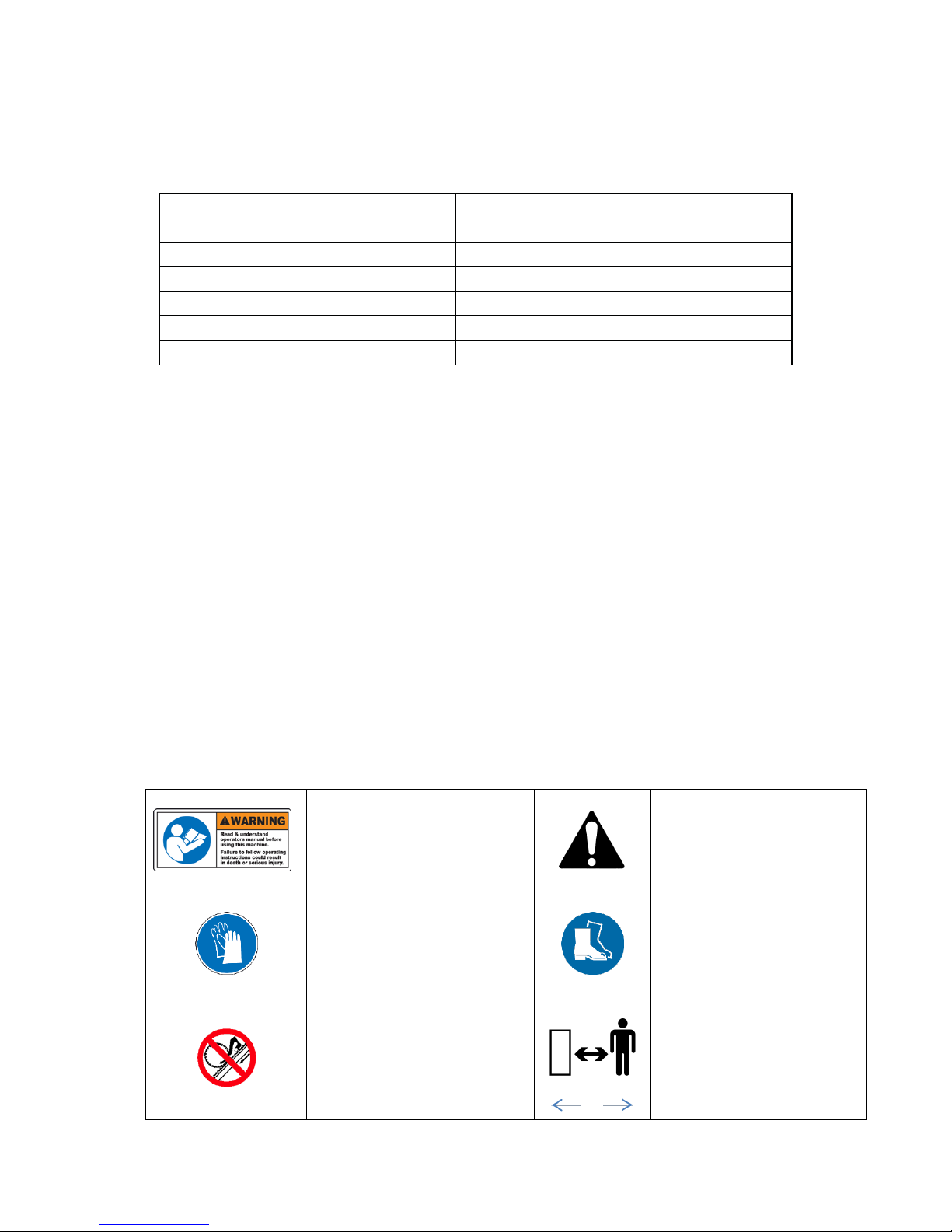

SPECIFICATION
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Model THHM
Product Number 193875002
Cylinder Blade Width 310mm
Number of Blades 5
Height of Cut 15-45mm
Collector Capacity 18 litres
Weight N.W 7.5kg –G.W 8.8kg
IMPORTANT INFORMATION
INTENDED USE
The product is intended for domestic gardens. This product is not intended for commercial use.
The product has been designed to be used on domestic lawns and due to the nature of the cylinder,
ideally a flat surface with minimal undulations.
Generally acknowledged accident prevention regulations and enclosed safety instructions must be
observed. Only perform work described in these instructions for use, any other use is incorrect. The
manufacturer will not assume responsibility for damage resulting from such use.
GENERAL SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the product. Learn its application
and limitations as well as the specific potential hazards. Retain these instructions for future
reference. The operator is responsible for following the warnings & instructions in this manual and
on the product.
SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the machine. Learn its application
and limitations as well as the specific potential hazards. Retain these instructions for future
reference. The operator is responsible for following the warnings & instructions in this manual and
on the product.
Read & understand operator’s
manual before using the
machine. Failure to follow
instructions could result in
death or serious injury.
DANGER
Always wear gloves to protect
your hands when unpackaging
the machine or working with
the cutting cylinder.
SHARP ROTATING BLADES
Wear foot protection or
sensible shoes when using the
lawnmower
Keep hands out of the way of all
moving parts.
Keep all bystanders & animals
at least 6 metres away from
the machine during operation.
If approached, stop the
machine immediately.
6m
Safety alert symbol. Used to alert you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in serious injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
CAUTION
Used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
STAY ALERT
Do not operate the lawnmower while under the influence of drugs, alcohol, or any medication that
could affect your ability to use it properly. Do not use this lawnmower when you are tired or
distracted from the job at hand. Be aware of what you are doing at all times. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient light. Keep area around the lawnmower clear of
obstructions, stones, sticks, wires and other debris or foreign bodies which could cause damage to
the lawnmower.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and
drive mechanisms. Vibration during use may cause these to loosen.
Replace damaged, missing or failed parts before using.
Warning labels carry important information.
Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewelry (rings, wrist watches), which can be
caught in moving parts.
Wear protective hair covering to contain long hair, preventing it from getting caught in machinery.
DO NOT use whilst barefoot or wearing open toed footwear.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons a minimum distance of 6 metres away from the machine. Do not allow
children to handle, use, or climb on the lawnmower.
DO NOT OVERREACH
Keep proper footing and balance at all times, particularly if using on slopes. The lawnmower should
not be used on steep slopes and always be sure of footing.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands out of the way of moving parts, particularly the cutting cylinder. Do not place any part of
your body or any tool. When operating, do not pass hands through the clearance between frame,
roller and cutting cylinder. The hardened steel blades are very sharp.
Always work within the rated capacity. Do not use the machine for a purpose for which it was not
intended.
MAINTAIN YOUR MACHINE WITH CARE
Clean the lawnmower immediately after use. Keep the lawnmower clean to ensure it operates to its
full and safest performance. When maintaining this lawnmower, only the manufacturer’s original
replacement parts should be used. The use of non-original manufacturer parts may invalidate your
warranty.
STORE IDLE EQUIPMENT
When not in use, the lawnmower should be stored in a dry location. Keep the lawnmower away
from children and others not qualified to use it.

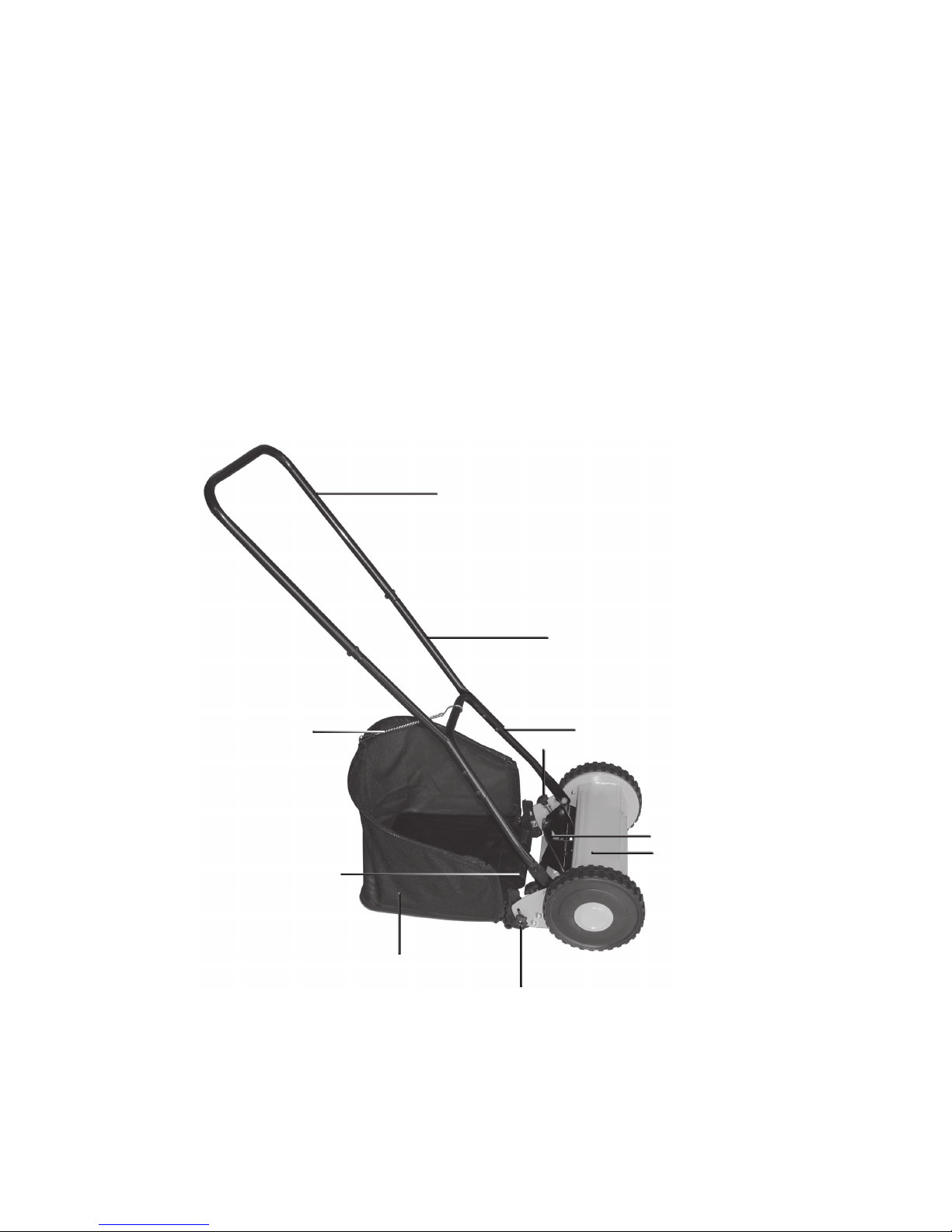

COMPONENTS
DO NOT FORCE TOOL
Upper handle
Handle extensions
Support chain Lower handle
Bottom blade setting screw
Cylinder blade
Mower body
Cutting height roller
Grass collection bag
Cutting height adjustment knob
It is recommended that you wear gardening gloves are worn, when unpacking, adjusting, assembling
and maintaining the lawnmower.
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Mon –Fri 8.00am –5.30pm (excl. Bank Holidays)
Tel: 01793 333212
Email: customerservice@handydistribution.co.uk
You will require a Phillips (crosshead) screwdriver and an 10mm spanner to assemble this machine.

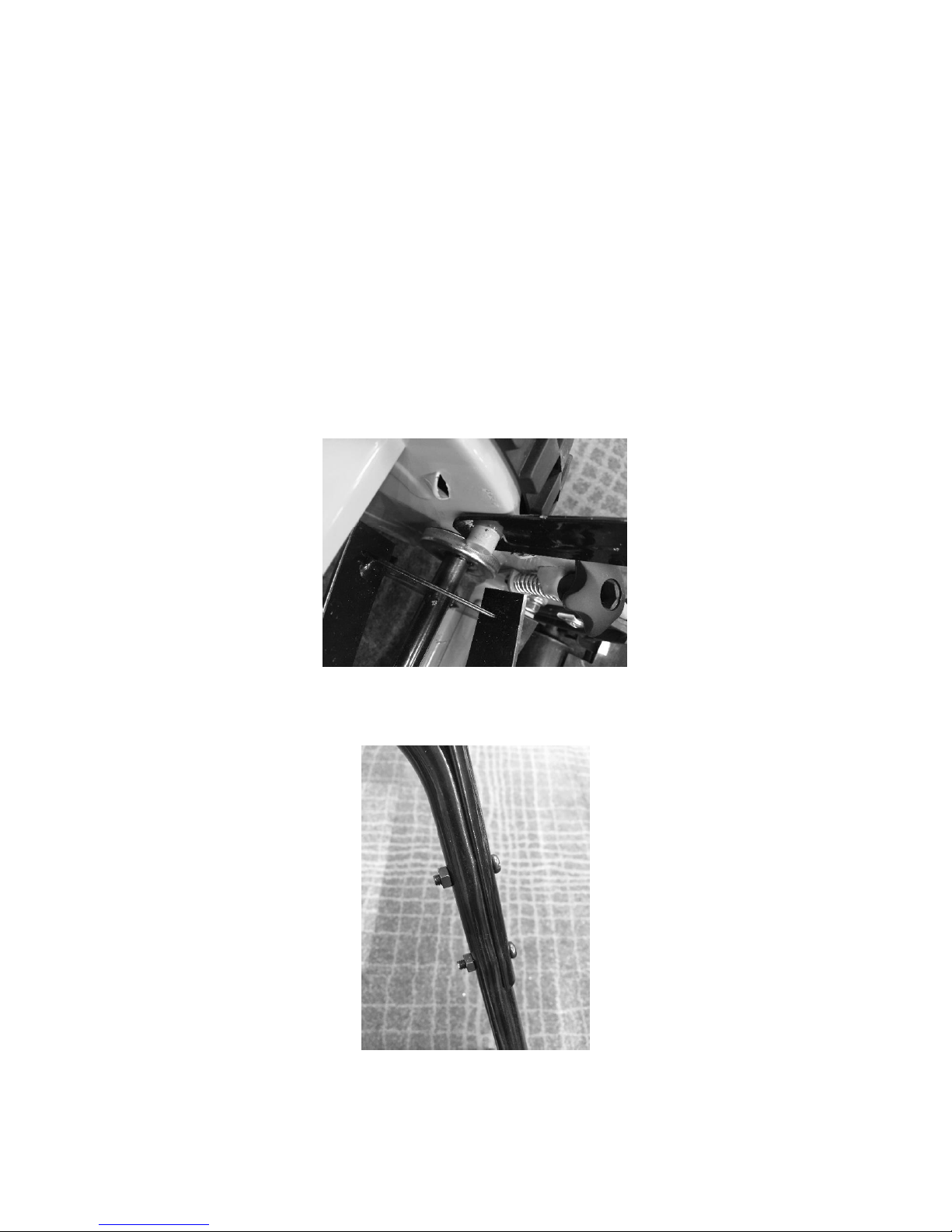

HANDLE ASSEMBLY
Attach the lower handle to the machine body by sliding the two holes (one on each side) over the
two pegs (one on each side) of the lawnmower body. You will have to squeeze the handle quite
firmly, to place over the two prongs.
Align the two holes on each of the middle handles with those on the lower handle. Secure with the
four longer screws and nuts provided.
ASSEMBLY
remaining two screws and nuts provided.

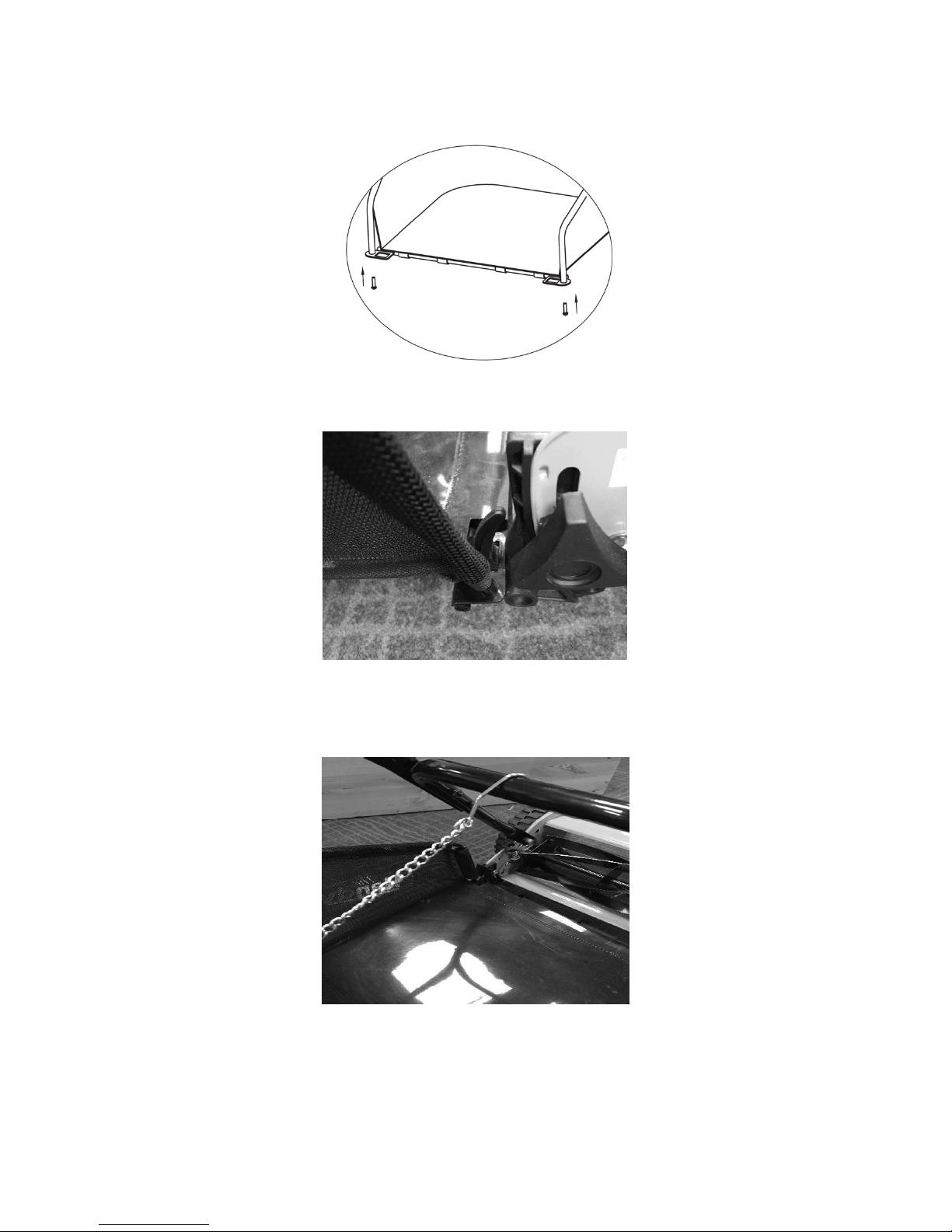

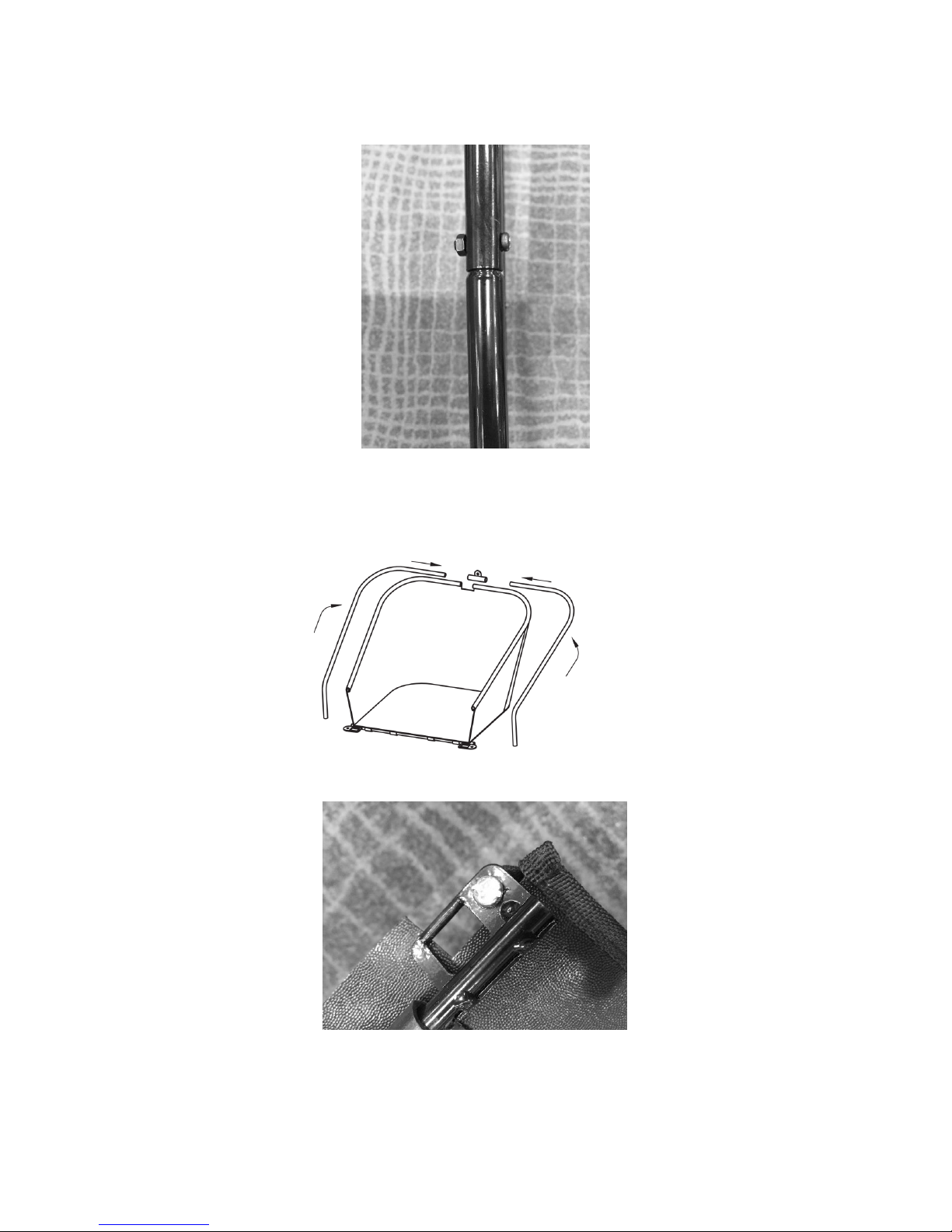

GRASSBOX ASSEMBLY
Thread the metal tubes through the seam of the mesh fabric and join together with the connector.
Secure the end of the tubes with the two small screws supplied, through the holes of the collector.
Secure the upper handle over the two middle handles, until the holes are aligned. Secure with the
Attach the grassbox to the lawnmower body by sliding the holes on the front of the bag over the
hooks at the front of the cutting height roller.
Attach the hook at the end of the support chain to the middle bar of the lower handle, to raise the
grassbox from the ground. If the grassbox appears to sit too low, loop the chain around the middle
bar an hook into a link of the chain.
Attach the metal hook into the connector hole.
ADJUSTMENTS
This operation needs to be done whilst carefully turning the cylinder blade.
DANGER
Always wear gloves when adjusting or using the lawnmower.

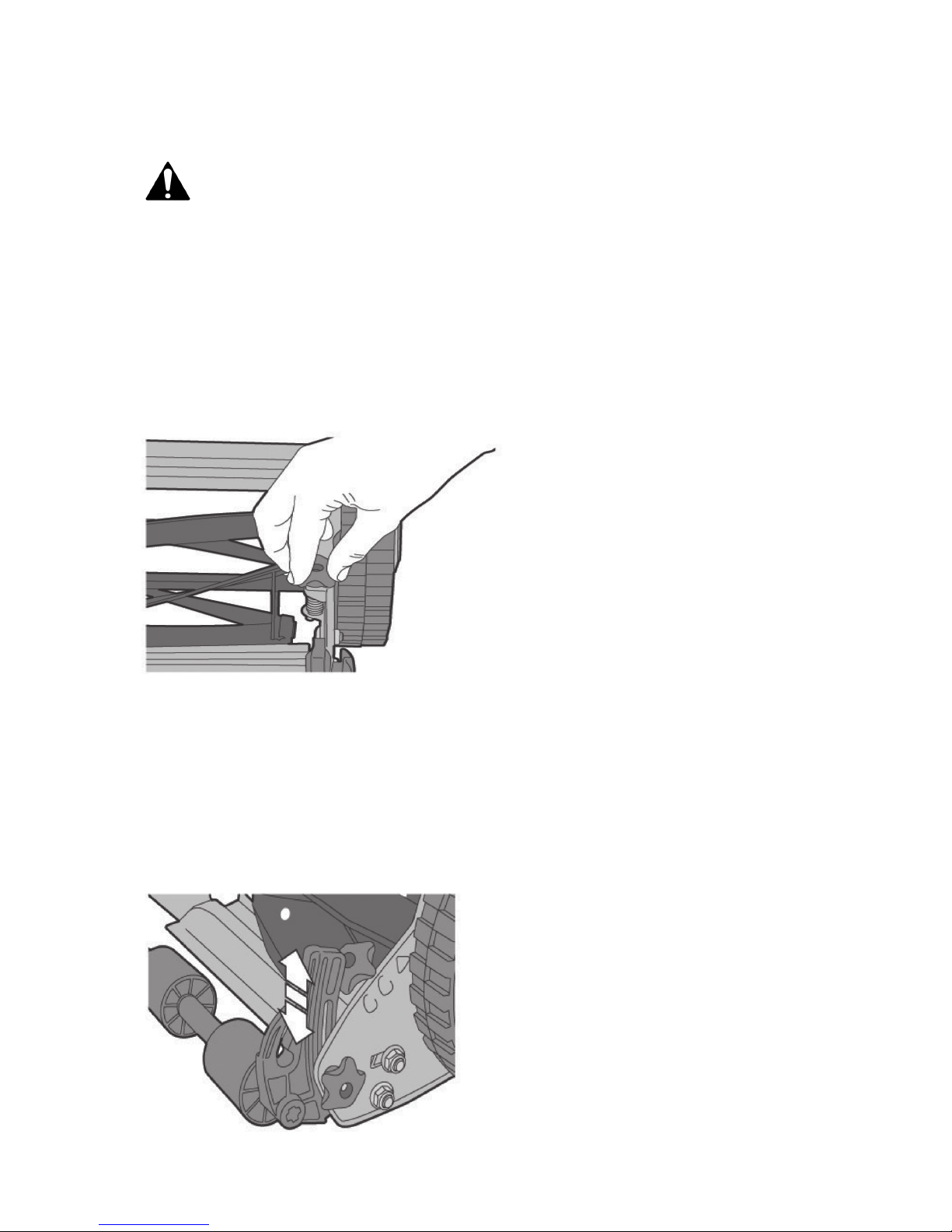

ADJUSTING THE CUTTING CYLINDER
The fixed bottom blade must be set correctly in order for the lawnmower to work efficiently.
With a spanner, slacken off the two top nuts on each side of the side casing. Carefully tighten the
two adjusting knobs on top of the cylinder, by turning them slowly in a clockwise direction.
When the cylinder blade just makes contact with the bottom blade, turn the knobs slightly in an anti-
clockwise direction until the cylinder blade turns without touching the bottom blade. Tighten up the
nuts on the side casing.
To check the machine is cutting correctly, place a piece of good quality paper, along the whole
length of the fixed bottom blade (from underneath the lawnmower), with each of the five cutting
blades. This should provide evidence of a good even cut.
ADJUSTING THE CUTTING HEIGHT
Adjust the height of cut by loosening the two knobs on the side of the cutting height roller and
moving the roller up and down to the required height.
Remember to adjust both sides of the roller equally, the lawnmower will not provide an even finish,
if adjusted incorrectly.
