Ultra Tugger®Adapter Package

for use with Greenlee 640 and 6001

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Description

The Greenlee 640 Tugger®and 6001 Super Tugger®that

you already own can now attach to the same wheeled

carriage that the Ultra Tugger®cable puller uses.

The Ultra Tugger®640/6001 Adapter Package comes

pre-assembled. All you need to do is add your cable

puller and you’ll be pulling cable faster and easier, with

no more anchors to set or chains to mount.

Safety

Safety is essential in the use and maintenance of

Greenlee tools and equipment. This instruction manual

and any markings on the tool provide information for

avoiding hazards and unsafe practices related to the

use of this tool. Observe all of the safety information

provided.

Purpose of this Manual

This manual is intended to familiarize all personnel with

the safe operation and maintenance procedures for the

following Greenlee tool:

11147 Ultra Tugger®Adapter Package

Replacement manuals are available upon request at no

charge at www.greenlee.com.

All specications are nominal and may change as design

improvements occur. Greenlee Textron Inc. shall not be liable for

damages resulting from misapplication or misuse of its products.

Tugger, Super Tugger and Ultra Tugger are registered trademarks and

VersiBoom is a trademark of Textron Innovations Inc.

KEEP THIS MANUAL

Table of Contents

Description .................................................................... 2

Safety ............................................................................ 2

Purpose of this Manual ................................................. 2

Important Safety Information ..................................... 3-4

Identication—Boom Mount Adapter............................ 5

Specications................................................................ 5

Identication—VersiBoom™ Components.................... 6

Setup

Wheeled Carriage ...................................................... 7

Mounting Components......................................... 8-10

Typical Setups ........................................................ 11-12

Illustration and Parts List—

Boom Mount Adapter.................................................. 13

Accessories

Nose Unit ................................................................. 14

Elbow Unit ............................................................... 15

Couplers .................................................................. 16

Boom Tubes............................................................. 16

T-Stand .................................................................... 17

Wheeled Carriage .................................................... 17

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

IMPORTANT SAFETY INFORMATION

SAFETY

ALERT

SYMBOL

This symbol is used to call your attention to hazards

or unsafe practices which could result in an injury or

property damage. The signal word, dened below,

indicates the severity of the hazard. The message

after the signal word provides information for pre-

venting or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result

in severe injury or death.

Hazards which, if not avoided, COULD result in

severe injury or death.

Hazards or unsafe practices which, if not avoided,

MAY result in injury or property damage.

Read and understand all of the

instructions and safety information

in this manual and your cable puller

manual, before operating or servicing

this tool.

Failure to observe this warning could

result in severe injury or death.

Rope, cable, or a connecting device can break under

tension, causing the rope to whip violently.

• Do not allow any unnecessary personnel to remain

in the area during the pull.

• Do not allow any personnel to stand in line with the

pulling rope.

Failure to observe these warnings could result in

severe injury or death.

Tangle Hazard:

Do not wrap rope around hands,

arms, waist or other body parts.

Do not stand in spent coils or tailed

rope. Hold rope so that it may be

released quickly.

Failure to observe this warning could

result in severe injury or death.

Shear Point:

Do not put ngers through holes in

elbow unit. Rotating parts could cut

off ngers.

Failure to observe this warning could

result in severe injury or death.

When using the wheeled carriage to transport the

VersiBoom™:

• Keep personnel out of the path of transport.

• Evaluate the terrain of over which the carriage is to

move. If in doubt, obtain additional help and move

the carriage slowly.

• Do not transport over inclines of more than 15°.

• Do not transport the carriage with boom tubes

longer than the supplied 3' and 4' tubes.

Failure to observe this warning, could result in severe

injury or death.

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Flying Debris Hazard:

Wear eye protection when using this

tool.

Failure to wear eye protection could

result in severe eye injury from ying

debris.

Falling Object Hazard:

Do not stand directly under a vertical

pull. Cable could fall suddenly from

the conduit.

Failure to observe this warning could

result in severe injury or death.

For use only with Greenlee Model 640 and 6001 cable

pullers.

Use with other pullers may result in insecure mount-

ing and improper rope alignment.

Failure to observe this warning could result in severe

injury or death.

Inspect and verify the maximum

load-bearing capacity or maximum

strength of all structural supports,

pulling system components and

anchoring systems before setting

up the puller. Any component that

cannot withstand the maximum

cable-pulling forces could break and

strike nearby personnel with sufcient

force to cause severe injury

or death.

Note: Keep all decals clean and legible, and replace

when necessary.

IMPORTANT SAFETY INFORMATION

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Identiﬁcation—Boom Mount Adapter

50111450

Speciﬁcations

Weight......................................................................................................20.4 kg (45 lb)

Length........................................................................................................94 cm (37 in)

Width ...........................................................................................................18 cm (7 in)

Height ........................................................................................................30 cm (12 in)

Use with: Greenlee 640 and 6001 Cable Pullers only

Load Rating ....................................................................................................... 6500 lb

Boom Mount Adapter

1. Frame

2. Shaft

3. Roll Pin

4. Hitch Pin Clip

5. Hex Screw

6. Wheel Unit

7. Bushing

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

1. Elbow Unit (optional)

2. Sight Hole

3. 4' Boom Tube

4. Sight Hole

5. Boom Mount Adapter

6. T-Stand (optional)

7. Wheeled Carriage

Identiﬁcation—VersiBoom

VersiBoom Components

8. Slip-in Coupler

9. Nose Unit

10. Mounting Pins

11. Hitch Pin Clips

12. 3' Boom Tube (optional)

13. Long Pin

14. Tray

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Setup

Wheeled Carriage

Requires: Adequate clearance.

See “Typical Setups.”

1. Mount the boom mount to the wheeled carriage.

Align the boom mount holes with the top holes

in the wheeled carriage, as illustrated. Install a

pin through the top hole in the boom mount and

wheeled carriage. Secure the pin with a hitch pin

clip. Place a second pin in the lower hole.

2. Set puller on boom mount frame so that the puller

mounting feet sit inside the frame opening, between

the two side rails. Slide the puller up against the

stop and chain it down securely.

For use only with Greenlee Model 640 and 6001 cable

pullers.

Use with other pullers may result in insecure mount-

ing and improper rope alignment.

Failure to observe this warning could result in severe

injury or death.

1st pin

2nd pin

Puller up

against stop

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Setup (cont’d)

Mounting Components

Boom with Nose Unit

• Use only straight 3" diameter rigid steel conduit or

Schedule 40 steel pipe for the boom tubes.

• Do not use boom tubes longer than 3 meters (10').

Longer booms may bend or break.

Failure to observe this warning could result in severe

injury or death.

STRAIGHT EDGE Set up the elbow unit as shown.

Improper setup will cause the elbow

unit to collapse.

Failure to observe this warning could

result in severe injury or death.

Use these boom tubes only:

• boom tubes supplied with the VersiBoom

• 3" rigid steel conduit (3 meters or 10 feet maximum)

• 3" schedule 40 pipe (3 meters or 10 feet maximum)

1. Slide the boom tube into the boom mount until the

tube bottoms out. Sight the tube through the sight

hole to be sure the tube is fully inserted. Tighten the

set screw.

2. Slide the nose unit onto the tube until the tube

bottoms out. Sight the tube through the sight hole

to be sure the tube is fully inserted. Tighten the set

screw.

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Setup (cont’d)

Mounting Components (cont’d)

Booms with Elbow Unit and Nose Unit

• Use only straight 3" diameter rigid steel conduit or

Schedule 40 steel pipe for the boom tubes.

• Do not use boom tubes longer than 3 meters (10').

Longer booms may bend or break.

Failure to observe this warning could result in severe

injury or death.

STRAIGHT EDGE Set up the elbow unit as shown.

Improper setup will cause the elbow

unit to collapse.

Failure to observe this warning could

result in severe injury or death.

Use these boom tubes only:

• boom tubes supplied with the VersiBoom

• 3" rigid steel conduit (3 meters or 10 feet maximum)

• 3" schedule 40 pipe (3 meters or 10 feet maximum)

1. Slide the boom tube into the boom mount until the

tube bottoms out. Sight the tube through the sight

hole to be sure the tube is fully inserted. Tighten the

set screw.

2. Slide the elbow unit onto the tube until the tube

bottoms out. Sight the tube through the sight hole

to be sure the tube is fully inserted. Tighten the set

screw.

3. Adjust the elbow to an appropriate angle and lock

it in place with a pin. Secure the pin with a hitch

pin clip.

4. Slide the boom tube into the elbow unit until the

tube bottoms out. Sight the tube through the sight

hole to be sure the tube is fully inserted. Tighten the

set screw.

5. Slide the nose unit onto the tube until the tube

bottoms out. Sight the tube through the sight hole

to be sure the tube is fully inserted. Tighten the set

screw.

Sight Hole

11147 Ultra Tugger®Adapter Package

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Setup (cont’d)

Mounting Components (cont’d)

Slip-in Coupler

Requires: One pin to connect to Nose Unit

1. Select the coupler that best ts the conduit.

2. Slide the coupler into the conduit until the coupler

seats on the end of the conduit.

Note: If the coupler does not seat on the conduit,

see “Straddling the Conduit with a Slip-In Coupler.”

Pull

Conduit

Coupler

Coupler must seat

on the Conduit here

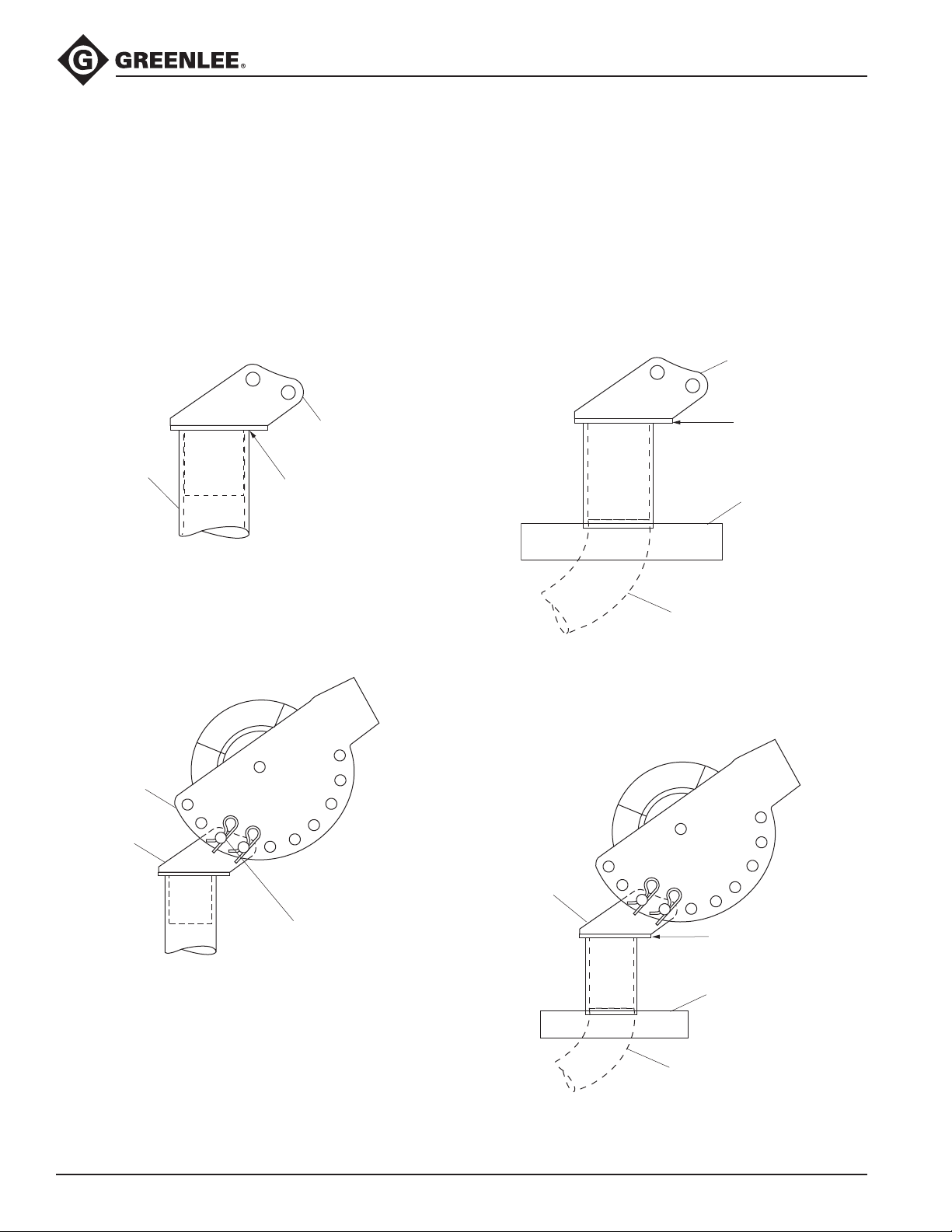

3. Slide the nose unit over the coupler. Align any set of

holes and insert one pin. Secure the pin with a hitch

pin clip.

Note: If possible, add a second pin and hitch pin

clip.

Nose Unit

Coupler

Pin secured with

Hitch Pin Clip

Straddling the Conduit with Slip-in Coupler

Requires: Two pins to connect to Nose Unit

1. Select a coupler at least 25 mm (1") larger than the

conduit.

2. Place the coupler over the conduit.

Note: Do not use this method if the coupler does not

seat on a support structure that can support 35.6 kN

(8000 lb) of force.

Pull

Conduit

Coupler

Conduit must

not protrude

past here

Support

Structure

3. Slide the nose unit over the coupler. Align any two

sets of holes and insert two pins. Secure the pins

with hitch pin clips.

Pull Conduit

Coupler

Conduit must not

protrude past here

Support

Structure

Table of contents

Other Textron Lawn Mower manuals

Textron

Textron JACOBSEN PGM 22 User manual

Textron

Textron Jacobsen R311T-T4I Guide

Textron

Textron Ransomes LH Series Guide

Textron

Textron Jacobsen 744908A User manual

Textron

Textron Bob-Cat User manual

Textron

Textron RANSOMES G-Plex II User manual

Textron

Textron Jacobsen G-Plex III Guide

Textron

Textron RANSOMES Highway 2130 User manual

Textron

Textron Jacobsen HR-5111 User manual

Textron

Textron Ransomes LH Series Guide

Textron

Textron LF-128 Guide

Textron

Textron Jacobsen LF 4675 User manual

Textron

Textron JACOBSEN R-311 Guide

Textron

Textron JACOBSEN PGM Series User manual

Textron

Textron RANSOMES 933304J User manual

Textron

Textron Bunton EC Hydro Midsize 930024 User manual

Textron

Textron JACOBSEN JZT 1250 CUTTERDECKS User manual

Textron

Textron Jacobsen AR-5 Guide

Textron

Textron JACOBSEN MC400 Setup guide

Textron

Textron GREENSPLEX II 898865 User manual

Textron

Textron JACOBSEN RC466 Setup guide

Textron

Textron Jacobsen Fairway 305 Series Guide

Textron

Textron Ransomes Jacobsen Super Certes 51 Guide

Textron

Textron JACOBSEN Eclipse 2 User manual

Popular Lawn Mower manuals by other brands

RHINO

RHINO 1958 parts manual

Wolf Garten

Wolf Garten Compact plus 40 B instruction manual

Cub Cadet

Cub Cadet LTX 1045 brochure

Craftsman

Craftsman 917.378461 owner's manual

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Operator's manual

Challenge

Challenge CH18V2 Original manual

TALEN TOOLS

TALEN TOOLS AVR HGM30 manual

DEWEZE

DEWEZE ATM-725 Operation and service manual

Weed Eater

Weed Eater 180083 owner's manual

Husqvarna

Husqvarna Poulan Pro PP185A42 Operator's manual

Better Outdoor Products

Better Outdoor Products Quick Series Operator's manual

Cub Cadet

Cub Cadet 23HP Z-Force 60 Operator's and service manual

MTD

MTD 795, 792, 791, 790 Operator's manual

Toro

Toro Groundsmaster 3505-D Service manual

Dennis

Dennis FT 610 instruction manual

AIRFORCE

AIRFORCE F-15 Gen 3 owner's manual

MTD

MTD 126-220-000 owner's guide

Toro

Toro 74806 Operator's manual
