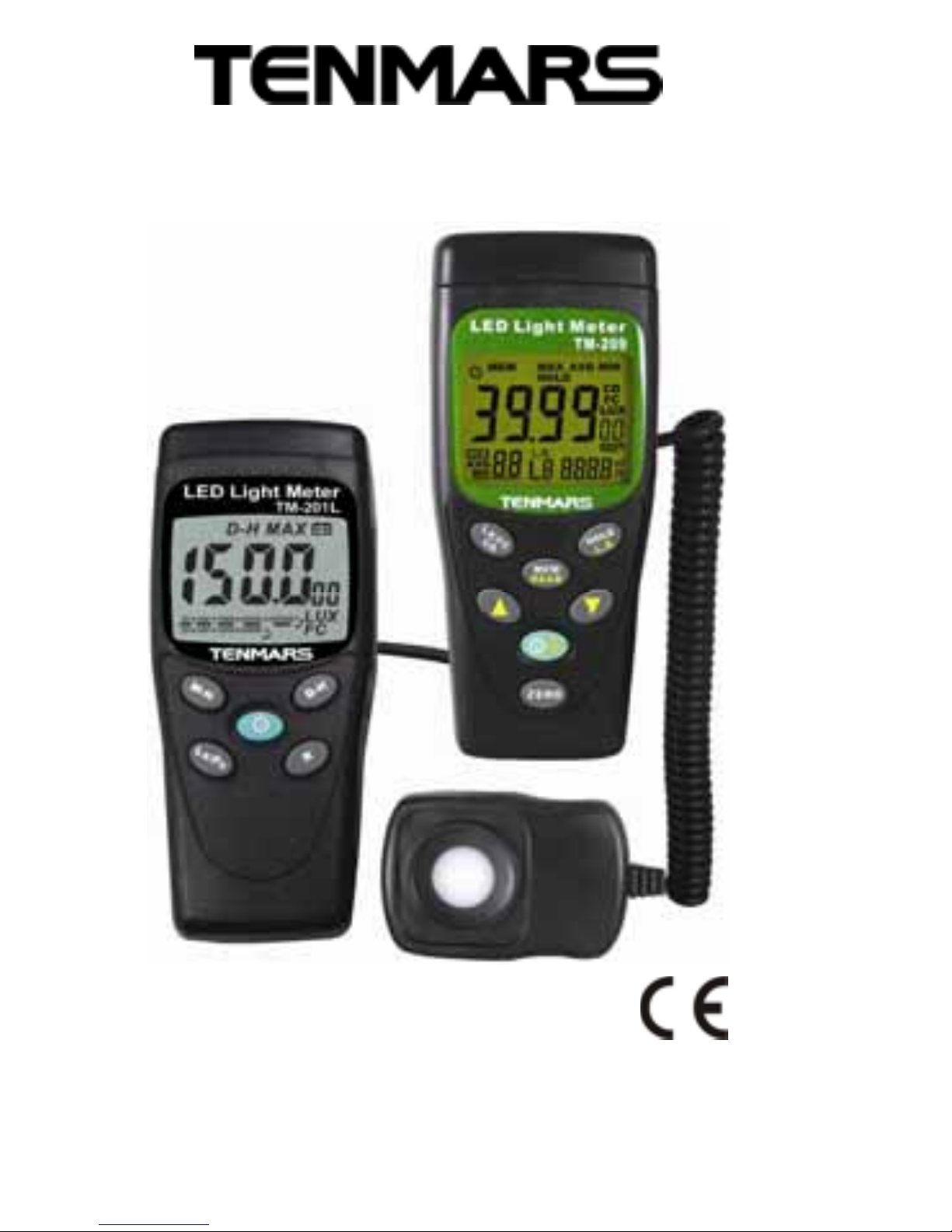

Tenmars TM-201L User manual
LUX/FC LED Light Meter
TM-201L / TM-209
User’s manual
HB2TM2090000
CONTENTS
1.Description.................................................... 1
2.Safety Precaution ......................................... 1
3.Preface ......................................................... 2
4.features......................................................... 3
5.Specifications................................................ 4
6.Operation ...................................................... 5
7.Luminous intensity measurement (TM-209)........... 8
8.Instrument Description of TM-201L............... 9
9.Instrument Description of TM-209............... 10
10.Attention...................................................... 12
11.Recommended Levels of Illumination ......... 13
12.Battery Replacement .................................. 15
13.End of life.................................................... 15
TM-201L/TM-209
EN-1
1. Description
Measures light from visible luminaries equipped with
white light LED, fluorescent, metal halide, high-pressure
sodium and incandescent sources.
2. Safety Precaution
CAUTION
Take extreme care for the following
conditions while measuring
zDo not operate the meter under the environment
with explosive gas (material), combustible gas
(material) steam or filled with dust.
zIn order to avoid reading incorrect data, please
replace the battery immediately when the symbol
“” appears on the LCD.
zIn order to avoid the damage caused by
contamination or static electricity, do not touch the
circuit board before you take any adequate action.
zOperating Environment: Indoors use. This
instrument has been designed for being used in an
environment of pollution degree 2.
zOperation Altitude: Up to 2000M.
zOperating Temperature & Humidity: 5 ~℃40 ,℃
0%~ 80%RH.
zStorage Temperature & Humidity: -10 ~℃60 ,℃
0%~ 70%RH.
zEMC: EN61326-1(2006), IEC 61000-4-2(2008, IEC
61000-4-3(2006) + (2007).
TM-201L/TM-209
EN-2
3. Preface
The flux of light received in a unit area of a certain side
being show is popularly known as illumination. In both
United Kingdom and America its unit is known as
footcandles light, but in Europe it is known as meter
candlelight.
One foot-candles light is the illumination of light that
falls on one side that lies in a distance one foot away
from a one foot-candlelight and exactly intersecting the
light. Its abbreviated form is written as 1 Fc=1 Lm/ft,
similarly, one-meter candlelight is the illumination of
light that falls on a side that lies in a distance one meter
away from a one meter candlelight and exactly
intersects the light. It is also called Lux i,e. the flux of
light being received in each sq. meter is called the
illumination of one lumen.
1 FC=10.764 LUX, 1 LUX=0.09290 FC,
therefore,Nbr. of foot (meter) candlelight =
Nbr. of Lumen
──────────────
Area(sq. foot or sq. meter)
Nbr. of Lumen=Nbr. of foot (or meter)x area
TM-201L/TM-209
EN-3
4. Features
zOverload Indication: LCD will show “OL” in the left
highest position.
zLow battery Indication” .
zSampling Rate: 2.5 times per second for digital
display.
zSpectral response close to CIE luminous spectral
efficiency.
zCosine Angular corrected.
zAccording to JIS C 1609:1993 and CNS 5119
general A class Specifications.
zMeasuring lights source: LED white light and all
visible light.
zMeasuring intensities of illumination in Lux or
footcandles.
zMany applications include: Warehouses, factories,
office buildings, restaurants, schools, library,
hospitals, photographic, many video, parking
garages, museums, art galleries, stadiums, building
security.
zData hold.
zMaximum hold.(TM-201L)
zMaximum/Average/Minimum Hold.(TM-209)
zZero adjustment.
zAuto power off and disable function.(TM-209)
zAuto ranging.(TM-209)
TM-201L/TM-209
EN-4
5. Specifications
Display of
TM-201L
2000 count, maximum display 1999
Display of
TM-209
4000 count, maximum display 3999
Sensor Silicon photodiode and filter
Measuring
Range of
TM-201L
200,2000, 20000,200000 Lux
20,200,2000,20000 Footcandles
Measuring
Range of
TM-209
40,400,4000, 40000,400000 Lux
40,400,4000,40000 Footcandles
Accuracy ±3% (Calibrated to standard
incandescent lamp 2856 K∘and
corrected LED day while light
spectrum)
8% other visible light source(TM-201L)
6% other visible light source(TM-209)
Angle deviation
from cosine
characteristics
30 ○±2%
60 ○±6%
80 ○±25%
Power Supply 9V NEDA 1604, IEC 6F22, JIS 006P
battery x 1pc
Battery life About 200 hours
Dimensions Meter: 38 (H) x 55(W) x 130(L) mm
1.5(H)x 2.2(W) x 5.1(L) inch
Sensor: 25(H) x 55(W) x 80(L) mm
9.8H)x 2.2(W) x 3.1(L) inch
Weight 250 g (include battery)
Accessories User’s manual, carrying case, 9V
battery
Length of wring for light sensor: Approx. 1.5M
TM-201L/TM-209
EN-5
6. Operation
1. Press the “ ” button to turn power on or off.
2. Remove sensor cap and place the sensor
perpendicular to the light.
3. Select LUX or FC.
4. When “OL” is shown at LCD, press the
button for useable reading. (TM-201L).
5. If you want to keep the reading value on the LCD
permanently after testing, press the “ ” button.
6. When done testing, replace the sensor cover to
protect the filter and sensor.
zData Hold
Freezes the reading present on the LCD at the
moment the button is pressed.
zR(TM-201L)
Press the manual ranging button for usable
reading.
zZERO (TM-201L)
Adjust 0 ADJ to enable LCD to indicate 000.
zZERO(TM-209)
Press the “ ” button for the zero adjustment if
any digits are appearing, when the light sensor
cap is not attached “CAP” is indicated. Make sure
that it is attached.
TM-201L/TM-209
EN-6
zM-H (TM-201L)
Press button to Lockup data maximal value
of measure data.
zMAX/AVG/MIN(TM-209)
Press button simultaneously Lockup data
maximum and average and minimum value of
measure data. Press the “ ”button more 1
seconds to disable this feature.
zLX/FC(TM-201L)
Illuminance Lux or Foot candle measuring select.
zLX/FC/CD(TM-209)
Illuminance Lux or Foot candle and luminous
intensity measuring select.
zL.S.(TM-209)
Light source select 1 ~ 9 features, each light
source can set correction parameters, default as
1.000. Calibration parameters can be set to 0.001
to 1.999, when the pressure L.S. KEY more than
1 second, LCD L.S. below the LN flashing,
pressure or change L1 to L9, pressure
LS KEY under 1 second right corner flashing
1.000, pressure or , you can change the
calibration parameters as to 0.995, the display
changes immediately, set 350.0x0.996 = 348.6,
Setup complete press “ ”> 1 second.
TM-201L/TM-209
EN-7
zL.S. (light source) factor:
L1ÎLEDwhitedaylight:0.99.
L2~L9ÎDefaultStandardlightsourceA:1.00.
zDisable Auto Power Off (TM-209)
When the power on, press the button more
than 1 second, to cancel or recovery automatically
shutdown." "This symbol representing
automatic shutdown feature is enabled.
zMEM(MOMORY) (TM-209)
Operate and press button <one second, store
one data, LCD displayed M and NO. 01~NO.99.
When display AVG in LCD right, operate
button at this moment, LCD display AVG M and
NO.01 ~ NO.99, present moment stores AVG value.
zREAD (READ MEMORY)(TM-209)
Pressure button > second display stored
value, LCD display M and NO. 01 ~ NO.99,
pressure or ,NO. 1 ÎNO. 2 until NO. 99,
as at that time, store data for AVG, will display in
the lower-left corner of the AVG. Press the
button more 1 second to disable this feature.
zClear memory (TM-209)
When power off, press and button, then
LCD display “CLr” which means the memorized
data is erased.
