Tenmars TM-288 User manual
HEAT STRESS WBGT Meter
TM-288
User’s Manual
HB2TM2880002
Contents
1 Introduction: ...........................................................1
2 Accessories:...........................................................1
3 Safety Precaution:..................................................1
4 Instrument Description: .........................................2
4.1 Feature and function..................................2
4.2 LCD display indication...............................3
4.3 Instructions ................................................4
4.3.1. Application for the wearable type....4
4.3.2. Application for the hanging type .....5
4.3.3. Application for the tripod .................6
5 Operation:...............................................................6
5.1 Power on/off ...............................................6
5.2 Setting OUT/IN and alarm ON/OFF mode..7
5.3 Thermal hazard prevention standards......7
5.4 Calibration mode........................................8
5.5 Reset to factory settings............................8
5.6 Switching℃/℉............................................8
5.7 Alarm mode: loudness/quiet/Off ...............8
5.8 Switching TEMP/TG ...................................9
6 General Specifications:..........................................9
7 Electrical Specification.........................................10
8 Maintenance or Repair .........................................11
9 Battery Replacement............................................12
10 Product Disposal:..............................................12
TM-288
1
1 Introduction:
Thanks for purchasing the Compact Heatstroke Index
Meter.
The chance of heatstroke increases dramatically in the
moist heat environment. This product, measuring in
WBGT, provides real-time alarm immediately so as to
prevent heatstroke in such the environment.
2 Accessories:
1
Meter
1
Carabiner
1
User’s Manual
1
K
ey
ring
1 CR2032 3V battery 1 Silicone elbow for
anti
-
skid
1 Fastener for armband
with
screw
s
1 Screw for silicone
elbow
1
F
lexible armband
3 Safety Precaution:
Caution! Please refer to this manual.
Improper use may damage the meter
and its components.
Complies with European Directive.
Operating altitude: up to 2000M.
Operating environment: Indoor use; Pollution degree 2.
Clean with soft cloth when dirty, such as glasses cloth. Do not
clean with chemicals and other solvents.
EMC: EN61326-1:CISPR 11:Group 1, Class B
Class B – Equipment for use in all establishments other than
domestic.
Group 1 – RF energy generated is needed for internal
functioning.
TM-288
2
4 Instrument Description:
4.1 Feature and function
1. Power/setting button 5. Temperature/humidity
sensor
2.
TG switch
/
U
p
button
6.
TG
probe
3. Alarm switch/Down
button
7. Tripod nut
4.
LCD display
8.
B
attery cover
TM-288
3
4.2 LCD display indication
1. Outdoor Index
2. Indoor Index
3. Alarm
4. Air temp. (TEMP)/
black
-
globe temp
(TG)
5. Heat Index
6.
Humidity
indicator
7.
Low battery indicator
8.
Heat
hazard level
TM-288
4
4.3 Instructions
Three ways to use: 1. wearable, 2. hanging, 3. tripod.

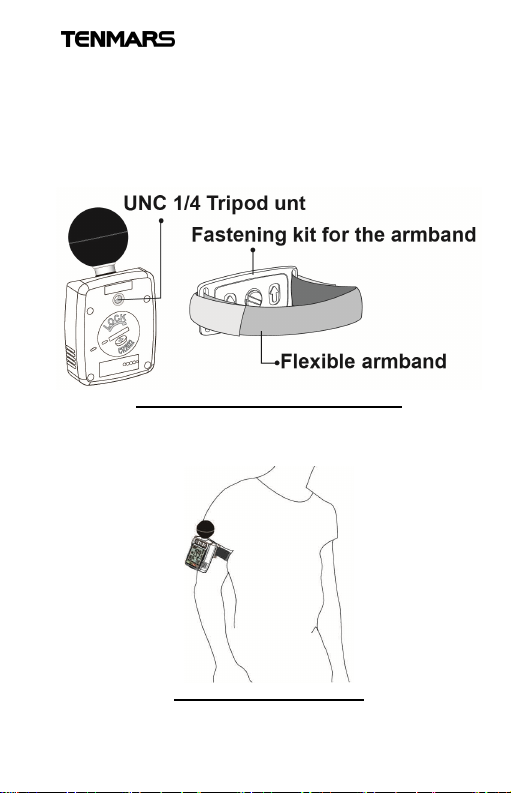

4.3.1. Application for the wearable type
Apply the kit as shown in Fig. 1, for the outdoor sportors to
wear them on their arms as shown in Fig. 2.
Fig. 1 Application for Wearable kits
Fig. 2 Wearing on an arm
TM-288
5
4.3.2. Application for the hanging type
Attach a silicone elbow on the meter with fastening a
screw into the nut on the back, as shown in (Fig. 3).
As walking, you may hang it on your waist (Fig. 4)
Alternatively, hang it on the backpack (Fig. 5), or hang it
on the baby stroller's handle (Fig. 6)
Fig. 3 Hanging kit Fig. 4 Hanging on the
waist
Fig. 5 Hanging on the
backpack
Fig. 6 Hanging on the
baby stroller
TM-288
6
4.3.3. Application for the tripod
The tripod mount on the back of the meter is available to any
type of tripod (Fig. 6). A bike can also be mounted by a
clamp (Fig. 7) for the outdoor measurement of the heat
index.
Fig. 7 Tripod application Fig. 8 Bike application
5 Operation:
5.1 Power on/off
Press to turn the power on or off
TM-288
7
5.2 Setting OUT/IN and alarm ON/OFF mode
Press and hold + for 2 seconds and enter the
SET1.
SET1: Press or to set OUT/IN (default is OUT).
Press to enter set2
SET2: The user sets the alarm to turn on or off, and the user
sets it at any value to issue an alarm. Press or to
turn Alarm on/off. The ON indicates Alarm User(Refer to 5.3)
while flashing ,Press to enter SET3.( SET3 setting
is skipped if selecting Alarm OFF).
SET3: Press + to set theAlarm value.
Press again to exit the setting.
※PS: If the setting period exceeds 15 seconds, it will
return to measurement mode
5.3 Thermal hazard prevention standards
Heatstroke
caution level
Temperature
baseline Alarm
Default Alarm User
Flashing
Caution:
>21~25°C
mute
As
exceeding
the setting
value,
beep for
15
seconds
Extreme
caution
>25~28°C
Beep for 4
seconds
Danger
>28°C~31°C
Beep for
15
seconds
Extreme
Danger
>31°C
Beep for 3
second and
pause for 2
seconds,
repeat until
15 seconds
