Sylvac PS15 User manual
MEASURING BENCH
PS15/16/17
Benefiting from long experience acquired through contact
with our demanding Swiss watchmaking customers, Sylvac
has developed a range of measuring benches enabling
most small external and internal dimensions to be checked
precisely and quickly.
As the miniaturisation of components nowadays affects all
industrial fields, Sylvac is in a position to provide a reliable
solution with these instruments for the most unlikely of
applications.
GENERAL CHARACTERISTICS :
• PS15 and PS17 measuring benches to be equip-
ped with a digital indicator or a measuring probe
• PS16 V2 measuring benches with integrated
display
• Powered by lithium battery type CR2477/CR2032
(PS16 V2)
• mm/inch conversion on all models
• Working temperature +5° to +40°C
I
254

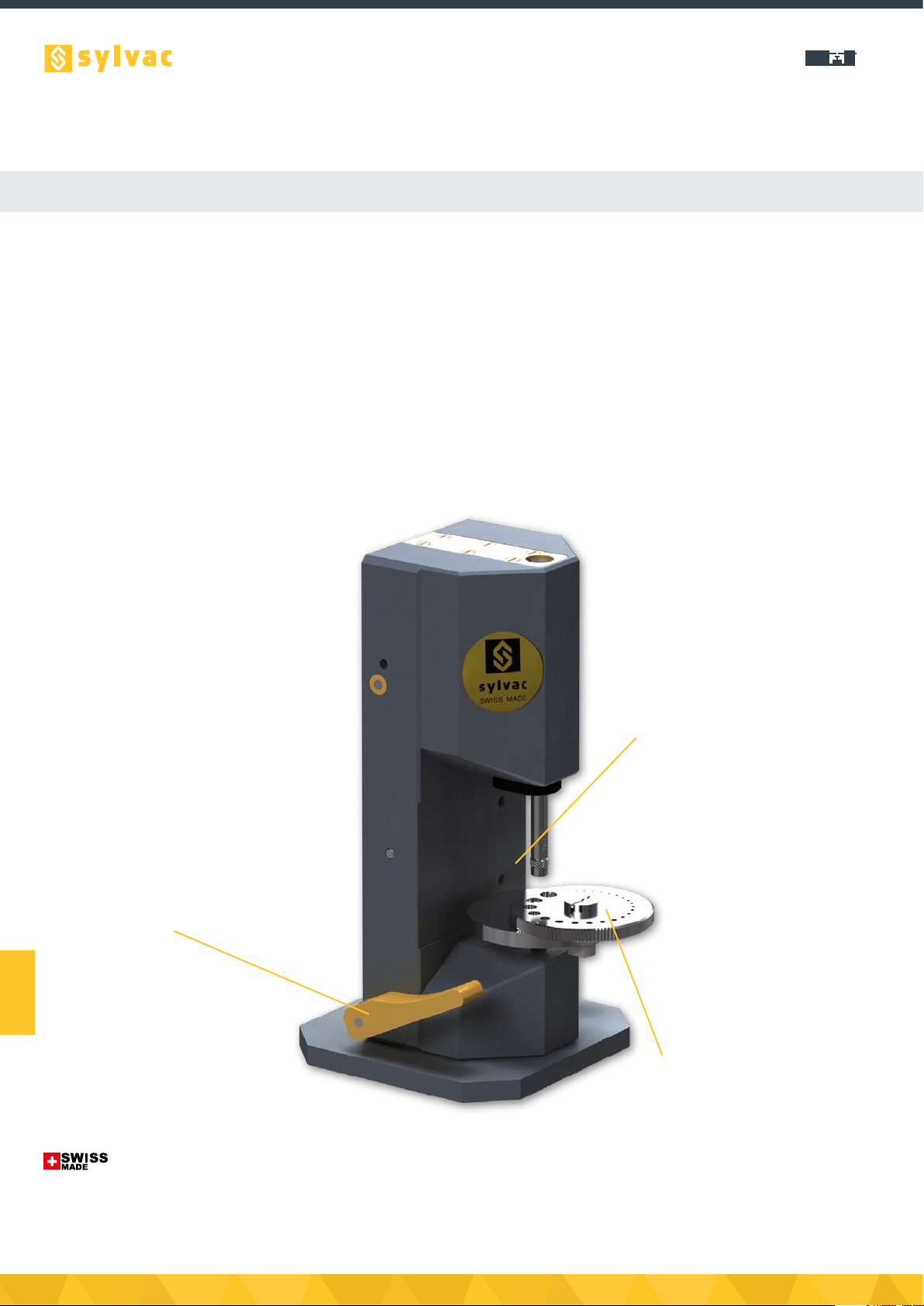

Bench table
DESCRIPTION
PS15
DESCRIPTION
Fixation table
Equipped with two
retraction levers (left
and right)
Standard anvils
Probe or digital indicator
fixation
• Horizontal precision bench for measuring small external dimensions
• Can be equipped with either a digital digital indicator or a Sylvac measuring probe.
• Robust cast iron construction
• 2 ergonomic levers for moving the movable axis with ball-bearing guide
• Compatible with Sylvac Ø 1.5 mm and Cary type anvils
• Supplied with hard metal measuring anvils Ø 1.5 mm
• Adjustable measuring force 0.3-1.0 N
• Measuring capacity 20 mm, measuring range 10 mm
• Wide choice of measuring anvils and support tables
808-1215
PS15BH
20
10
0.3 - 1.0
1.8
Horizontal
Ø 1.5 mm
•I
255
•
•
•
•
•
DIMENSIONAL DRAWINGS
Bench table PS15
TECHNICAL SPECIFICATIONS
STANDARD DELIVERY
Type
Max. Capacity C mm
Measuring range mm
Adjustable measuring force N
Max. error µm
Weight kg
Measuring direction
Anvils fixation
Cary Compatibility
Instrument according to technical specifications
Instruction manual
Measuring anvils Ø 1.5 mm (908-2175)
Allen anvils 2 and 2.5 mm
Dust cover
Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 - 3µm
I
256
Bench table
DESCRIPTION
PS15
Table 908-2172 (option)
Standard anvils
Retraction levers
• Measuring bench similar to the horizontal bench but prepared for vertical use, with support base and levers posi-
tioned to the left and right of the bench.
• This bench is generally equipped with either a flat round table 908-2165 or a rotary hole table 908-2172 with 25
bores Ø 0.2 to 5 mm for measuring shoulder heights. These tables are to be ordered separately
• Supplied with hard metal measuring anvils Ø 1.5 mm
808-1216 808-1218
PS15BV PS15BV +
10 10
0.3 - 1.0 0.3 - 1.0
1.8 1.8
Vertical Vertical
M2.5 Ø 1.5 mm
• • I
257
•
•
•
•
•
DIMENSIONAL DRAWINGS
Bench table PS15
TECHNICAL SPECIFICATIONS
STANDARD DELIVERY
Type
Measuring scale mm
Adjustable measuring force N
Max. error µm
Weight kg
Measuring direction
Anvils fixation
Cary Compatibility
Instrument according to technical specifications
Instruction manual
Measuring anvils Ø 1.5 mm or Ø 5 mm (depending on model)
Allen anvils 2 and 2.5 mm
Dust cover
Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 - 3µm
N°
908-2170
•
908-2160
•
908-2161
•
908-2166
•
908-2172
•
908-2165
•
908-2162
•
N°
908-2198
•
908-2199
•
I
258
BV+
PS15BH
PS15BV /
BV+
PS15BH
PS15BV /
TABLES, PLATES AND LAPPING
Bench table PS15
ACCESSORIES
Supporting table adjustable in XYZ
Supporting table with fine adjustement XYZ
Supporting table with fine adjustement Z
Floating table
Rotating table with 25 bores
Plain table only
Cylindrical plate with 25 bores from 0.2 to 5 mm
ANVILS
Compatible anvils list at the end of this chapter.
Designation
Replacement lapping stone for 908-2199
Lapping device (3 stones and lapping liquid included)
Designation
Lapping device
• Device for lapping the anvils on the PS15 BH, PS16 V2 and PS17 measuring benches, enabling perfect parallelism
of the anvils for greater measuring accuracy.
• Set consisting of a movable element with linear guide and a motorised rotary drive system for the honing stone
• Delivered complete with 3 honing stones and a bottle of honing liquid.
N°
908-2170
•
908-2160
•
908-2161
•
908-2166
•
908-2172
•
908-2165
•
908-2162
•
I
259
APPLICATIONS
Measurement of small parts with PS15V+and
rotation 25 holes support
XYZ table with plate with fine adjustment.
Multi-functional measuring station
Special anvils
Table with plate Ø 3 mm and fine adjustment.
Indication of the height integrated.
Gear measuring anvils. On request
Bench table PS15
I
260
SMART
DESCRIPTION
Bench table PS16 V2
• Precision horizontal measuring bench for the measurement of external dimensions
• Robust cast iron construction
• New design with integrated Bluetooth®system
• Large display resolution 0.0001 mm (0.1 µm) with tolerance status indication by colour LEDs
• Three buttons, including the central button with selectable favourite function
• 2 ergonomic, position-adjustable levers for moving the movable axis with ball bearing guide
• The position of the levers can be used to adjust the backward movement of the mobile axis.
• Compatible with Sylvac Ø 1.5 mm and Cary type anvils
• Supplied with hard metal measuring anvils Ø 1.5 mm
• Adjustable measuring force 0.1-0.6 N
• Measuring range 25 and 50 mm
• Additional data outputs Power and Proximity
• Protection class IP67
Standard anvils
Integrated display
Fixation table
Release lever
Cable output mini-USB to USB
(926-6001)
Cable output Proximity to USB
(926-6721) or RS232 (926-6723)
808-1231 808-1232
25 50
1.5 2.0
0.2 0.2
0.1 0.1
0.1 - 0.6 1)
3.6 4.2
Bluetooth® wireless technology*/ RS232 / USB
Ø 1.5
•
232 287
66 97
I
261
•
•
•
•
•
•
•
•
SMARTDIMENSIONAL DRAWINGS
Bench table PS16 V2
External measurement
TECHNICAL SPECIFICATIONS
STANDARD DELIVERY
Max. Capacity C mm
Max. Error µm
Repeatability µm
Resolution µm
Measuring force (Adjustable) N
Weight kg
Output data
Anvils clamping dimension mm
Cary compatibility
A mm
B mm
Instrument according to technical specifications
Instruction manual
Lithium battery CR2477 included
Adapter for Lithium battery CR2032
Calibration certificate
Table not included
Anvils Ø 1.5mm (908-2175)
Dust cover
1) ± 20%
I
262
SMART
DESCRIPTION
Bench table PS16 V2 LV
Centering pins
Integrated display
Auto-centering pins
Quick setting of the table
Release lever
Adjustable measuring force
Cable output mini-USB to USB
(926-6001)
Cable output Proximity to USB
(926-6721) or RS232 (926-6723)
Internal measurement
External measurement
• Measuring bench similar to the PS16 V2 bench, but equipped with a table and anvils assembly allowing to mea-
sure large internal diameters up to 74 mm.
• Originally designed for measuring watch cases, it is also suitable for measuring rings and thin parts.
• 2-point measurement with positioning of the workpiece in the measuring axis by 2 movable centring pins
• Table height adjustable by up to 20 mm (a mini dial indicator can be mounted on the table to check its movement)
• Available in 3 versions :
- 808-1233: version for measuring internal diameters from 12 to 62 mm
- 808-1234: execution for measuring internal diameters 24 to 74 mm
- 808-1235: special version for measuring outside diameters 0 to 50 mm
• Supplied with 0.4 mm thick measuring anvils.
