SOLTEK 82440FX User manual

Notice to End Users

This UserÕs Guide & Technical Reference is for assisting system

manufacturers and end users in setting up and installing the

mainboard.

Every effort has been made to ensure that the information in this

manual is accurate. Soltek Computer Inc. is not responsible for

printing or clerical errors. Information in this document is subject to

change without notice and does not represent a commitment on the

part of Soltek Computer Inc.

No part of this manual may be reproduced, transmitted, translated

into any language in any form or by any means, electronic or

mechanical, including photocopying and recording, for any purpose

without the express written permission of Soltek Computer Inc.

Companies and products mentioned in this manual are for

identification purposes only. Product names appearing in this

manual may or may not be registered trademarks or copyrights of

their respective companies.

SOLTEK COMPUTER INC. PROVIDES THIS MANUAL ÒAS ISÓ

WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR

CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL SOLTEK COMPUTER

INC. BE LIABLE FOR ANY LOSS OR PROFITS, LOSS OF BUSINESS, LOSS

OF USE OR DATA, INTERRUPTION OF BUSINESS, OR FOR INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY

KIND, EVEN IF SOLTEK COMPUTER INC. HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

Edition: August 1996

Version: 1.0

SL-65A SERIAL

Contents

Chapter 1: Introduction --------------------------------------- 4

Features -------------------------------------------------------------------------5

Mainboard Layout with Default Settings ------------------------------6

Chapter 2: Hardware Setup---------------------------------- 7

CPU Type Configuration---------------------------------------------------8

CPU 2.5X Clock Setting ----------------------------------------------- 8

CPU 3.0X Clock Setting ----------------------------------------------- 9

System Memory Configuration------------------------------------------- 9

Cooling FAN Settings ----------------------------------------------------- 10

Installation-------------------------------------------------------------- 10

Removal ----------------------------------------------------------------- 11

Jumper Settings ------------------------------------------------------------- 11

Factory Fixed Jumpers----------------------------------------------- 11

JP1, JP2, JP3: Bus Ratio Select ------------------------------------- 12

JP18: Clear CMOS Data--------------------------------------------- 13

JP22: CRT Type Select----------------------------------------------- 13

JP9, JP10: External Bus Frequency Select----------------------- 14

Connectors ------------------------------------------------------------------- 15

KB1: Keyboard Connector ----------------------------------------- 15

MS1: PS/2 Mouse Connector ------------------------------------- 15

PRT1: Parallel Port--------------------------------------------------- 16

COM1 /COM2: Serial Port Connectors ------------------------ 16

Contents 3

FDC: Floppy Drive Connector ------------------------------------ 17

IDE1/IDE2: Primary/Secondary IDE Connectors----------- 17

P3: Power Connector------------------------------------------------ 18

JC1: Speaker Connector -------------------------------------------- 18

JC2: Reset Switch ----------------------------------------------------- 18

JC3: Keylock Switch ------------------------------------------------- 18

JC4: CASE Display Connector ------------------------------------ 18

JC5: SMI Switch ------------------------------------------------------ 19

JP15: Power On Switch --------------------------------------------- 19

HD1: IDE LED Activity Light ------------------------------------- 19

IR1: Infrared Port Module Connector--------------------------- 19

USB: USB Connector ------------------------------------------------ 20

Chapter 3: BIOS Setup ---------------------------------------21

Standard CMOS Setup ---------------------------------------------------- 22

BIOS Features Setup ------------------------------------------------------- 24

Chipset Features Setup --------------------------------------------------- 27

Power Management Setup ----------------------------------------------- 30

PnP/PCI Configuration Setup ------------------------------------------ 32

Load Setup Defaults ------------------------------------------------------- 34

Integrated Peripherals ---------------------------------------------------- 34

Supervisor/User Password---------------------------------------------- 38

IDE HDD Auto Detection ------------------------------------------------ 39

Save & Exit Setup ---------------------------------------------------------- 39

Exit Without Saving ------------------------------------------------------- 39

Chapter 1

Introduction

The 82440FX ATX motherboard is a high performance

system hardware based on the Intel Pentium¨

processor and

is equipped with four PCI slots, four standard ISA slots,

Super Multi I/O controller, and dual ports PCI IDE

connectors for future expansion. The hardware dimension

is ATX Form Factor 240mm x 304mm with four layer design

technology.

Introduction 5

Features

¥ Full supports for the Pentium Pro processors and

OverDrive Processors using Socket 8 from 150MHz to

200MHz

¥ CPU bus frequencies up to 66 MHz

¥ATX Form Factor size

¥ Intel 82440FX chipset, PCI Rev 2.1 compliant

¥ Supports wide range of DRAMS from 8MB to 384MB

including:

Ñ FPM, EDO, and BEDO DRAM Types

Ñ 50, 60, and 70ns DRAM speeds

Ñ DRAM supports ECC or Parity function

Ñ Supports 6pcs SIMM DRAM Socket

¥ Supports 4PCI and 4ISA Add-In slots

¥ Integrated Fast IDE Controller

Ñ PIO Mode 4 transfers timing

ÑPCI IDE Bus Master Support

Ñ Supports 2 IDE Connectors for the maximum of 4

IDE Drives (up to 8.4GB for each IDE device)

¥ On-board Super I/O Controller

Ñ One floppy port (include 3.5-inch, 1.2MB, 3 Mode

function)

Ñ Two high speed UART ports (16550 compatible)

Ñ One parallel port with SPP/EPP/ECP capabilities

Ñ Integrated USB (Universal Serial Bus) controller w/i

2 USB ports

Ñ PS/2 mouse connector

¥ Supports Power Management function

¥ Supports Award Plug & Play BIOS with Flash memory

Mainboard Layout with Default Settings

The default settings of the following figure is for the

Pentium Pro 180/60.

KeylockSPK Reset T/LED

JC3 JC4JC1 JC2

Power

IR CON

HDDLED

HD1 IR1 JP15

SMIJC5

PCI1

PCI3

PCI2

COM1

PCI4

MS1KB1

W837877F

82442FX

82371SB

8042

RTC

BIOS

ISA SLOTS

USB1

JP18

Pentium Pro

CPU

Socket 7

–

BAT

Don’t touch the heat sinks

avoid burning

COM2 PRT1

IDE2

IDE1

FDC

PCI SLOTS

W48C60-414

JP6

JP3

JP2

JP1

JP5

SIMM1

SIMM2

SIMM4

SIMM5

SIMM6

JP9

JP10

JP22

W82441FX

Figure 1Ð1. Motherboard Layout

Hardware Installation 7

Chapter 2

Hardware Setup

This chapter includes sections of setting up jumpers on the

motherboard, the system memory configuration, the cache

memory configuration, and attaching the connectors. Refer

back to this chapter when you need to upgrade or

reconfigure your system and remember to turn off the

power of the system as well as all peripheral devices before

performing any work on the system.

Symbols used in this chapter are described below:

For 2-pin jumper:

Ð Close the jumper by inserting the jumper

cap over the two pins of the jumper.

Ð Open the jumper by removing the

jumper cap.

For 3-pin jumper:

123

Ð Close pins 1 and 2 with an jumper cap.

123

Ð Close pins 2 and 3 with an jumper cap.

CPU Type Configuration

Set the motherboard jumpers JP9, JP10 and JP1~JP3

according to the CPU type as shown in the following

figures.

CPU 2.5X Clock Setting

Pentium Pro

CPU

Socket 7

JP3

JP2

JP1

JP9

JP10

JP9

JP10

Pentium Pro 150/60

JP9

JP10

Pentium Pro 166/66

Figure 2Ð1. CPU Type Configuration

Hardware Installation 9

CPU 3.0X Clock Setting

Pentium Pro

CPU

Socket 7

JP3

JP2

JP1

JP9

JP10

JP9

JP10

Pentium Pro 180/60

JP9

JP10

Pentium Pro 200/66

Figure 2Ð2. CPU Type Configuration

System Memory Configuration

This 82440FX motherboard supports 72-pin SIMMs of 4MB,

8MB, 16MB, or 32MB to form a memory size between 8MB

to 384MB. Each bank must have 2 pcs of DRAM modules

(w/i same size and type) installed. 82440FX chipsets

provide ÒTable-FreeÓ function. It means that users can

install DRAM with any configuration and in any bank, and

that is why the DRAM table is not needed.

Cooling FAN Settings

Note: Install a fan facing the heat sink, for better cooling effect,

Installation

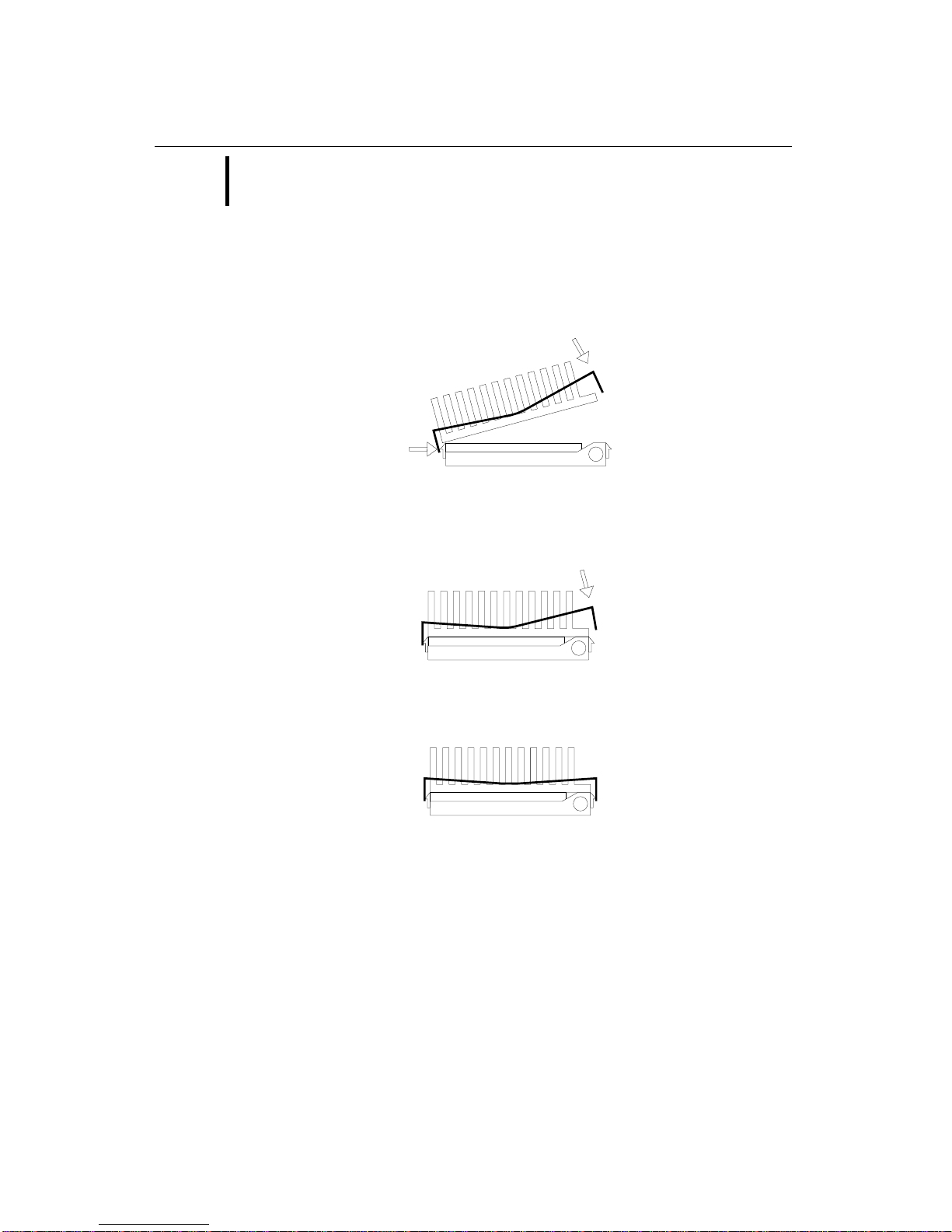

1. Place CPU into your socket and put CPU cooler on top of

CPU as shown in the following drawing. Slide one side

hole of clip into the key way of the socket, then

2. Press another side hole of clip and slide into socket key

way as shown in the following drawing

3. Complete the installation.
