SOLTEK NV400-64 User manual
4
NV400-64 / NV400-L64
Contents
ITEM CHECKUP ....................................................................7
Chapter 1 Specification ............................................. 8
1-1 NV400-64 / NV400-L64 Layout ..............................................9
1-2 Mainboard Specifications .................................................... 10
1-2.1 CPU Socket ................................................................................... 10
1-2.2 System Chipsets ........................................................................... 10
1-2.3 Memory ......................................................................................... 10
1-2.4 BIOS............................................................................................... 10
1-2.5 Accelerated Graphics Port (AGP) Interface........................... 11
1-2.6 Advanced System Power Management .................................... 11
1-2.7 Multi-I/O Functions .................................................................... 11
1-2.8 Expansion Slots ............................................................................ 11
1-2.9 AC’97 Audio Codec on board .................................................... 12
1-2.10 Hardware Monitor on board ................................................... 12
1-2.11 LAN on board (NV400-L64 only) ........................................... 12
1-2.12 Form Factor................................................................................ 12
1-3 Mainboard Specification Table ........................................... 13
1-4 Chipset System Block Diagram........................................... 14
Chapter 2 Hardware Setup ..................................... 16
2-1 CPU Identification and Installation ................................... 17
2-1.1 CPU Identification Legends....................................................... 17
2-1.2 CPU Installation with Socket 462 ............................................. 18
2-2 Memory Installation ............................................................. 19
2-2.1 To Install DDR SDRAM Module .............................................. 19
2-2.2 To Remove a DIMM .................................................................... 19
2-3 AGP Slot Installation ............................................................ 20
2-4 IDE Connector Installation ................................................. 21
5
Contents
2-5 Floppy Drive Connector Installation ................................. 22
2-6 ATX Power Supply Installation .......................................... 23
2-7 Jumper Settings ..................................................................... 24
2-7.1 How to tackle the Jumpers: ....................................................... 25
2-7.2 Jp4: CPU Clock Select ................................................................ 25
2-7.3 J6: nVIDIA Clear CMOS ........................................................... 26
2-7.4 Jp2: Anti-burn Shield (ABSII) .................................................. 27
2-7.5 Jp1: KB/Mouse Power On/Wake Up........................................ 28
2-8 Other Connectors Configuration........................................ 29
2-8.1 Onboard FAN Connectors ......................................................... 29
2-8.2 USB Ports and USB Pin-headers .............................................. 30
2-8.3 Chassis Panel Connectors .......................................................... 31
2-8.4 PS/2 Mouse And PS/2 Keyboard ............................................... 31
2-8.5 CD-ROM Audio Connectors...................................................... 32
2-8.6 Thermal Resistors........................................................................ 32
2-8.7 Wake On LAN Connector:......................................................... 33
2-8.8 LAN Connector (NV400-L64 Only) ......................................... 33
2-8.9 Complex Pin-header (Front Panel Connectors) ..................... 34
Chapter 3 Software Setup ....................................... 36
3-1 To Open up the Support CD ................................................ 37
3-2 To Install “nVIDIA nForce2 All-in-1 Driver” .................. 38
3-3 To Install AC’97 Audio Driver ............................................ 40
3-3.1 Installation ................................................................................... 40
3-4 To Verify 6-channel Audio Configuration ......................... 41
3-5 To Install Hardware Monitor Utility.................................. 44
3-5.1 Installation ................................................................................... 44
3-5.2 Verification .................................................................................. 45
3-6 To Install USB 2.0 Driver for Windows 2000 or XP ........ 46
Chapter 4 BIOS Setup............................................. 47
4-1 About BIOS Setup ................................................................. 48
6
NV400-64 / NV400-L64
4-2 To Run BIOS Setup ............................................................... 48
4-3 About CMOS .......................................................................... 48
4-4 The POST ( Power On Self Test ) ....................................... 48
4-5 To Upgrade BIOS .................................................................. 49
4-5.1 Before Upgrading BIOS ............................................................. 49
4-5.2 Upgrade Process........................................................................... 49
4-6 BIOS SETUP --- CMOS Setup Utility................................ 52
4-6.1 CMOS Setup Utility .................................................................... 52
4-6.2 Standard CMOS Setup ............................................................... 53
4-6.3 Advanced BIOS Features ........................................................... 56
4-6.4 Advanced Chipset Features ....................................................... 60
4-6.5 Integrated Peripherals................................................................ 63
4-6.6 Power Management Setup ......................................................... 68
4-6.7 PnP / PCI Configuration ............................................................ 71
4-6.8 SmartDoc Anti-Burn Shield....................................................... 73
4-6.9 CPU Ratio/Voltage Control........................................................ 75
4-6.10 Load Optimized Defaults ........................................................ 77
4-6.11 SET SUPERVISOR / USER PASSWORD............................. 78
4-6.12 SAVE & EXIT SETUP.............................................................. 79
4-6.13 EXIT WITHOUT SAVING ...................................................... 79
APPENDICES.......................................................... 80
Appendix-1 Identify BIOS Version & BIOS Part Number ... 81
Appendix-2 Identify Mainboard Model Number ................... 82
Appendix-3 Technical Terms ...................................................... 83
7
Contents
ITEM CHECKUP
• Mainboard
• User Manual (Mainboard)
• Multi-lingual Quick Installation Guide
• Support CD
• Bundled Bonus Pack CD
• Bundled Bonus Pack Manual
• Cables :
ATA66/100/133 IDE Cable
FDD Cable
USB Cable (Optional)
8
NV400-64 / NV400-L64
Topics included in this chapter are:
1-1 Mainboard Layout
1-2 Mainboard Specifications**
1-3 Mainboard Specification Table
1-4 Chipset System Block Diagram
Introduction
Chapter 1 Specification
This series features an integration of the powerful AMD processors
Athlon/Athlon XP/Duron and the North Bridge nVIDIA nFORCE2 400
plus South Bridge nFORCE2 MCP, with which the whole system per-
formance supports 400/333/266/200MHz system bus.
nVIDIA nFORCE2 400 plus nFORCE2 MCP supports on-board AMD
processors to implement the 400/333/266/200 MHz Front Side Bus, the
AGP 8X/4X interface, the LPC Super I/O, the DDR 400/333/266 MHz
SDRAM, the 6-channel AC’97 Audio interface, the USB 2.0 interface
and ATA 133/100/66 data transfer rate. This chapter is to introduce to
users every advanced function of this high performance integration.
** If any difference is found between this manual and the Main-
board you are using, please look up the ERRATA/UPDATE Slip
enclosed inside for the correction or updated information, or
else contact the Mainboard Dealer or visit our Web Site for the
latest manual update.
9
Chapter 1 Specification
nVIDIA
nFORCE2400
DIM1
IDE2
IDE1
Li
Battery
Fan3
nVIDIA
nFORCE2
AC'97
Codec
WOL1
1
PCI1
PCI5
PCI4
PCI3
PCI2
USB2 USB1
1
FDC1
1
DIM2
ATX Main Power
PS/2 Keyboard
Mouse
(on top)
(underside)
1
CDIN1
DDR 400/333/266MHz
USB1 USB0
(middle)
(underside)
RJ45
(on top)
LPT1
COM2 COM1
Line
Game/MIDI Port
Line
Mic
RTL
ALC650
Fan1
1
Jp1
AGP 4X/8X
BIOS
+12V Power
1
Jp4
RT2
Jp2
1
1
J6
In Out
MCP
Fan2
SOCKET462
RT1
LPC I/O
W83627HF
11
NJP1
HDD IR PWR
1
20
SPK RST +-
+-
PWLED
LED
1

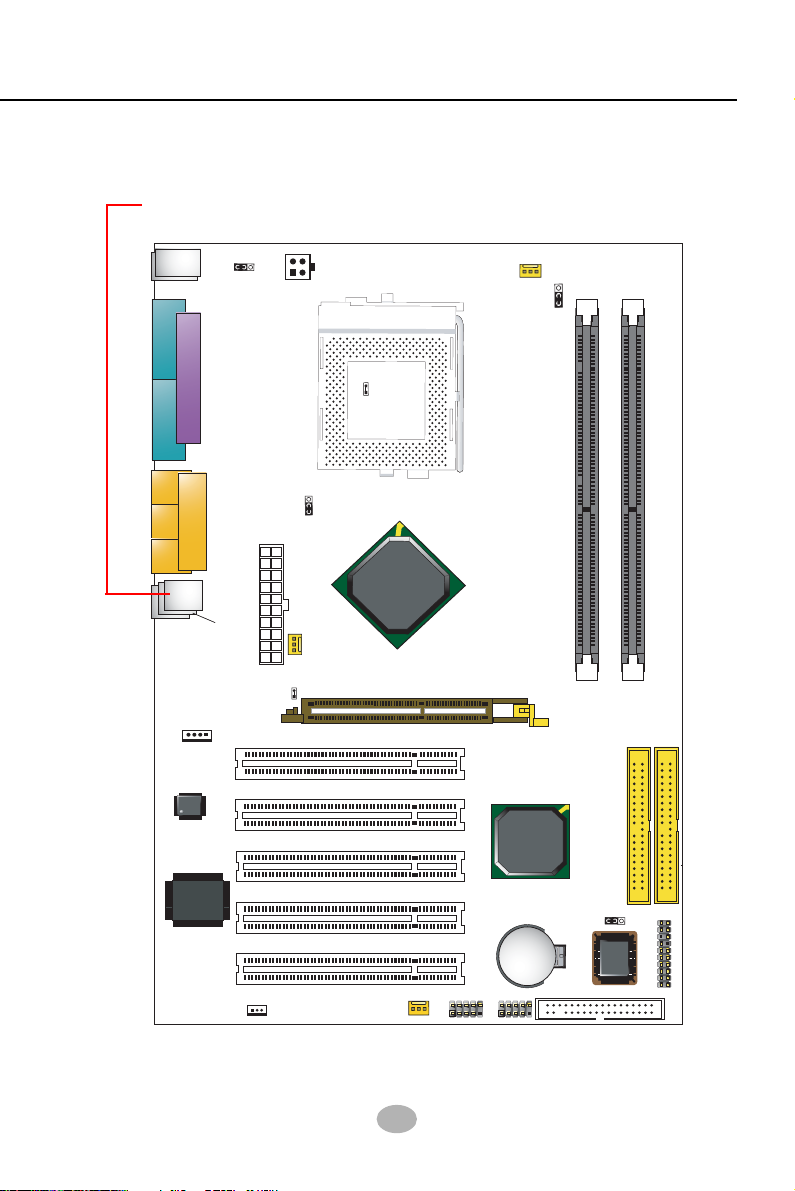

1-1 NV400-64 / NV400-L64 Layout
RJ45 (NV400-L64 Only)
10
NV400-64 / NV400-L64
1-2 Mainboard Specifications
1-2.1 CPU Socket
CPU Socket 462 (Socket A) on board, supporting AMD Athlon, Athlon
XP and Duron processors and implementing 400/333/266/200MHz sys-
tem bus
1-2.2 System Chipsets
• North Bridge nVIDIA nFORCE2 400 for managing and supporting
400/333/266/200MHz system Bus, AGP 8X/4X interface and DDR
400/333/266MHz Memory Interface.
• South Bridge nVIDIA nFORCE2 MCP working with North Bridge
nFORCE2 400 supporting the HyperTransport, LPC Super I/O, PCI
interface, ATA133 interface, LAN interface, USB V2.0 interface as
well as AC’97 Audio 6-channel interface.
1-2.3 Memory
2 DDR DIMM 184-pin slots on board :
• Supporting unregistered, non-ECC DDR 400/333/266/200 SDRAM
up to 2GB
• Supporting installation of mixed volumes yet same type of DDR
SDRAM modules
1-2.4 BIOS
Flash Memory for easy upgrade, supporting BIOS Writing Protection,
Year 2000 compliant, and supporting various hardware configuration
during booting system (See Chapter 4 BIOS Setup):
• Standard CMOS Features (Times, Date, Hard Disk Type etc,)
• Advanced BIOS Features (Virus Protection, Boot Sequence etc.)
• Advanced Chipset Features (AT Clock, DRAM Timing etc.)
• Power Management Features (Sleep timer, Suspend Timer etc.)
• PNP/PCI Configurations (IRQ Settings, Latency Timers etc.)
• Integrated Peripherals (Onboard I/O, IRQ, DMA Assign. etc.)
• SmartDoc Anti-Burn Shield (CPU/System Temp., Fan speed etc.)
• CPU Ratio/Voltage Control (Voltage of CPU, DIMM, AGP etc.)
11
Chapter 1 Specification
1-2.7 Multi-I/O Functions
• PCI EIDE Controller, supporting:
-- 2 ATA 133 / 100 / 66 IDE connectors supporting up to 4 IDE devices
• Dedicated IR Functions:
-- 1x5 IR connector dedicated to IR function with Infrared-IrDA (HPSIR)
and ASK (Amplitude Shift Keyed) IR
• Multi-mode parallel data transfer:
-- Standard mode, high speed mode ECP and enhanced mode EPP
• Floppy Drive Connector:
-- 1 FDD connector supporting 2 floppy drives with drive swap support
• Universal Serial Bus Transfer Mode:
-- USB V2.0 compliant, 480 MB/s USB Bus, supporting Win2000 / XP.
-- 2 built-in USB connectors and 2 more USB pin-headers which require 2
additional USB cables to provide 4 more USB ports
• PS/2 Keyboard and PS/2 Mouse
• UARTs (Universal Asynchronous Receiver / Transmitter):
-- 2 serial ports (COM1 & COM2) on board
1-2.8 Expansion Slots
• 5 PCI Bus Master slots
• 1 AGP 8X/4X slot
• 2 DDR DIMM slots
1-2.6 Advanced System Power Management
Advanced Configuration and Power Interface incorporated in BIOS for
reducing power consumption :
• ACPI 1.0B compliant (Advanced Configuration and Power Interface),
including ACPI Suspend mode support (See Power management of
BIOS Setup)
• APM V1.2 compliant (Legacy Power Management)
• PS/2 Keyboard & Mouse Power On
• Real Time Clock (RTC) with date alarm, month alarm, and century
field
1-2.5 Accelerated Graphics Port (AGP) Interface
AGP Controller embedded on board, supporting:
• 1.5V(8X/4X) power mode only, 1 AGP Slot supported
• 8X 66MHz AD and SBA signaling; AGP pipelined split-transaction
long burst transfers up to 2GB/sec.
• AGP 8X/4X supported, AGP V3.0 compliant
12
NV400-64 / NV400-L64
1-2.9 AC’97 Audio Codec on board
AC’97 Audio Codec on board, 6-channel interface compliant
1-2.10 Hardware Monitor on board
• Hardware Monitor supported by LPC I/O W83627HF, providing moni-
toring functions on hardware voltage, temperatures and fan speeds.
• Utility Software Soltek Hardware Monitor for displaying monitor sta-
tus is enclosed in Support CD for user’s installation.
1-2.12 Form Factor
• ATX Form Factor, ATX Power Supply
• Mainboard size: 305mm x 210mm
1-2.11 LAN on board (NV400-L64 only)
Fast Ethernet Controller integrated in nFORCE2 MCP and nFORCE2
Media Access Controller:
• Supporting 10/100Mb Fast Ethernet Base T LAN
• LAN Driver enclosed in Support CD for user’s installation
• Supporting up to 6 channels of PCM audio output
• 6 channel audio consisting of Front Left, Front Right, Back Left,
Back Right, Center and Sub-woofer for complete surround sound
effect
• AC’97 Audio Codec Driver enclosed in Support CD for user’s installa-
tion
13
Chapter 1 Specification
1-3 Mainboard Specification Table
CPU
North Bridge
South Bridge
BIOS
Memory
I/O Chip
AGP interface
Audio
IDE Interface
VGA
PCI Slots
I/O Connectors
Networking
Other Common
Features
Socket 462 for AMD Athlon, Athlon XP, Duron CPU
nFORCE2 400, supporting 400/333/266/200 MHz
FSB
nFORCE2 MCP
Award BIOS
DDR 400/333/266 SDRAM, up to 2GB in 2 DDR
DIMM slots
Winbond W83627HF with Soltek HM
AGP 8X/4X mode only
AC’97 Audio Codec, 6-channel compliant
2 ATA 133/100/66 IDE Connector
Not integrated on board
5 PCI Master slots on board
6 USB V2.0, 1 FDD port, 2 COM ports, 1 LPT,
1 IrDA, 1 PS/2 K/B, 1 PS/2 Mouse
LAN Controller nForce2 MCP and Connector RJ45
(NV400-L64 Only)
Keyboard/Mouse Power On/Wake Up
ATX Power Supply
ATX Form Factor
NV400-64 / NV400-L64 Specifications and Features
This manual suits for next models
2
Table of contents
Other SOLTEK Motherboard manuals
SOLTEK
SOLTEK SL-67EZ Use and care manual
SOLTEK
SOLTEK SL-65MV Use and care manual
SOLTEK
SOLTEK SL-55D5 Use and care manual
SOLTEK
SOLTEK SL-75DRV5 User manual
SOLTEK
SOLTEK SL-855GEI-FDGR User manual
SOLTEK
SOLTEK SL-K8T-939FL User manual
SOLTEK
SOLTEK SL-865G3 User manual
SOLTEK
SOLTEK SL-B8D-F User manual
SOLTEK
SOLTEK SL-67D User manual
SOLTEK
SOLTEK SL-75KV User manual
SOLTEK
SOLTEK SL-54U5 Use and care manual
SOLTEK
SOLTEK SL-65KVB User manual
SOLTEK
SOLTEK SL-75DRV3/75DRV3+ User manual
SOLTEK
SOLTEK SL-65EP User manual
SOLTEK
SOLTEK 86SP3 User manual
SOLTEK
SOLTEK SL-65D User manual
SOLTEK
SOLTEK 85DRV5 User manual
SOLTEK
SOLTEK SL-845GLI User manual
SOLTEK
SOLTEK SL-65EP+-T User manual
SOLTEK
SOLTEK SL-85DRV3 User manual
