Snapper NSPV22675HW User manual

Parts Manual fo

22" VARIABLE SPEED

WALK BEHIND MOWERS

Revision D, TP 400-5323-D-WB-N4/11/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7102345

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

NSPV22675HW (7800230)

SPV22675HW (7800190)

Table Of Content

TP 400-5323-D-WB-N

22" VARIABLE SPEED

Manual No. 7102345

PAGE GROUP

4Handles and Controls (SPV22)

6Deck Assembly (SPV22)

10 Engine and Blade Assembly (SPV22)

12 Height-of-Cut Assemblies

14 Transmission (22")

16 Decals (22")

TP 400-5323-D-WB-N

Manual No. 7102345 22" VARIABLE SPEED

Handles and Controls (SPV22)

Footnotes:

TP 400-5323-D-WB-N

Manual No. 710234522" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7101312 1 HANDLE, Plastic Upper, WBM

2 7101415 1 ASSY, Control Head, 22” WBM, VS, HW (incl. cable & handle)

3 7101321BH 1 BAIL, Plastic Handle, WBM

4 7090015 2 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2

5 2860694 2 NUT, 1/4-20 Hex Flange Nyloc,YZ

6 7300670A 1 PLATE, Control Panel- Plastic Handle

7 7100225 4 SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix

8 7300649BH 2 HANDLE, Connecting 21”/22” WBM

9 7101410 1 ROPE GUIDE (1/4-20 thread)

10 7035744 2 KNOB, 5/16-18 Wing (Black)

11 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2

12 7024649 3 WIRE TIE,11 Inch Standard Black Nylon

13 7300667BH 1 HANDLE, Lower, 22” WBM, Hi-Wheel

14 7101395 1 CABLE, Bail, 22” WBM

15 7101202 2 KNOB, Quick Release

16 7101199 2 BUSHING, Handle Pin

17 7101200 2 SPRING, Compression

18 7101198 2 PIN, Handle Adjust

19 7090958 2 BOLT, 5/16-18X x 1-1/2” Round Head Short Square Neck, GR 5

20 7090951 2 NUT, 5/16-18 Large Head Center Lock, Black

21 7101246 1 GRASSBAG, 22” RD

22 7101230A 1 BAG FRAME, 22” WBM

23 7026421 1 GRIP, Rectangular (Black)

24 7090391 2 WASHER, 5/16” Internal Tooth Lock

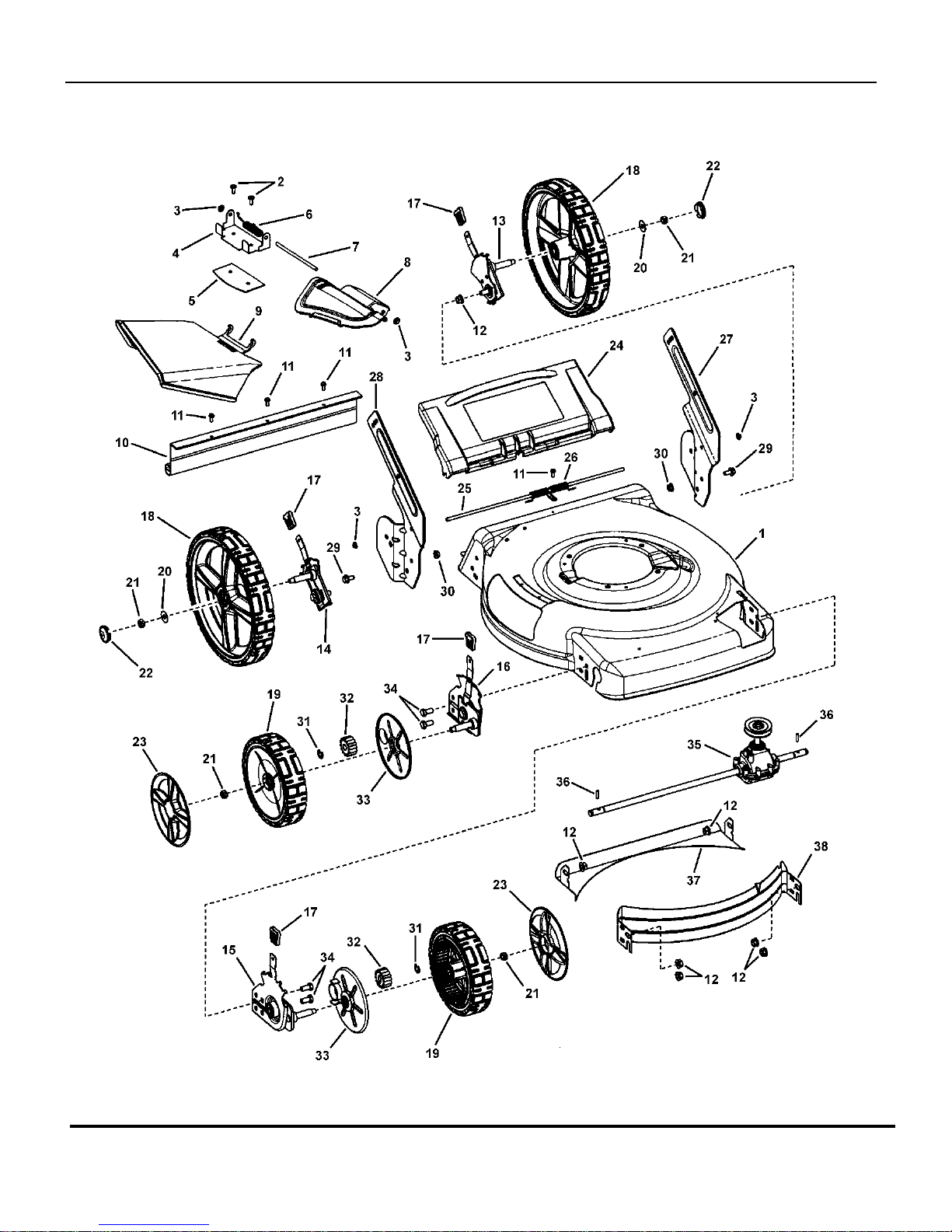

Deck Assembly (SPV22)

TP 400-5323-D-WB-N

Manual No. 7102345 22" VARIABLE SPEED

Deck Assembly (SPV22)

Footnotes:

TP 400-5323-D-WB-N

Manual No. 710234522" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7300400D 1 DECK, 22” Walk, 3-N-1

2 722848 3 SCREW, 1/4-20 x 11/16” Pan Head Torx, Self-Tap

3 7091020 4 PUSHNUT, 1/4”

4 7300855D 1 BRACKET, Chute

5 7300856D 1 PLATE, Mulch, 22” RB Scotts

6 722507 1 SPRING, Torsion, Chute

7 7101067 1 ROD, Pivot

8 721682 1 COVER, Mulch, Plastic, Black

9 721681 1 SIDE CHUTE, Plastic, Black

10 7102422 1 GUARD, Rear

11 7091286 4 SCREW, #10-24 x 1/2” Hex Washer Self-Tap, SEMS

12 7091619 6 NUT, 3/8-16 Hex Flange Lock, YZ

13 7501056 1 * ASSY, HOC, Right Rear, 22” WBM

14 7501055 1 * ASSY, HOC, Left Rear, 22” WBM

15 7501058 1 * ASSY, HOC, Left Front, 22” WBM, Propelled

16 7501057 1 * ASSY, HOC, Right Front, 22” WBM, Propelled

17 7100633 4 GRIP, Height Latch

18 7500546 2 ASSY, Wheel, 12 x 2 Idle, BB, Snapper Cool Gray incl. two 1-1/8” O.D. Flanged

Ball Bearings (p/n 7101380)

19 7500542 2 ASSY, Drive Wheel, 8 x 2, BB, Snapper Charcoal Gray incl. two 1-1/8” O.D. Flanged

Ball Bearings (p/n 7101380)

20 722604 4 WASHER, 1” OD x .387 ID, FLAT

21 7091585 4 NUT, 3/8-16 Hex Center Lock, YZ

22 7101393 2 HUBCAP, 12” Wheel, Snapper Cool Gray

23 7101350 2 HUBCAP, 8” & 9” Wheel Spoked- Snapper Cool Gray

24 7101243 1 DOOR, 22” Rear

25 7101070 1 ROD, Pivot, Rear Door

26 7101461 1 SPRING, Torsion, Rear Door, 22” WBM

27 7300583BH 1 BRACKET, Lower Handle, LH, 22” WBM, HW

28 7300582BH 1 BRACKET, Lower Handle, RH, 22” WBM, HW

29 7091811 2 BOLT, 5/16-18 x 5/8” Hex Flange Lock- YZ

30 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ

31 7014341 4 RETAINING RING Waldes #5133-50 or equiv.

32 7101207 2 GEAR, Pinion, 22” WBM, FWD

33 7101402 2 DUST SHIELD, 22” WBM, FWD

34 7900054 4 SCREW, 3/8-16 x 3/4” Hex Head Cap, GR 5, YZ

35 7100857 1 TRANSMISSION, Rocker, 22” WBM HW, VS

36 7101270 2 PIN, Drive, 22” WBM, FWD

37 7300854D 1 BAFFLE, Rear, 22” Deck

Note: * See Height-of-Cut Assemblies page

Deck Assembly (SPV22)

TP 400-5323-D-WB-N

Manual No. 7102345 22" VARIABLE SPEED

Deck Assembly (SPV22)

Footnotes:

TP 400-5323-D-WB-N

Manual No. 710234522" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

38 7300440D 1 BAFFLE, Front, 22” WBM

Note: * See Height-of-Cut Assemblies page

Engine and Blade Assembly (SPV22)

TP 400-5323-D-WB-N

Manual No. 7102345 22" VARIABLE SPEED
