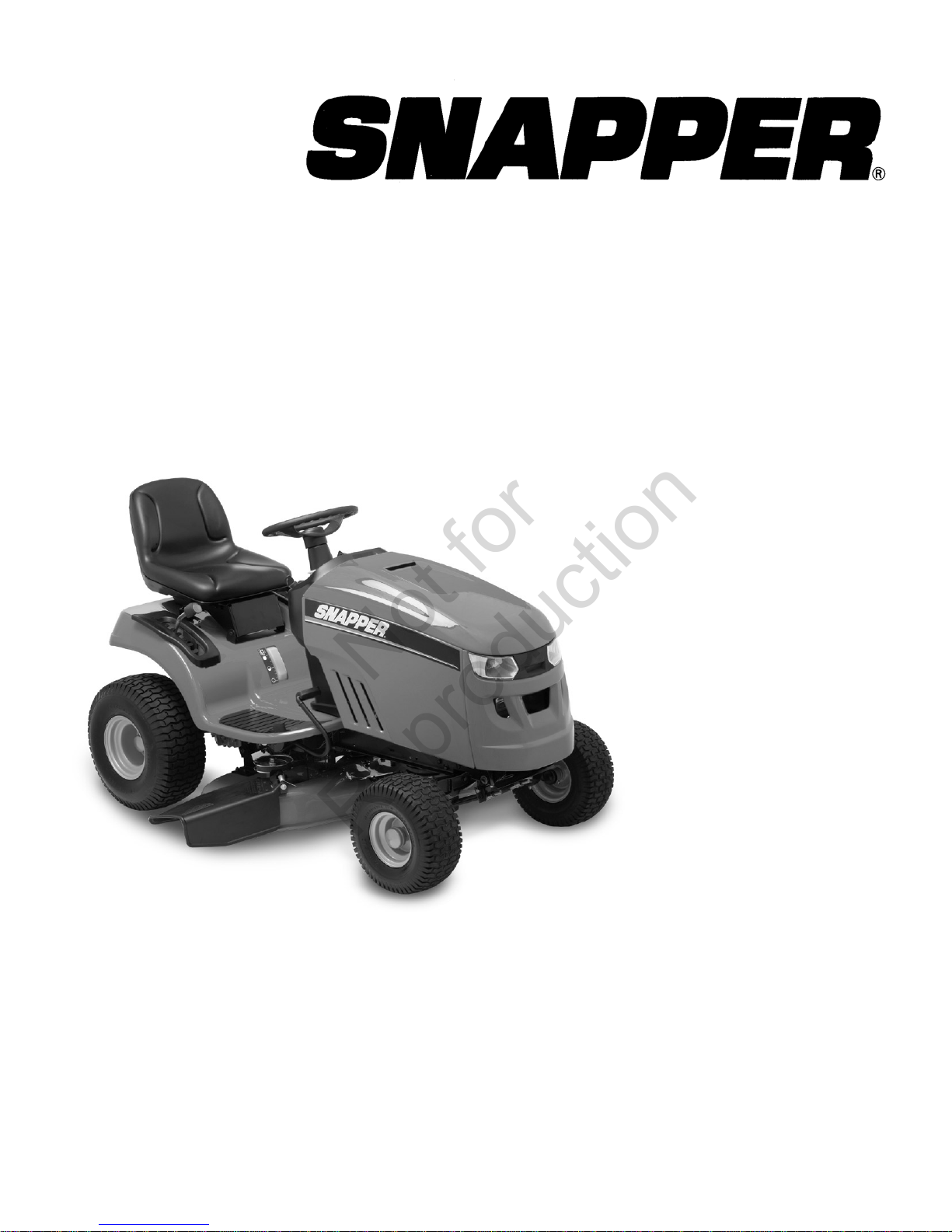

Snapper LT-125 Series User manual

Parts Manual fo

HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES

42" & 46" LAWN TRACTOR

Revision: A 8/20/2010

Briggs & Stratton Yard Power Products Group

Manual No. 7006275

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

269080

LT23420

2690809 LT24460

Not for

Reproduction

Not for

Reproduction

Table Of Contents

TP 400-5424-A-TC-N

HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES 3

Manual No. 7006275

PAGE GROUP

4 Wheels & Tires Group

6 Hood, Grille & Dash Group

8 Seat Deck & Fuel Tank Group

10 Steering Group

12 Frame & Front Axle Group

16 Engine Group - 23HP

18 Engine Group - 24HP

20 Controls Group

22 Transmission Group

24 Lift Group - Manual

26 42" Housing, Arbor & Blades Group

28 42" Mower Deck - Belt, Idler Arm & Hitch Group

30 42" Mower Deck - Height Adjustment & Roller Bar Group

32 46" Mower Deck - Housing, Arbor & Blades Group

34 46" Mower Deck - Clutch Group

36 Height Adjust Group - Frame Hung Mower

38 Decals Group - 42" Deck

40 Decals Group - 46" Deck

42 Electrical Group

Not for

Reproduction

Wheels & Tires Group

Manual No. 7006275 HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES

Not for

Reproduction

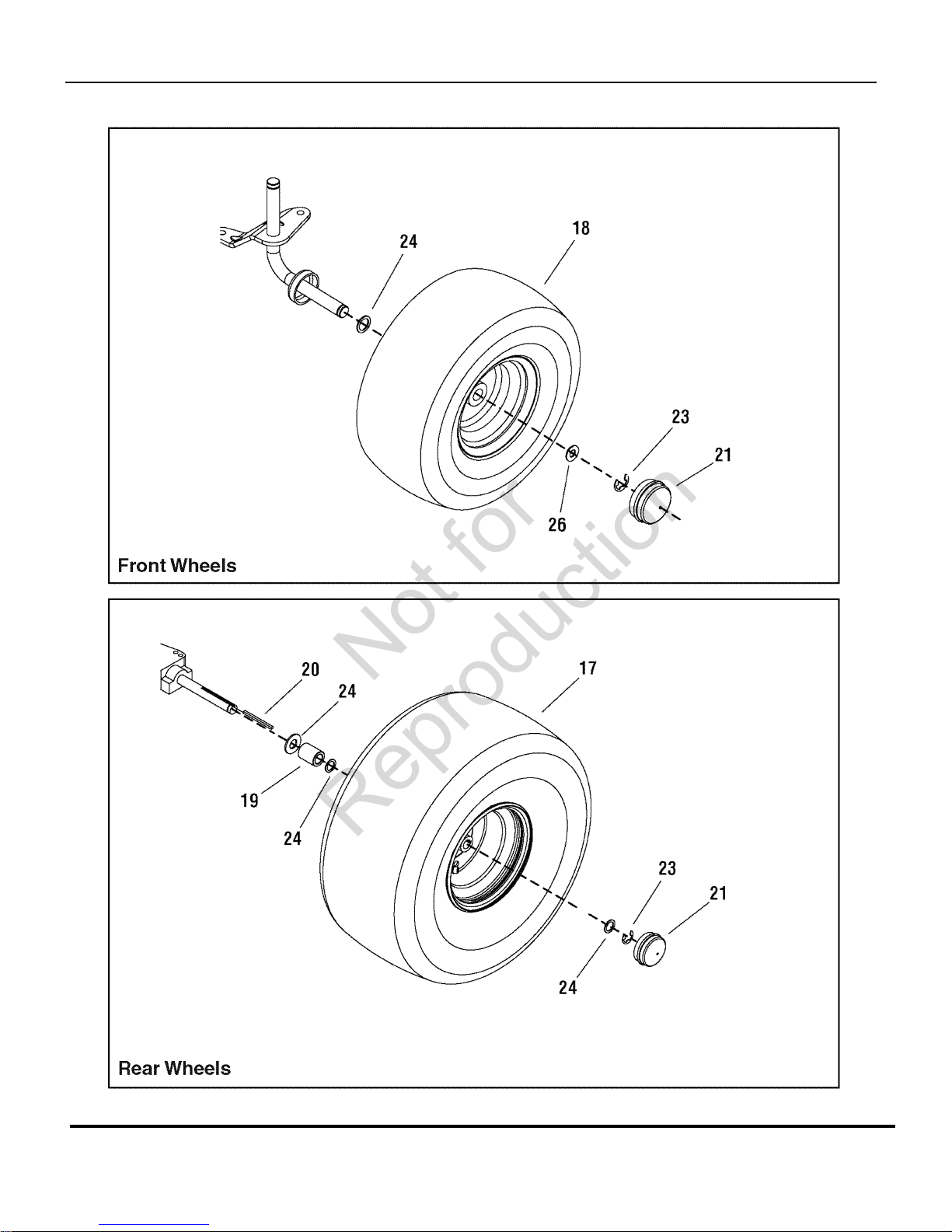

Wheels & Tires Group

Footnotes:

Manual No. 7006275HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES 5

Part No Descri

tionItem Qty

17 7101563 2 Wheel & Tire, 22 x 10 - 8

18 1729708 2 WHEEL & TIRE ASSEMBLY, 14.4 X 6

-- 1742259 4 BEARING, Front Wheel, 3/4" ID Hard (Not shown) (Two per wheel)

-- 2812808 1 FITTING, Lube, 1/4 (Not shown)

19 1730181 2 SPACER, 0.77 ID x 1-1/4 OD x 1.65 LG Powdered Metal Black

20 720258 2 KEY, 3/16

21 721318 4 HUB CAP

23 720010 4 RING, "E", .750 D - .050 T

24 722598 6 WASHER, .76-1.2 16G FL

26 722620 4 WASHER, FLAT

Not for

Reproduction

Hood, Grille & Dash Group

Manual No. 7006275 HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES

Not for

Reproduction

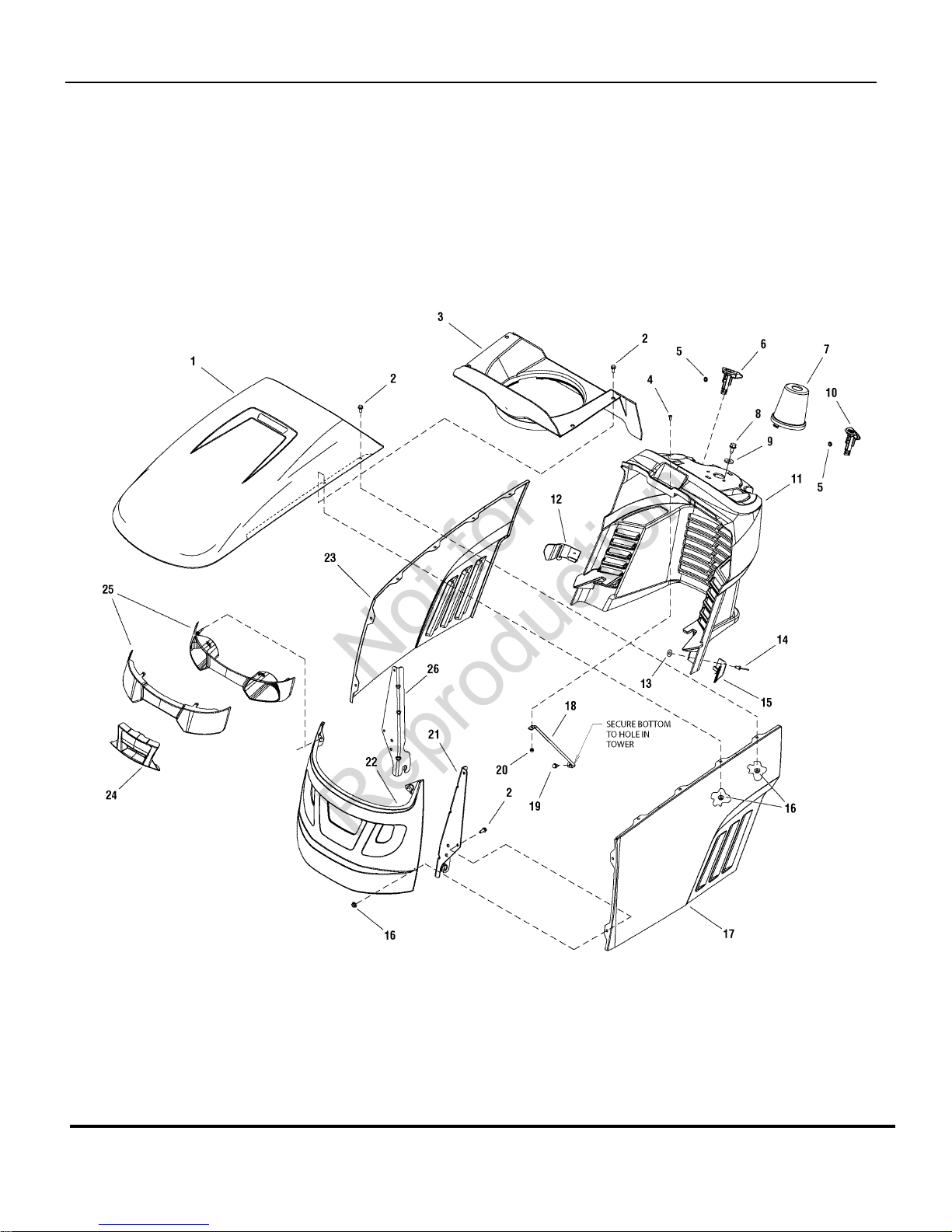

Hood, Grille & Dash Group

Footnotes:

Manual No. 7006275HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES 7

Part No Descri

tionItem Qty

1 1728031D 1 HOOD, with Louver, (Red)

2 1960295 12 CAPSCREW, Whizlock, 1/4-20 x 5/8

3 7102326 1 DUCT, Air Inlet Plastic

4 1960392 3 SCREW, Pan Head #10-24 x 1/2

5 1960518 2 NUT, Push Pal

6 1728090 1 KNOB, Cruise Lock Green Plastic

7 1736672 1 COVER, Steering Shaft Plastic

8 1664847 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4

9 1919381 2 WASHER, Plain, 5/16

10 1728089 1 KNOB, Brake Lock Plastic

11 1736671 1 DASHBOARD

12 1732031 1 GUIDE, Hood RH

13 1960096 2 WASHER

14 1928707 2 RIVET, Pop, Stem Black

15 1732030 1 GUIDE, Hood LH

16 1930641 12 NUT, Hex Flange Whiz, 1/4-20

17 1727295D 1 PANEL, Hood LH Side

18 1723123 1 ROD, Dash Support

19 1925003 1 SCREW, Self-Tap

20 1933896 1 NUT, Hex, Nylon, Lock, #10-24

21 1727279A 1 HINGE, Hood LH

22 1728059D 1 GRILLE

23 1727294D 1 PANEL, Hood RH Side

24 7101810 1 INSERT, Lightbar

25 1727296 1 HEADLIGHT ASSEMBLY

26 1727280A 1 HINGE, Hood RH

Not for

Reproduction

Seat Deck & Fuel Tank Group

Manual No. 7006275 HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES

Not for

Reproduction

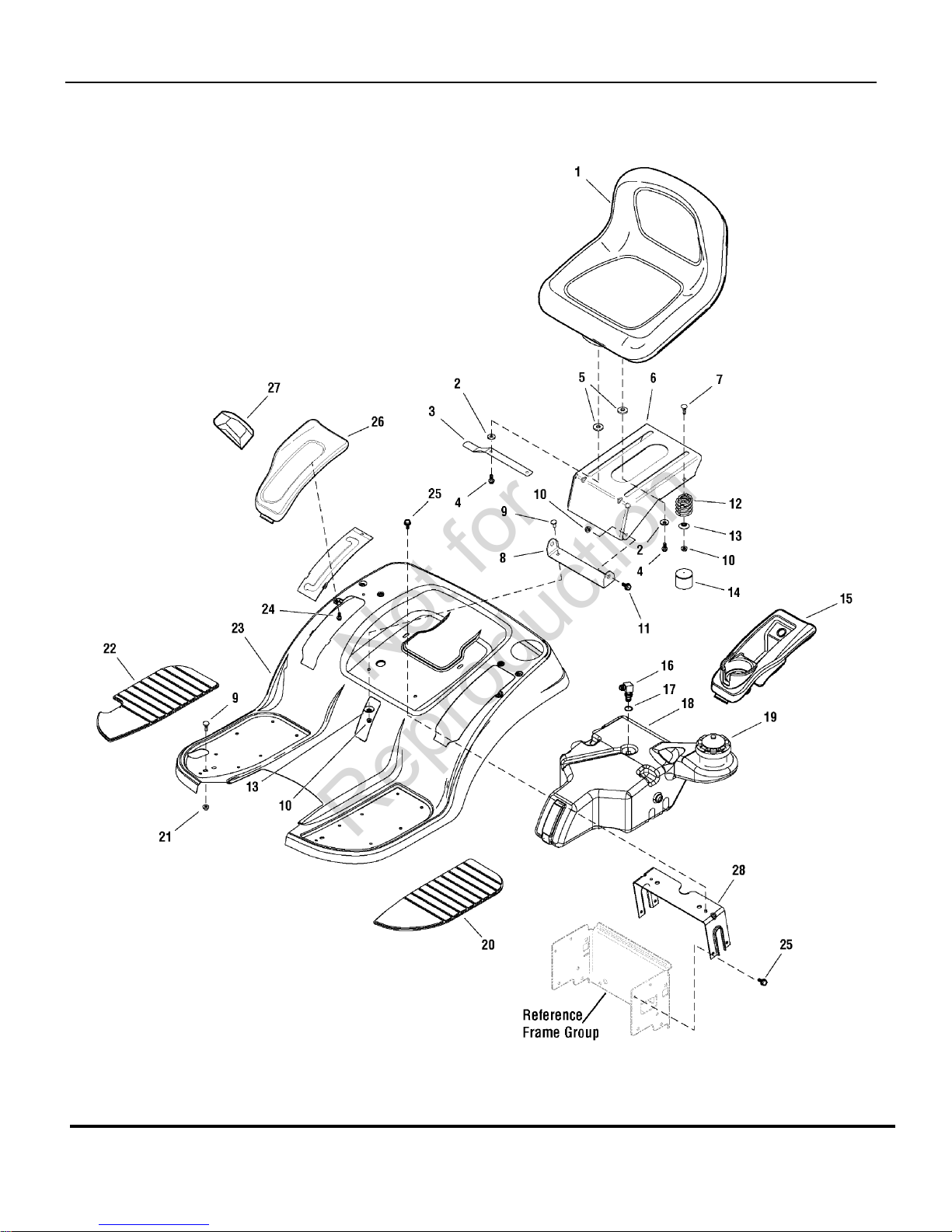

Seat Deck & Fuel Tank Group

Footnotes:

Manual No. 7006275HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES 9

Part No Descri

tionItem Qty

1 1736678 1 SEAT, Hi Back, Steel Pan

2 1919381 4 WASHER, Plain, 5/16

3 1727268 1 LATCH, Seat 20GA E-Coat

4 1960667 4 CAPSCREW, Hex Head Flange Dog Point, 5/16-18 x 1

5 1731300 4 SPACER, 0.32 ID x 1-1/2 OD x 3/10 THK Powdered Metal Yellow

6 1727265A 1 SUPPORT, Seat 12GA

7 1960282 2 CARRIAGE BOLT, 5/16-18 x 3/4

8 1727266A 1 PIVOT, Seat 10GA

9 1931333 4 BOLT, Carriage, 5/16-18 x 3/4

10 1960686 4 NUT, Hex Flange, 5/16-18 ESNA

11 1729576 2 BOLT, Shoulder 5/16-18 G5

12 1704728 2 SPRING, Compression

13 1709256 4 WASHER, Spring Black

14 1704724 2 COVER, Spring

15 1736676 1 POD, LH Cup Holder

16 1674231 1 ELBOW FITTING

17 1654930 1 BUSHING

18 1727305 1 TANK, Fuel

19 5101651 1 CAP, Gas

20 1736673 1 PAD, Footrest LH

21 1931277 4 NUT, Hex, Flange Whizlock, 5/16-18

22 1736674 1 PAD, Footrest RH

23 1727264D 1 DECK, Seat w/Footrests

24 1960536 6 SCREW, Hex, Washer Head, Plastite, 1/4-20 x 1/2

25 1930601 2 SCREW, Taptite, 5/16-18 x 5/8

26 1736675 1 POD, RH Lift Quadrant

27 1736679 1 GRIP, Lift

28 1731310A 1 SUPPORT, Seat

Not for

Reproduction

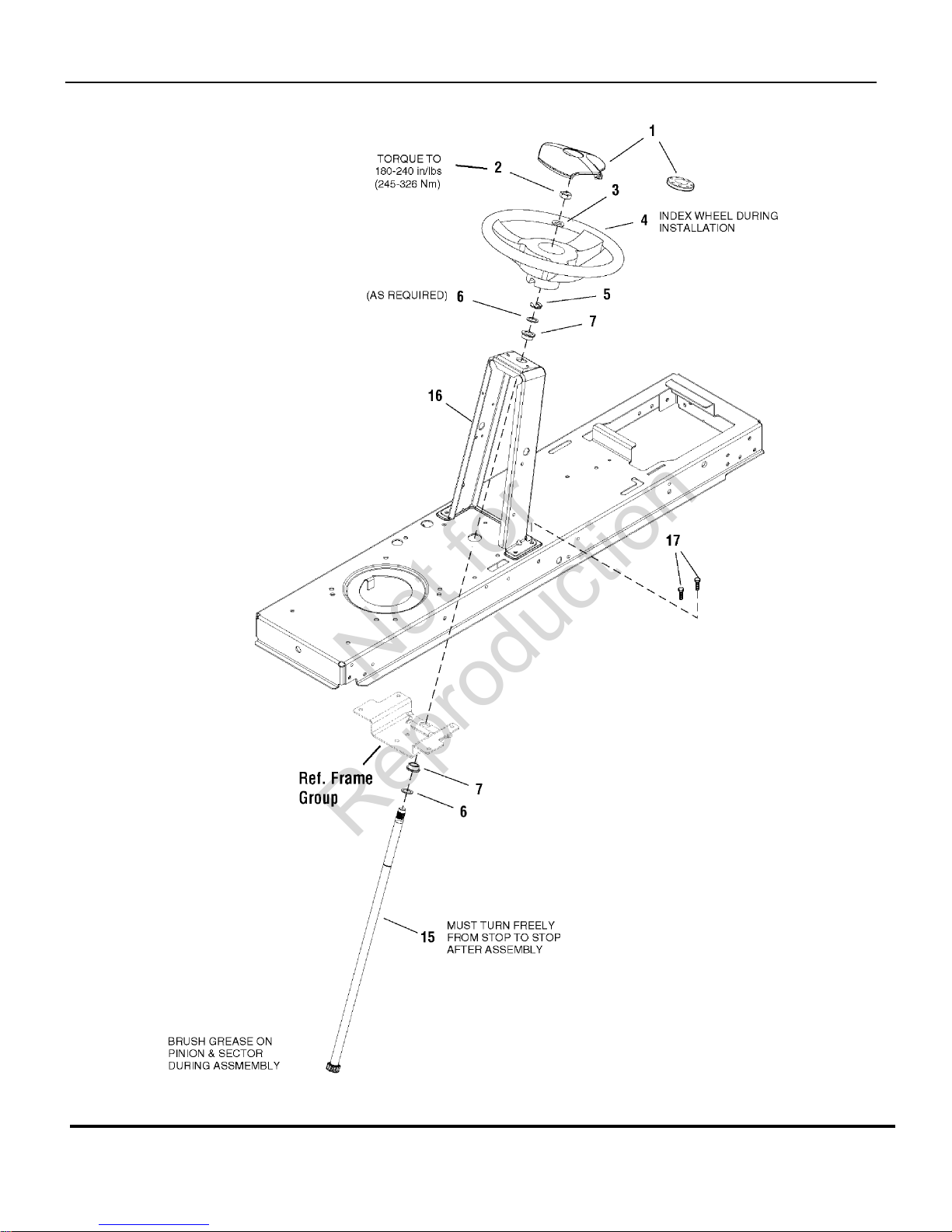

Steering Group

Manual No. 7006275 HYDRO DRIVE ELECTRIC CLUTCH

LT-125 SERIES

Not for

Reproduction
