Snapper 7800386 User manual

Parts Manual fo

Revision IR,

HYDRO DRIVE ZTR 33", 42" & 50

150Z SERIES

TP 400-5417-IR-HZ-N10/6/2008

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967 Manual No. 7006269

MODEL

CSC18533 (7800392)

CSC2142 (7800393)

CSC2650 (7800394)

SC18533 (7800269)

SC2142 (7800386)

SC2650 (7800387)

Table Of Content

TP 400-5417-IR-HZ-N

HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 3

Manual No. 7006269

PAGE GROUP

4Frame, Body & Seat Group

8Transmission Group

12 Controls Group

16 Engine Group (18.5 H.P.)

20 Engine Group (21 H.P.)

24 Engine Group (26 H.P.)

28 Wheel & Tire Group

30 Mower Lift Group (33" Deck)

32 Mower Lift Group (42" Deck)

34 Mower Lift Group (50" Deck)

36 33" Mower Deck Group

40 42" Mower Deck - Clutch & Support Group

42 42" Mower Deck - Housing & Arbor Group

44 50" Mower Deck - Clutch & Support Group

46 50" Mower Deck - Housing & Arbor Group

50 Decal Group

52 Electrical Group

56 Wiring Schematic

Frame, Body & Seat Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

Frame, Body & Seat Group

Footnotes:

TP 400-5417-IR-HZ-N

Manual No. 7006269HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 5

Part No Descri

tionItem Qt

Note

1 1733448A 2 WELDMENT, Caster Yoke & Spindle - Black

2 1960160 4 WASHER, .75 ID x 1.60 OD x .05 Thick Flat (Black)

3 1611710 2 KLIPRING, External for .750 Dia. Shaft

4 1734135 2 CAP, Hub 1.481 I.D. x .62 Long Red Poly

5 1730186 2 BUSHING, Axle Pivot PM, Yellow

6 1733426A 1 AXLE, Front Iron Casting Machined ZT

7 1733571 2 SHOULDER BOLT, 3/8-16 x 3” Long .50 Sh GR5, Black

8 1960687 3 NUT, 3/8-16 Hex Flange Nyloc

9 2860744 1 SCREW, 5/8-11 x 3-1/4” Hex Head Cap, GR5, Yellow

10 1960035 1 WASHER, 0.64 I.D. x 1.75 O.D. x .11 Thick, Black

11 2860646 1 NUT, Hex Flange 5/8-11 Two Way Lock, Yellow

12 1733304A 1 BRACKET, Footrest Support, Black

13 1930601 2 SCREW, 5/16-18 x .62 Taptite

14 1960368 2 SPEED NUT, 1/4-20 Lug Type .025/.150, Black

15 1921333 2 SCREW, 5/16-18 x 1” Hex Head Cap

16 1726025D 1 PANEL, Footrest, 18 Ga ZT 7000, Red

17 1960694 14 NUT, 1/4-20 Hex Flange Nyloc, Black

18 1931317 2 BOLT, 1/4-20 x 2” Round Head Short Square Neck, GR5, Black

19 1726306 1 PAD, Footrest Center Black Vinyl

20 1726018 1 ASSEMBLY, Seat w/Arm Rests, ZTR

21 7300752A 1 PANEL, Front - Manual Brake & Deck Lift

22 1960518 2 RETAINER, 1/4” Bolt

23 1935255 4 SPEED NUT, 5/16 -18 Lug Type .025/.150 B

24 720107 2 SHOULDER BOLT, 5/16-18

25 1960223 2 BOLT, 5/16-18 x 1-1/4” Round Head Short Square Neck GR5,

Black

26 1728086 2 PIVOT, Hood (Powdered Metal)

27 1931277 4 NUT, 5/16-18 Hex Flange Lock, Small - Black

28 1716654 2 BOLT, 5/16-18 Idler Pivot

29 1960295 6 SCREW, 1/4-20 x 5/8” Hex Whiz Lock Flange

30 1960738 2 SCREW, 5/16-18 x 3/4” Hex Flange Lock Dog Point

31 7102141 1 SCREEN, Deck Top

32 1673320 3 RIVET, .188 x .617 Large Flange

33 1735028A 1 WELDMENT, Frame - 33” ZT

33 1733227A 1 WELDMENT, Frame - 42” & 50” ZT

34 1733965A 1 SUPPORT, Seat Deck, ZTS - Black

35 1734145 1 SEAT DECK, Red Poly, ZTS - Red

36 1734252A 1 PLATE, Control, ZTS - Black

Frame, Body & Seat Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

Frame, Body & Seat Group

Footnotes:

TP 400-5417-IR-HZ-N

Manual No. 7006269HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 7

Part No Descri

tionItem Qt

Note

37 1960715 8 SCREW, 1/4-20 x 3/4” Truss Head Torx, Black

37 1930594 6 SCREW, 1/4-20 x 3/4” Hex Flange Lock, Black

38 7091591 4 BOLT, 5/16-18 x 1” Hex Flange Lock YZ

39 1728986 1 PAD, Footrest RH Black Vinyl w/Adhesive

40 1728987 1 PAD, Footrest LH Black Vinyl w/Adhesive

41 1960534 1 WASHER, .375 Flat (0.41 I.D. x 1.50 O.D. x .25 Thick) Black

42 1735680 1 TRIM, 8”

43 2820426 2 WASHER, 5/16” External Tooth Lock Washer, Yellow

44 1734392A 2 GUARD, Debris, ZTR - Black

45 1921221 1 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR5, Black

46 1919381 1 WASHER, 5/16” Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black

47 7090189 1 WASHER 5/16” Internal/External Tooth Lock, BZ

48 7024340 1 SPACER, .316 x .375 x .300/.310

49 1933988 4 PUSH NUT, 5/16” Dia. Thread .625 O.D. Black (Pal)

50 1734323A 1 STRAP, Fuel Tank Brace

51 1921977 5 SCREW, 5/16-18 x 1-1/4” Hex Head Cap, GR5, Black

52 1726390 2 BUMPER, Rubber 1.50 DIA 0.5 Thick

53 1715962A 1 SHROUD, Rear, ZTR, Black

54 1925003 6 SCREW, 1/4-20 x 1/2” Hex Washer Head Screw Black (Taptite)

55 1733393A 1 SUPPORT, Seat Deck .250 Thick - Black

56 1920415 1 SCREW, 3/8-16 x 1-1/4” Hex Head Cap, GR5, Black

57 1931942 1 PUSH NUT, .375 Dia. Thread .781 O.D., Black (Pal)

58 1677021SM 1 KIT, Arm Rest L.H. & R.H.

59 1960686 9 NUT, 5/16-18 Hex Flange Nyloc

60A 1734257 1 ASSEMBLY, Fuel Tank used on 49-state models

(excluding California)

60B 7102688 1 ASS'Y, Fuel Tank (incl. cap, pickup tube, bushing & elbow) (not

shown) used on California models

61 1734320 1 ASSEMBLY, Fuel Cap (Vented)

62 7102690 1 TUBE, Fuel Pickup (not shown)

63 1674792 1 ELBOW, Gas Tank (not shown)

64 1726400 1 BUSHING, Fuel (not shown)

Transmission Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

Transmission Group

Footnotes:

TP 400-5417-IR-HZ-N

Manual No. 7006269HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 9

Part No Descri

tionItem Qt

Note

1 1960223 2 BOLT, 5/16-18 x 1-1/4” Round Head Short Square Neck GR5,

Black

2 1919381 4 WASHER, 5/16” Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black

3 1703900 2 SPACER, .323 I.D. x .500 O.D. x 0.270 Long Heat Treated

4 1960684 2 NUT, 5/16-18 Hex Keps Conical Washer, Black

5 1727555 1 ROD, Control, LH (.500 Dia. X 27.88 Long)

6 1727556 1 ROD, Control, RH (.500 Dia. X 27.88 Long)

7 1727831 2 SHOULDER BOLT, 7/16-14 x 1.07 Long, GR5

8 1930650 6 NUT, 7/16-14 Hex Flange Lock Two Way, Black

9 1927120 4 SCREW, 7/16-14 x 2-1/4” Hex Head Cap, GR8, Black

10 1923141 4 SCREW, 5/16-18 x 2-3/4” Hex Head Cap, GR5, Black

11 1919326 6 WASHER, .312 (.34 I.D. x.75 O.D.)

13 1717024 1 CLIP, Rod End Clevis RH (for .188 Dia. Rod)

14 1733913 1 ROD, Tow Valve LH (.156 Dia. 5.05 Long)

15 1960268 1 BOLT, 3/8-16 x 1-1/4” Round Head Short Square Neck, Black

16 1960758 1 BOLT, 1/2-13 x 1-1/2” Round Head Short Square Neck, GR5,

Black

17 1733305A 1 DRAWBAR- .250 Thick - Black

18 1921719 2 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, GR5, Black

19 1725550 1 CLIP, Rod End Clevis LH (for .188 Dia. Rod)

20 1733914 1 ROD, Tow Valve RH (.156 Dia. 5.05 Long)

21 1931277 6 NUT, 5/16-18 Hex Flange Lock, Small - Black

22 5020601 8 NUT, 1/2-20, (for Wheel Bolt) Silver

23 1733309A 1 SUPPORT, Transmission Center - Black

24 1733351 1 TRANSMISSION- Hydro Gear EZT LH (ZC-AHBB-2A7B-1DPX)

25 1733352 1 TRANSMISSION- Hydro Gear EZT RH (ZC-DHBB-2A7C-1DPX)

26 1733302A 1 SUPPORT, Transmission Rear - Black

27 1960687 3 NUT, 3/8-16 Hex Flange Nyloc

28 5025396 1 NUT, 1/2-13 Hex Flange Nyloc

29 1728976 1 SHOULDER BOLT, 5/16-18 GR5

30 1924874 1 WASHER, 5/16 Flat (.341 I.D. x .87 O.D. X .06 Thick) Black

31 1927557 1 NUT, 5/16-18 Hex Flange Lock Large, Black

33 1732224 1 * V-BELT, Transmission Drive (HA Sect. 54.40 Effective Length)

34 1930645 2 NUT, 3/8-16 Hex Flange Lock Two Way, Black

35 1924356 2 WASHER

36 1921210 2 SCREW, 3/8-16 x 1” Hex Head Cap, GR5, Black

37 1734316 1 SPRING, Extension

38 1729007 1 SPACER (.387 I.D. x 1.50 O.D. x 1.04 Long (Powdered Metal)

Yellow

39 1733303A 1 ARM, Idler (Transmission Drive) Black

Note: * Part number printed on belt.

Transmission Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

This manual suits for next models

Table of contents

Other Snapper Lawn Mower manuals

Snapper

Snapper 13HP User manual

Snapper

Snapper 2800 GT Series, 1800 GT Series User manual

Snapper

Snapper R1962519B Operation and maintenance manual

Snapper

Snapper L21600 Operation and maintenance manual

Snapper

Snapper NZM27611KH SERIES 1 Operation and maintenance manual

Snapper

Snapper ZF2200K, ZF2500K, ZF2500KH, ZF Operation and maintenance manual

Snapper

Snapper 7800956 User manual

Snapper

Snapper 150Z ZTR Series User manual

Snapper

Snapper EASY LINE 21 Series Manual

Snapper

Snapper PRO S200XT User manual

Snapper

Snapper LT140H411KV Series Operation and maintenance manual

Snapper

Snapper 7800428 User manual

Snapper

Snapper ELT125G33DB Operation and maintenance manual

Snapper

Snapper ELT RD Series ELT2440RD User manual

Snapper

Snapper 421616BVE Operation and maintenance manual

Snapper

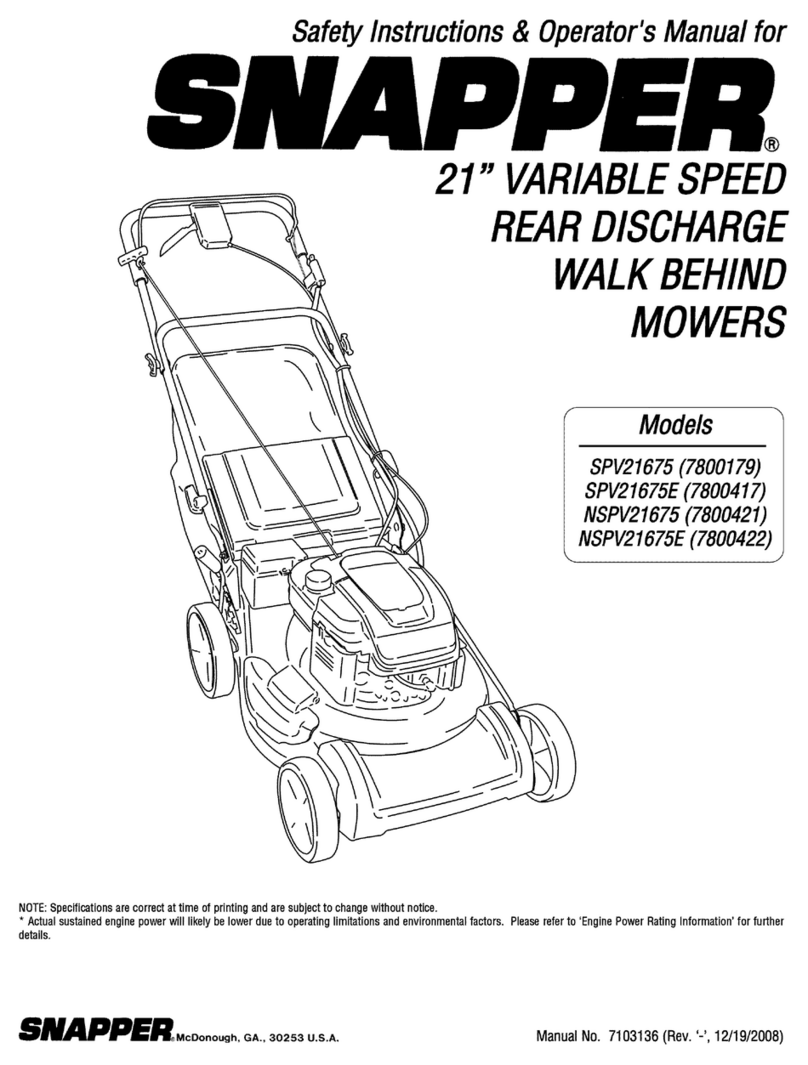

Snapper SPV21675 Operation and maintenance manual
