Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 5 of 6
April 2014 www.sikatech.co.nz ST-PD016-01
Chamber Extension 200mm

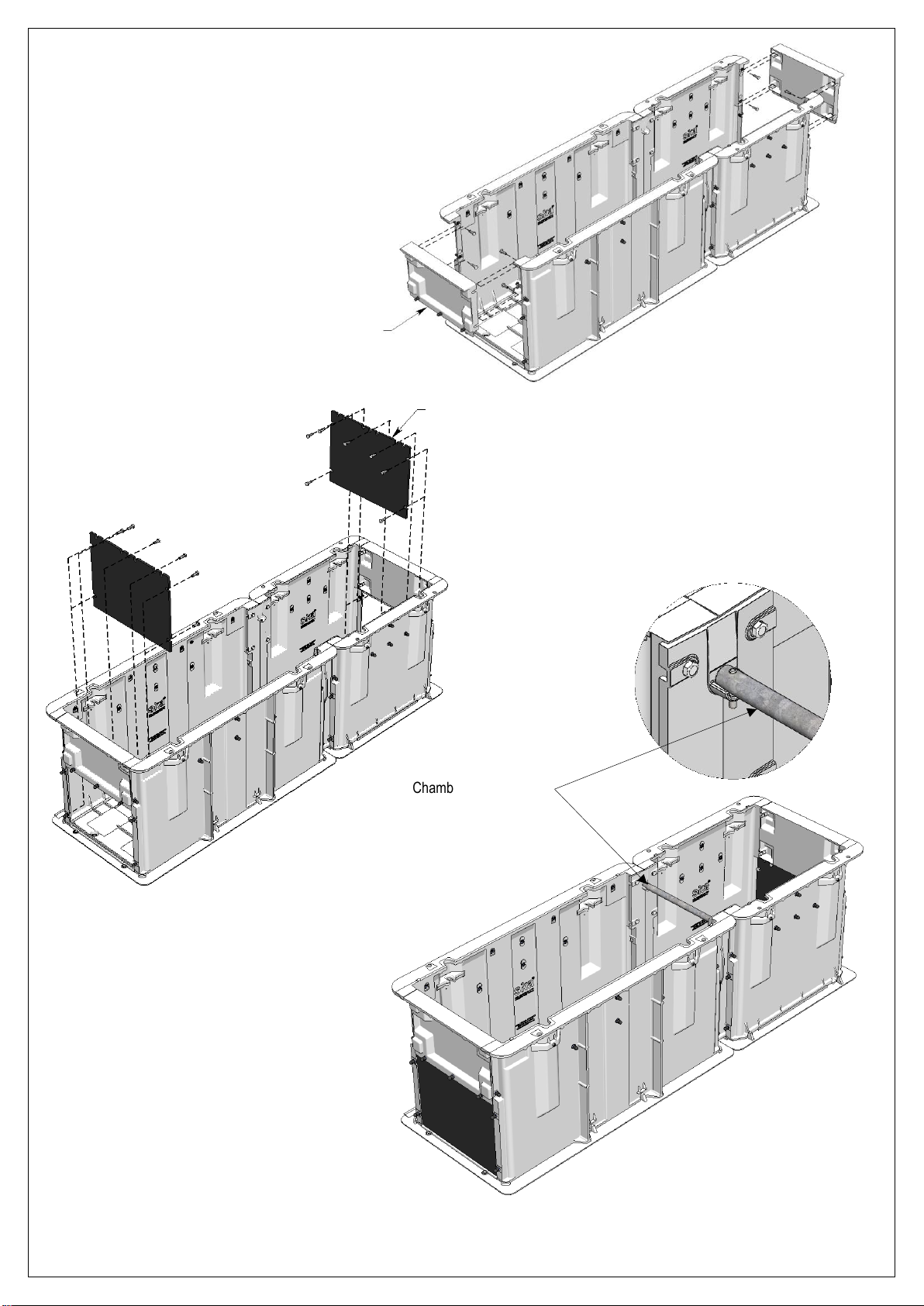

6. Assemble chamber extension as per Fig 6a using the extension side joiners 200 and 16 –M10 x 30
bolts and washers supplied. Place on top of chamber flange. See arrows for right way up.
Chamber Extension
2100 x 600 x 200H
Extension Side Joiner 200
Fig 6a
Fig 6b
Bolt assembled chamber extension to
the chamber with the 8 –M16x40 bolts,
nuts and spring washers supplied.
Fig 6c
Chamber 1200 x 600 x 700HChamber 1200 x 600 x 700H
Chamber Extension
2100 x 600 x 200H
Locator Lug will Self Align Extension
Chamber 2100 x 600 x 700H
Chamber 2100 x 600 x 700H
& Extension 2100 x 600 x 200H
