Schmidt OS8000 User manual

Original Schmidt

Quick Reference

OS8000

Micro USB slot and

Bluetooth dongle

Plunger

Screen

Battery slot

Instrument Overview

On/Off, Navigation buttons

Rebound number scale

BUTTONS - Overview

Operation

Short

push

Scroll down

Long

push

(>1.4s)

Backlight on/off

Device ON/OFF

Short

push

Power ON

Long

push

(>5s)

Power OFF

Operation

Short

push

Scroll right, select, adjust

Long

push

(>1.4s)

Start new series

(Store current series and

start new series)

Operation possible at any

time

Device ON/OFF

Short

push

Power ON

Long

push

(>5s)

Power OFF

MAIN SCREEN - Overview

MODE

Impact No. Series ID

Battery indicator

EN Standard /

Last impact

MAIN MENU - Overview

Configuration of operation mode

LIVE using the app

PRINT using a BT printer (Print versions only)

Select standard

MEAN →Arithmetic mean of the rebound values (min 3 impacts)

EN →Rebound value according to EN 12504-2

ASTM →Rebound value according to ASTM C805

JGJ →Rebound value according to JGJ T23

JSCE →Rebound value according to JSCE G504

JIS →Rebound value according to JIS A1155

Clear memory

Show device information



Mode

Standard

Memory

Info

HOME/MEASUREMENT screen

MAIN MENU

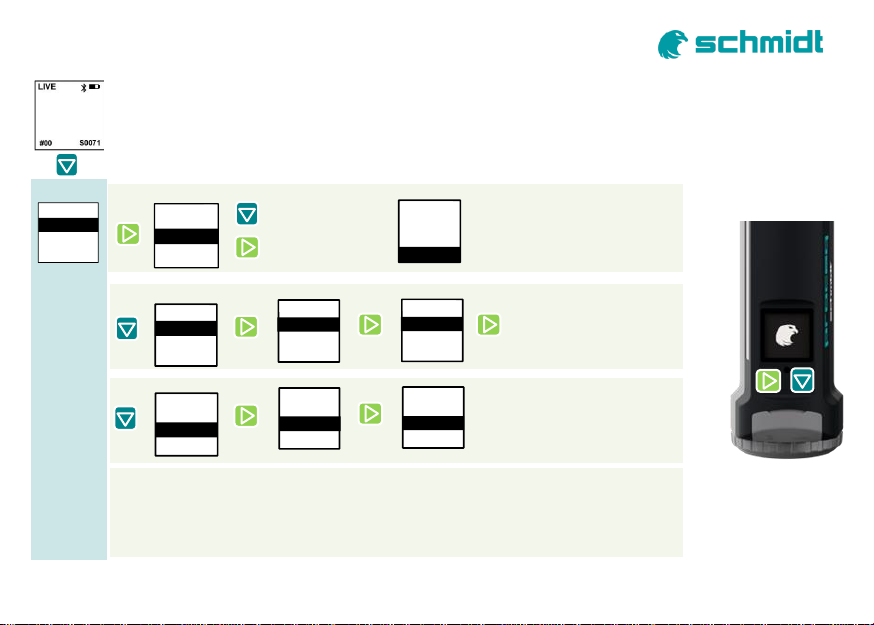

MENU - Navigation

Mode Selection

SCROLL



SELECT









Standard selection

SCROLL

SELECT/ADJUST













Clear Memory

SCROLL

SELECT Unsynchronized data will be lost

Info

SCROLL

SELECT





HOME/MEASUREMENT screen

Measurements

Auto-switch off









Delete last measurement

Delete whole series

Mean rebound valueRebound value Rebound value

No activity > 5 minutes Power off

Current series is saved

Current series is closed

SCROLL

SELECT/ADJUST

Series ID

Viewing Results

Delete whole series

Start new series

Return to series

Scroll through results

SCROLL

SELECT/ADJUST

Printing Results

Further Information

Start new series

Return to seriesScroll through results

Requires a BT printer →available as accessory

Configuration for printing →Mode selection

Delete whole series

Print series

SCROLL

SELECT/ADJUST

HOME/MEASUREMENT screen

MAIN MENU

JSCE (Japan) - Settings

Standard selection











Concrete age correction

SCROLL

SELECT/ADJUST















Surface moisture correction







 







 







 







 

28 days to 10 days







 





 







 



R1 = 0 Surface is dry

R1 = +3 Black mark on surface

after impact

R1 = +5 Surface is wet

F(N/mm2) = [-

R0 = Rebound number calculated from 20 valid impacts

R1 = Surface moisture correction

R2 = Impact angle correction (Applied automatically)


