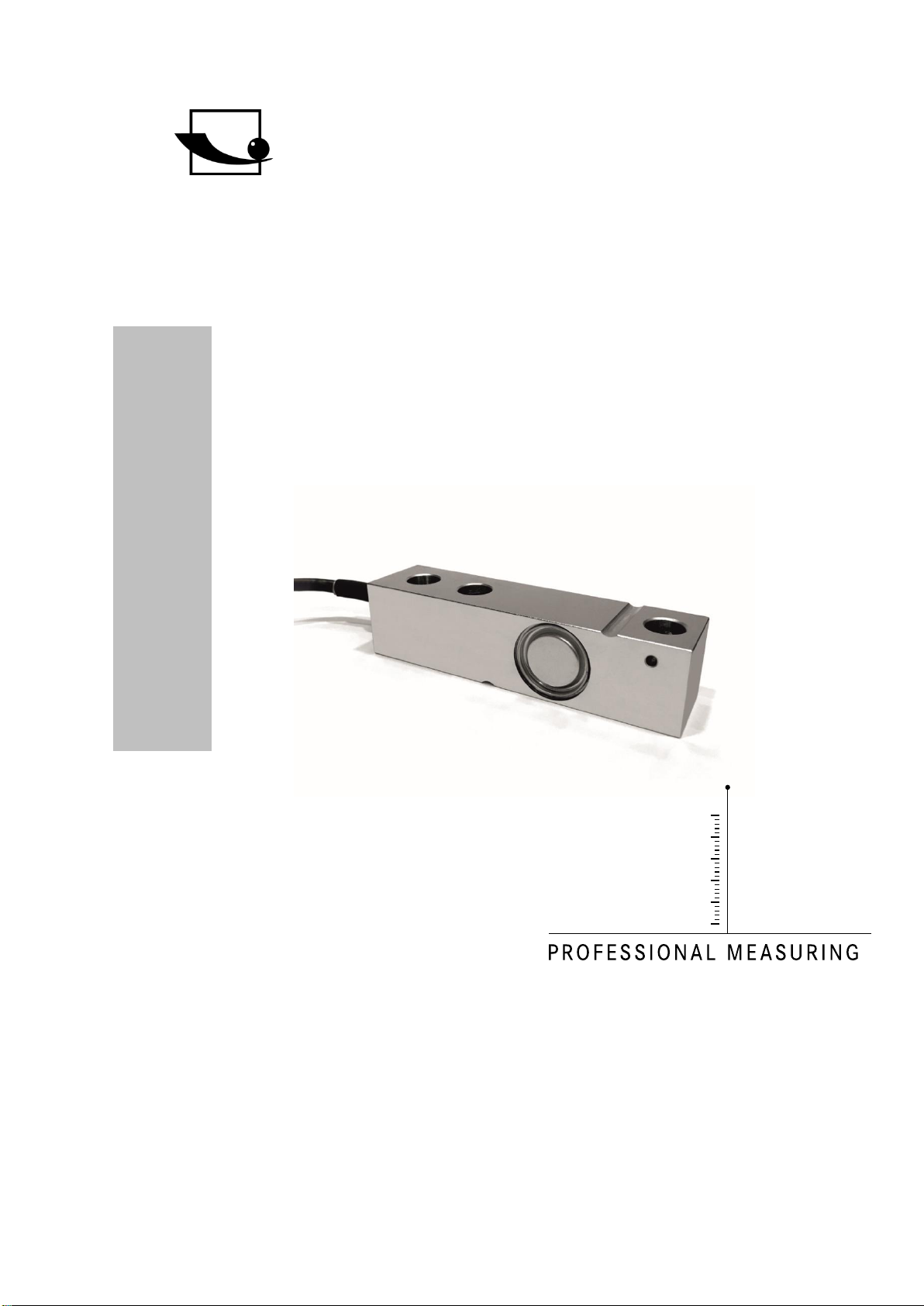

Sauter CT Q1 User manual

Sauter GmbH

Ziegelei 1

D-72336 Balingen

E-Mail: info@kern-sohn.com

Tel.: +49-[0]7433- 9933-0

Fax: +49-[0]7433-9933-149

Internet: www.sauter.eu

Instruction Manual / Data sheet

CT Q1

V. 1.0

12/2018

CT Q1-BA-e-1810

2 CT Q1-BA-e-1810

SAUTER CT Q1

V. 1.0 12/2018

Instruction Manual / Data sheet

Summarize:

1Short description........................................................................................... 3

2Available models............................................................................................ 3

3Introduction.................................................................................................... 3

4Warning notes................................................................................................ 3

5Warranty......................................................................................................... 4

6Detailed specifications.................................................................................. 4

7Wiring.............................................................................................................. 4

8Dimensions in mm......................................................................................... 5

8.1 Dimensions in mm (300kg -5000kg) ....................................................................................... 5

8.2 Dimensions in mm (7500kg -10000kg) ................................................................................... 5

9Certificate of Compliance.............................................................................. 5

CT Q1-BA-e-1810 3

1 Short description

Stainless steel IP68 (acc. to EN 60529) / IP69K (acc. to ISO 20653) shear

beam load cell

Suitable platform, hopper, bed and other weighing devices in raw

environment

hermetically sealed

Accuracy OIML R60 C3

OIML certificated

RoHS conform

Option on request: EX

2 Available models

Capacity

Model

300kg

CT 300-3Q1

500kg

CT 500-3Q1

750kg

CT 750-3Q1

1000kg

CT 1000-3Q1

1500kg

CT 1500-3Q1

2000kg

CT 2000-3Q1

3000kg

CT 3000-3Q1

5000kg

CT 5000-3Q1

7500kg

CT 7500-3Q1

10000kg

CT 10000-3Q1

3 Introduction

Please pay attention to the notes of the operating manual: read these operating

manual carefully before commissioning, even if you already have experience with

SAUTER measuring cells.

After receiving the measuring cell, it should be checked in advance whether no

transport damage has occurred, whether the outer packaging or other parts or even

the article itself has been damaged. If any damage is evident, please inform

SAUTER GmbH immediately.

4 Warning notes

Observe the national accident prevention regulations.

Not correct executed use of the measuring cell can lead to serious injuries, death,

material damage and personal injuries. Use only by trained and experienced people.

Never load more than the max. capacity to a measuring cell. Overloaded measuring

cells no longer have the required accuracy. Overloaded or deformed measuring cells

are no longer allowed to use and must be changed quickly.

Never step under suspended loads.

Always fasten overload- or break security to your construction.

Pay attention to the allowed static and dynamic loads of the used equipment.

Let the measuring cells calibrate at regular intervals.

Only load the measuring cell in its specified load direction. Avoid lateral forces.

Control the measuring cells to deformations and cracks.

Measuring cells with 4-Conductor cable will change their characteristic value when

shortened or extended the cable length.

4 CT Q1-BA-e-1810

5 Warranty

The warranty expires at:

Disregard of the specifications of the operating manual

Modification or opening the measuring cell

Overload

Mechanical damages

Damage caused by liquids or media

Natural loss

Not correct installation

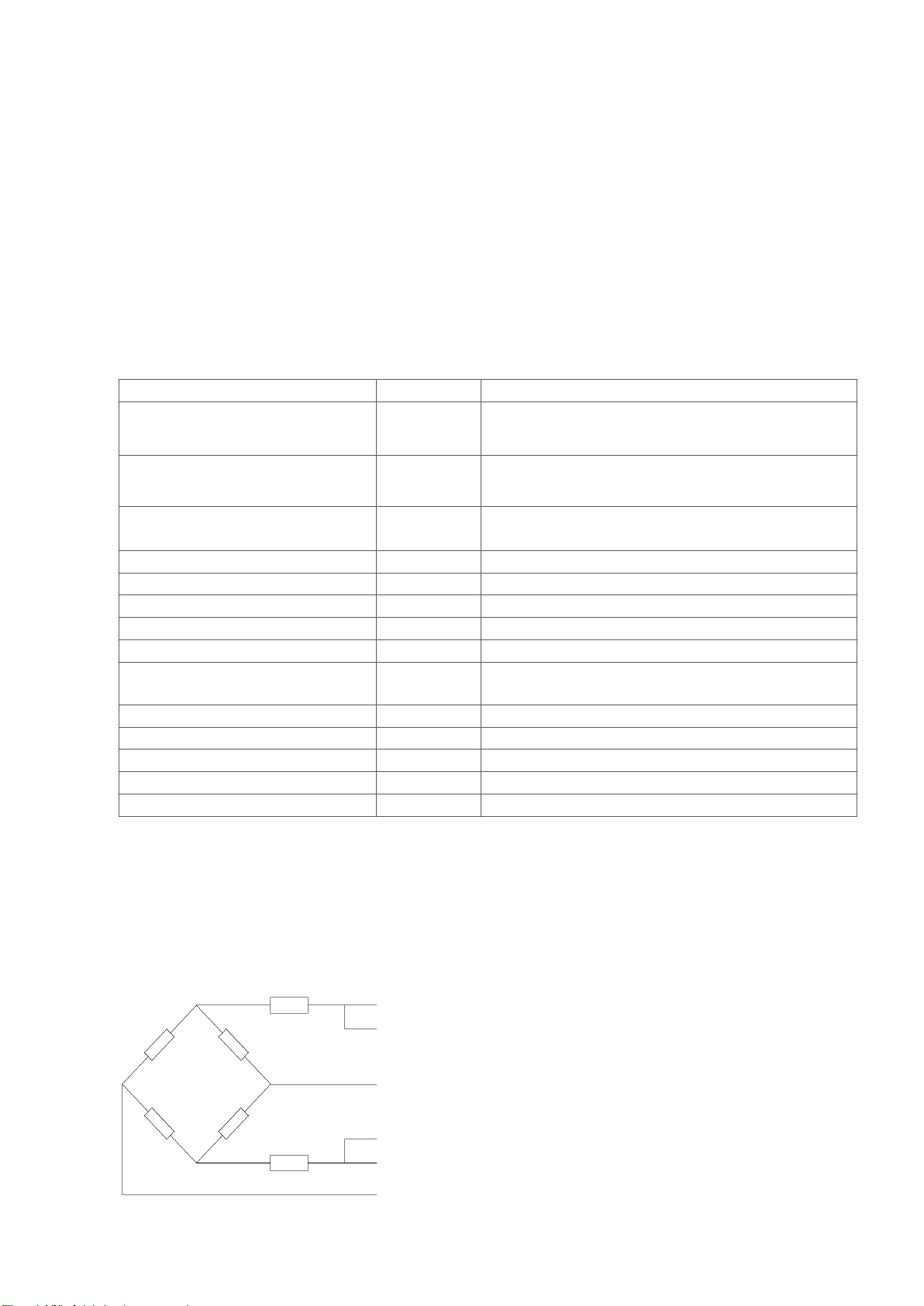

6 Detailed specifications

Output sensitivity ( FS )

mV/V

2.0 ± 0.001

Maximum capacity ( Emax )

300, 500, 750, 1000, 1500, 2000, 3000,

5000, 7500, 10000

Max.number of load cell

intervals

nLC

3000

Ratio of min. LC verification

interval

Y = Emax

/ vmin

10000

Combined Error

%FS

≤± 0.017

Minimum dead load

Of Emax

Safe overload

of Emax

150 %

Ultimate overload

of Emax

200 %

Zero balance

of FS

< ± 2.0 %

Excitation, recommended

voltage

10 ~ 15

Input resistance

400 ± 20

Output resistance

350 ± 3

Insulation resistance

MΩ

≥5000 ( at 50VDC )

Compensated temperature

°C

-10 ~+40

Operating temperature

°C

-35 ~ +65

7 Wiring

Shielded, 6 cable. Shield not connected to element.

Cable diameter: Ø6mm.

Standard cable length for 300kg –5000kg: 5m

Standard cable length for 7500kg –10000kg: 10m

6-wire diagram

Input(+)

Sense(+)

Output(-)

Sense(-)

Input(-)

Output(+)

Green

Blue

White

Yellow

Black

Red

CT Q1-BA-e-1810 5

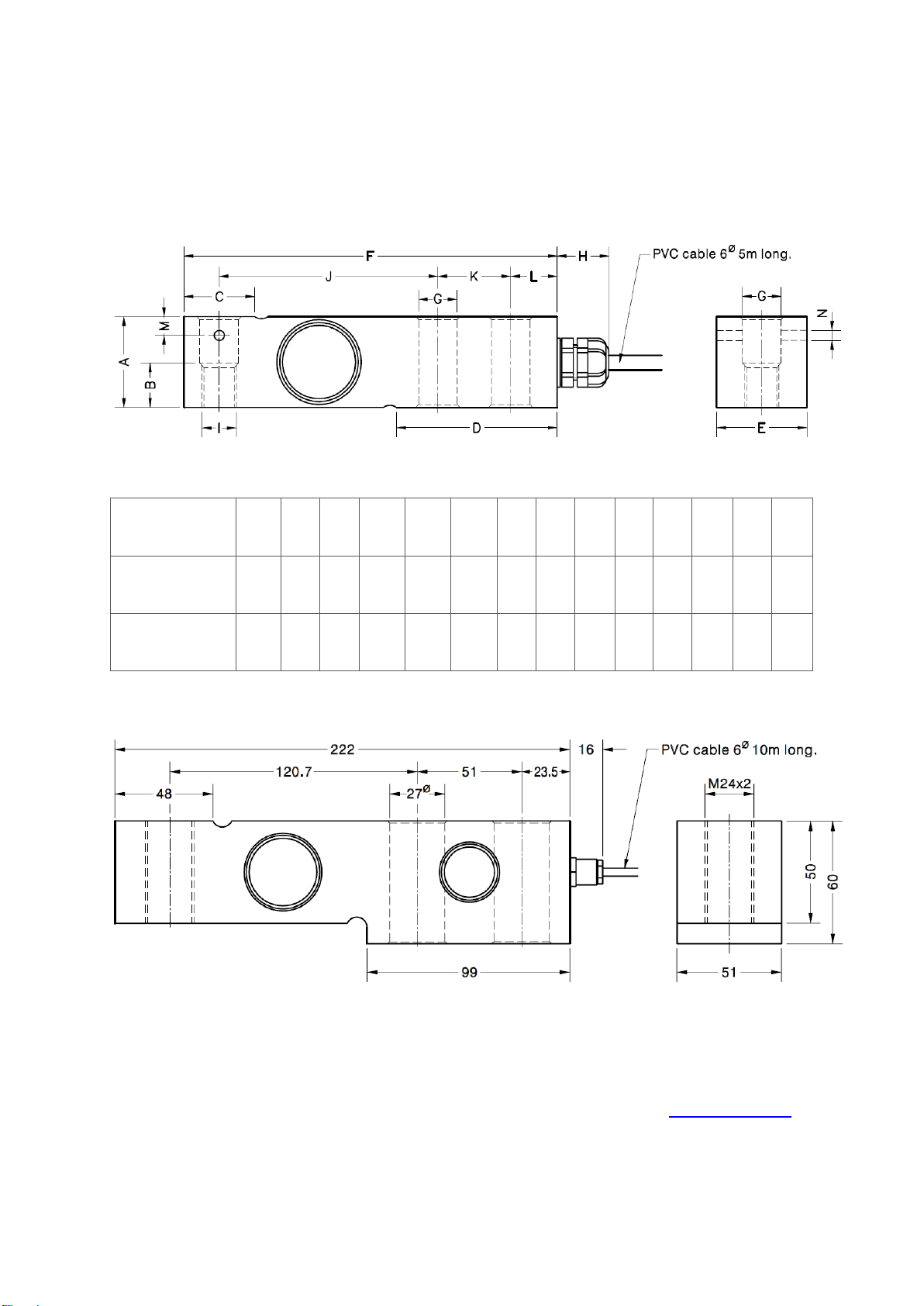

8 Dimensions in mm

8.1 Dimensions in mm (300kg -5000kg)

8.2 Dimensions in mm (7500kg -10000kg)

9 Certificate of Compliance

The Certificate of Compliance can be downloaded from the website www.sauter.eu

Dimension Capacity

G Ø

N Ø

300kg –2000kg

31,5

24,6

31,5

130

13,5

M12

76,2

25,4

15,8

6,5

3,5

3000kg -5000kg

41,5

171,5

20,5

95,2

38,1
