SATO M-8490Se Series User manual
Page 1-1
M-8490Se Printer
Standard Unit
Parts List
P/N 9001083
Rev.B
®
Rev. B
Page 2
SATO M-8490Se Printer (Standard Unit) Parts List
SATO Industrial Bar Code Printers
Table of Contents
M-8490Se Page
Parts List
Frame Assembly........................................................................................................3
Print Head Assembly ................................................................................................9
Ribbon Assembly ....................................................................................................13
Feed Roller Assembly.............................................................................................16
Pressure Roller Assembly......................................................................................19
Cover Assembly ......................................................................................................20
CONT PCB Assembly..............................................................................................23
Check PCB Assembly .............................................................................................24
Memory Option........................................................................................................25
Interface Option.......................................................................................................26
Rev. B Page 3
SATO Industrial Bar Code Printers
SATO M-8490Se Printer (Standard Unit) Parts List

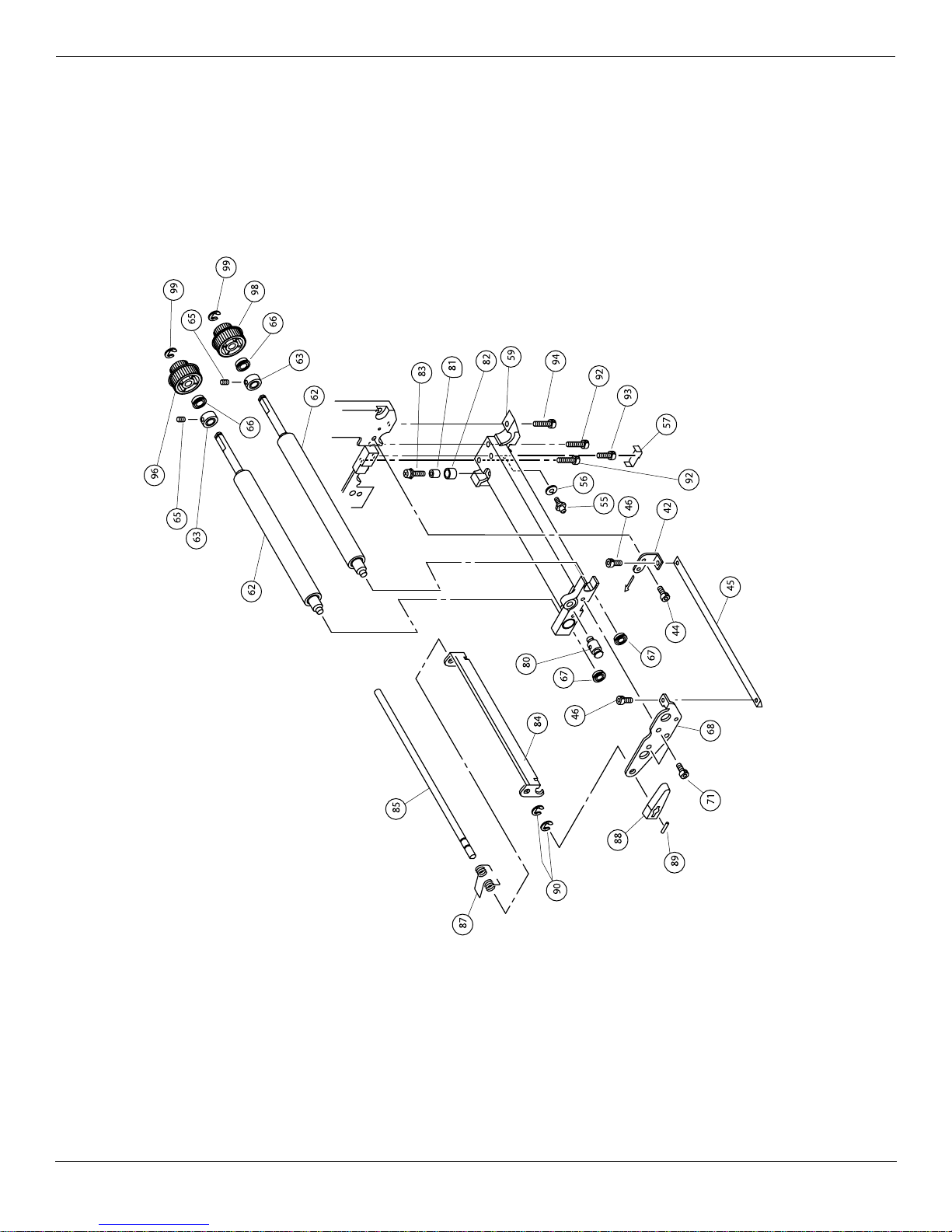

Frame Assembly
Rev. B
Page 4
SATO M-8490Se Printer (Standard Unit) Parts List
SATO Industrial Bar Code Printers
Frame Assembly
Rev. B Page 5
SATO Industrial Bar Code Printers
SATO M-8490Se Printer (Standard Unit) Parts List
Frame Assembly
Rev. B
Page 6
SATO M-8490Se Printer (Standard Unit) Parts List
SATO Industrial Bar Code Printers
Frame Assembly
4 PL1731000 ENGINE FRAME 1
10 PT2108006 DRY METAL 1
12 PB0540101 GUIDE POST 1
14 MC0401022 PAN HEAD SCREW 1
16 PR1730500 STAY 1
21 MC0401222 PAN HEAD SCREW 2
25 PA3732500 SPRING BRACKET 1
28 MC0300622 PAN HEAD SCREW 1
32 PB0731500 SHAFT(SUPPORT) 1
34 MC0401022 PAN HEAD SCREW 2
36 PB0732800 SHAFT (RIBBON ADJUST) 1
39 PR1730300 ROLLER 1
42 PA3736200 DISPENSE BAR BRACKET 1
44 MN0300824 HEX SOCKET BOLT 1
45 PD1731300 DISPENSE BAR 1
46 MN0300624 HEX SOCKET BOLT 2
55 PB0733500 SHAFT(HOLDER) 1
56 NB0040022 SPRING WASHER 1
57 PA4730500 PLATE SPRING 1
59 PL1730800 PLATEN FRAME 1
62 PR0730100 PLATEN 2
63 PB2730100 COLLAR 2
65 MJ1300424 HEX SOCKET SET SCREW 2
66 PT1112060 BALL SUPPORTER 2
67 PT1109050 BALL SUPPORTER 2
68 PA3736301 SUPPORTER CLAMP (A) 1
71 MN0400824 HEX SOCKET BOLT 2
80 PB0730500 POST (LATCH) 1
81 PB2740100 COLLAR 1
82 PE3720301 ROLLER 1
83 MD4301222 PAN HEAD SCREW 1
84 PA3736400 LATCH HANDLE(HOLDER) 1
85 PB0733400 SHAFT(LATCH HANDLE) 1
87 PC3730101 SPRING(LATCH HANDLE) 1
88 PE1730700 HANDLE(C) 1
NO. CODE DESCRIPTION QTY
Rev. B Page 7
SATO Industrial Bar Code Printers
SATO M-8490Se Printer (Standard Unit) Parts List
Frame Assembly
NO. CODE DESCRIPTION QTY
89 NG2201030 PARALLEL PIN 1
90 ND0030030 E-SNAP RING 2
92 MN0402524 HEX SOCKET BOLT 2
93 MN0401624 HEX SOCKET BOLT 1
94 MN0401024 HEX SOCKET BOLT 1
96 PE8730200 PULLEY 1
98 PE8730500 PULLEY 1
99 ND0040030 E-SNAP RING 2
103 PA3735800 PULLEY BRACKET(A) 1
104 PB0731600 SHAFT(ROLLER) 1
105 ND0040030 E SNAP RING 1
106 PR1730600 TENSION ROLLER 1
108 MD4401622 PAN HEAD SCREW 2
112 PT8165064 TIMING BELT 1
113 PB0733200 SHAFT(IDLE)C 1
114 MN0401024 HEX SOCKET BOLT 1
115 ND0040030 E-SNAP RING 1
116 PR1733200 PULLEY 1
117 PR1733300 PULLEY 1
118 MJ1400524 HEX SOCKET SET SCREW 1
119 PA3738600 PULLEY BRACKET(B) 1
120 PB0733900 SHAFT(IDLE)B 1
122 PT1112060 BALL SUPPORTER 2
123 MD4400822 PAN HEAD SCREW 1
124 PT8074064 TIMING BELT 1
125 PT8150064 TIMING BELT 2
127 PL1720100 MOTOR PULLEY(20) 1
128 MJ1400524 HEX SOCKET SET SCREW 2
129 RH1733500 STEPPER MOTOR ASSY 1
130 MC0401222 PAN HEAD SCREW 2
133 PA3735700 PULLEY BRACKET(C) 1
134 PB0730600 POST(TENSION) 1
135 MD4400822 PAN HEAD SCREW 1
137 PR1730600 TENSION ROLLER 1
138 ND0040030 E SNAP RING 1
139 MD4300822 PAN HEAD SCREW 2
141 PB0731701 SHAFT (IDLE) 1
Rev. B
Page 8
SATO M-8490Se Printer (Standard Unit) Parts List
SATO Industrial Bar Code Printers
Frame Assembly
142 PE8730100 GEAR 1
143 PE8730300 PULLEY 1
144 PT1112060 BALL SUPPORTER 2
146 ND0040030 E SNAP RING 1
147 PT8150064 TIMING BELT 1
149 PA1730500 SHAFT BRACKET 1
150 MC0401022 PAN HEAD SCREW 2
152 MA0401622 PAN HEAD SCREW 1
153 MT1400722 HEX NUT 1
155 PA1730700 TENSION BRACKET 1
156 PB0730600 POST (TENSION) 1
157 MD4400822 PAN HEAD SCREW 1
158 PR1730600 TENSION ROLLER 1
160 ND0040030 E-SNAP RING 1
161 MD4300822 PAN HEAD SCREW 2
164 PR4730501 KEYBOARD COVER 1
165 MD4301222 PAN HEAD SCREW 4
166 RJ2730203 KEY PCB SET(EX1) 1
168 MH0300821 PAN HEAD P TITE SCREW 4
170 RH1731304 PSW CABLE 1
171 PA3739900 CONNECTOR LOCK 1
172 RJ2730100 DSW PCB SET 1
173 MD3300822 PAN HEAD SCREW 2
174 PH0730200 DIP SWITCH COVER 1
175 RH1731600 DSW CABLE SET 1
NO. CODE DESCRIPTION QTY
Rev. B Page 9
SATO Industrial Bar Code Printers
SATO M-8490Se Printer (Standard Unit) Parts List

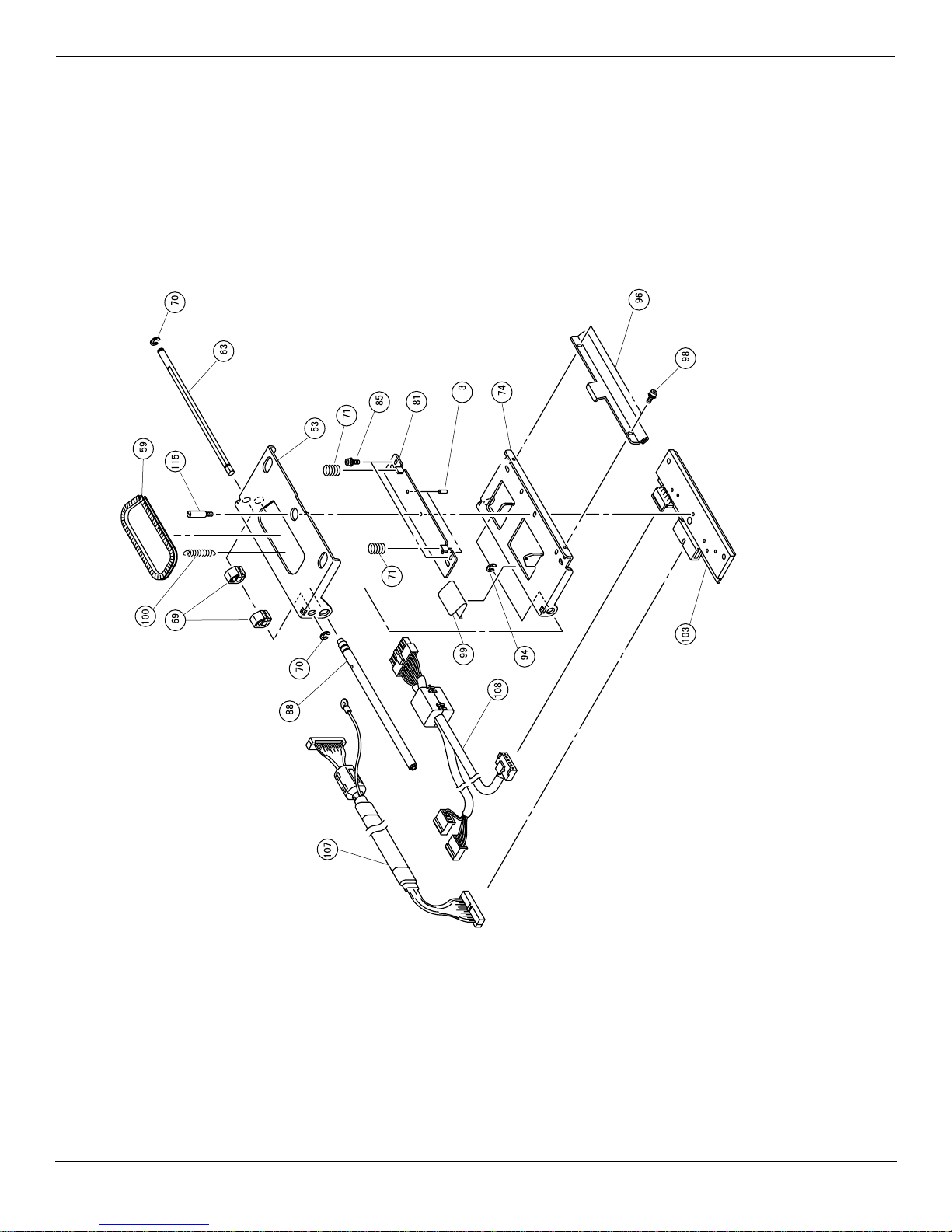

Print Head Assembly
Rev. B
Page 10
SATO M-8490Se Printer (Standard Unit) Parts List
SATO Industrial Bar Code Printers
Print Head Assembly
