SATO TG3 Series User manual
RFID User Guide
Read this User Guide before and during usage of the above product.
Keep this document handy for future reference.
www.satoamerica.com
PN: 9001147D
Parts List
For printer model:
TG3 Series
www.satoamerica.com
PN: 9001227(A)
Copyrights
The contents of this document are proprietary information of SATO Corporation and/or its subsidiaries in
Japan, the U.S and other countries. No part of this document may be reproduced, copied, translated or
incorporated in any other material in any form or by any means, whether manual, graphic, electronic,
mechanical or otherwise, without the prior written consent of SATO Corporation.
Limitation of Liability
SATO Corporation and/or its subsidiaries in Japan, the U.S. and other countries, makes no representations
or warranties of any kind regarding this material, including, but not limited to, implied warranties of
merchantability and fitness for a particular purpose. SATO Corporation shall not be held responsible for
errors contained herein or any omissions from the materials or for any damages, whether direct, indirect,
incidental or consequential, in connection with the furnishing, distribution, performance, or use of this
material.
SATO Corporation reserves the right to change or improve this product and document without notice.
Trademarks
SATO is a registered trademark of SATO Corporation and/or its subsidiaries in Japan, the U.S and other
countries.
SATO America, Inc.
10350 Nations Ford Road
Charlotte, NC 28273
Main Phone: (704) 644.1650
Technical Support: (704) 644.1660
Technical Support Fax: (704) 644.1661
E-Mail: satosale[email protected]
www.satoamerica.com
© Copyright 2010 SATO America, Inc.
All rights reserved.
TG3 Series Parts List PN 9001227A Page 1
ENGINE ASSEMBLY

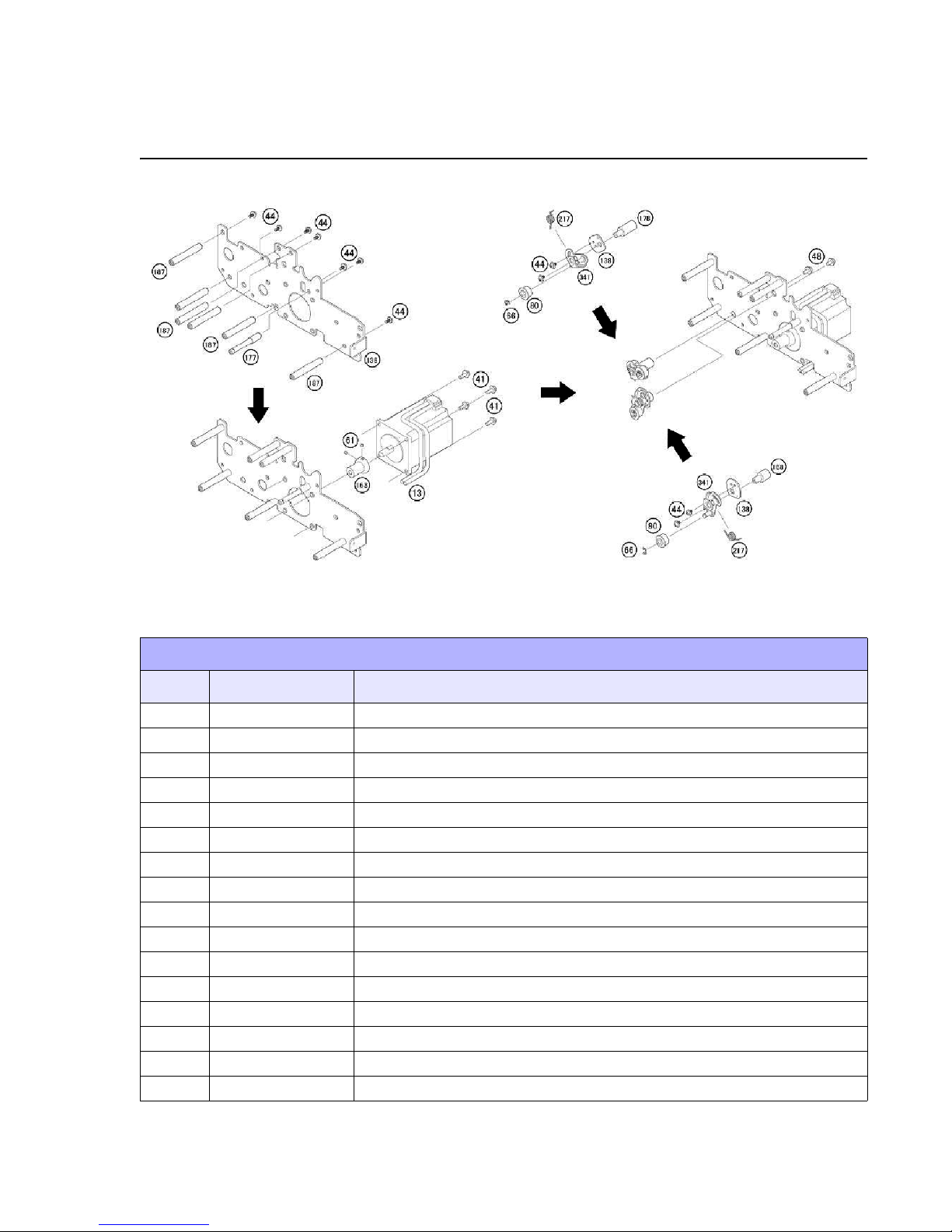

Figure PL1a, Engine Assembly
ENGINE ASSEMBLY (PL1A)
ITEM PART NUMBER PART DESCRIPTION
13 K00285000 STEPPING MOTOR
41 MD3401222 PAN HEAD SCREW
44 MD4300522 PAN HEAD SCREW +SW +WL
48 MD4400622 PAN HEAD SCREW +SW +WL
61 MJ1400524 HEX W-POINT SCREW
66 ND0040030 E SNAP RING
80 P13863010 TENSION ROLLER
136 P28000010 POWER ROUTE (BASE) B
138 P28005000 TENSION PLATE A
163 P28095000 MOTOR PULLEY (22)
168 P28132000 TENSION SHAFT A
177 P28147000 SHAFT (CUT PULLEY B)
178 P28158000 TENSION SHAFT C
187 P28188010 SUPPORT SHAFT
217 P28697000 SPRING (IDLE)
341 R12492010 TENSION PLATE B ASSEMBLY
TG3 Series Parts List PN: 9001227A Page 2
ENGINE ASSEMBLY, CONTINUED
Figure PL1b, Engine Assembly
ENGINE ASSEMBLY (PL1B)
ITEM PART NUMBER PART DESCRIPTION
44 MD4300622 PAN HEAD SCREW
48 MD4400822 PAN HEAD SCREW +SW +WL
66 ND0040030 E SNAP RING
67 ND0050030 E SNAP RING
165 P28129000 SHAFT (PULLEY A/E)
167 P28131000 SHAFT (CUTTER PULLY)
177 P28147000 SHAFT (CUT PULLEY B)
390 R14230010 PULLEY(69) ASSEMBLY
391 R14231000 PULLEY (55/55) ASSEMBLY TG308
392 R14232000 PULLEY ASSEMBLY TG308
393 R14233010 CUTTER PULLEY (27/27) ASSEMBLY
394 R14234000 CUTTER PULLEY (27) ASSEMBLY
396 R14237000 PULLEY ASSEMBLY
403 R14821000 PULLEY (55/83) ASSEMBLY TG312
404 R15137000 PULLEY ASSEMBLY TG312
TG3 Series Parts List PN 9001227A Page 3
ENGINE ASSEMBLY, CONTINUED
Figure PL1c, Engine Assembly
ENGINE ASSEMBLY (PL1C)
ITEM PART NUMBER PART DESCRIPTION
66 ND0040030 E SNAP RING
164 P28128020 SHAFT (FEED ROLLER B)
166 P28130020 ADAPTOR (PLATEN)
244 P32001000 TIMING BELT TG308
245 P32002000 TIMING BELT TG308 TG312
246 P32003000 TIMING BELT TG308 TG312
247 P32004000 TIMING BELT TG308 TG312
248 P32005000 TIMING BELT TG308 TG312
249 P32006000 TIMING BELT TG312
250 P32007000 TIMING BELT TG312
269 P33345000 TIMING BELT TG308
TG3 Series Parts List PN: 9001227A Page 4
ENGINE ASSEMBLY, CONTINUED
Figure PL1d, Engine Assembly
ENGINE ASSEMBLY (PL1D)
ITEM PART NUMBER PART DESCRIPTION
44 MD4300622 PAN HEAD SCREW
66 ND0040030 E SNAP RING
80 P13863010 TENSION ROLLER
83 PT1112060 BEARING, PLATEN ROLLER (INNER)
139 P28021000 TENSION PLATE C
169 P28133000 TENSION SHAFT B
178 P28158000 TENSION SHAFT C
217 P28697000 SPRING (IDLE)
282 PA3760500 SUPPORTER CLAMP
343 R12497010 TENSION PLATE A ASSEMBLY
344 R12498010 TENSION PLATE C ASSEMBLY
349 R13886000 POWER ROUTE A ASSEMBLY
350 R13887000 POWER ROUTE D ASSEMBLY
TG3 Series Parts List PN 9001227A Page 5
SENSOR ASSEMBLY
Figure PL2a, Sensor Assembly
SENSOR ASSEMBLY (PL2A)
ITEM PART NUMBER PART DESCRIPTION
8 JG100011A TIE WRAP
11 JG100541A CABLE CLAMP
21 MA0301222 PAN HEAD SCREW (+2JP3012)
25 MA1300622 FLAT HEAD SCREW
33 MD3300822 PAN HEAD SCREW +SW +WS
44 MD4300622 PAN HEAD SCREW +SW +WL
53 MH0300822 PAN HEAD P TIGHT SCREW
54 MH0301221 P TIGHT SCREW
66 ND0040030 E SNAP RING
141 P28030000 SHAFT (SLIDE)
145 P28039010 BRACKET B (S/H SEN)
146 P28040010 BRACKET(C/H SENS)
147 P28041000 SHAFT (SENSOR)
148 P28042010 BRACKET (RACK C/H SENSOR)
189 P28207000 LENS (I MARK)
191 P28209000 RACK B (CENTER)
TG3 Series Parts List PN: 9001227A Page 6
192 P28212010 SENSOR BR BOTTOM (CENTER HOLE)
193 P28213000 RACK A (CENTER)
263 P32287000 BUSH
277 PA1740901 SENSOR PROTECTOR
280 PA3740300 SENSOR BRACKET
283 PA3761101 SUPPORTER CLAMP
287 PB2760300 COLLAR
292 PE1740400 BRACKET, SENSOR
293 PE1760200 SENSOR PROTECTOR (C)
294 PE1762300 SENSOR PROTECTOR (B)
348 R13745010 BODY B (S/H SEN) ASSEMBLY
351 R13892010 BODY A (S/H SEN) ASSEMBLY
361 R14168000 GAP & CENTER HOLE (U) SENSOR CABLE SET-LF
367 R14174000 GAP & CENTER HOLE (L) SENSOR CABLE SET-LF
370 R14178010 SIDE HOLE (L) SENSOR CABLE SET-LF
395 R14236010 FRAME ASSEMBLY
SENSOR ASSEMBLY (PL2A)
ITEM PART NUMBER PART DESCRIPTION
TG3 Series Parts List PN 9001227A Page 7
SENSOR ASSEMBLY, CONTINUED
Figure PL2b, Sensor Assembly
SENSOR ASSEMBLY (PL2B)
ITEM PART NUMBER PART DESCRIPTION
21 MA0301222 PAN HEAD SCREW (+2JP3012)
29 MC0301622 PAN HEAD SCREW
32 MD3300622 PAN HEAD SCREW +SW +WS
43 MD4300522 PAN HEAD SCREW +SW +WL
44 MD4300622 PAN HEAD SCREW
45 MD4300822 PAN HEAD SCREW
46 MD4301022 PAN HEAD SCREW +SW +WL
48 MD4400822 PAN HEAD SCREW +SW +WL
51 MH0300522 PAN HEAD P TIGHT SCREW
55 MH1200522 FLAT HEAD P TIGHT SCREW
63 MT1300522 HEXAGON NUT (2N3X0.5)
65 ND0030030 E SNAP RING E350
66 ND0040030 E SNAP RING
94 P25440010 SENSOR COVER (I MARK)
99 P25546000 LOCK COLLAR (HEAD)
TG3 Series Parts List PN: 9001227A Page 8
142 P28032010 PAPER GUIDE B
144 P28037000 PAPER GUIDE (FEED A)
149 P28044010 FRAME (SUPPORT A)
150 P28045000 SHAFT (SENSOR GEAR)
151 P28046000 BRACKET (JUMP SENSOR)
152 P28047010 OPEN SENSOR BR
170 P28137000 GEAR PULLEY_B (34/17)
190 P28208000 SUB GUIDE (A)
205 P28330010 SHAFT (LOCK COLLAR)
233 P29730000 FEED LOCK B
234 P29731020 SHAFT (LATCH LOCK)
235 P29732010 SPRING (F/B LOCK)
263 P32287000 BUSH
284 PA3761700 KEYBOARD BRACKET (B)
298 PE2750400 COLLAR
299 PE5A21700 HEAD OPEN KNOB
347 R13583000 FEED LOCK ASSEMBLY
362 R14169000 IM & EDGE SENSOR CABLE SET-LF
364 R14171000 AF & J-HOLE (U) SENSOR CABLE SET-LF
373 R14181000 LITTLUCH SENSOR CABLE SET-LF
409 P40559000 SPRING (PAPER GUIDE)
SENSOR ASSEMBLY (PL2B)
ITEM PART NUMBER PART DESCRIPTION
