Qualcast Rm32 User manual

RM32

1000W Electric Rotary Mower

(Model: M2E1032M)

Instruction Manual

Safety Warning

Warning! Read these instructions carefully, familiarise yourself with the

controls and the correct usage of the machine. Please keep the

instructions safe for later use.

Explanation of symbols on the machine

Beware of hazard,

Read instruction manual.

Wear eye and ear protection.

Do not use the machine in the rain or leave it outdoors when it is

raining.

Pay attention that bystanders are not injured by objects thrown out

from the machine.

Keep bystanders a safe distance away from the machine.

Sharp blade. Beware of injury to toes or fingers.

Disconnect from the mains supply before any maintenance work..

Warning. Beware of electric shocks.

Keep the mains supply cord away from the cutting blade.

Wait until all moving parts have stopped completely before

touching them. The blade may continue to rotate after the machine

is switched off, a rotating blade can cause injury.

Noise level specification Lwa in dB.

Protection class II

Do not dispose of electrical equipment in domestic waste.

Cutting width

Important!

When using powered equipment, the following safety

precautions must be followed to avoid injuries and damage.

►Read the operating instructions carefully and comply with them. It is

important to consult these instructions in order to acquaint yourself with

the unit, its proper use and safety regulations.

►Keep this manual in a safe place, so that the information is available at all

times.

►If you give the equipment to any other person, give them these operating

instructions as well.

We accept no liability for damage or accidents which arise due to

non-compliance with these instructions.

General safety instructions

Note: Only supply power to the equipment through circuit protected by an

RCD with a maximum trip current of 30 mA.

►Never allow children or others who are no familiar with the operating

instructions to use the lawn mower. Local regulations may fix the

minimum age of the user.

►Disconnect the mains lead before carrying out any inspection, servicing

and maintenance work.

►The user is responsible for any harm to third parties in the working area of

the lawn mower,caused by using the lawn mower.

►Only work in good light or provide the appropriate artificial light.

►Always check the mower for signs of damage.

►Ensure that all the guards are fitted and function correctly.

►Never use the mower when you are tired.

►Never run the mower in enclosed or poorly ventilated rooms or if there are

inflammable or explosive fluids, vapours or gases nearby.

►Switch off the motor and disconnect the mains lead before clearing

blockages in the grass ejection area and before you check, clean, service

or work on the lawn mower or if the mower has struck a foreign body.

►Before use, always inspect the mower to check the cutting blade,

fastening bolts and the entire cutting unit for signs of wear or damage. To

prevent imbalance, worn or damaged cutting blades and fastening bolts

may only be replaced in full.

►Damaged parts on the mower must be replaced by trained personnel. Use

only genuine spareparts.

►Follow the instructions to fit or remove the blade and wear protective

gloves.

►Check the site on which you intend to use the lawn mower and remove all

objects that may be caught and thrown up by the mower. Foreign bodies

must be removed before you start mowing. Keep an eye of the power

cable and keep it away from the cutting blade..

►Always wear strong, anti-slip footwear and long trousers when using the

mower. Never mow in bare feet or in open-toed sandals.

►Always use the lawn mower with the grass collector attached or with the

safety flap closed if you are not using the grass collector.

►Do not lift the lawn mower when you start the motor.

►Never reach into rotating parts with your hands or feet. Always keep away

from the discharge opening.

►Before you attach or empty the grass collector, switch off the motor and

wait until the blade has come to a standstill.

►The safety distance from the moving blade produced by the push handle

must be maintained at all times.

►If you use the mower on a slope, mow across the slope (not in an up and

down direction). Always be sure of your footing on slopes.

►Do not use the lawn mower on gradients of over 15 degree.

►Before you lift the lawn mower to transport it, switch off the motor,

disconnect the mains lead and wait until the blade has come to a

standstill.

►When the mower is working ensure that nobody, particularly children and

animals, is in the immediate vicinity of the lawn mower. Ensure that you

keep everybody 10 meters away from the mower when it is working.

►Keep the lawn mower in a dry place which is inaccessible to children.

►Repair work on the electrical parts of the lawn mower may only be carried

out by an electrician.

►Extension cables must comply to H07RN-F requirements as described in

DIN 57 282/VDE 0282 and must have a minimum cross-section of 1.5

mm2. The plug must have an earth and any connection must be

splashproof. Before use check the cables for signs of damage and ageing.

Never use the mower if the cables are not in perfect condition (this also

applies to the motor supply cable on the mower). If the cable is damaged

whilst the mower is working, disconnect the mains plug from the power

supply immediately and then check the extent of the damage.

►When you start the motor, the lawn mower must not be tilted unless the

grass is particularly long. In this case only tilt it up as far as is really

necessary and only raise the side that is furthest away from the user.

►If the lawn mower begins to vibrate abnormally, switch it off immediately ,

disconnect the plug immediately and check it carefully.

►Ensure that all the nuts, bolts and screws are tight and that the mower is in

a safe condition for use.

►Switch off the motor and disconnect the plug from the power supply if the

mower strikes a foreign body. Check the mower for signs of damage and

carry out the necessary repair work before you start work with the mower

again.

►Do not leave the mower out in the rain. The lawn must not be wet or very

damp.

►Ensure that you have safe footing at all times whilst working with the

mower.

►Only push the mower at a normal walking pace.

►Be particularly careful when changing direction with the mower whilst

working on a slope.

►Be particularly careful when you change the direction of the mower or pull

it towards you.

►Switch off the mower if it has to be tilted for transport purposes, when you

have to take it over surfaces other than grass, and when moving the

mower to and from the area you wishto mow.

►Carefully actuate the starter switch in accordance with the manufacturer’s

instructions. Make sure you keep your feet at a safe distance from the

mower blade! Do not stand near the grass ejection chute if the grass

collector is not fitted.

►Do not touch the cutting blade until the machine has been disconnected

from the mains and the cutting blade has reached a complete standstill.

►Never lift or carry the mower whilst the motor is running.

►Switch off the motor and disconnect the plug before you leave the lawn

mower.

►Check the grass collector at regular intervals for signs of wear and to

ensure that it is still in perfect working order.

►Before you adjust or clean the mower or check whether the mains lead is

kinked or damaged, switch off the mower and disconnect the plug from

the power supply.

►Use only plugs or connectors approved for outdoor usage.

►Ensure that you do not push the mower over areas that might damage or

snare the power cable

►Do not switch the mower on and off frequently over a short period of time,

and in particular do not play with the ON/OFF switch. Check the grass

collector frequently for wear or deterioration. Replace worn or damaged

parts before using the mower.

►As a result of the voltage fluctuations this mower cause as it gets up to

speed, other equipment connected to the same circuit may suffer faults if

the mains supply is not in perfect condition. In this case suitable action

has to be taken (fore example connect the mower to a different circuit or

run the mower on a circuit with lower impedance).

►This equipment is not designed to be used by people (including children)

with limited physical, sensory or mental capacities or those with no

experience and/or knowledge unless they are supervised by a person

who is responsible for their safety or they have received instructions from

such a person in how to use the equipment safely. Children must always

be supervised in order to ensure that they do not play with the equipment.

CAUTION!

Read all safety requirements and instructions.

Any errors made in following the safety requirements and instructions

may result in an electric shock, fire and serious injury.

Keep all safety regulations and instructions in a safe place for future

use.

- Do not use the lawnmower if the cords are damaged or worn.

- Do not connect a damaged cord to the mains supply or touch a damaged

cord before it is disconnected from the mains supply. A damaged cord could

allow you to come into contact with live parts.

- Do not attempt to touch the blades before the machine is disconnected from

the supply and the blades have come to complete stop.

- Keep extension cords away from the blades. The blades can cause

damage to the cords and lead to contact with live parts.

- Disconnect from the mains supply (i.e. remove the plug from the mains

socket)

- whenever leaving the machine unattended,

- before cleaning a blockage,

- after striking a foreign object,

- whenever the machine starts vibrating abnormally.

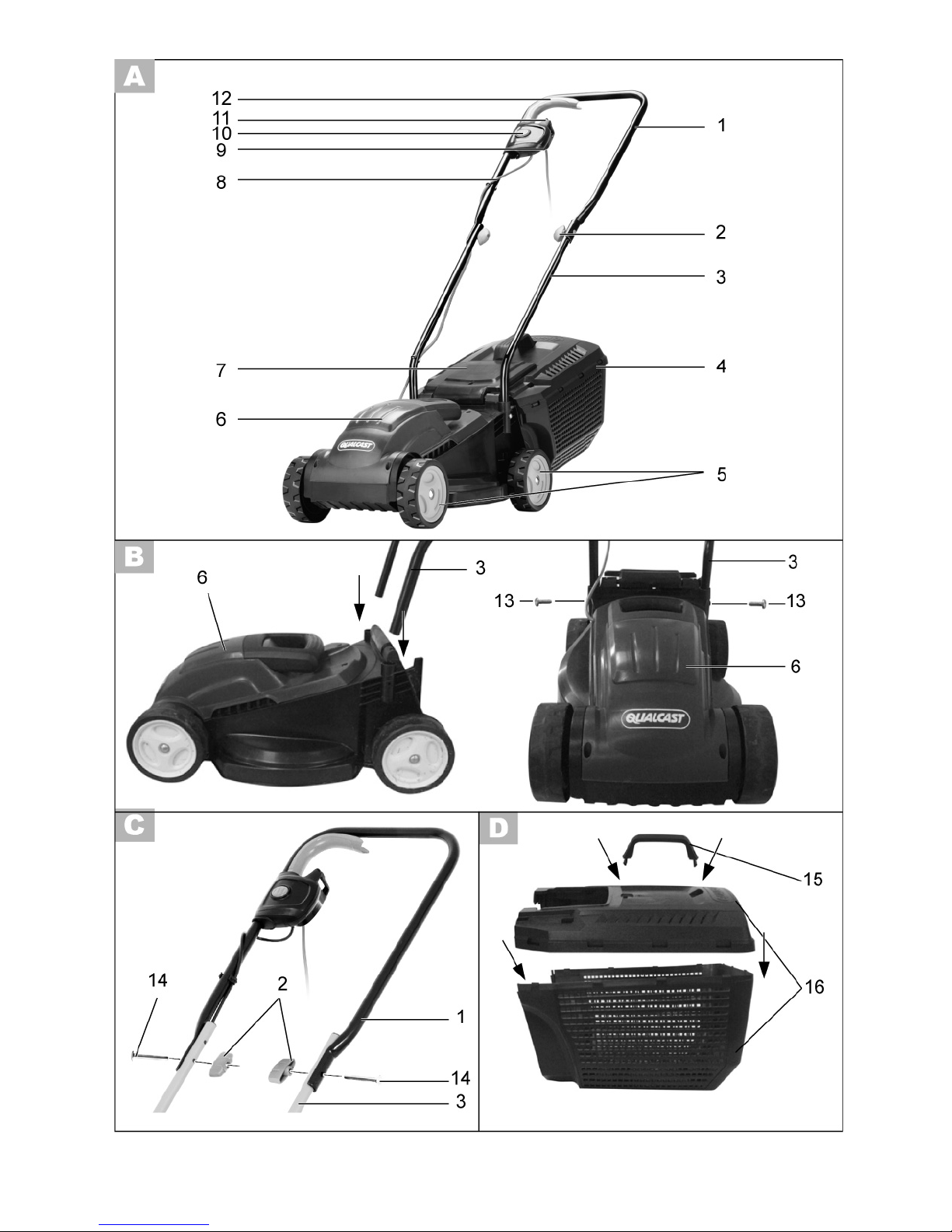

Components (Fig. A )

1．Curved handle section

2．Handle fastener

3．Bottom handle bar

4．Grass collector

5．Wheels

6．Housing and deck

7．Grass chute deflector guard

8．Cable clamp

9．Switch box

10．Safety lock-off button

11．Cable strain-release hook

12．Switch on/off lever

13．Bottom handle fastening bolts

14．Curved handle fastening bolts

15 . Grass collector handle

16. Top and bottom sections of grass collector

Proper use

The lawn mower if designed for use in private gardens. The machine is to be

used only for its prescribed purpose. Any other use is deemed to be a case of

misuse. The user / operator and not the manufacturer will be liable for any

damage or injuries of any kind caused as a result of misuse. Please note that

our equipment has not been designed for use in commercial, trade or

industrial applications. Our warranty will be voided if the machine is used in

commercial, trade or industrial businesses or for equivalent purposes.

Table of contents

Other Qualcast Lawn Mower manuals

Qualcast

Qualcast XYM188-2BSJE User manual

Qualcast

Qualcast QG-PM 51S B&S User manual

Qualcast

Qualcast XSS46D User manual

Qualcast

Qualcast PM48 User manual

Qualcast

Qualcast MEB1234M User manual

Qualcast

Qualcast CEM 30 User manual

Qualcast

Qualcast XSZ48A User manual

Qualcast

Qualcast 484345 User manual

Qualcast

Qualcast SCM32A User manual

Qualcast

Qualcast GLM3300 User manual

Qualcast

Qualcast XSZ48A-SD User manual

Qualcast

Qualcast GLM4000 User manual

Qualcast

Qualcast Power-Trak 34 User manual

Qualcast

Qualcast Cobra 32 User manual

Qualcast

Qualcast M2E1232M User manual

Qualcast

Qualcast MEB1434M User manual

Qualcast

Qualcast QSPP46 User manual

Qualcast

Qualcast Easi-Trak 32 User manual

Qualcast

Qualcast XSZ53C-SD-E User manual

Qualcast

Qualcast XSZ41D User manual

Qualcast

Qualcast 310097 User manual

Qualcast

Qualcast CLMB3634M User manual

Qualcast

Qualcast XSZ46B-SD User manual

Qualcast

Qualcast XSZ51A-SD User manual

Popular Lawn Mower manuals by other brands

RHINO

RHINO 1958 parts manual

Wolf Garten

Wolf Garten Compact plus 40 B instruction manual

Cub Cadet

Cub Cadet LTX 1045 brochure

Craftsman

Craftsman 917.378461 owner's manual

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Operator's manual

Challenge

Challenge CH18V2 Original manual

TALEN TOOLS

TALEN TOOLS AVR HGM30 manual

DEWEZE

DEWEZE ATM-725 Operation and service manual

Weed Eater

Weed Eater 180083 owner's manual

Husqvarna

Husqvarna Poulan Pro PP185A42 Operator's manual

Better Outdoor Products

Better Outdoor Products Quick Series Operator's manual

Cub Cadet

Cub Cadet 23HP Z-Force 60 Operator's and service manual

MTD

MTD 795, 792, 791, 790 Operator's manual

Toro

Toro Groundsmaster 3505-D Service manual

Dennis

Dennis FT 610 instruction manual

AIRFORCE

AIRFORCE F-15 Gen 3 owner's manual

MTD

MTD 126-220-000 owner's guide

Toro

Toro 74806 Operator's manual

Qualcast rm32 User manual

Popular Lawn Mower manuals by other brands
