Prorack K958 User manual
K958
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
x 1 x 4
Revision No: 3C 1
Fitting Kit K958
MAX kgs (lbs)
W/P WHD
Audi
Q7, 5dr SUV 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Q7, 5dr SUV 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Q7, 5dr SUV 15-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Q7, 5dr SUV 15-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
2
Fitting Kit K958
X
A B C 1 2 3
Q7, 5dr SUV 15-+ (NZ) 30mm 810mm - 995mm 965mm -
1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -
Q7, 5dr SUV 15-+ (AU) 30mm 810mm - 995mm 965mm -
1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -
Q7, 5dr SUV 15-+ (EU) 30mm 810mm - 995mm 965mm -
1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -
Q7, 5dr SUV 15-+ (ZA) 30mm 810mm - 995mm 965mm -
1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -
3

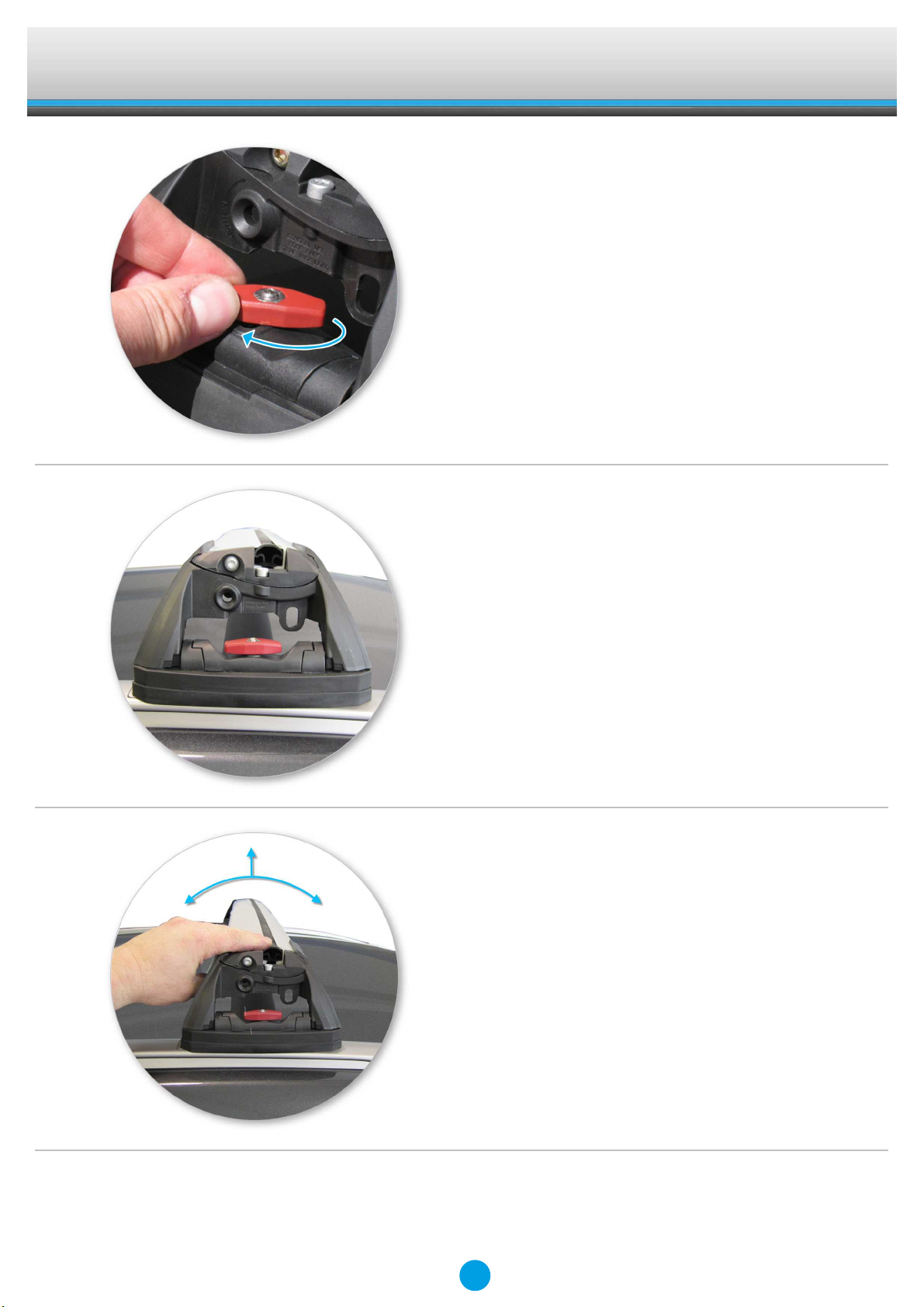

Fitting Kit EN
K958
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K958
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Please check the front of this manual for
information relating specifically to your
vehicle.
5
Fitting Kit EN
K958
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Remove both pins from each leg. Use
tapered end of spanner located inside left
hand cover to assist.
6
Fitting Kit EN
K958
●Detach foot from leg. Store loose parts in a
safe place.
●Repeat for all legs.
●Assemble foot from kit into leg.
●Insert pins through foot into leg.
7
Fitting Kit EN
K958
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
Fitment
●Open fixed-point covers.
8
Fitting Kit EN
K958
●Select grubscrews and screw into the
vehicle's fixed points.
●Repeat for all four positions.
●Make sure fixed point cover is in position
as shown.
●Place crossbar foot over grubscrews.
9
Fitting Kit EN
K958
●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all four positions.
●Check crossbar is securely attached to the
vehicle.
10
