Prorack K422 User manual
Page 1 of 4
K422 ASSEMBLY AND FITTING
INSTRUCTIONS
Kit Contains
1 x Instructions
4 x Feet Assemblies
4 x Coach Bolts
4 x M6 x 12 mm Capscrews
8 x M5 x 12 mm Capscrews
Remo e parts from box & check
Contact your Prorack dealer if any parts are missing or damaged
Items you will require that are not included:
1 x Tape measure
1 x Step Ladder for higher ehicles
Important Note:
Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar
Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar
Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar
When Fitted and loaded
correctly
75
7575
75
kg
kgkg
kg
Maximum
Whispbar
Load
ating
1. Fitting Feet Assemb ies to Legs
•
emove crossbar and this kit parts from the
packaging.
•Follow step 1-3 of crossbar assembly instructions.
•emove clamp block by pressing it backwards.
•emove both pins from each leg.
(use
spanner/screwdriver located inside one of the left
hand covers to assist)
Press Here Remo e both pins
1.1
1.2
4 x Clamps
4 x Red Plastic Knobs
K422 ASSEMBLY AND FITTING INSTRUCTIONS
Page 2 of 4

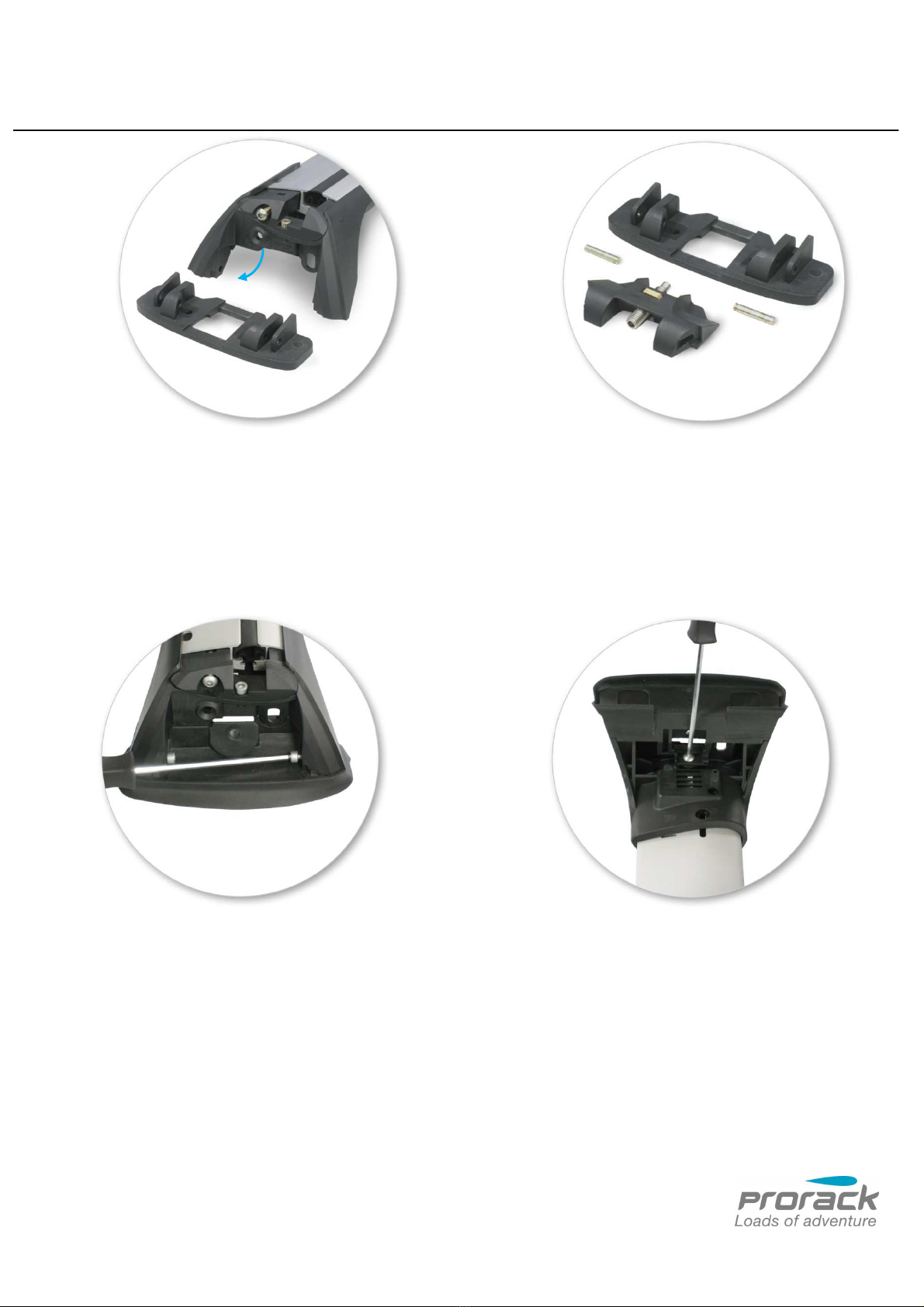

1.6
•
epeat 1.1-1.3 for all four legs
•Store these parts in a safe place. They
are not required for this fitting kit.
•
While holding crossbar, detach foot from leg.
Detach
Parts remo ed from
each leg
•Turn the crossbar upside down and use
the M6 x 12 mm capscrews to secure the
feet assembly using the Hex Screwdriver
supplied with the crossbar.
•epeat on all for legs
•Select four feet assemblies and match
the left and right assemblies to the left
and right roof rack legs.
•Use the M5 x 12 mm self tapping screws
to secure feet assemblies to leg.
1.5
1.4
1.3
K422 ASSEMBLY AND FITTING INSTRUCTIONS
Page 3 of 4
•
Slide clamp through opening in the leg
(see step 2.1).
•Ensure that the two pins of the clamp
engage correctly with the holes in the roof
rail.
•Thread the coach bolt through the clamp
and the leg.
•Tighten the red plastic knob. Do Not Over
Do Not Over Do Not Over
Do Not Over
Tighten
TightenTighten
Tighten.
•Ensure the red plastic knob is in the position
above and refit covers.
•epeat for all four legs.
2.2
2.3
2.1
•
Locate two holes at each position along the roof
rail.
•
Place crossbars approximately above these
holes on roof rails.
2.4
Pins engaged
correctly
Opening for
clamp
2. Positioning Crossbars on Roof Rai
K422 ASSEMBLY AND FITTING INSTRUCTIONS
Page 4 of 4
Warning Notes:
•Use these instruction in conjunction with crossbar instructions
WARNING: Check the Tightness of Screws Regu ar y
•
Check crossbars feel tight.
2.5
•Completed roof rack.
2.6
