Prorack K536 User manual

K536

Fitting Kit

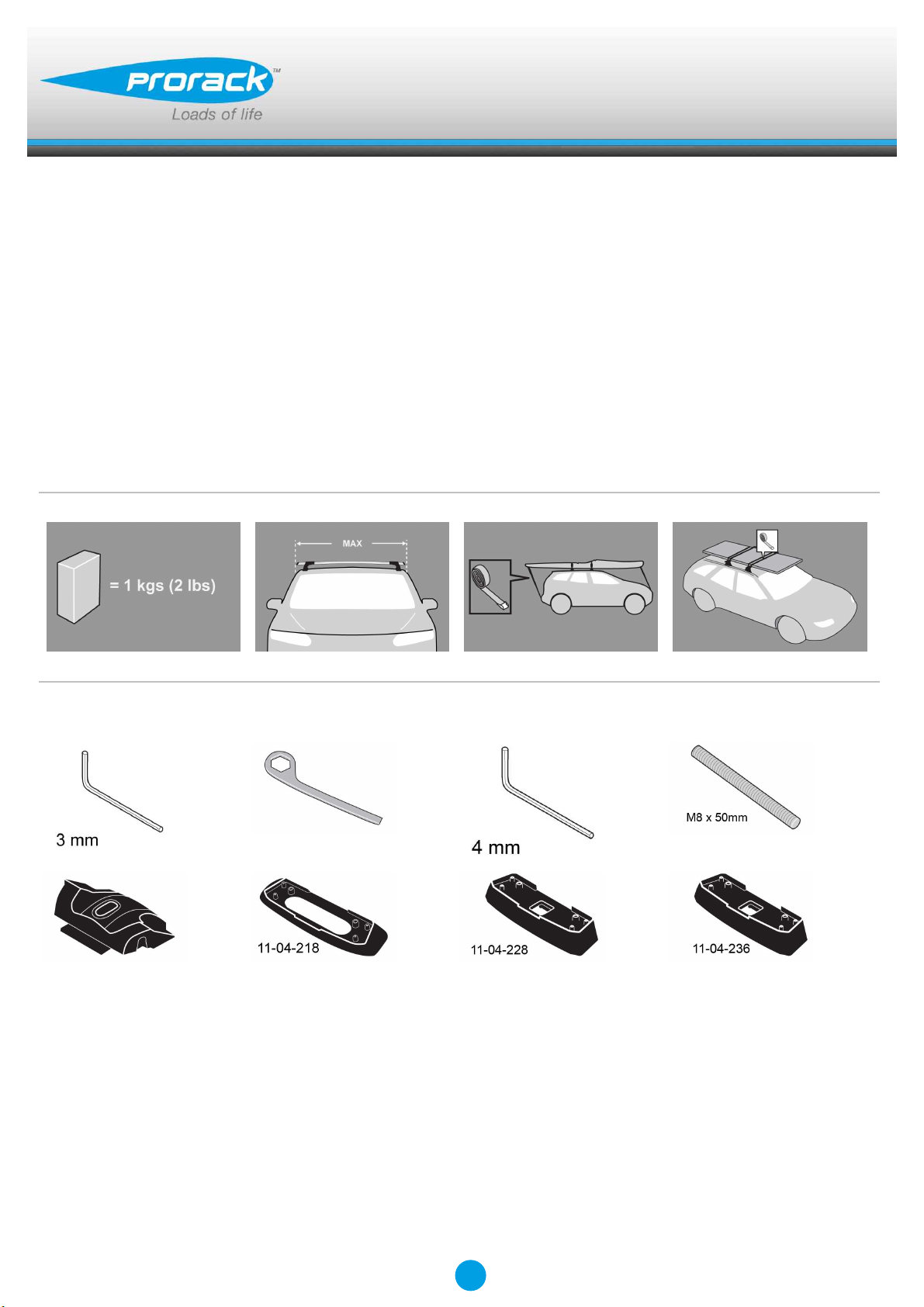

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 6

x 6 x 2 x 2 x 1

Revision No: 3C 1

Fitting Kit K536

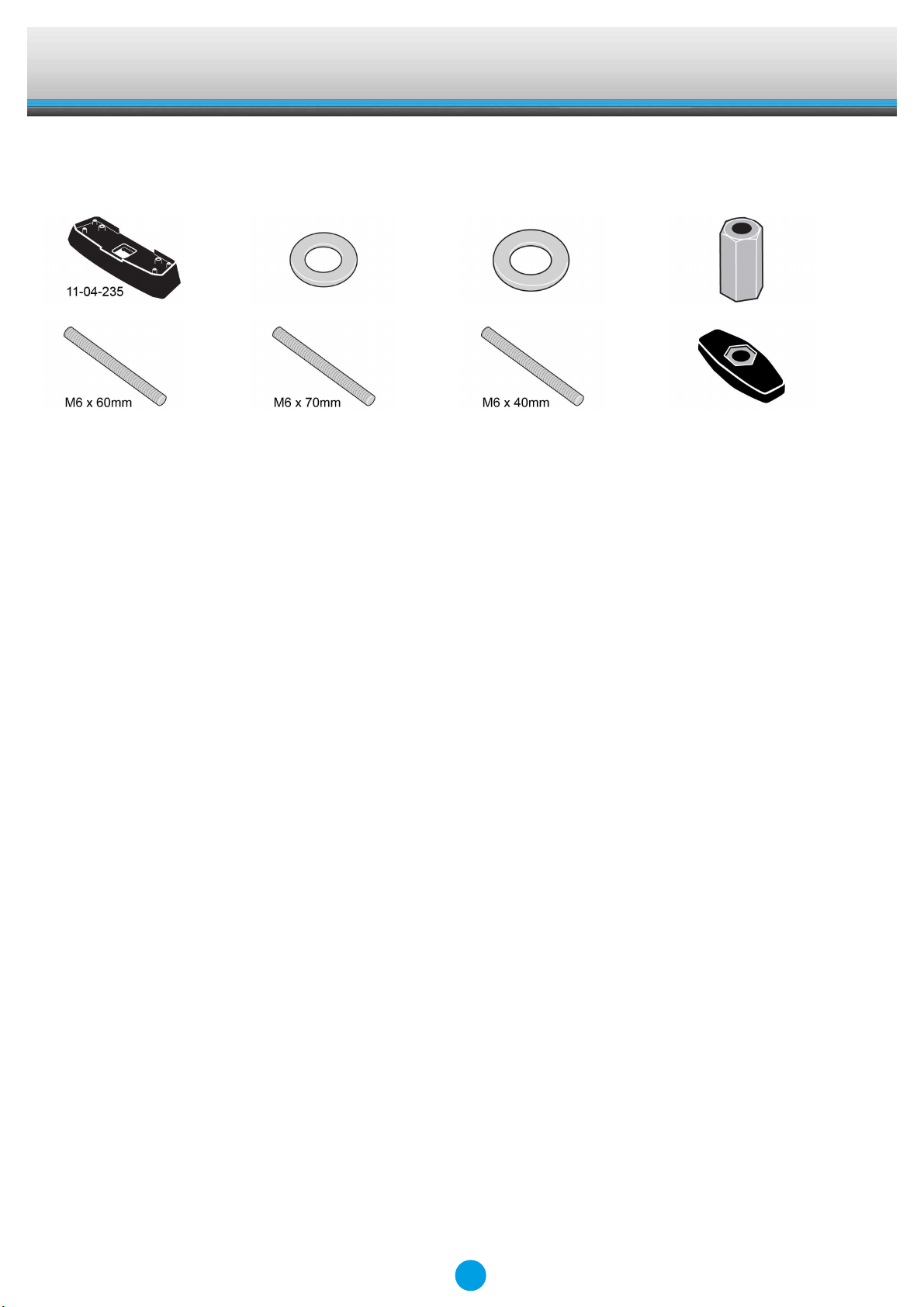

x 1 x 6 x 6 x 6

x 2 x 2 x 2 x 6

Fitting Kit K536

MAX kgs (lbs)

W/P WHD

Great Wall

X200 , 5dr SUV Jun 11-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

X200 , 5dr SUV Jun 11-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

X200 , 5dr SUV Jun 11-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

X200 , 5dr SUV Jun 11-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

X240 , 5dr SUV Jun 11-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

X240 , 5dr SUV Jun 11-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

X240 , 5dr SUV Jun 11-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

X240 , 5dr SUV Jun 11-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

X240 , 5dr SUV Jun 11-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K536

This setup is for three crossbars.

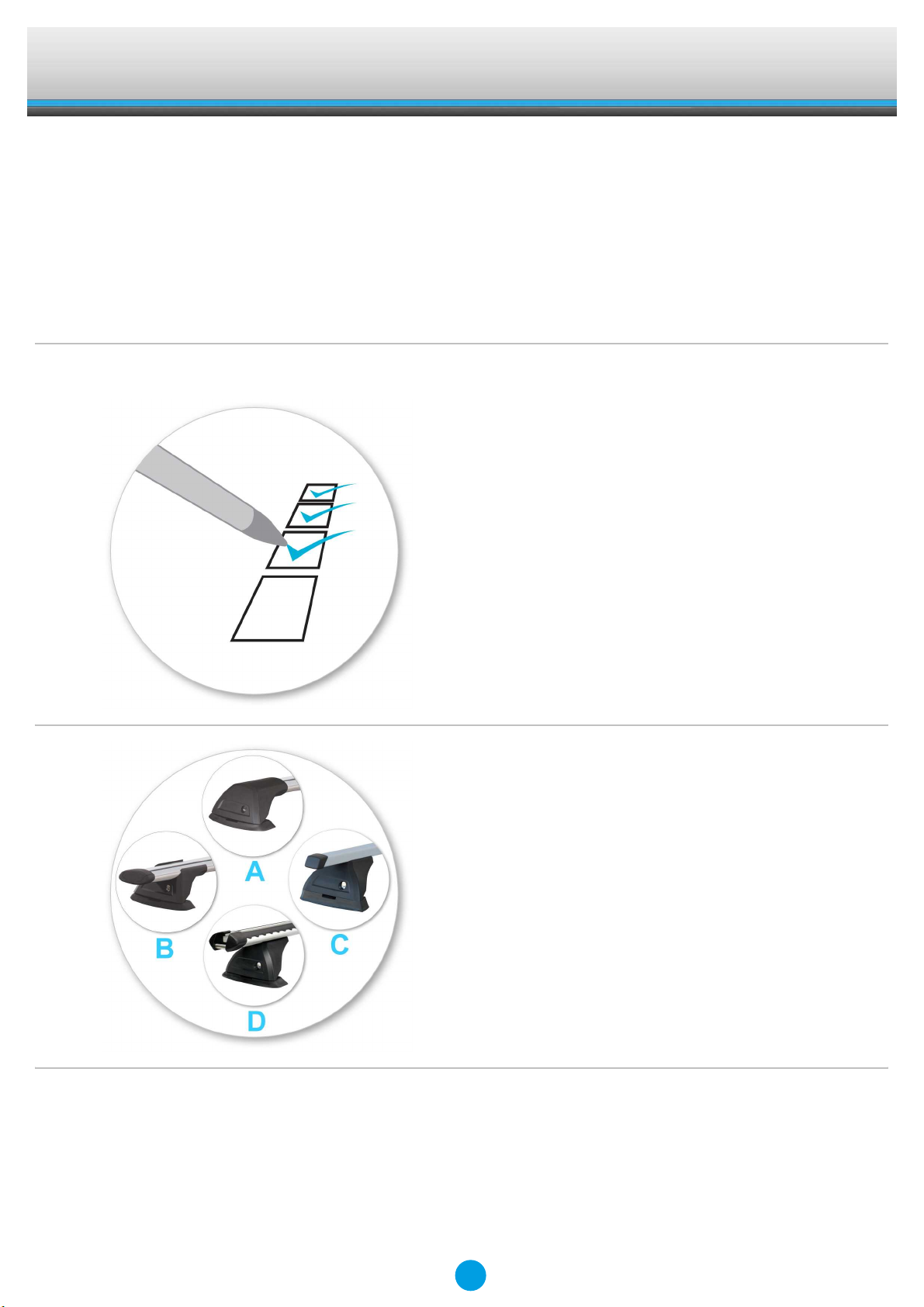

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Fitting Kit EN

K536

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K536

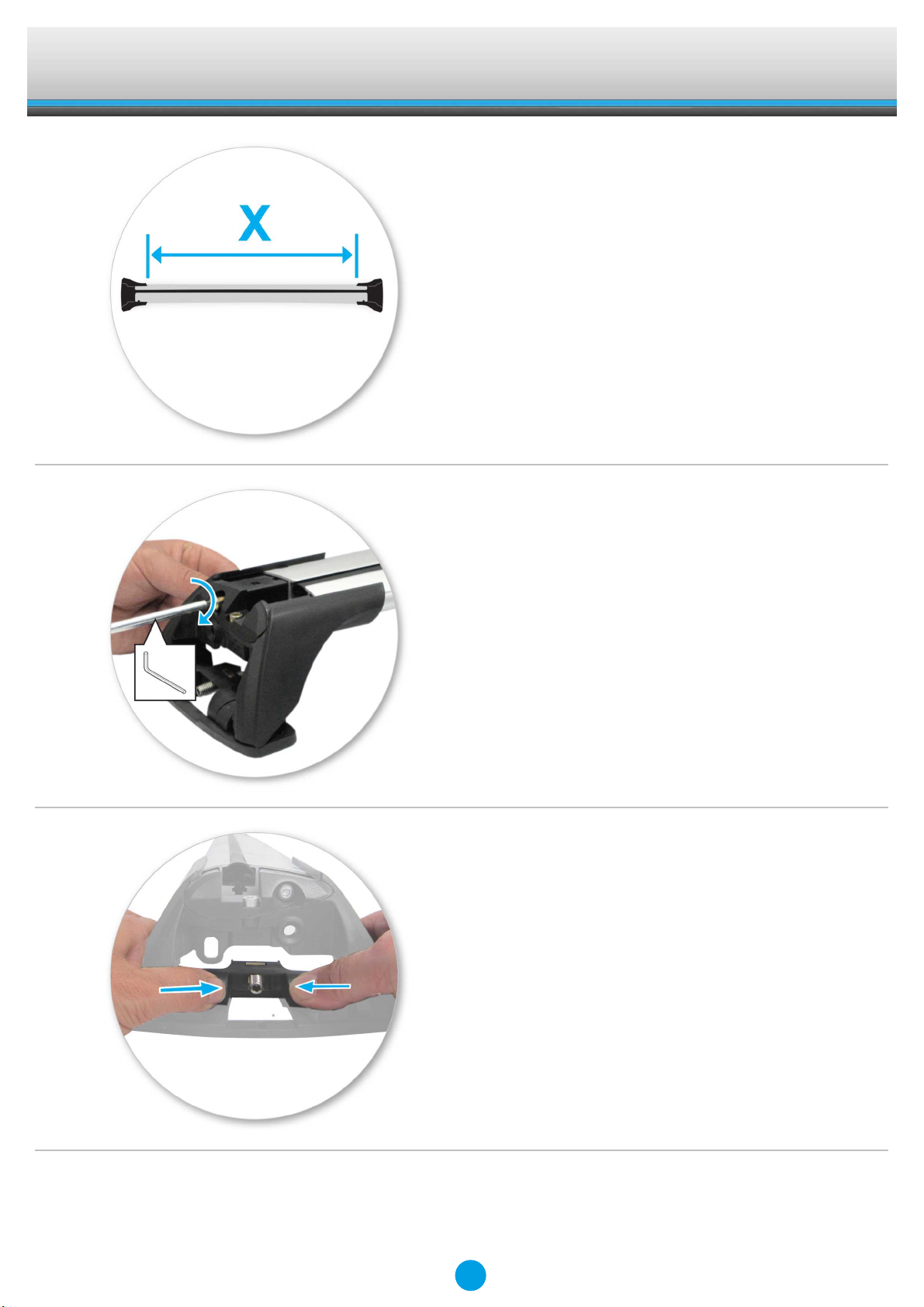

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K536

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

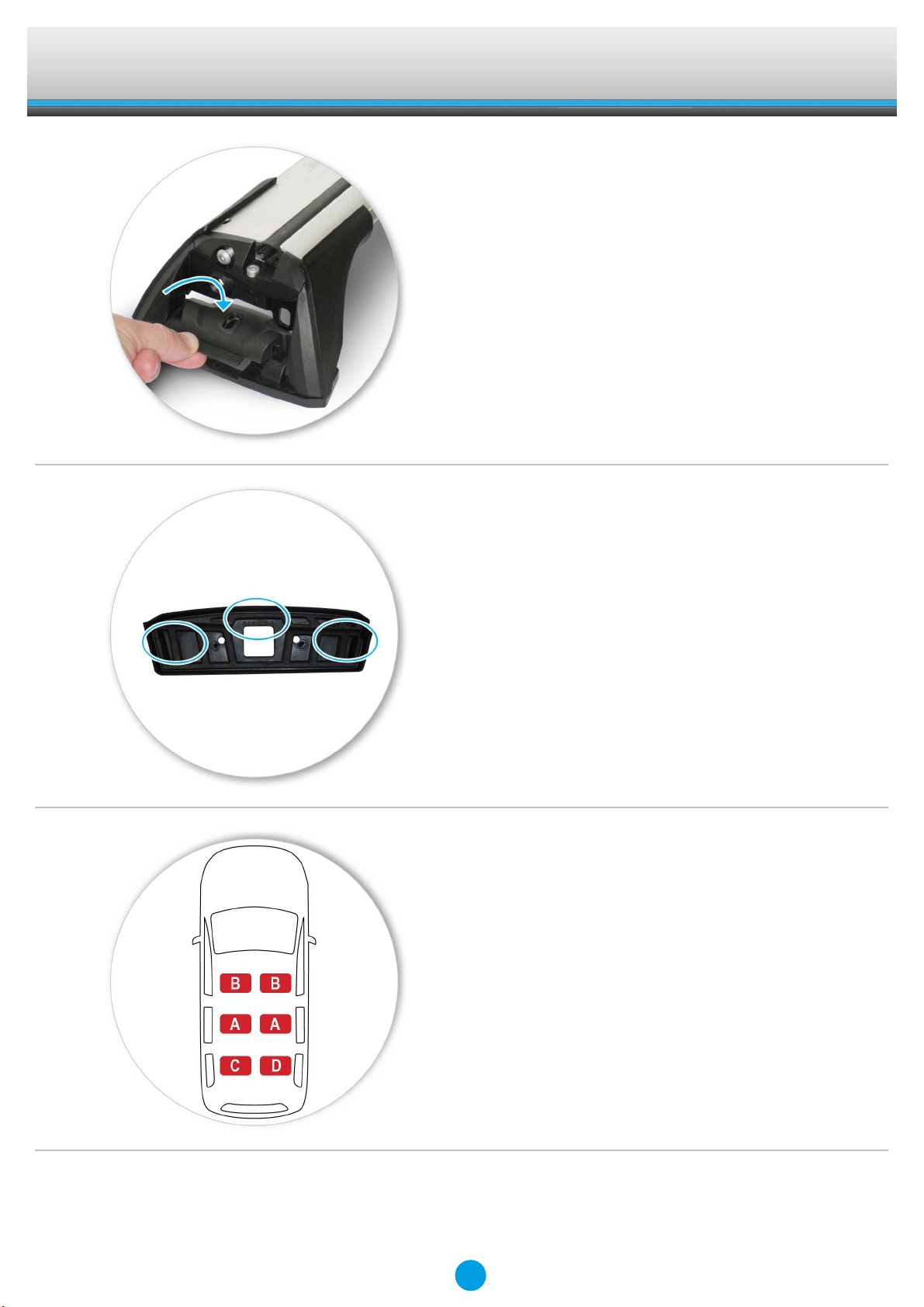

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-218A

B = 11-04-228A

C = 11-04-235A

D = 11-04-236A

Fitting Kit EN

K536

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Open or remove fixed-point covers.

●Remove M8 mounting bolt from fixed-point

using 4mm hex key, as shown.

Fitting Kit EN

K536

●Using 5mm hex key, screw M8 grubscrew

into fixed-point, leaving 12mm (1/2") visible.

●Install adaptor onto vehicle.

●Tighten with provided 10mm (3/8")

spanner.

●Place M8 washer over grubscrew.

●Sort M6 grubscrews into lengths.

Fitting Kit EN

K536

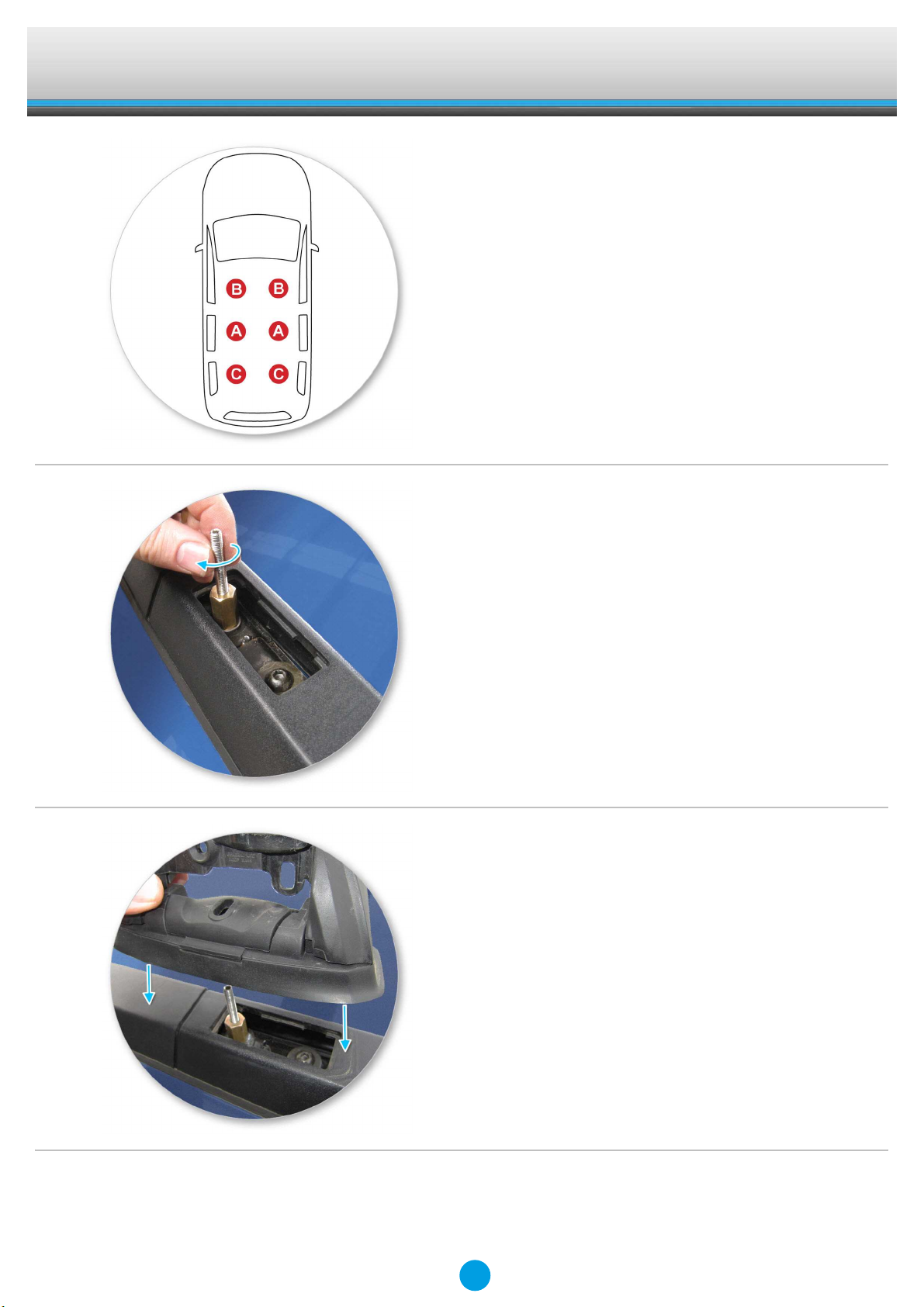

●It is important to put the grubscrews in the

correct position on the vehicle.

●A = M6 x 40mm (1 5/8")

B = M6 x 60mm (2 3/8")

C = M6 x 70mm (2 3/4")

●Screw M6 grubscrew into adaptor. Tighten

using 3mm (1/8") hex key.

●Do not over tighten.

●Repeat for all six positions.

●Place crossbar foot over grubscrews.
