RMX®2000/4000 MPMRx Migration

Procedure

Verify before initiating this hardware migration procedure that your kit contains the following:

•RMX 2000:

—CNTL 2000 unit

—Power Module

—2 RTM LAN cards

—at least one MPMRx-D card

—Software License, for the latest RMX software version

•RMX 4000:

—CNTL 4000 unit

—at least one MPMRx-D card

—Software License, for the latest RMX software version

Guidelines

Prior to the installation make sure:

• Backup the configuration file. For more information, see the RMX 1500/1800/2000/4000

Administrator’s Guide, Software Management.

• That if Windows 7™ is installed on the workstation, Protected Mode must be disabled before

connecting the workstation.

•RMX 2000 users:

—Its is recommended that RMX software version 6.0 or later is installed on your system.

—Verify the chassis type of your RMX system. The MPMRx card requires a chassis of the type D

or E. For more information, see RMX 2000 Hardware Guide, Chapter 1, RMX Chassis Types.

—In the RTM IP card Properties pane locate the Card Part Number. If the part number DOES NOT

MATCH: BRD2114E-L0 or BRD2114E-R5, you are required to RMA the RTM IP card.

•RMX 4000 users:

—Its is recommended that RMX software version 6.0 or later is installed on your system.

The product names, Polycom®RealPresence®Collaboration Server and RMX®are used

interchangeably throughout this document.

For more detailed information refer to the Polycom®RealPresence®Collaboration Server (RMX)

2000 and 4000 Hardware Guides.

www.polycom.com

RMX Upgrade

Upgrading the RMX with MPMRx cards involves the following processes:

•Process 1: Removing RMX Hardware

—RMX 2000. Remove the Power Supply, Control (CNTL) Unit, Media Card(s) and LAN card(s,

if installed).

—RMX 4000. Remove the Control (CNTL) Unit and Media Card(s).

•Process 2: Installing RMX Hardware

—RMX 2000. Install the Power Supply, Control (CNTL) Unit and LAN card(s).

—RMX 4000. Install the Control (CNTL) Unit and Media Card(s).

•Process 3: Software Upgrade

•Process 4: Install MPMRx card(s) on the RMX 2000/4000

Process 1: Removing RMX Hardware

Remove the following RMX Hardware:

• RMX 2000: Remove the Power Supply, Control (CNTL) Unit, Media Card(s) and LAN card(s). For

more information see Removing RMX 2000 Components.

• RMX 4000. Remove the Control (CNTL) Unit and Media Card(s). For more information, see

Removing RMX 4000 Components.

Removing RMX 2000 Components

1Power down the RMX 2000.

2Disconnect the following cables from the back panel:

—Power cable

—Optional - if LAN card is installed, remove any cables from the LAN card(s)

3Remove the following components:

—a: Remove the CNTL unit from the front of the RMX

—b: Remove the Power Supply drawer from the front of the RMX

—c: Remove any media card(s) from the front of the RMX

—d: Optional - if installed, remove the RTM Lan card(s) from the rear of the RMX

When handling electronic components, standard anti-static precautions must be observed:

•Wear a grounding strap

•Handle cards by their edges only and do not touch their components or connector pins

•Keep components in anti-static bags, when not installed in the RMX 2000/4000

On each component, captive screws must be loosened and ejector lever or levers must be opened.

Care must be taken when opening or closing the All Metal Ejector Lever or Modified PMC

Compatible Ejector Lever as described in “Appendix B - Using the Ejector Lever(s)” below. Ensure

that power to the RMX is turned OFF (O) before performing the procedures described below.

Do not remove the RTM IP and RTM ISDN (if installed) cards.

a: Removing the Existing Control (CNTL) Module from the MCU

1Unscrew the captive screw on the front panel of the RMX 2000 that secure the Control (CNTL)

Unit.

2Use the handle to pull the Control (CNTL) Unit. out of its slot in the Backplane.

3Carefully slide the Control (CNTL) Unit. out through the front panel.

b: Removing the Existing Power Supply Drawer from the MCU

1Unscrew the captive screws on the front panel of the RMX 2000 that secure the Power Supply.

2Use the handle to pull the Power Supply Module out of its slot in the Backplane.

3Carefully slide the Power Supply Module out through the front panel.

c: Removing the Existing MPM/MPM+/MPMx Card(s) from the MCU

1Unscrew the captive screws and remove the Media card(s)

2Use the ejector levers (see “Appendix B - Using the Ejector Lever(s)” on page 11) to pull the RTM IP

card out of its slot in the Backplane.

3Carefully slide the MPM/MPM+/MPMx card out through the front panel.

Remove all MPM/MPM+/MPMx cards from the MCU. Starting with version 8.3 different types of

Media cards cannot be installed simultaneously on a single MCU.

d: (Optional) Removing the Existing RTM LAN Card from the MCU

1Unscrew the captive screws on the rear panel of the RMX 2000 that secure the RTM LAN card.

2Use the ejector levers (see “Appendix B - Using the Ejector Lever(s)” on page 11) to pull the RTM

LAN card out of its slot in the Backplane.

3Carefully slide the RTM LAN card out through the rear panel.

Removing RMX 4000 Components

1Power down the RMX 4000.

2Remove the following components:

—a: Remove the CNTL unit from the front of the RMX.

—b: Remove any media card(s) from the front of the RMX.

a: Removing the Existing Control (CNTL) Module from the MCU

1Unscrew the captive screw on the front panel of the RMX 2000 that secure the Control (CNTL)

Unit.

2Use the handle to pull the Control (CNTL) Unit. out of its slot in the Backplane.

3Carefully slide the Control (CNTL) Unit. out through the front panel.

b: Removing the Existing MPM+/MPMx Card(s) from the RMX 4000

1Unscrew the captive screws and remove the Media card(s)

2Use the ejector levers (see “Appendix B - Using the Ejector Lever(s)” on page 11) to pull the MPM+/

MPMx card out of its slot in the Backplane.

3Carefully slide the MPM+/MPMx card out through the front panel.

On each component, captive screws must be loosened and ejector lever or levers must be opened.

Care must be taken when opening or closing the All Metal Ejector Lever or Modified PMC

Compatible Ejector Lever as described in “Appendix B - Using the Ejector Lever(s)” below. Ensure

that power to the RMX is turned OFF (O) before performing the procedures described below.

Process 2: Installing RMX Hardware

Install the following RMX Hardware:

• RMX 2000: Install the Power Supply, Control (CNTL 2000) Unit and LAN card(s). For more

information see Installing RMX 2000 Components.

• RMX 4000. Install the Control (CNTL 4000) Unit. For more information see Installing the CNTL

Unit on the RMX 4000.

Installing RMX 2000 Components

Install on the RMX 2000 the following components:

—a: Power Supply drawer

—b: CNTL 2000 unit

—c: Two RTM Lan card(s)

—d: Connect all the required cables (see “d: Connecting Cables” on page 6).

a: Install the Power Supply Drawer

1Slide in the Power Supply Module.

2Using the handle, push the Power Supply Module firmly into the Backplane, making sure it is

properly seated in its slot.

3Tighten the captive screws on the front panel of the RMX that secure the Power Supply Module.

On each component, the pins must be aligned and ejector lever or levers must be pushed back into

their housing and lock(ed) as described in the “Appendix B - Using the Ejector Lever(s)” on page 11.

Ensure also that each captive screw is fastened properly.

b: Install the CNTL 2000 Module

1Slide in the CNTL 2000 Module. Push the CNTL 2000 Module firmly into the Backplane, making

sure it is properly seated in its slot.

2Ensure that the metal ejector lever is fully retracted into its housing.

3Tighten the captive screws on the front panel of the RMX that secure the CNTL 2000 Module.

c: Installing the RTM LAN Card(s)

1Slide in the replacement RTM LAN card.

2Push the RTM LAN card firmly into the Backplane, making sure it is properly seated in its slot.

Ensure that the ejector levers are fully retracted into their housings (see “Appendix B - Using the

Ejector Lever(s)” on page 11).

3Tighten the captive screws on the rear panel of the RMX that secure the RTM LAN card.

4Repeat the procedure for the other RTM LAN card.

d: Connecting Cables

On the RMX 2000 connect the following cables to the back panel:

•Powercable

• RTM LAN: LAN cable to LAN 2 port

Do not remove the protective caps from LAN1, LAN3 and ShMG ports.

• RTM IP: Lan cable to LAN 2 port

Install the CNTL 4000 Unit on the RMX 4000

1Slide in the CNTL 4000 Module. Push the CNTL Module firmly into the Backplane, making sure it

is properly seated in its slot.

2Ensure that the metal ejector lever is fully retracted into its housing.

3Tighten the captive screws on the front panel of the RMX that secure the CNTL 4000 Module.

Process 3: Software Upgrade

1Power the Collaboration Server On.

—AC System - Turn ON the power by pressing on the power switch located on the rear panel

of the RealPresence Collaboration Server (RMX) 1500/2000/4000.

—DC System (RealPresence Collaboration Server (RMX) 4000) - Turn ON the Main that

supplies power to the Collaboration Server and then turn ON each of the DC power rail

modules.

2The new CNTL unit automatically upgrades the system software on the RMX.

Obtain the Activation Key

1Access the Service & Support page of the Polycom website at: http://support.polycom.com

2Log in with your Email Address and Password or register as a new user.

3Select Product Registration.

4Follow the on-screen instructions for Product Registration and Product Activation.

(The MCU’s serial number/service tag (tagged as ST) on the product sticker on the back of the

unit.) For more information, refer to the Collaboration Server Software Licence document you

received with your shipment.

5When the Product Activation Key is displayed, write it down or copy it for later pasting into the

Activation Key field of the Product Activation dialog box.

1When the Control Unit Error (ERR) LED is ON, and other Control Unit LEDs are turned OFF, then

open your browser and enter the IP Address of the RMX Control Unit.

2The RMX Welcome screen is displayed.

3In the RMX Web Client – Welcome screen, enter your User Name: POLYCOM and Password:

POLYCOM and click Login.

•RMX startup can take up to 25 minutes to complete. Do not turn OFF the RMX.

•On all cards, if during the startup phase the blue HS LED remains lit, please make sure that the

card is properly seated in the slot. A lit HS LED indicates that the card is in a powered down

mode. If this problem persists, contact your next level of support.

•Do not turn OFF the system during this upgrade process.

RMX Manager users are required to install the latest version software. Click the Install RMX

Manager link.

Enter the IP address of the RMX Control Unit and press Enter.

4The Product Activation dialog box appears with the serial number filled in:

5Select the “I accept the license agreement” check box to enable Online Registration of your

product.

6In the Activation Key field, enter or paste the Product Activation Key obtained earlier.

If you did not register your product earlier in the process and you do not have an Activation Key,

click the Polycom Resource Center button to access the Service & Support page of the Polycom

Support website.

7Click OK.

8A message indicating that the Product Activation Key was loaded successfully appears.

9If the Product Activation Key fails to load, please contact your vendor.

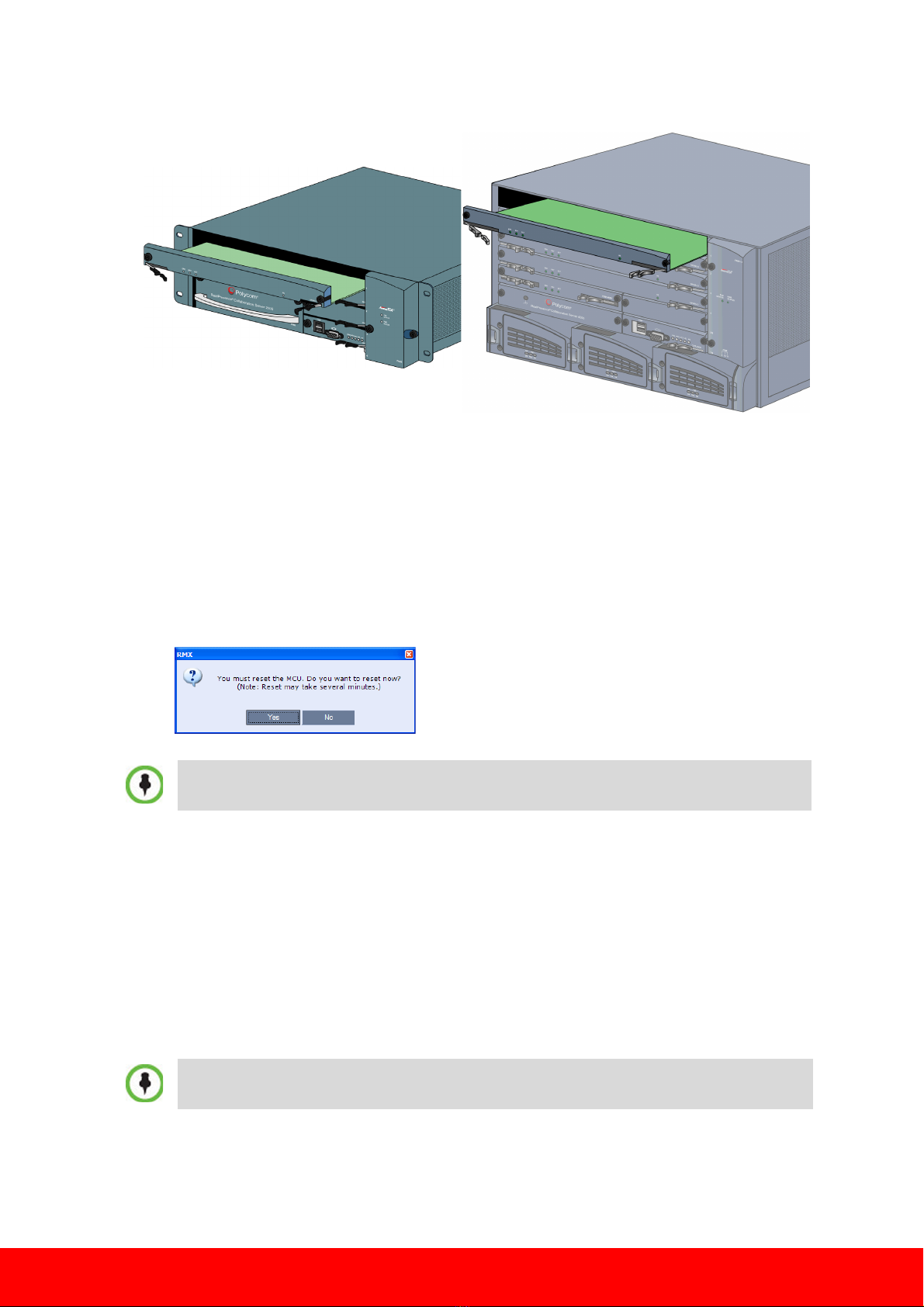

Process 4: Install MPMRx Card(s) on the RMX 2000/4000

When a single MPMRx media card is installed in the system, it must always be inserted in the top slot

of the RMX chassis. The RTM LAN/RTM ISDN card must be installed in the rear panel top slot on the

same level as the MPMRx card.

1On the MPMRx card to be installed, move the ejector levers to their fully open position. For more

information, see “Appendix B - Using the Ejector Lever(s)” on page 11.

2Carefully insert the MPMRx media card by making sure that the levers are in an open position

and push the card close to the chassis till the levers engage. With your thumbs holding the

“handles” and your index fingers holding the catches fully to left/right, push the card against the

chassis whilst closing the levers. Use your thumbs to push the card into place, and then lock the

catches into their place by using your thumbs to push it to the left/right.

Make sure that the levers are locked, and then tighten the screws into their housings.

3Push the MPMRx card firmly into the Backplane, making sure it is properly seated in its slot.

4Ensure that the metal ejector levers are fully retracted into their housings.

5Tighten the captive screws on the front panel of the RMX that secure the MPMRx card to the

chassis.

6Repeat the procedure for any additional MPMRx card(s).

7If the Fast Configuration Wizard dialog box appears, complete the wizard. For more information,

see the RMX 1500/1800/2000/4000 Getting Started Guide Chapter 2, Modifying the Default IP Service

and the ISDN/PSTN Network Service Settings. The Fast Configuration Wizard, requires a reset to

complete.

—When the Reset Confirmation dialog box appears, click Yes.

8If you backed up the RMX configuration do this:

—On the Collaboration Server menu, click Administration > Software Management >Restore

Configuration.

—Browse to the Restore Directory Path where the backed up configuration files are stored and

then click Restore.

For more information on Backup and Restore, see the RMX 1500/2000/4000 Administrator’s

Guide, Chapter 21, Software Management.

—Reset (System Restart button) the RMX to switch the RMX 2000/4000 to the MPMRx

Configuration Mode.

9The card startup procedure is complete when the MPMRx card(s) successfully completes startup

and the green RDY (Ready) LED remains lit on the MPMRx card(s) and Control Unit.

The MPMRx card status does not appear normal, the status changes only after the system is

restarted (System Restart button).

Its is recommended that slots that are left open on the MCU be sealed with blank panels. Request for

blank panels are to be referred to your next level of support.

Other manuals for Real-Time Media Conferencing Platform RMX...

This manual suits for next models

Table of contents

Other Polycom Server manuals

Polycom

Polycom SpectraLink 1725-36033-001 Instruction Manual

Polycom

Polycom KIRK KWS8000 User manual

Polycom

Polycom DMA 7000 User manual

Polycom

Polycom DOC2560A User manual

Polycom

Polycom DOC2557B Installation instructions

Polycom

Polycom Realpresence collaboration server 1500 Service manual

Polycom

Polycom RSS 2000 User manual

Polycom

Polycom Real-Time Media Conferencing Platform RMX... Datasheet

Polycom

Polycom Collaboration Server (RMX) 2000 Installation instructions

Polycom

Polycom RMX 4000 Datasheet

Polycom

Polycom 3725-32871-002/A User manual

Polycom

Polycom KIRK 300 User manual

Polycom

Polycom RealPresence RMX 1500 Service manual

Polycom

Polycom KIRK KWS1500 Product manual

Polycom

Polycom ReadiManagerSE200 User manual

Polycom

Polycom RSS 2000 User manual

Polycom

Polycom RMX 1500 User manual

Polycom

Polycom RealPresence 800s User manual

Polycom

Polycom RealPresence RMX 1500 User manual

Polycom

Polycom Collaboration Server (RMX) 1500 Quick reference guide

Polycom

Polycom Collaboration Server (RMX) 1800 Installation instructions

Polycom

Polycom V2IU6400-S User manual

Polycom

Polycom RealPresence RMX 4000 Installation instructions

Polycom

Polycom RealPresence 800s User manual

Popular Server manuals by other brands

HP AlphaServer ES47 Cli reference manual

Dell

Dell PowerEdge R410 Getting started

PowerNAS

PowerNAS CMA quick start guide

Supero

Supero FatTwin F617R3-FT user manual

MSI

MSI P1-109N-L70 user manual

Dell

Dell PowerEdge XE9640 Installation and service manual

Dell

Dell PS4100 Hardware

EtroVISION

EtroVISION EV3151 user manual

NEC

NEC Express5800/T110j System configuration guide

HP ProLiant Gen9 user guide

Compaq

Compaq ProLiant 3000 Maintenance and service guide

Dell

Dell PowerEdge 3YPMN Getting started guide

iRobo

iRobo IPC2U user manual

Nortel

Nortel 1000 Con?guration guide user manual

Asus

Asus AP7500 Hardware reference guide

Avid Technology

Avid Technology AirSpeed 5000 manual

HP Integrity rx2600 overview

Milestone

Milestone Husky IVO 350T Getting started
