Planet ICA-525 User manual

20 Meter IR Vandal Proof Dome

Internet Camera

ICA-525

Quick Installation Guide

Table of Contents

Before Installation............................................................................................ 3

System Requirements ..................................................................................... 3

Package Content.............................................................................................. 4

Identication of Cables..................................................................................... 5

Inside the TEL box: ......................................................................................... 6

Hardware Installation ....................................................................................... 7

Initial Utility Installation and operation..............................................................10

Wizard function: .............................................................................................13

Username and Password: ...............................................................................14

Congure Utility Installation.............................................................................15

Appendix A: Feature Listing for Cam Viewer ....................................................19

Appendix B: Suggest Hardware / System Requirement ......................................20

Ordering Information for Cam Viewer Pro .........................................................20

Further Conguration ......................................................................................20

Thank you for purchasing the ICA-525. It is versatile and high image solution

of surveillance application for day and night. The ICA-525 is also a stand-alone

camera system with a built-in processor and web server that provides highest

quality video and system performance.

Before Installation

Before installation, please be sure to read this quick installation guide or user’s

manual of bundle CD carefully to complete machine installation.

System Requirements

Network

Interface 10/100M Base-TX Ethernet

Monitoring

System Recommended for Internet Explorer 6.0 or later

System

Hardware

● CPU: Pentium 4, 1.5GHz or above

● Memory Size : 512 MB (512 MB or above Recommended)

● VGA card resolution : 1024 x 768 or above

● Sound Card : Necessary

● Network bandwidth: In VGA resolution mode, mini-

mum upload bandwidth is 1Mbps

Package Content

ICA-525 x 1

Power Adapter x 1

Screws x 4

Telephone box x 1

L-Wrench x 1

CD Disk x 1

Quick Installation Guide x 1

Note

1. If any of the above items are missing, please contact your dealer

immediately.

2. Using a power supply with a different voltage that the one

included with the ICA-525 will cause damage and void the

warranty for ICA-525.

Identication of Cables

RJ-45 LAN Video out Line in

RS-485 & DI/DO 12V DC in Line out

(Connect to a bundled TEL box)

1. RJ45 LAN socket: Connect to PC or Hub/Switch. For connect to 10Base-T

Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way

protocol can detect or negotiate the transmission speed of the network auto-

matically. Please use Category 5 “straight through” cable to connect the ICA-525

to a 100Mbps Fast Ethernet network switch or hub.

Note

In case you need to connect the device to PC or notebook directly,

you should use cross over cable instead.

2. RS-485 & DI/DO: Connect to a local keyboard controller and connect to sensor

in and alarm out devices.

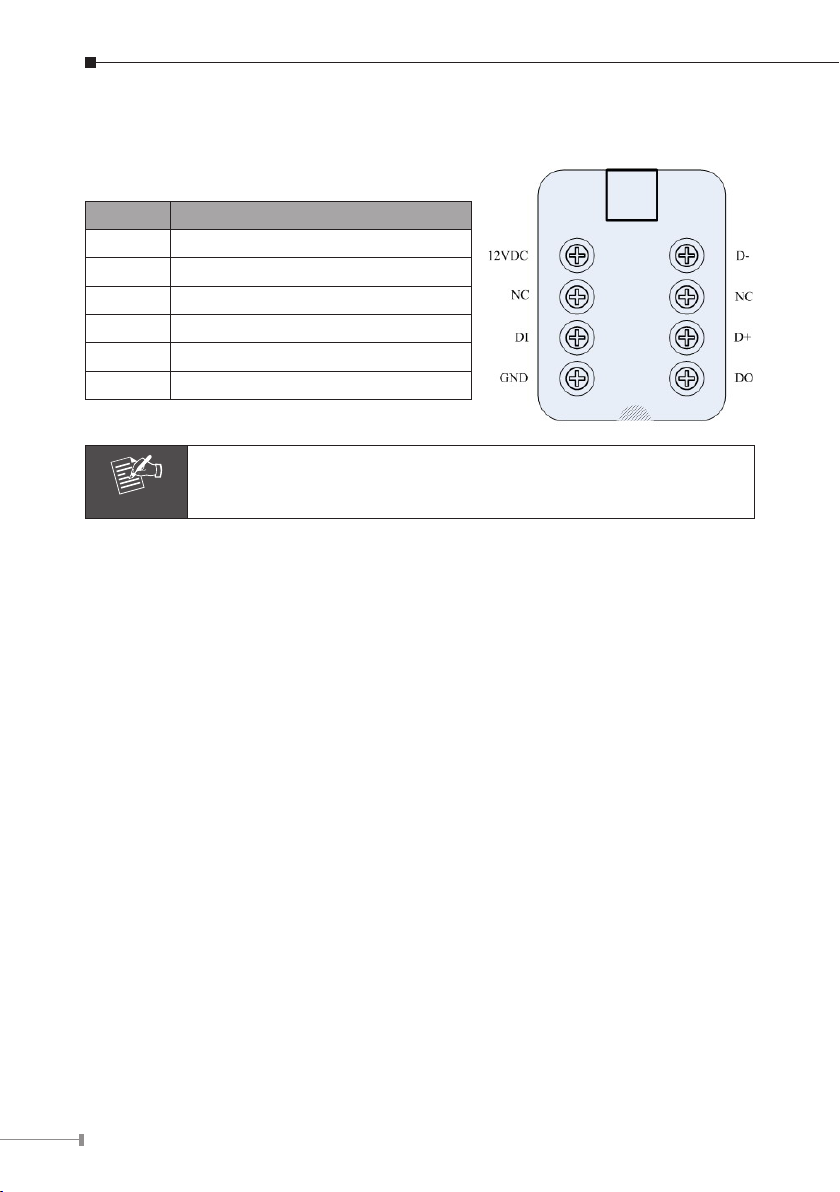

Inside the TEL box:

Name Function

12VDC DC 12V output (50mA maximum)

GND GND

D+ RS485 data +

D- RS485 data -

DI Digital signal input

DO Digital signal output

Note

The RS-485 of ICA-525 is master that can control external scanner.

3. Local Video output (BNC port): The Network Camera also provides composite

video output. User can use BNC video cable to connect the Network Camera with

a TV monitor or VCR.

4. DC-in Jack: The input power is 12VDC. Note that supply the power to the

Network Camera with standard power adapter included in package. Otherwise,

the improper power adapter may damage the unit and result in danger.

5. Line in (audio in): Connect an audio input source to the ICA-525.

6. Line out (audio out): Connect a loud speaker to the ICA-525. This function is

for voice alerting and two-way audio.

Hardware Installation

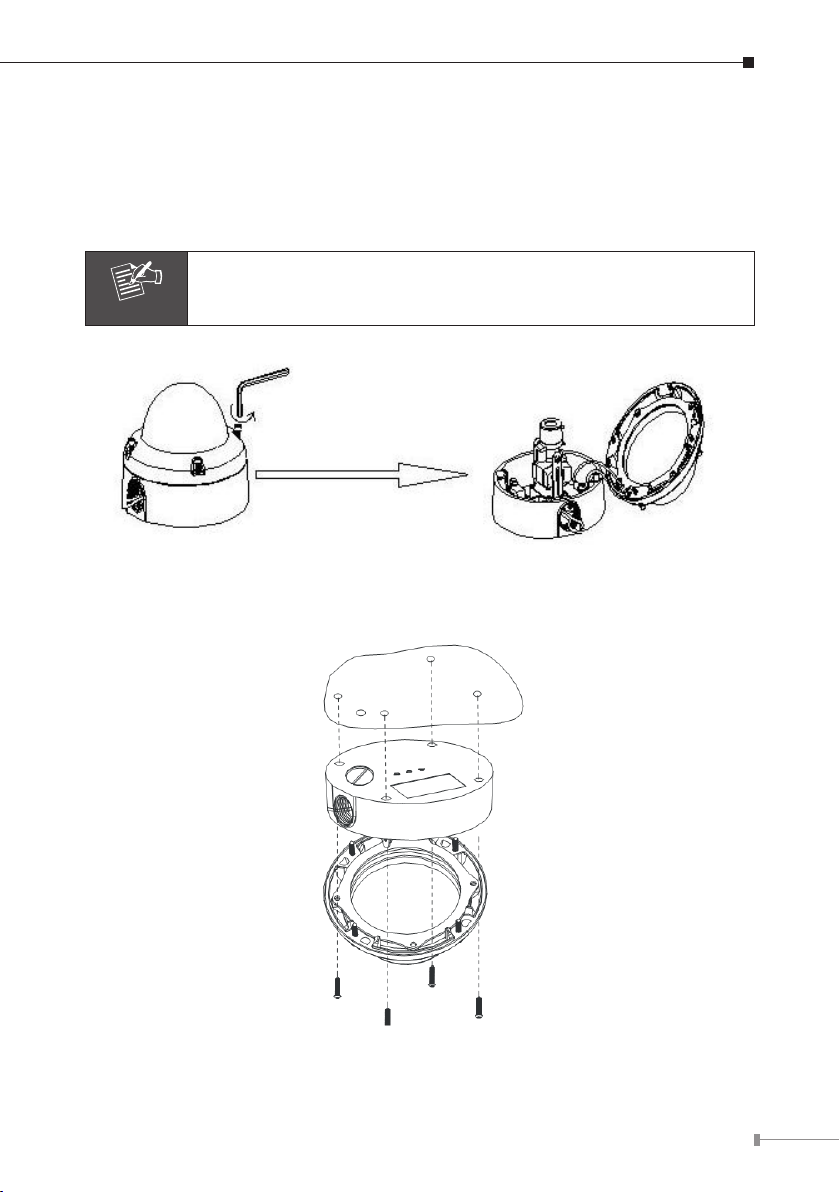

1. Use the provided L-wrench, loosen the tamper-resistant housing cover (with

screws still attached on the cover). The unit has factory installed side conduit

entry and one may adjust the cables to back conduit entry according to installa-

tion requirement.

Note

During the installation, please take care and avoid crash. That may

cause the device damage.

2. Set the mounting base onto the wall or ceiling and center it over the mounting

hole, using the supplied four retaining screws to secure the main body.

3. Set the proper image by moving the camera body and set the focus by turning

the lens to left or right direction.

Note

1. Vari-Focal Dome Operation Guide: Once the picture appears

on the monitor, open the cover and adjust the lens wrench to

“NEAR f g FAR”, get the view zoom that you desire, and then

adjust the focus wrench of the lens to obtain the best picture.

After adjustment, tighten both wrenches.

2. During adjust focus, please take cares that don’t touch, collision

and knock sensor.

Zoom Adjustment

Focal Adjustment

NEAR

FAR

WIDE

TELE

4. When the ICA-525 focus adjustment has been completed, use the provided L-

wrench to fasten the tamper-resistant housing to the main body.

5. When using the side conduit cabling, it is suggested to cover the cables using

metal covers (to prevent external damage and for waterproof prevention), and

wined the waterproof adhesive type onto the metal cover before installation.

6. Connect the LAN cable to Ethernet’s switch or hub and the DC-Jack to the power

source. The video output to monitor or other video through a 75 Ohms type

coaxial cable if you will use BNC cable.

7. Done

Initial Utility Installation and operation

1. Insert the bundled CD into the CD-ROM drive to launch the autorun program.

Once completed, a welcome menu screen will appear.

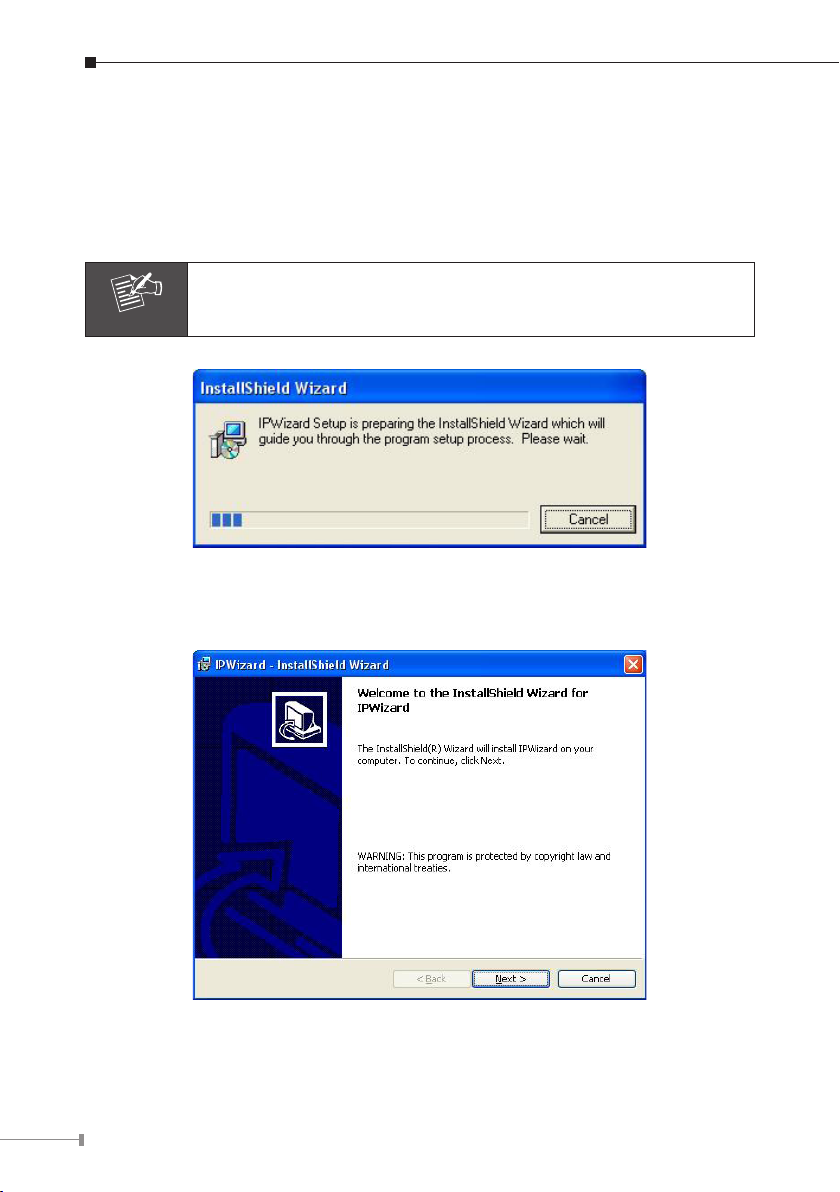

2. Click the “IPWizard” hyperlink, you will see the InstallShield Wizard dialog box as

below.

Note

If the welcome screen does not appear, click “Start” at the taskbar.

Then, select “Run” and type “D:\Utility\setup.exe”, assume D is

your CD-ROM drive.

3. The “Welcome to the InstallShield Wizard for IPWizard” will display on the screen

and click “Next” to continue.
