OfficeSource PLT131T User manual

Remove all wrapping materials, including staples & packing straps before you start to assemble.

Check to be sure that you have all parts and hardware.

Keep all hardware parts out of reach of children.

Do not tighten all screws/bolts until all completely assembled.

Place all wooden parts on a clean , soft surface to prevent the parts from being scratched.

IMPORTANT NOTE :

PAGE 1 OF 4

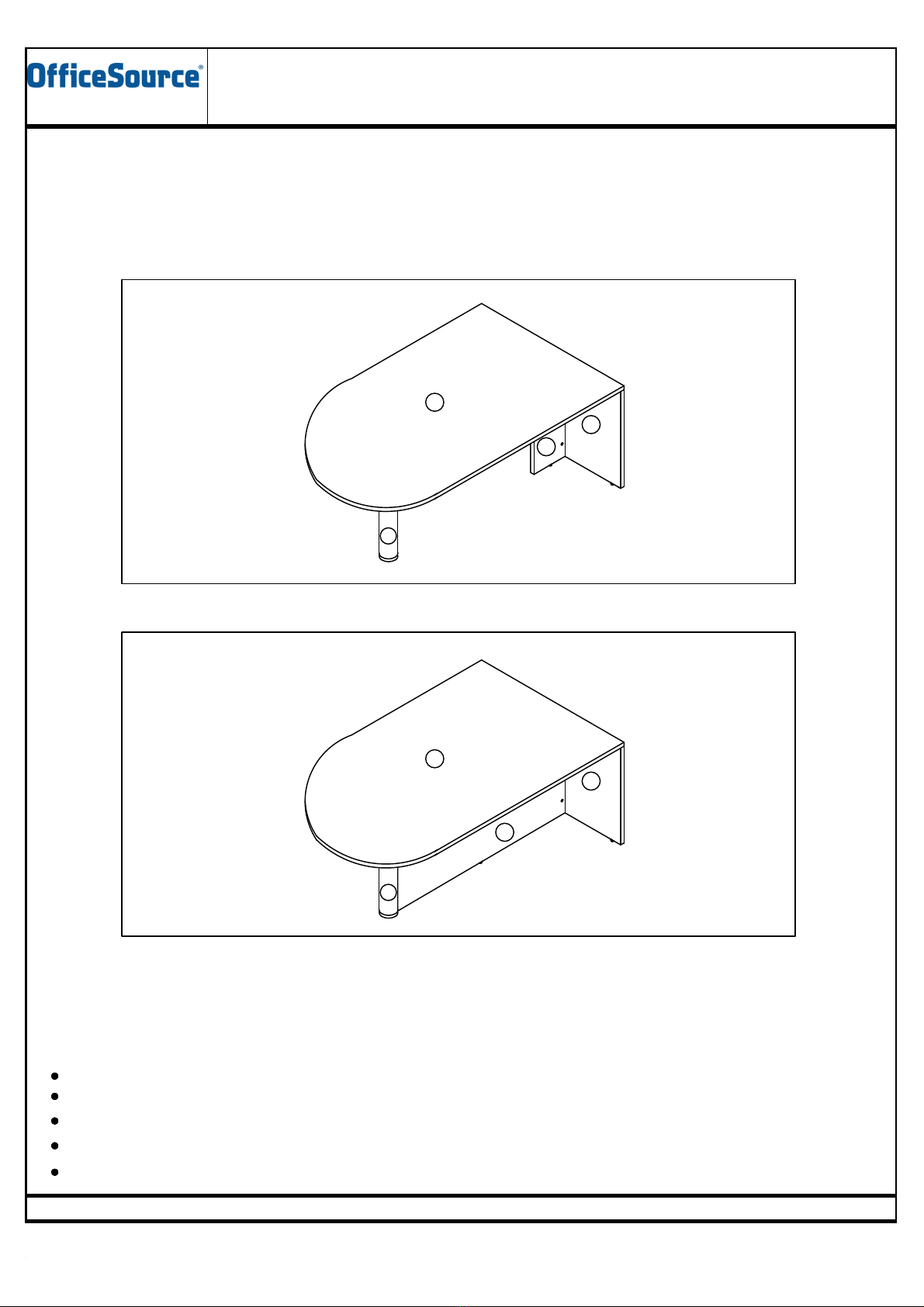

OPTION 1

These instructions apply to all models shown below.

ASSEMBLY INSTRUCTION FOR BULLET TOP

REV 1 PLT131T_AI

OPTION 2

KLIX CAM INSTRUCTIONS

Insert the cam with the arrow

pointing towards the hole in the

edge.

Line up Cam Lock,

turn clockwise.

1 2

Insert the Cam Lock into Klix

Cam. Turn Klix Cam to lock.

TOP PANEL

PAGE 2 OF 4

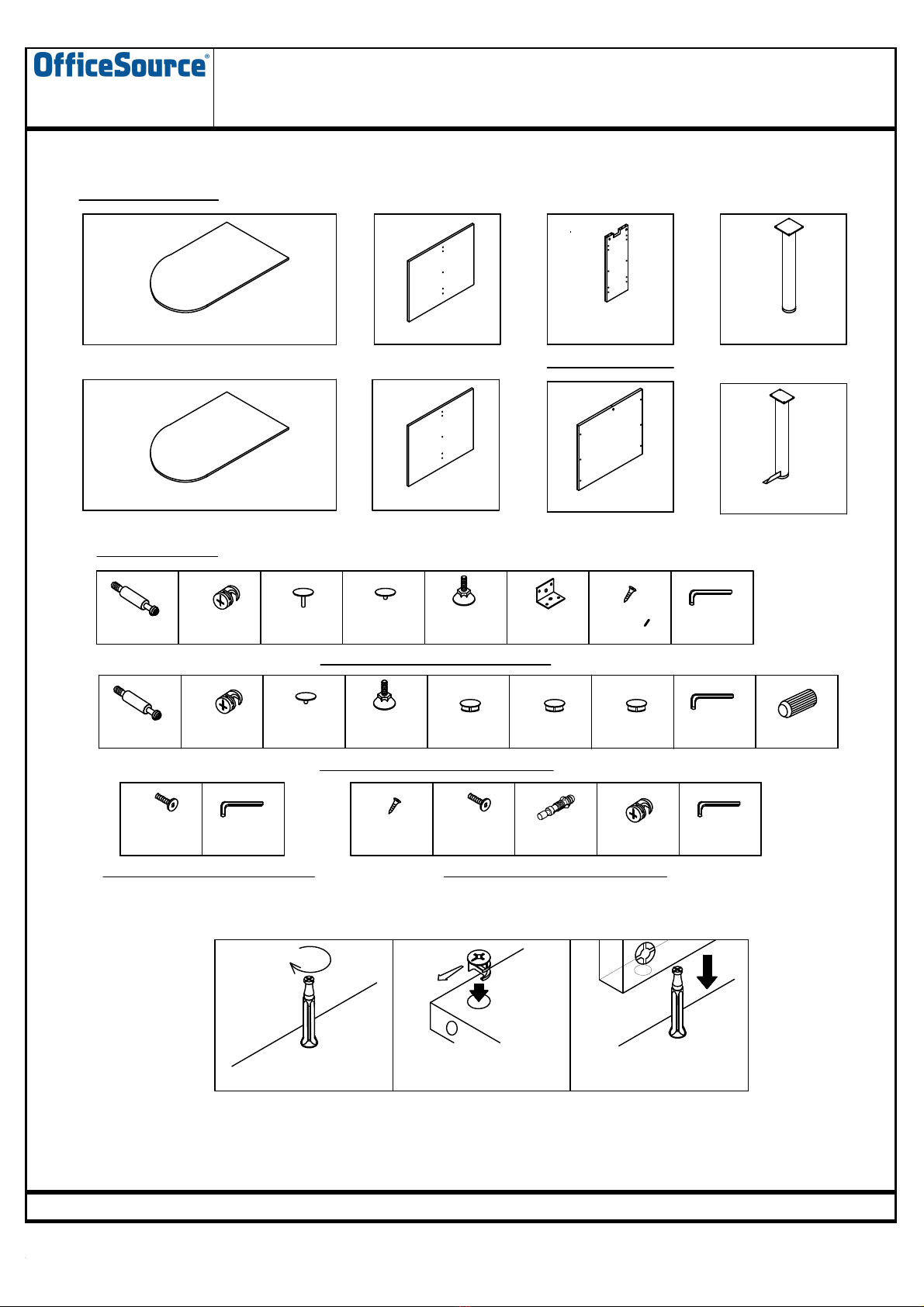

COMPONENTS :

REV 1

END PANEL

SMALL MODESTY

C D

METAL LEG

Housing Cap Long

2 Pcs

Cam Lock

6 Pcs

Klix Cam

6 Pcs

B2 B3 B5 B6 B7

Adjustable Glide

2 Pcs

6 Hole L-Bracket

5 Pcs

Screw #6 x 58"

30 Pcs

JCBC

M6 x 15mm

4 Pcs

M4 x 65

Allen-Key

1 Pc

HARDWARE:

Hardware pack with PLTEP30

Hardware pack with PL142-A1

PLT131T PLTEP30 PL142-A1 MS725

PLT131T PLTEP30 PL31FMP MS725E

TOP PANEL END PANEL FULL MODESTY METAL LEG

E F

ASSEMBLY INSTRUCTION FOR BULLET TOP

PLT131T_AI

M4 x 65

Allen-Key

1 Pc

Hardware pack with MS725

JCBC

M6 x 15mm

4 Pcs

M4 x 65

Allen-Key

1 Pc

F5F1

JCBC

M3.5 x 16mm

4 Pcs

Hardware pack with MS725E

System 5

KD Fitting

3 Pcs

Klix Cam

3 Pcs

Housing Cap Short

4 Pcs

Housing Cap

2 Pcs

Cam Lock

2 Pcs

Klix Cam

2 Pcs

C2 C3 C4 C5 C6 C8

Adjustable Glide

2 Pcs

Hole Plug 8mm

6 Pcs

D-Nuts cap m6

6 Pcs

M4 x 65

Allen-Key

1 Pc

Hole Plug 15mm

2 Pcs

Dowel M8X30

4 Pcs

PAGE 3 OF 4

REV 1

Attach the L-Brackets (B6) to Top

Panel (A), Side Panel (B) and Side

Center Panel (C) as shown. Tighten

Screws (B7) securely.

Attach the Small Modesty Panel (C)

and Side Panel (B) to Top Panel(A) by

using Cam Lock (B1/C1) and Klix Cam

(B2/C2).

Attach the Metal Leg (D) to Top Panel

(A) with JCBC Bolts (D1).

Attach the Full Modesty Panel (E)

to Side Panel (B) by using Cam

Lock (B1) and Klix Cam (B2).

OPTION 1

OPTION 2

ASSEMBLY INSTRUCTION FOR BULLET TOP

PLT131T_AI

PAGE 4 OF 4

REV 1

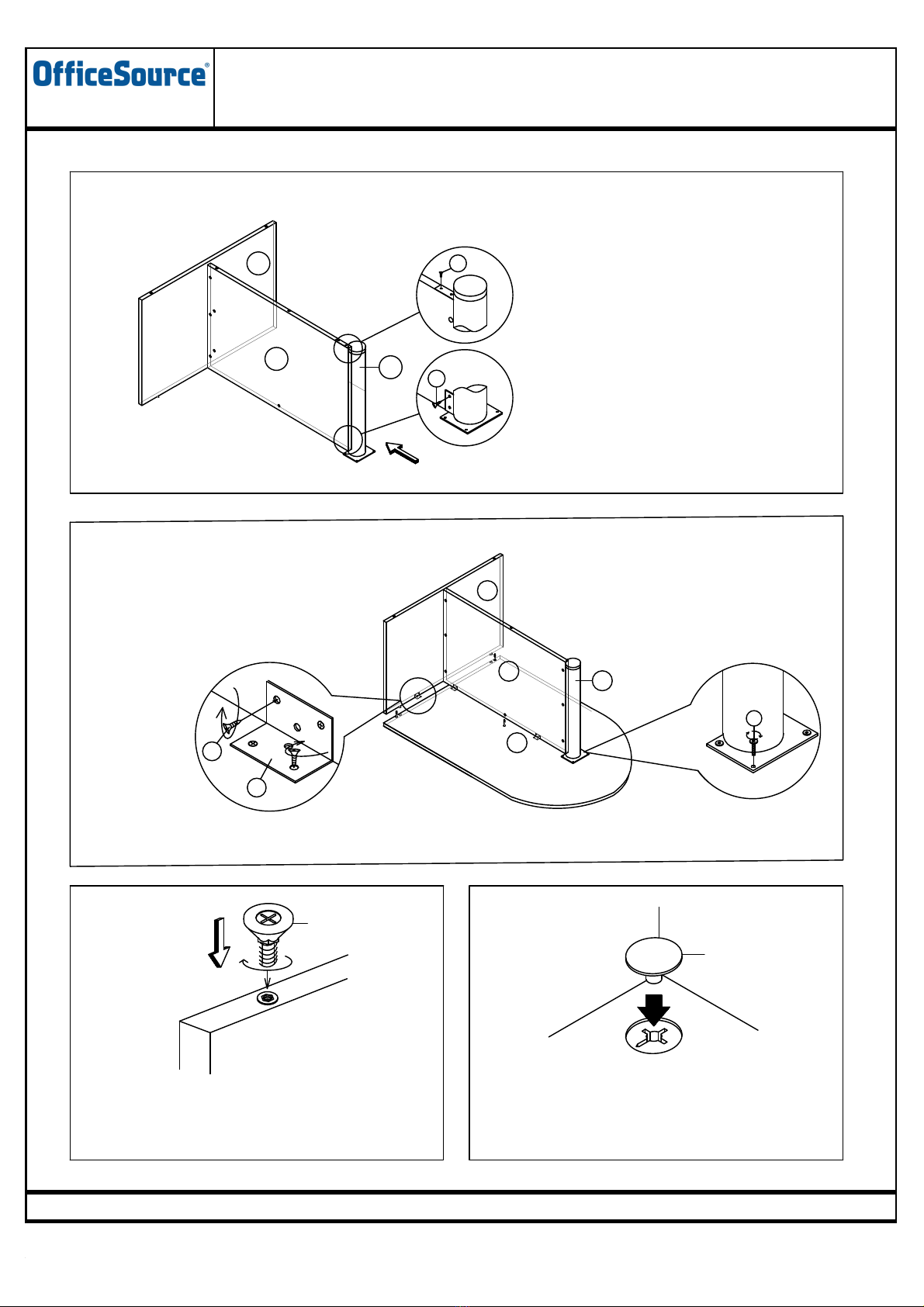

4 5

B4/C4

Screw Adjustable Glide (B4/C4)

into bottom of Side Panel (B) and

Modesty Panel (C/E).

B3/B4/C3

Attach Housing Cap(B3/B4/C3) to

all Klix Cam(B2/C2) by pushing

neck thought center of cam.

Attach the Metal Leg (F) to

Top Panel (A) with JCBC

Bolts (F2).

ASSEMBLY INSTRUCTION FOR BULLET TOP

PLT131T_AI

Attach the Metal Leg (F) to Full

Modestry Panel (E) by using System 5

KD Fitting (F3) and Klix Cam (F4).

Secure Metal Leg (F) with

Screws (F1).

Attach the L-Brackets (B6) to Top

Panel (A), Side Panel (B) and Full

Modesty Panel (E) as shown.

Tighten Screws (B7) securely.
