OfficeSource EVH100BGG User manual

MODEL NO. EVH100BGG/DBK

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

48" Height AdjustableReturn

D E

IMPORTANT NOTE:

Place all wooden parts on a cleanand smooth surface such as a rug or carpet to avoid the parts from being scratched

Check that you have all parts and hardware.

Remove all wrapping materials, including staples & packing straps before you start assemble.

Do not tighten all screws or bolts untill all completely assembled.

Keep all hardware parts out of reach of children.

Top support

Bracket 1 Pc

Hardware is packed with carton EVH100BGG

Hardware is packed with carton EVH100DBK

EVH100BGG

EVH100DBK

LEFT RETURN RIGHT RETURN

Allen Wrench

3mm-1pc

OFFICESOURCE.COM

Last Updated: 11/2022

1

NOTE: The Return Desk can be installed as a Left Handed or Right Handed. Right Handed

is shown in the instructions. If Left Hand is desired, attach Modesty Panel (E) to other

side in Step 2.

P.2

48" Height AdjustableReturn

2Assemble Modesty Panel (B) toMetal Base (EVH100CBK) using Screws (3)

3

E

12

Assemble Metal Base (EVH100DBK)

using Screws (5)

Step 1st

Step 2nd

MODEL NO. EVH100BGG/DBK

ASSEMBLY INSTRUCTIONS

OFFICESOURCE.COM

Last Updated: 11/2022

P.3

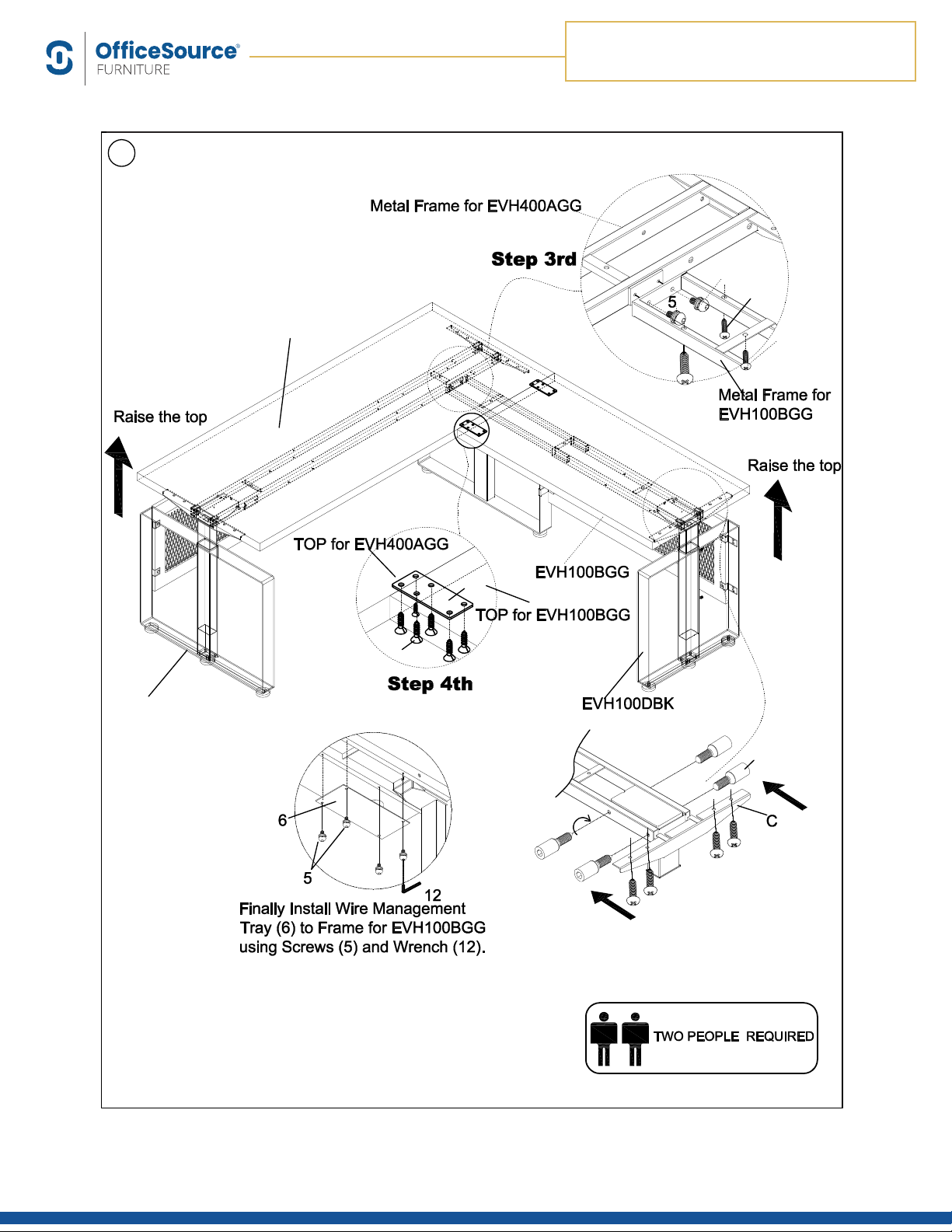

3Assemble Return (EVH100BGG) with Main Desk EVH400AGG

48" Height AdjustableReturn

8

8

5

2

EVH400AGG

EVH100CBK

7

8

Step 1st

Step 1st

Before assembling, please raise the top at the same time.

1

1

1

1

Step 2nd

MODEL NO. EVH100BGG/DBK

ASSEMBLY INSTRUCTIONS

MODEL NO.EVH100BGG/DBK

ASSEMBLY INSTRUCTIONS

OFFICESOURCE.COM

Last Updated: 11/2022

P.4

5

48" Height AdjustableReturn

EVH400AGG

EVH400AGG

RIGHT RETURN

LEFT RETURN

MODEL NO.EVH100BGG/DBK

ASSEMBLY INSTRUCTIONS

OFFICESOURCE.COM

Last Updated: 11/2022

P.5

48" Height AdjustableReturn

Hardware is packed with carton EVH100CBK

This manual suits for next models

1
