Coaster 4799N User manual

Fine Furniture for every stage of life

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

4799N

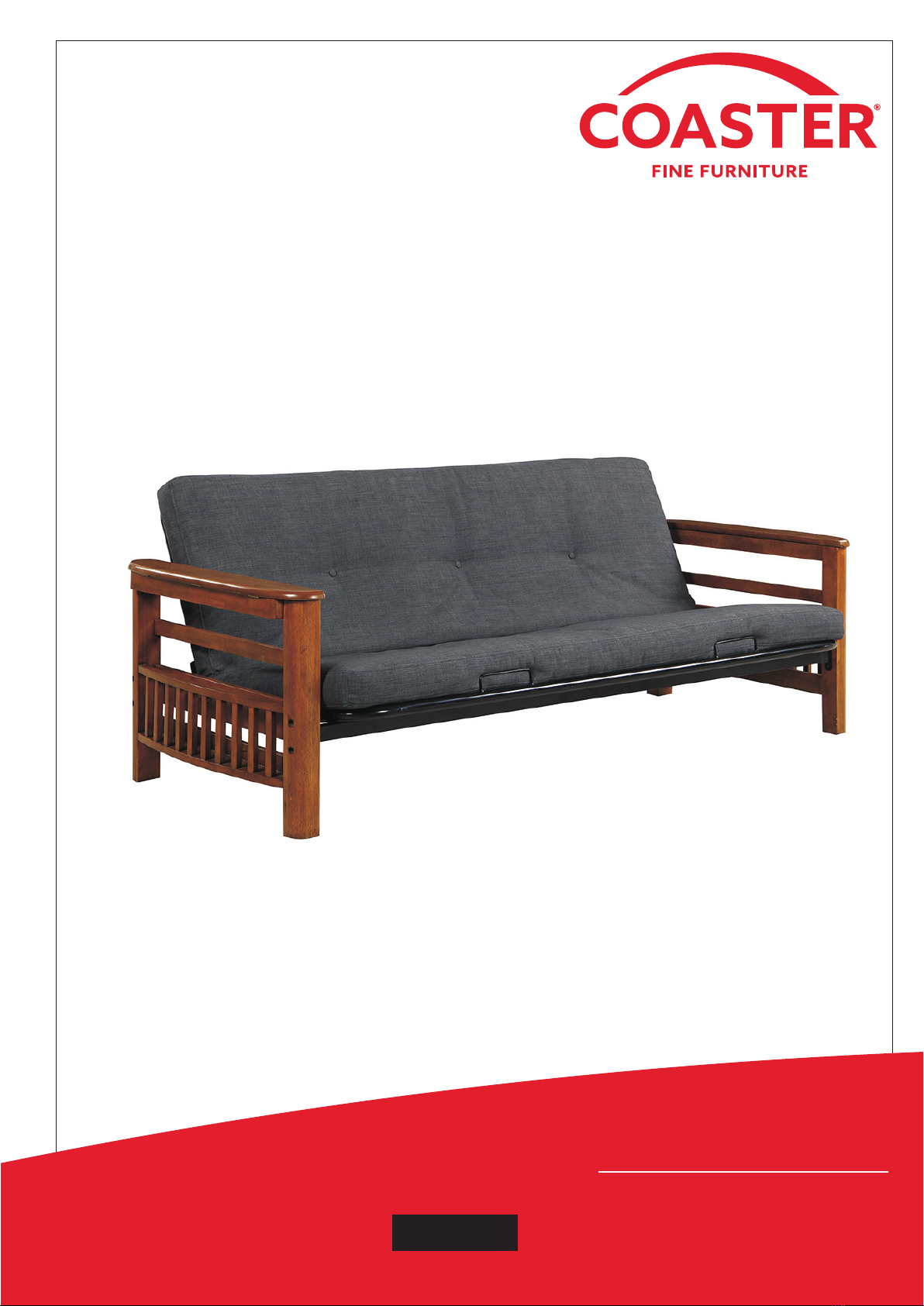

Futon Frame

PAGE 1 OF 4COASTERFURNITURE.COM

REVISION 1 : 06/14/2019

REVISION 0 : 06/28/2017

ASSEMBLY INSTRUCTIONS

ASSEMBLY TIME

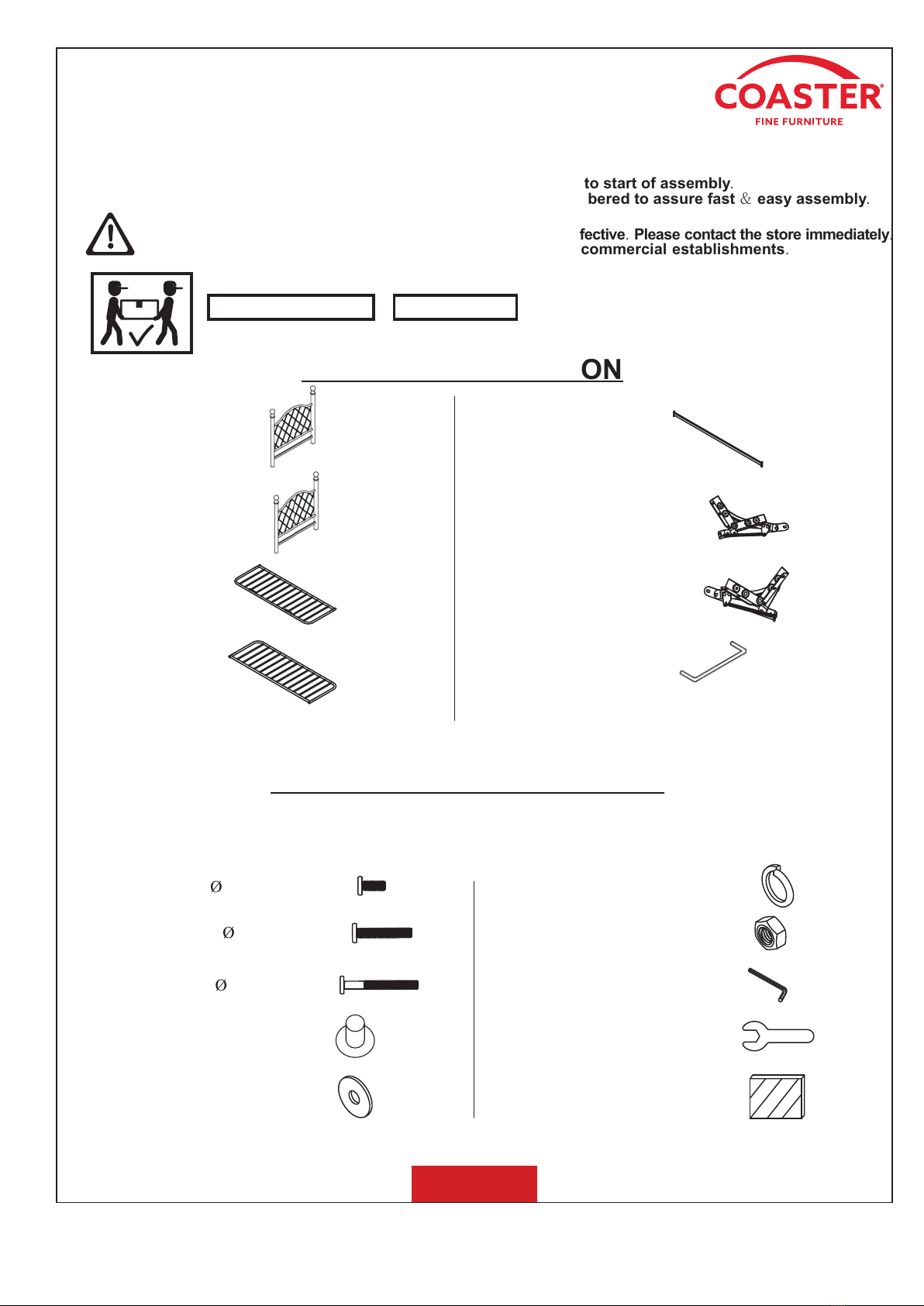

PARTS IDENTIFICATION

30 MINUTES

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

WARNING!

1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.

2. This product is for home use only and not intended for commercial establishments.

4799N

ITEM:

PAGE 2 OF 4COASTERFURNITURE.COM

HARDWARE IDENTIFICATION

Z-HARDWARE

A RIGHT FRAME 1PC

(NOT INCLUDED)

B LEFT FRAME 1PC

(NOT INCLUDED)

C SEAT DECK 1PC

D BACK DECK 1PC

E CROSSBAR 2PCS

F RIGHT MECHANISM 1PC

G LEFT MECHANISM 1PC

H HOOK 1PC

5 WASHER 20PCS

4 2" LEG END CAP 4PCS

3 LARGE BOLT ( 5/16"x1-3/4"L) 8PCS

2 MEDIUM BOLT ( 5/16"x1-1/4"L) 4PCS

10 STICKER 4PCS

9 SPANNER 1PC

8 ALLEN WRENCH 1PC

7 NUT 12PCS

6 LOCK WASHER 12PCS

1 SMALL BOLT ( 5/16"x3/4"L) 8PCS

(NOT INCLUDED)

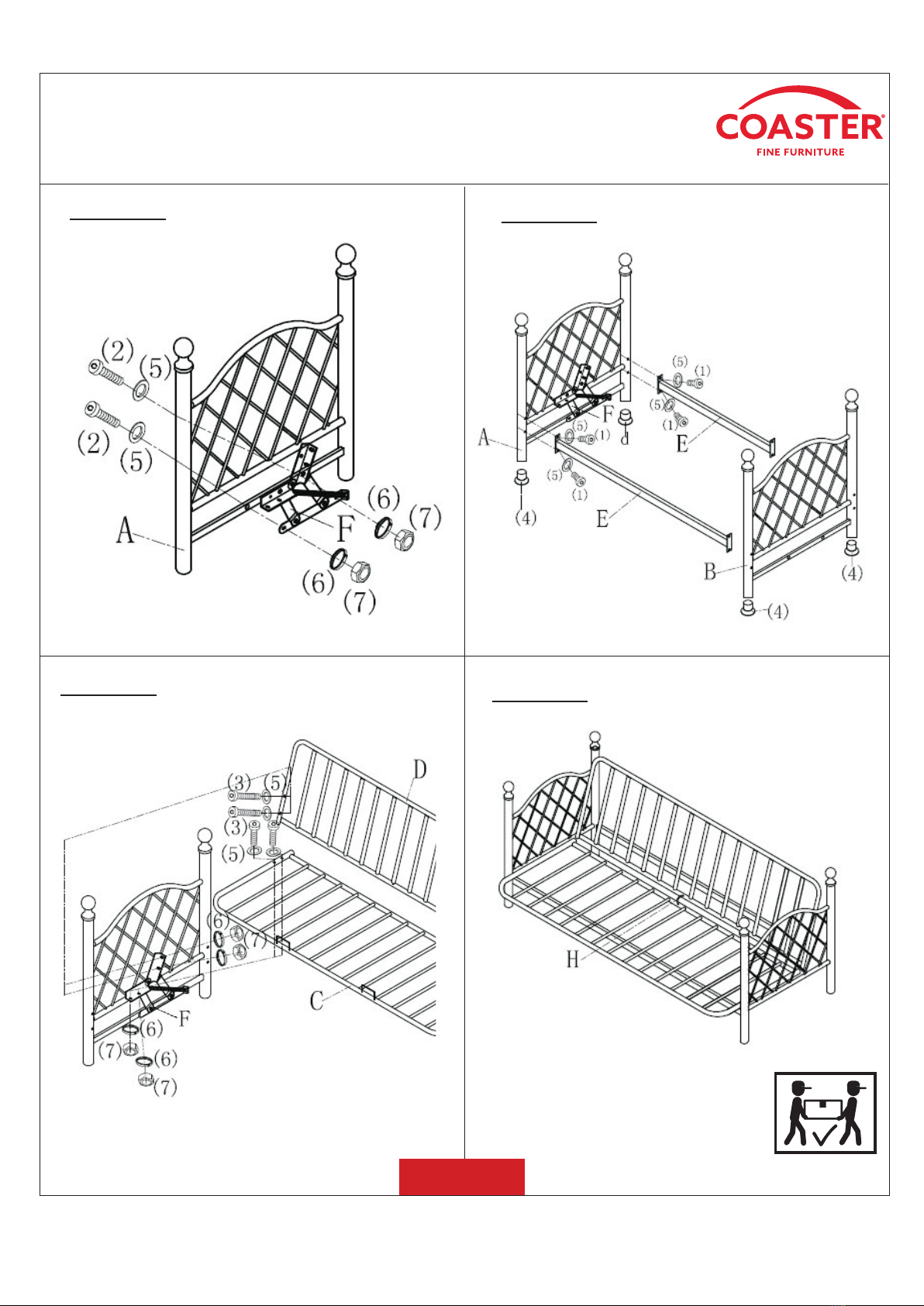

STEP 1

PAGE 3 OF 4COASTERFURNITURE.COM

ASSEMBLY INSTRUCTIONS

4799N

ITEM:

STEP 2

STEP 3 STEP 4

PAGE 4 OF 4COASTERFURNITURE.COM

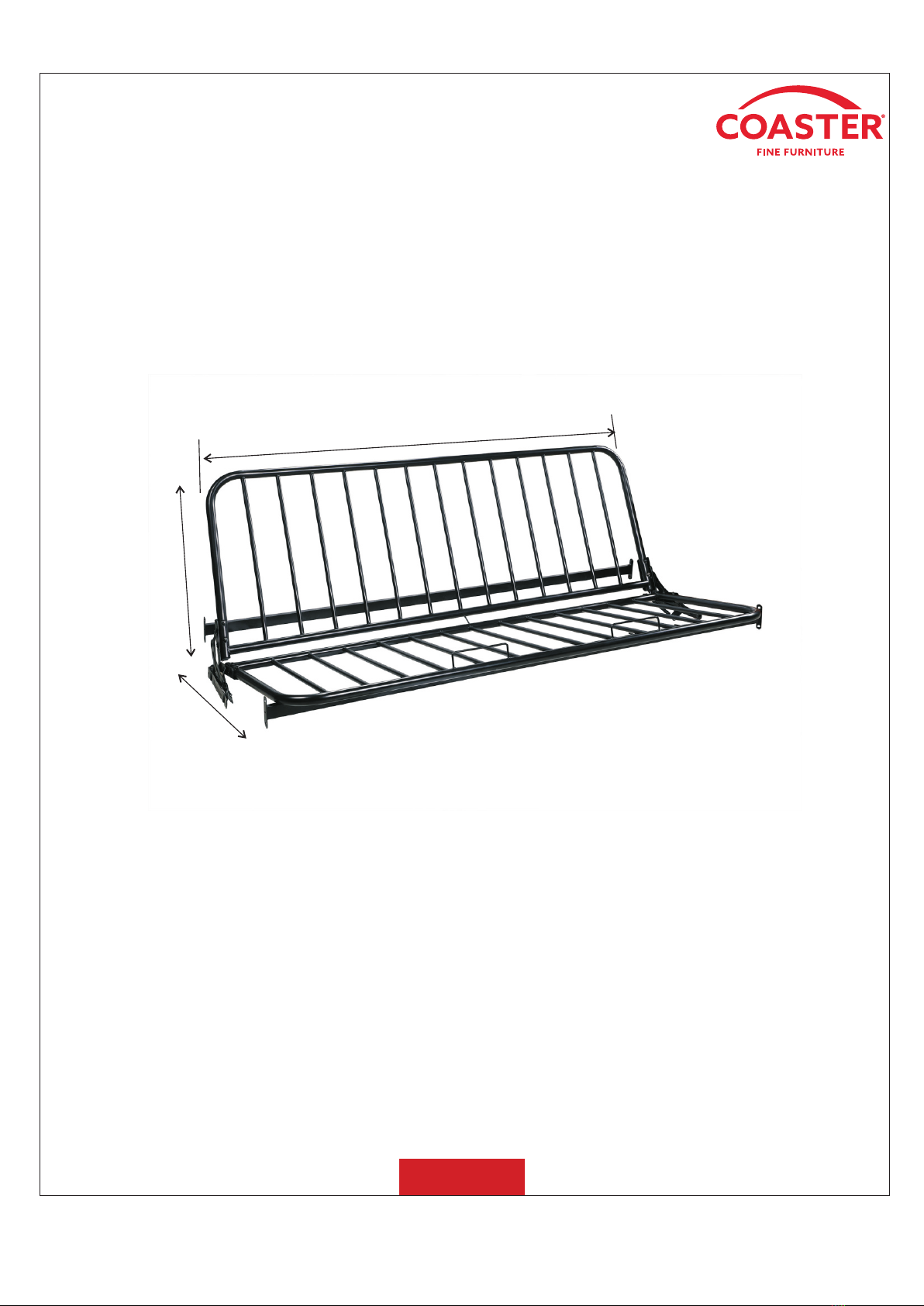

1854mm(73")W

673mm(26.5")D

673mm(26.5")H

Note : Dimension tolerance ±5%
