OfficeSource PBTR48 User manual

®www.ocesourcefurniture.com

PBTR48

ASSEMBLY INSTRUCTIONS

BORDERS

Assembly Instructions

Thank you for purchasing Borders desk mounted partition system. Before you begin assembly, please check that

you have all the parts listed below for the appropriate kit purchased. If you do not, please contact the dealer that

sold you this product.

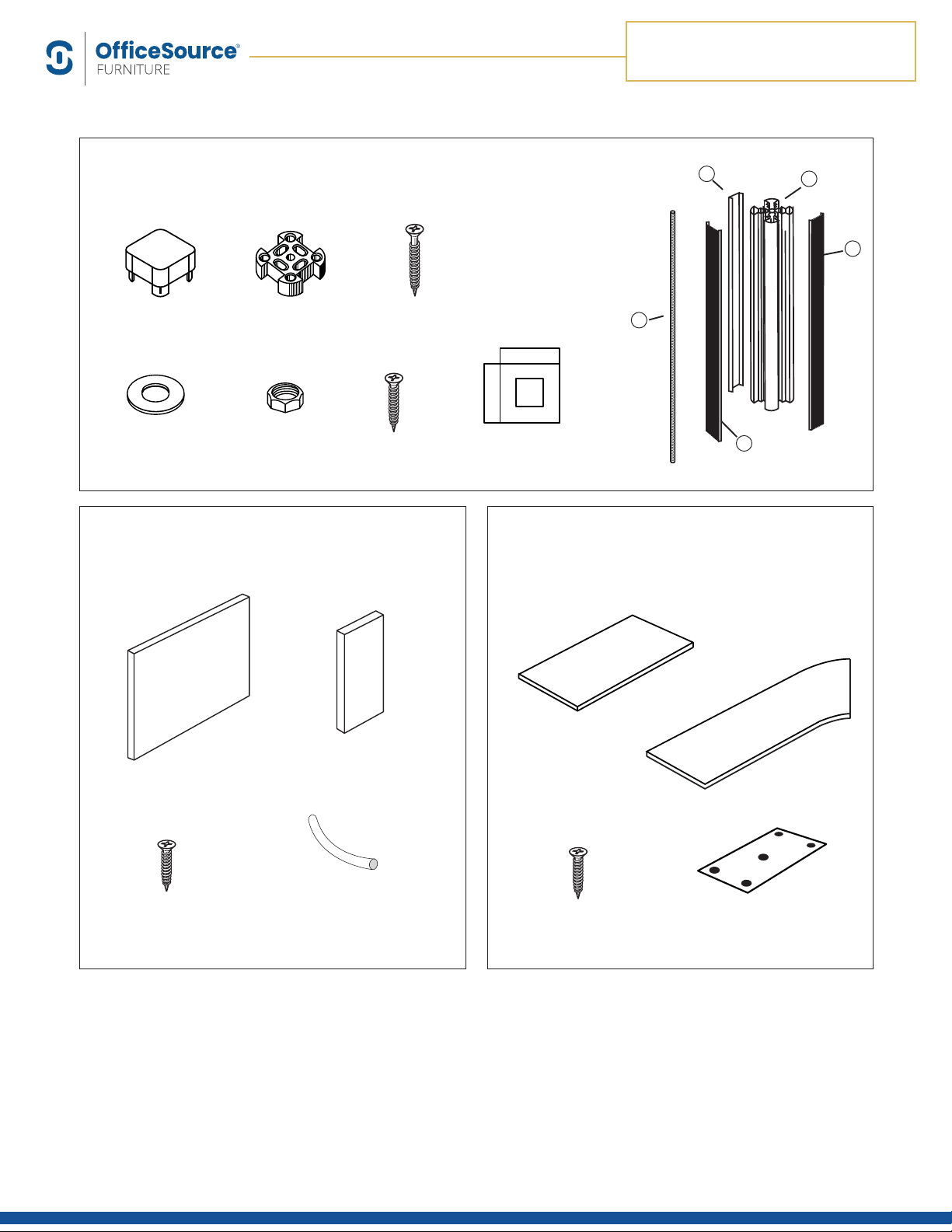

Regular OR

Corner Panel x 1

PANEL PARTS KIT TRANSACTION TOP

PARTS KIT

(Not recommended for use on 24” posts)

DIVIDER POST PARTS KIT

Top Cap x 1 Mounting Plate x 1 1 1/4” Screw x 4

Template x 1

Washer x 1 Locknut x 1 1” Screw x 4

a. Divider post x 1

b. Cover strip x 3

c. Threaded Rod x 1

Regular Panel x 1

3/4” Screw x 8 3/4” Screw x 8

Filler Panel x 1

Neoprene Strip x 2

(with glazed panel kit only) Flat Bracket x 2

MODEL NO. PBTR48

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

®www.ocesourcefurniture.com

PBTR48

ASSEMBLY INSTRUCTIONS

1.4 Install the mounting plate that is to

be fixed at the other end of the work

surface by following steps 1.1 to 1.3

above.

1.5 Temporarily position a panel between

the two mounting plates. Adjust

mounting plates so that a gap of

approximately 1/16” or 2mm is

between the panel and the plate.

1/16”

or 2.0 mm gap

1.4

1.5

1.7 After all the mounting plates have been properly aligned, including having the panels temporarily

positioned as per instruction 1.5, then install the remaining 3 - 1” screws in each mounting plate as

shown, followed by the 4 - 1 1/4” in the four outside corners of the plate.

1.6 1.7

1.6 Install all the remaining mounting

plates that will be on your work surfaces

following the above instructions. Remember

when aligning the mounting plates use only

the one short screw and do not tighten.

Filler Panel

Regular Panel

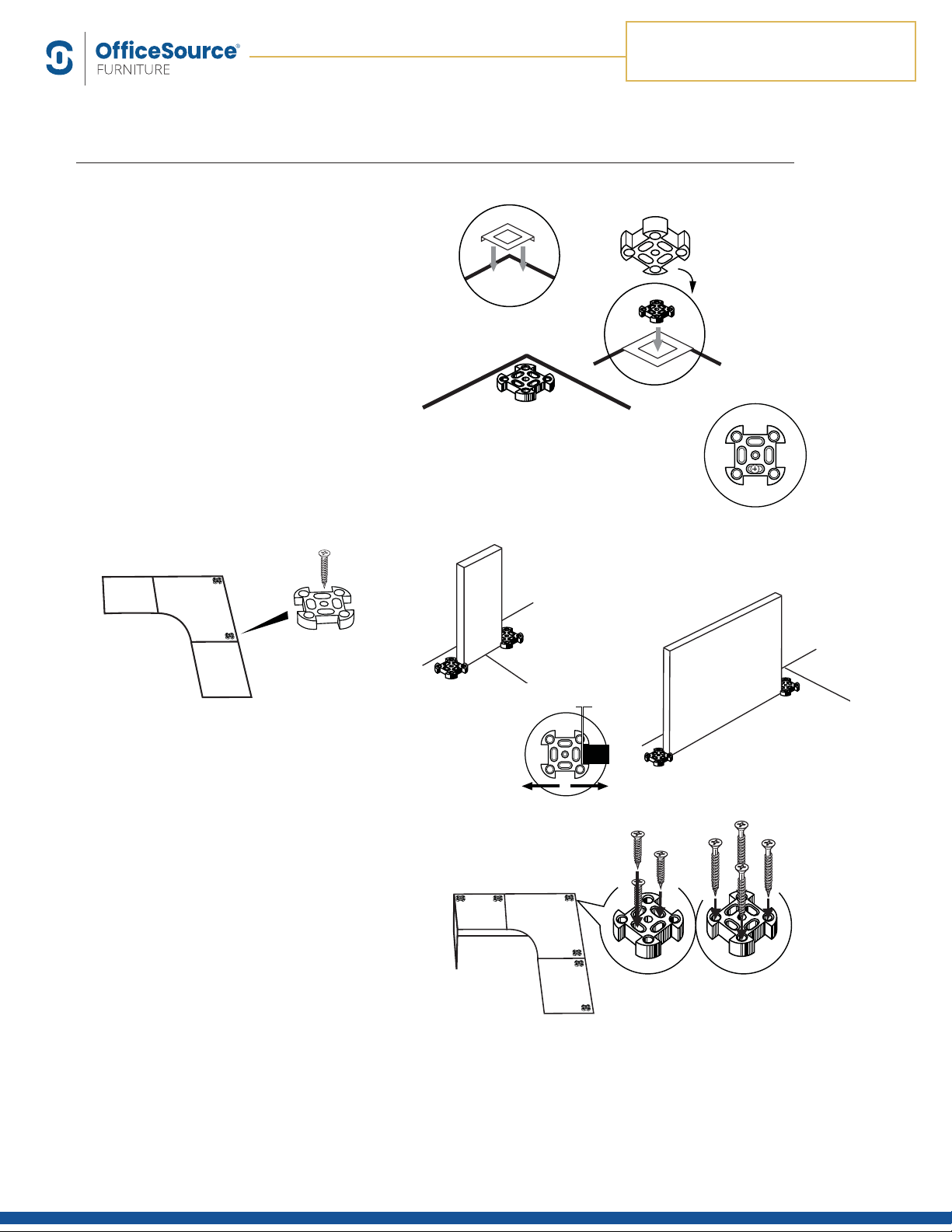

STEP 1. ATTACH MOUNTING PLATE

1.1 Fold sides of template downward and

position template tight against work

surface corner.

1.2 Expose double sided tape and

position mounting plate inside the

template opening.

1.3 Remove the template and install the

short 1” screw into one of the

inside holes. Do not tighten.

DO NOT INSTALL ANY OTHER SCREWS

1.1

1.2

1.3

MODEL NO. PBTR48

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

®www.ocesourcefurniture.com

PBTR48

ASSEMBLY INSTRUCTIONS

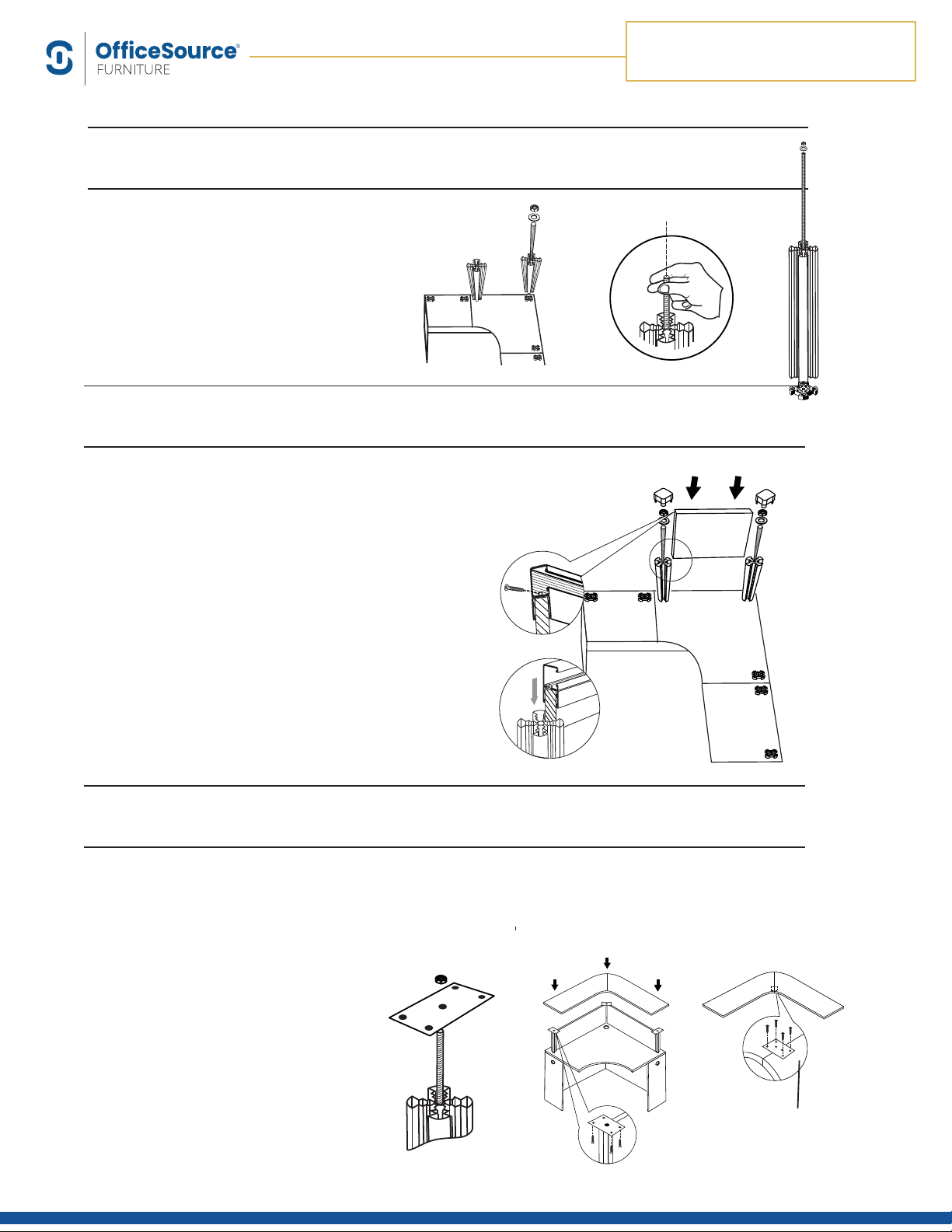

STEP 3. SLIDE PANELS INTO PLACE

STEP 4. ATTACHING TRANSACTION TOPS

3.1 Insert a 3/4” screw into threaded hole in each

corner of the panel. Once all the way in,

back out each screw 2 turns.

3.2 Slide panels into place, making sure that

exposed screw head slides down appropiate

channel on post.

3.3 If using glazed panel, in addition to the four

screws, (not required on fabric panels) secure

panel by inserting Neoprene strips between

panel and post (Neoprene strips are provided

with the panel).

3.4 Ensure cover strips on the post are propery

placed. Note. If using transaction tops,

proceed to Step 4

3.5 Tighten locking nut. Place caps on top of divider post.

3/4” Screw

3.1

3.2

Note: All transaction tops come with necessary connecting hardware

4.1 Remove nut and washer. Slide connecting bracket onto threaded rod and divider post.

4.2 Fasten connecting bracket to divider post by tightening locking nut.

4.3 Align connecting brackets

with recessed cut outs on

underside of transaction tops.

4.4 Attach flat brackets to under

side of adjoining transaction

tops with 4 wood screws

provided. 4.1

4.2

4.3

4.4

Underside of

transaction top

STEP 2. MOUNT DIVIDER POST

2.1 Place divider post over mounting plate.

2.2 Screw threaded rod through divider

post and into mounting plate.

2.3 Place washer then nut on rod and

finger tighten only.

2.3

2.1 2.2

MODEL NO. PBTR48

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

®www.ocesourcefurniture.com

PBTR48

ASSEMBLY INSTRUCTIONS

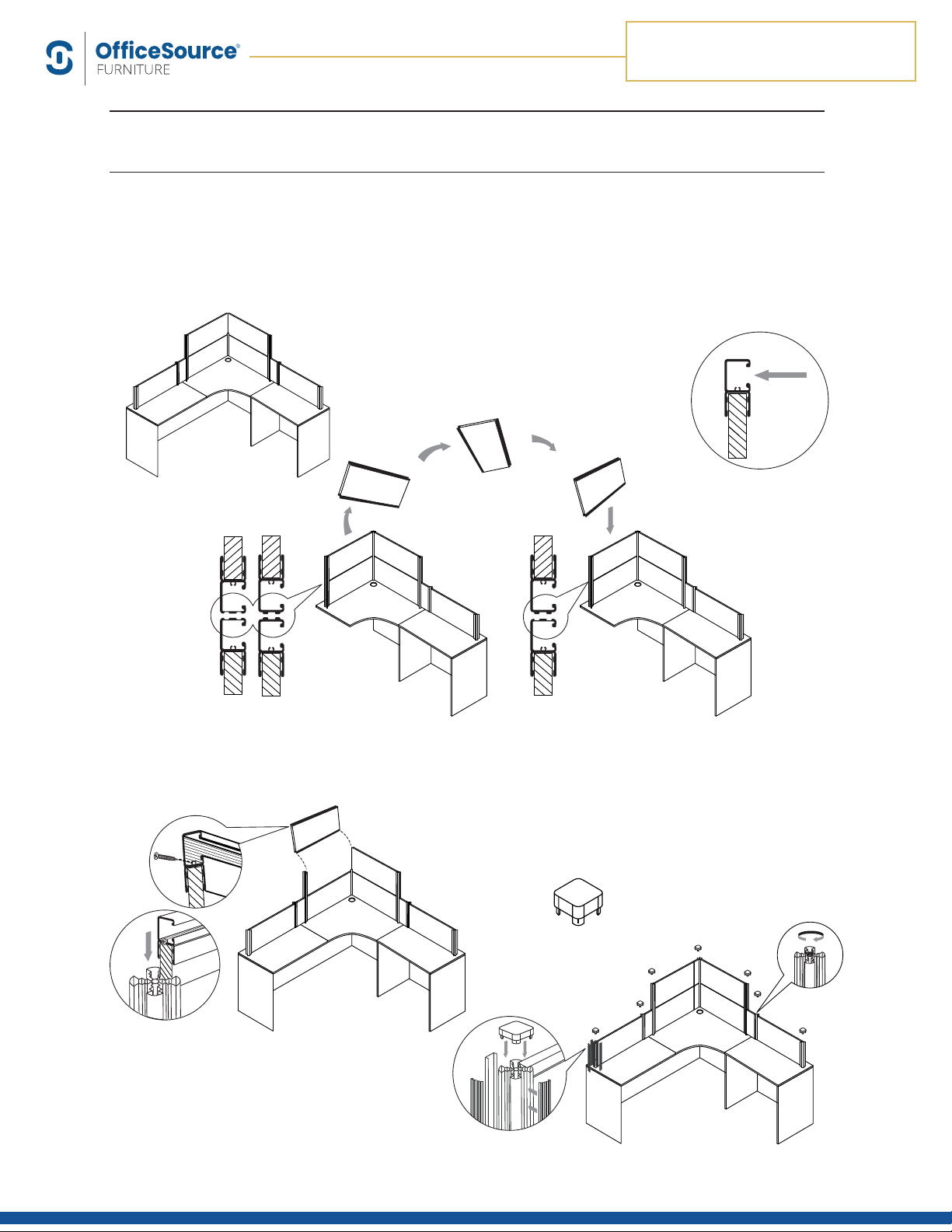

STEP 5. STACKING ON PANELS

Note: When using 2 stacked 12” panels, 24” high posts must be used.

5.1 Attach first level of panels as described in Step 3. Insert 2nd level of panels between 24” high posts in

same fashion.

5.2 Tighten locking nut on the threaded rod and place caps on top of divider post.

USER

SIDE

5.1

5.2

5.1

STACKED

INCORRECTLY

STACKED

PROPERLY

3/4” Screw

TOP CAP

Please ensure panels are stacked properly - rails should fit in channels .

MODEL NO. PBTR48

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023
