OfficeSource PL438T HALF User manual

KLIX CAM INSTRUCTIONS

Insert the cam with the arrow

pointing towards the hole in the

edge.

Line up Cam Lock,

turn clockwise.

Insert the Cam Lock into Klix

Cam. Turn Klix Cam to lock.

3DETAIL x-x

ADJUST THIS SCREW FOR DOOR ALIGNMENT

AFTER ASSEMBLY THE HINGES.

BACK VIEW

HINGES INSTRUCTIONS

MODEL: PL 438T HALF

1 OF 6

Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the instructions.

CONFIGURATION:

ASSEMBLY INSTRUCTIONS

See Page 3 See Page 4

See Page 5 See Page 6

WITH END BASE WITH ELLIPTICAL BASE

WITH CUBED BASE WITH V-LEG/U-LEG BASE

See Page 6

WITH V-LEG/SQUARE

POST LEG BASE

WALL

OFFICE FURNITURE

MODEL NO. PL438T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 1 of 6

2 OF 6

!ATTENTION !

Place all wooden parts on a clean, smooth surface to prevent them from being scratched.

Check to be sure that you have all parts and hardware. Remove all wrapping materials, including staples and packing straps before

you start to assemble. Do not tighten all screws/bolts until all completely assembled. Keep all hardware parts out of reach of children.

If any parts are missing, broken, damaged or worn, stop use of product until repairs have been made using factory authorized parts.

Failure to follow these warnings may result in injury.

MODEL: PL 438T HALF

ASSEMBLY INSTRUCTIONS

COMPONENTS:

HARDWARE:

G1 G2 G3

M4 x 65

Allen-Key

1 Pc

Adjustable

Glide

5 Pcs

G4 G5 G6

JCBC Screw

M6 x 40mm = 8pcs

14Washer = 8pcs

Klix Cam

18 Pcs

Housing

Cap (Short)

4 Pcs

Cam Lock

18 Pcs

6 Hole

L-Bracket

4 Pcs

Screw

#6 x 58"

24 Pcs

G8 G9

0' Compo

Door Hingers

1 Pair

Screw

#3.5 x 16mm

2 Pcs

Magnet

Catches

1 Set

Screw

#3.5 x 12mm

2 Pcs

G10 G11 G12

Housing

Cap (Long)

14 Pcs

G13

Modesty Panel x

2 Pcs

End Base x 2

Cube Base x 2

Center Base

Modesty Panel x

2 Pcs

Elliptical Base x 2

Center

Elliptical Base

PLT-V-LEG x 2

PLT-RET Support x 8

PLT LEG-U

PLT-V-LEG

PLT-RET Support x 2

PLT Post Leg x 2

A A

FOR

ELLIPTICAL

BASE

FOR

CUBE

BASE

FOR

V-LEG/U-LEG

BASE

FOR END

BASE

Top Panel for PL438T

HALF x 2

Top Panel for PL438T

HALF x 2

Top Panel for PL438T

HALF x 2

Top Panel for PL438T

HALF x 2

ATop Panel for PL438T

HALF x 2

H1 H2 H3

#6 x 16mm P/H

Cross Recess

Screw

4 Pcs

Screw

#4 x 16mm

16Pcs

M4 x 65

Allen-Key

1 Pc

I1 I2 I3

#6 x 16mm P/H

Cross Recess

Screw

4 Pcs

Screw

#4 x 16mm

16Pcs

M4 x 65

Allen-Key

1 Pc

Screw

#4 x 16mm

32Pcs

Klix Cam

10 Pcs

Cam Lock

10 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Short)

4 Pcs

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

C1 C2 C3 C4 C5 C7

6 Hole

L-Bracket

4 Pcs

Klix Cam

6 Pcs

Cam Lock

6 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

D1 D2 D3 D4 D6

6 Hole

L-Bracket

4 Pcs

D5 D8

CSK Scew

M3.5 x 20MM

16 Pcs

Klix Cam

4 Pcs

Cam Lock

4 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Long)

4 Pcs

Adjustable

Glide

2 Pcs

Screw

#6 x 58"

24 Pcs

E1 E2 E3 E4 E6

6 Hole

L-Bracket

4 Pcs

E5 E8

CSK Scew

M3.5 x 20MM

8 Pcs

Klix Cam

4 Pcs

Cam Lock

4 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Long)

4 Pcs

Adjustable

Glide

2 Pcs

Screw

#6 x 58"

24 Pcs

F1 F2 F3 F4 F6

6 Hole

L-Bracket

4 Pcs

F5 F8

CSK Scew

M3.5 x 20MM

8 Pcs

Screw

#4 x 16mm

8Pcs

INCLUDED

WITH TABLE

TOP

INCLUDED

WITH CUBE

BASE

INCLUDED

WITH

V-LEG/U-LEG/SQUARE

POST LEG

BASES

INCLUDED

WITH END

BASES

INCLUDED WITH

ELLIPTICAL

BASES

INCLUDED

WITH CENTER

END BASE

INCLUDED

WITH CENTER

ELLIPTICAL

BASE

Screw

#6 x 58"

60 Pcs

6 Hole

L-Bracket

8 Pcs

Flat-Bracket

2 Pcs

A2 A3

OFFICE FURNITURE

MODEL NO. PL438T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 2 of 6

MODEL: PL 438T HALF

ASSEMBLY INSTRUCTIONS

3 OF 6

INSTRUCTION:ASSEMBLING TABLE WITH END PANEL BASE

Screw Adjustable Glide (C5) into

bottom of End Base (C).

Attach Housing Cap (A3/C3/C4) to

all Klix Cam(A2/C2) by pushing

neck thought center of cam.

BOTTOM

FACE

(A3/C3/C4)

Attach the Flat-Bracket (A2) to

two Top Panel (A) as shown.

Tighten Screws (A3) securely.

BOTTOM

FACE

Attach the two End Base (C) and

Center Base (E) to Modesty Panel

(B) by using Cam Lock (C1) and Klix

Cam (C2).

TOP

Attach the body (B/C/E) to Top

Panel (A) by using Cam Lock

(C1/E1) and Klix Cam (C2/E2). A

TOP

Attach the L-Bracket (A1/C6/E6) to End

Base (C) and Center Base (E) and

Modesty Panel (B) as shown. Tighten

Screws (A3/C7/E7) securely.

(A3/C7/E7)

(A1/C6/E6)

OFFICE FURNITURE

MODEL NO. PL438T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 3 of 6

MODEL: PL 438T HALF

ASSEMBLY INSTRUCTIONS

4 OF 6

INSTRUCTION:ASSEMBLING TABLE WITH ELLIPTICAL BASE

Attach Elliptical Base (D) and Center Elliptical

Base (F) to Modesty Panel (B) by using Cam

Lock (D1/F1) and Klix Cam (D2/F2).

BOTTOM

FACE

Attach the Flat-Bracket (A2) to

two Top Panel (A) as shown.

Tighten Screws (A3) securely.

Attach metal plate to Elliptical Base (D)&(F)

with included screws.

Screw Adjustable Glides (D4)&(F4) into

bottom of Elliptical Bases (D)&(F).

Attach Elliptical Base (D) and

Center Elliptical Base (F) to Top

Panel (A) by using Screw (D8/F8).

BAttach the L-Bracket (A1/D5/F5)

from Top Panel (A) to Elliptical

Base (D) and Modesty Panel (B)

and Center Elliptical Base (F)

as shown. Tighten Screws

(A3/D8/F8) securely.

Attach Top Panel (A) to Modesty Panel (B) by

using Cam Lock (D1/F1) and Klix Cam (D2/F2).

(A1/C5/D5)

(A3/C8/D8)

CF8D8 &

D F

OFFICE FURNITURE

MODEL NO. PL438T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 4 of 6

MODEL: PL 438T HALF

ASSEMBLY INSTRUCTIONS

5 OF 6

INSTRUCTION:ASSEMBLING TABLE WITH CUBED BASE

Assemble Cube Base by attaching Side

Panels(C)&(D) to Back Panels(E),Top

rail(F) & Bottom Rail(G) with Cam Lock

(G1) and Klix Cam (G2).

Attach Cube Base Support (B) by using Cam Lock (D1) and Klix Cam (D2).

COR D

G10

Attach Magnet Catches(G10) to Side

Panel(C)or(D) by using Screw(G11).

Attach L-Bracket(G7) to

Side Panel(C)&(D) and

Hanging Rail(B) by using

Screw(G8).

Attach Hinges(G9) to Side

Panel(C)or(D) and Door(H) by using

Screw(G9).

Attach Catches Plate(G10) to

Door(H) by using Screw(G12).

Screw Adjustable Glide

(G5) into bottom of End

Base (C,D).

G12

G11

Attach the Flat-Bracket

(A2) to two Top Panel (A)

as shown. Tighten Screws

(A3) securely.

BOTTOM

VIEW

G13

Attach Top Panels (A) to

Cube Bases (B) with JCBC

Screws (G13) and tighten

with Allen Key G6).

OFFICE FURNITURE

MODEL NO. PL438T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 5 of 6

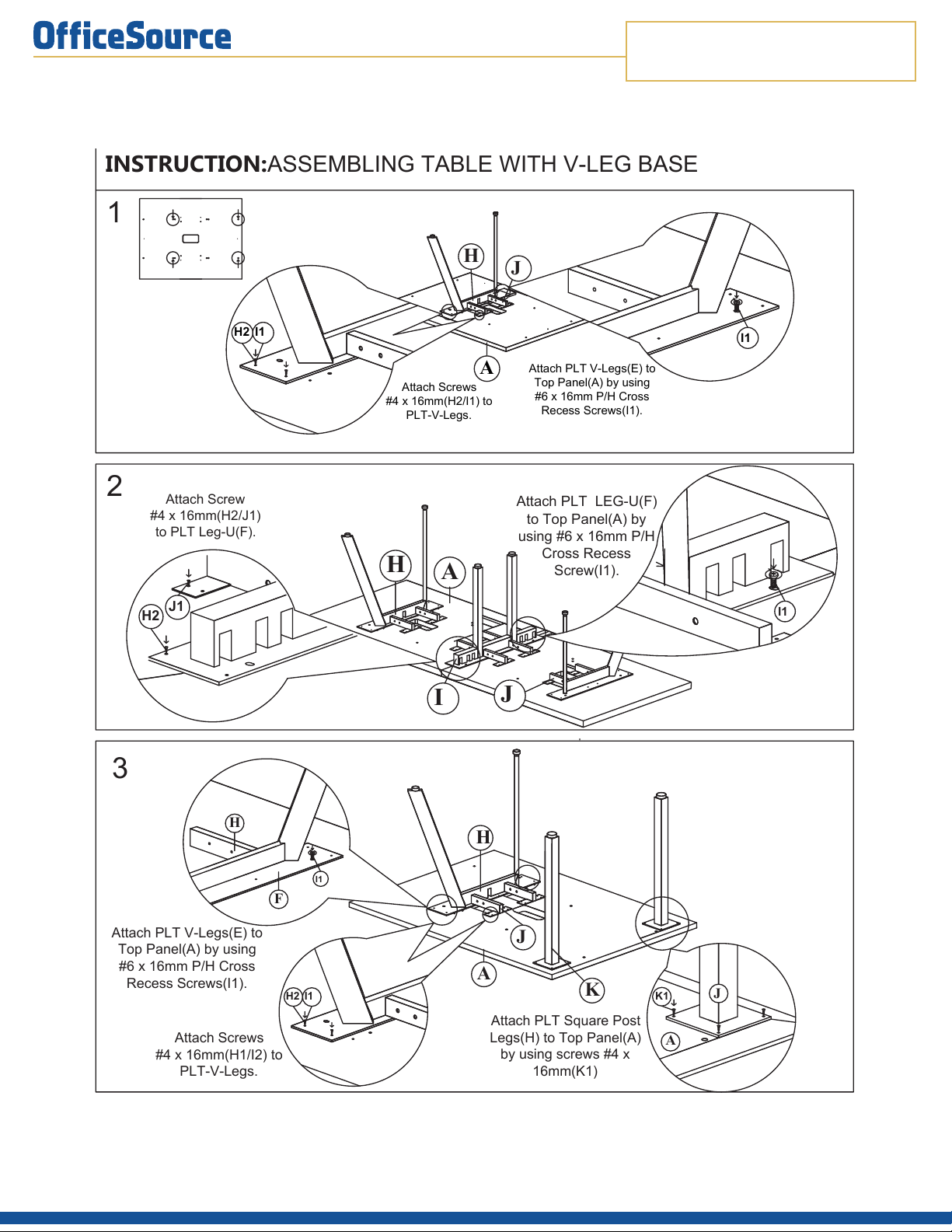

6 OF 6

ASSEMBLY INSTRUCTIONS

MODEL: PL 438T HALF

Attach Screws

#4 x 16mm(H2/I1) to

PLT-V-Legs.

H2 I1

Attach PLT V-Legs(E) to

Top Panel(A) by using

#6 x 16mm P/H Cross

Recess Screws(I1).

Attach PLT LEG-U(F)

to Top Panel(A) by

using #6 x 16mm P/H

Cross Recess

Screw(I1).

H2 J1

Attach Screw

#4 x 16mm(H2/J1)

to PLT Leg-U(F).

Attach Screws

#4 x 16mm(H1/I2) to

PLT-V-Legs.

H2 I1

Attach PLT V-Legs(E) to

Top Panel(A) by using

#6 x 16mm P/H Cross

Recess Screws(I1).

Attach PLT Square Post

Legs(H) to Top Panel(A)

by using screws #4 x

16mm(K1)

INSTRUCTION:ASSEMBLING TABLE WITH V-LEG BASE

OFFICE FURNITURE

MODEL NO. PL438T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 6 of 6
