OfficeSource PL105 User manual

®www.ocesourcefurniture.com

PL105

ASSEMBLY INSTRUCTIONS

KLIX CAM INSTRUCTIONS

Please follow these instructions for easy assembly.

Thank you for purchasing the Performance Desk Shell.

Do not tighten screws/bolts until the unit is completely assembled.

Check to be sure that you have all parts and hardware.

Remove all wrapping materials, including staples & packing straps before you start to assemble.

Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from

Keep all hardware parts out of reach of children.

being scratched.

IMPORTANT :

Top Panel

Back Panel

Cam Lock

11 Pcs

Klix Cam

11 Pcs

543

Housing

Cap (Long)

4 Pcs

Housing

Cap (Short)

7 Pcs

Adjustable

Glide

4 Pcs

Right Side Panel

Left Side Panel

6 Hole

L-Bracket

5 Pcs

Screw

#6 x 58"

30 Pcs

DESK SHELL

M4 x 65

Allen-Key

1 Pc

PL 102GG,PL103GG,PL 105GG

Insert the cam with the arrow

pointing towards the hole in

the edge.

Line up Cam Lock,

turn clockwise.

1 2

Insert the Cam Lock into

Klix Cam. Turn Klix Cam to

lock.

®www.ocesourcefurniture.com

PL105

ASSEMBLY INSTRUCTIONS

Turn Top Panel (A) upside down and insert Cam Lock

pins (1) into top panel and into side panels (C,D).

Insert Klix Cams (2) in Side Panels (C,D) and back

panel (B). Attach Back Panel (B) to side panels (C,D)

and Top Panel (A). Turn Klix Cam to tighten.

XAAttach those

Back Panel(B)

and left right

Side

Panel(C,D) to

Top Panel as

same as Box 1.

2Attach L-Bracket(5) to Top

Panel(A), Back Panel(B) and

Side Panel(C,D) as shown by

tighten Screws(6) securely.

Attach Housing Cap(3) to each

Klix Cam(2) by pushing the

neck thought the center of the

Klix Cam.

TOP D

PL 102GG,PL103GG,PL 105GG

Screw Adjustable Glides(4)

into bottom of Side Panel.

DESK SHELL

Table of contents

Other OfficeSource Indoor Furnishing manuals

OfficeSource

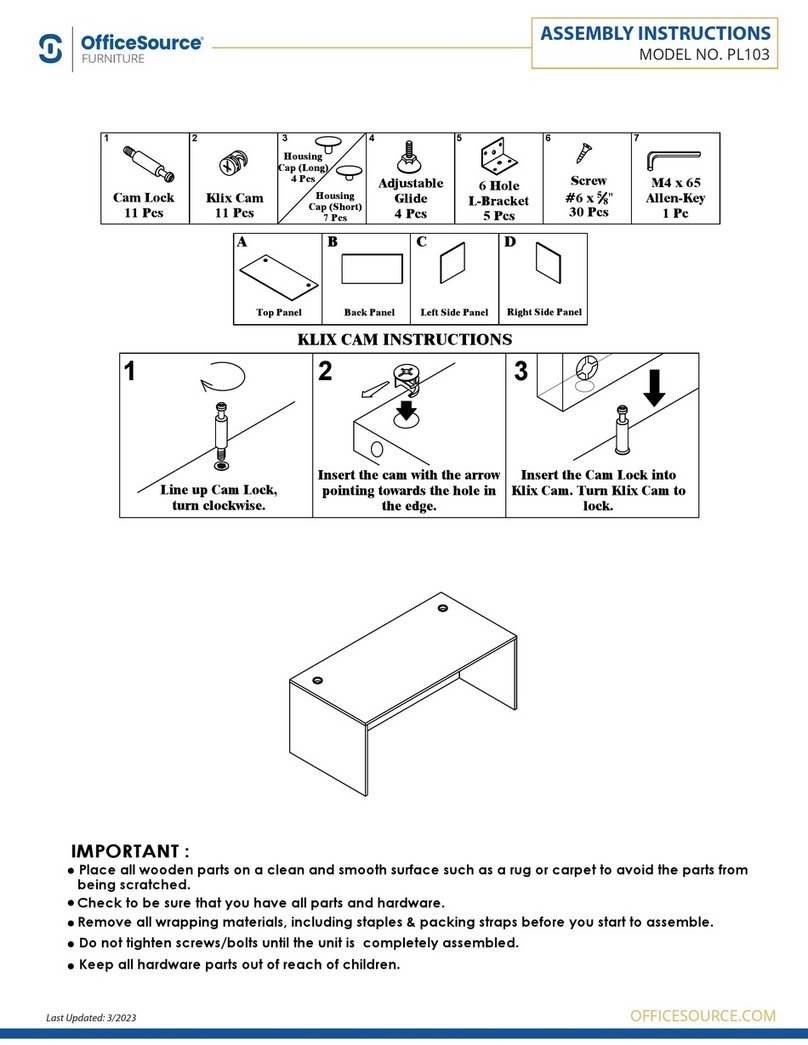

OfficeSource PL103 User manual

OfficeSource

OfficeSource 83846H User manual

OfficeSource

OfficeSource PL9997 User manual

OfficeSource

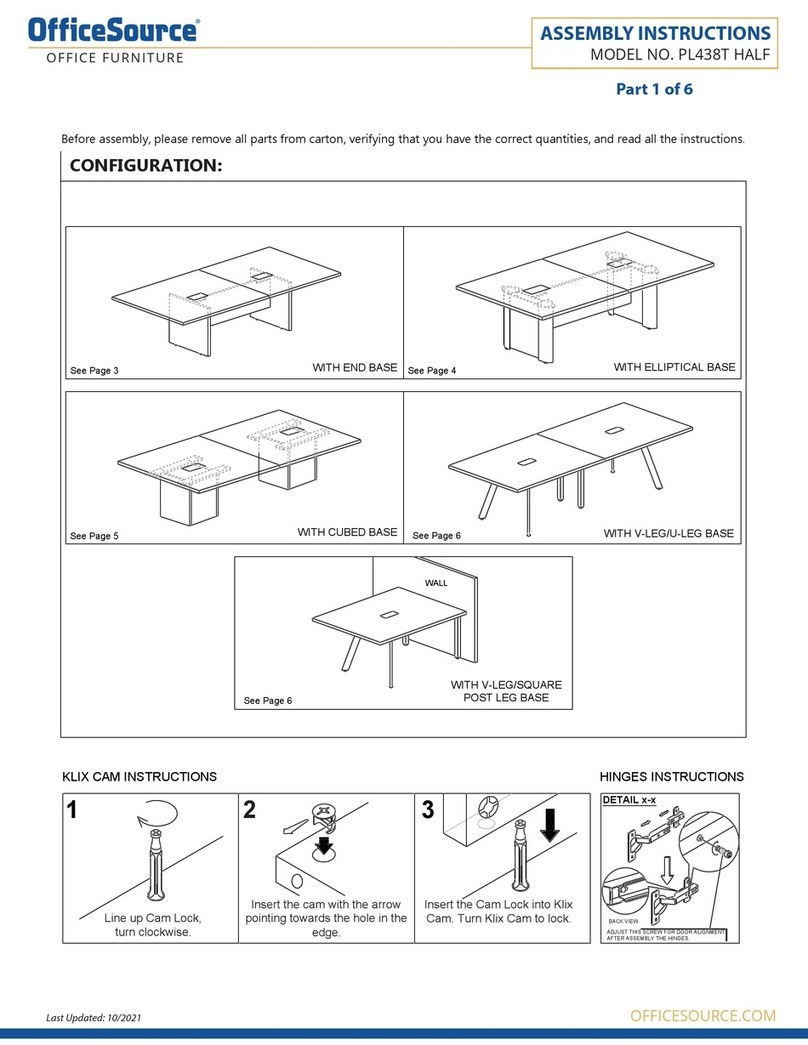

OfficeSource PL438T HALF User manual
