Miele ESW 4716 User manual

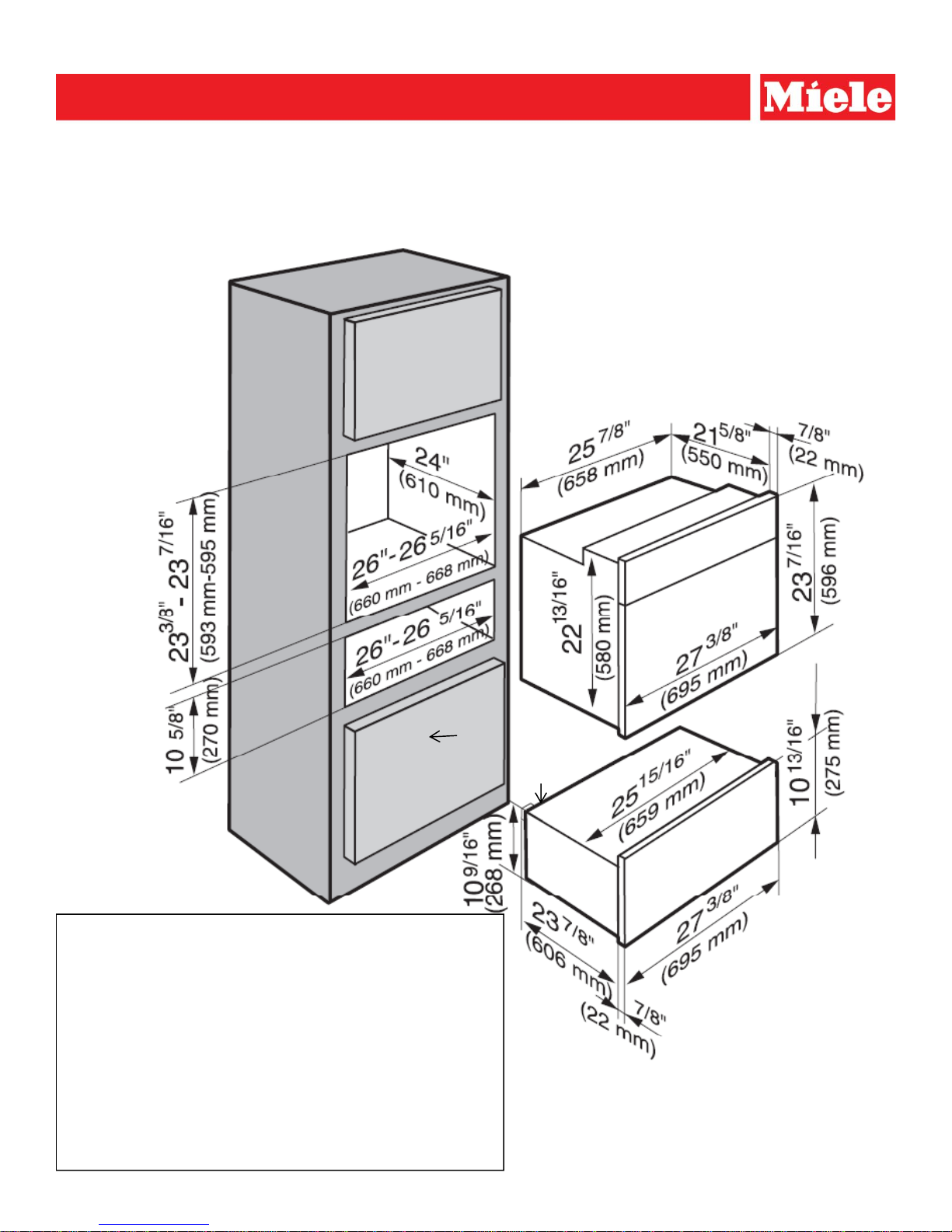

Product and Cut-out Dimensions Page 1 of 3
Warming Drawer
ESW 4716
Europa
Design
Clean
Touch Steel
with a DS 4043 Square
ESW
4716
Europa
Design
Clean
Touch
Steel
with
a
DS
4043
Square
Series Handle
Installation shown with a Miele
70 cm Oven
OE
Location Codes
E – The drawer comes equipped with a 5 ft. (1.5 m) power
cord with a three-prong grounding plug ready for connection
to a 120V, 15 A, 60 Hz power supply.
O – 1” ² minimum hole size for plug. Outlet to be
Note: Drawing is not to scale
Specification Sheets OJS 11142011
installed in adjacent cabinetry
Notes
Miele appliances can be installed flush or proud. Discuss
your installation requirements with your architect, designer
and installer.
All installations must be done in accordance with local codes.
Product and Cut-out Dimensions Page 2 of 3
Warming Drawer
ESW 4716
Europa
Design
Clean
Touch Steel
with a DS 4043 Square
ESW
4716
Europa
Design
Clean
Touch
Steel
with
a
DS
4043
Square
Series Handle
Side view with a Miele oven
Location Codes
E – The drawer comes equipped with a 5 ft. (1.5 m) power
cord with a three-prong grounding plug ready for connection
to a 120V, 15 A, 60 Hz power supply.
O – 1” ² minimum hole size for plug. Outlet to be
Note: Drawing is not to scale
Specification Sheets OJS 11142011
installed in adjacent cabinetry
Notes
Miele appliances can be installed flush or proud. Discuss
your installation requirements with your architect, designer
and installer.
All installations must be done in accordance with local codes.
Product and Cut-out Dimensions Page 3 of 3
Warming Drawer
ESW 4716
Europa
Design
Clean
Touch Steel
with a DS 4043 Square
ESW
4716
Europa
Design
Clean
Touch
Steel
with
a
DS
4043
Square
Series Handle
Location Codes
E – The drawer comes equipped with a 5 ft. (1.5 m) power
cord with a three-prong grounding plug ready for connection
to a 120V, 15 A, 60 Hz power supply.
O – 1” ² minimum hole size for plug. Outlet to be
Note: Drawing is not to scale
Specification Sheets OJS 11142011
installed in adjacent cabinetry
Notes
Miele appliances can be installed flush or proud. Discuss
your installation requirements with your architect, designer
and installer.
All installations must be done in accordance with local codes.
