Miele H 6680 BP Instructions for use
PureLine
30” Convection Oven
H 6680 BP
8mieleusa.com
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
H 6680 BP
Page 2 of 8
H 6680 BP
Features:
•SensorTronic controls: 5-line TFT
display with laterally positioned
sensor controls that clearly present
menu content
•Self Clean Oven
•18 Operating Modes
•Rapid PreHeat
•MasterChef menu offers over 100
food types to cook to perfection
•Roast Probe for perfect roasting results
•Favorites — up to 20 recipes
•Sabbath Program
•CleanGlass Door
•Timer
•TwinPower Fans provide optimum
and even distribution of hot air
•Soft Open and Soft Close for an
easier handling
•The simple yet sleek Silhouette
handle seems to oat enhancing its
modern design lines
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
H 6680 BP
Page 3 of 8
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
H 6680 BP
Page 4 of 8
SPECIFICATIONS
H 6680 BP — Item 22668053USA
Overall Unit Width - Excluding Fascia Dimension 287/16” (722mm)
Overall Height - Excluding Fascia Dimension 273/4” (705mm)
Overall Unit Depth - Excluding Fascia Dimensions 233/4” (603mm)
Oven Door Clearance 23” (584mm)
Overall Fascia Dimensions 2913/16” (757mm) W x 285/8” (727mm) H
x 7/8” (23mm) D
Built-In
Minimum Cabinet Width 281/2” (724mm)
Minimum Cabinet Depth 24” (610mm)
Minimum Cabinet Opening Height 281/4” (718mm)
Minimum Base Support 193 lbs
Additional Cut-outs Required
Venting cut-out required at base of cabinet
(4” x 28” / 100mm x 720mm) in the bottom
of the cabinet for power cord and ventilation
Electrical
Electrical Requirements 208/240V 30A 60Hz circuit
Power Cord Yes - NEMA 14-30 plug
Electrical Rating 120/208V, 30A, 60Hz, 5000w
120/240V, 30A, 60Hz, 6700w
Total Amps 240V / 28A / 208V / 24A
Shipping
Shipping Weight 216 lbs
Shipping Dimensions 3211/16” W x 351/16” H x 305/16” L
Support
Call 800.843.7231
20/20 82020technologies.com
PRODUCT VIEWS
H 6680 BP
Page 5 of 8
Isometric
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
Front
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
PRODUCT VIEWS
Top View
Rear View
Electrical Connection
H 6680 BP
Page 6 of 8
RemoteVision Module
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
H 6680 BP
Page 7 of 8
INSTALLATION SPECIFICATIONS
Install in Tall Cabinet
PRODUCT VIEWS
Side View
PureLine 30” Convection Oven
H 6680 BP
FOREVER BETTER
H 6680 BP
Page 8 of 8

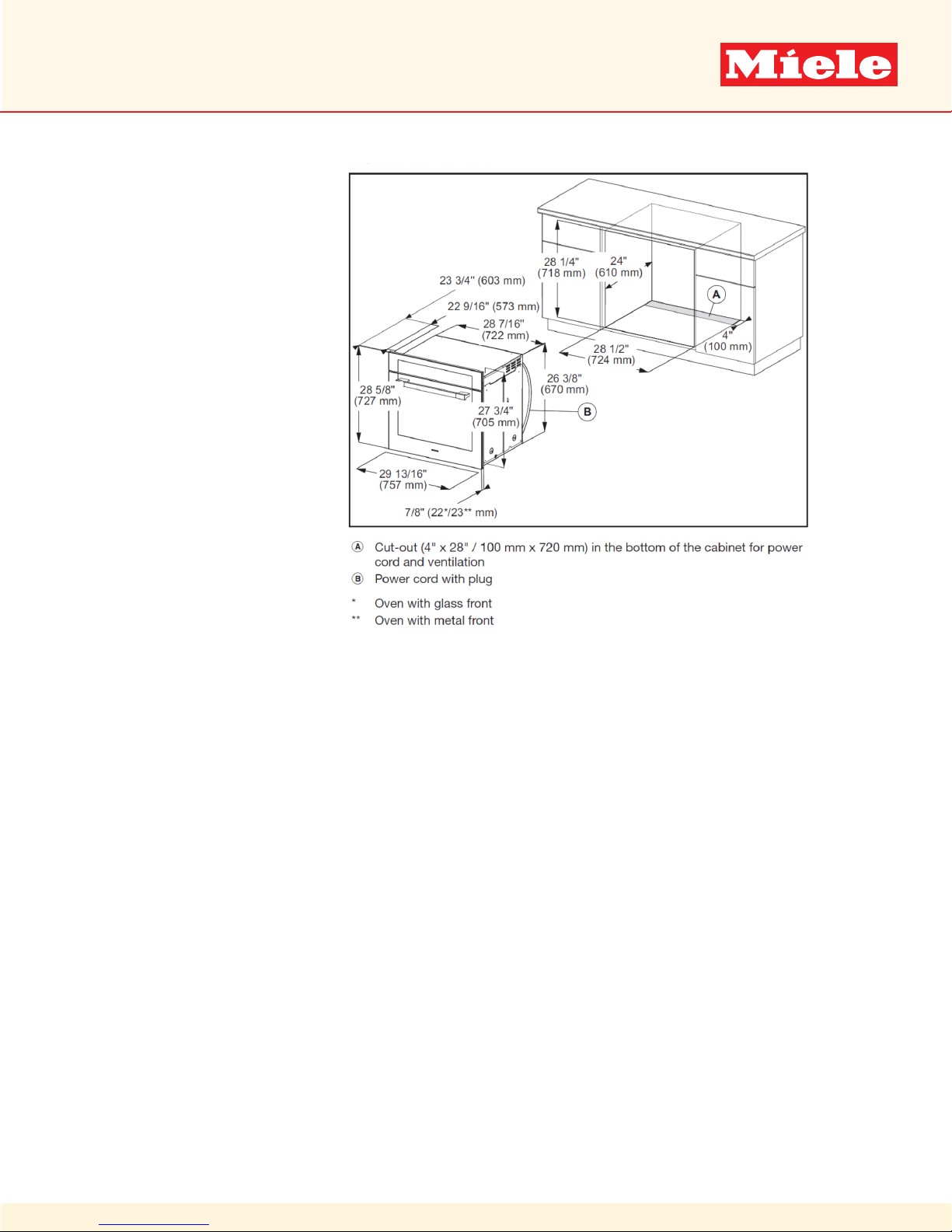

INSTALLATION SPECIFICATIONS
Undercounter Installation
