McCulloch ZM3816 BF User manual

ZM3816 BF / 966582001

Parts Manual

Please read the operator’s manual carefully and make sure you

understand the instructions before using the machine.

When you need spare parts or support in service

questions, warranty issues, etc., please consult

the following professional:

Manufacturing Number

The machine’s manufacturing number can be found

on the printed plate afxed to the engine

compartment.

Stated on the plate, from the top are:

The machine’s type designation (I.D.).•

The manufacturer’s type number (Model).•

The machine’s serial number (Serial no.)•

Please have the type designation and serial number

available when ordering spare parts.

The engine’s manufacturing number is stamped on

one of the valve covers.

The plate states:

The engine’s model.•

The engine’s type.•

Code•

Please have these available when ordering spare

parts.

Wheel motors and hydrostatic pumps have a barcode

decal afxed at the rear.

This Parts Manual belongs to the machine with the

manufacturing number: Engine Transmission

Beatrice, NE. Printed in U.S.A.

CONTENTS

NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.

FRAME.....................................................................4

ENGINE PLATE........................................................6

STEERING...............................................................8

IGNITION................................................................10

HYDRAULIC PUMP / MOTOR...............................12

WHEELS / TIRES...................................................14

BRAKE / DECK LIFT..............................................16

MOWER DECK / CUTTING DECK ........................18

SEAT ......................................................................20

DECALS.................................................................22

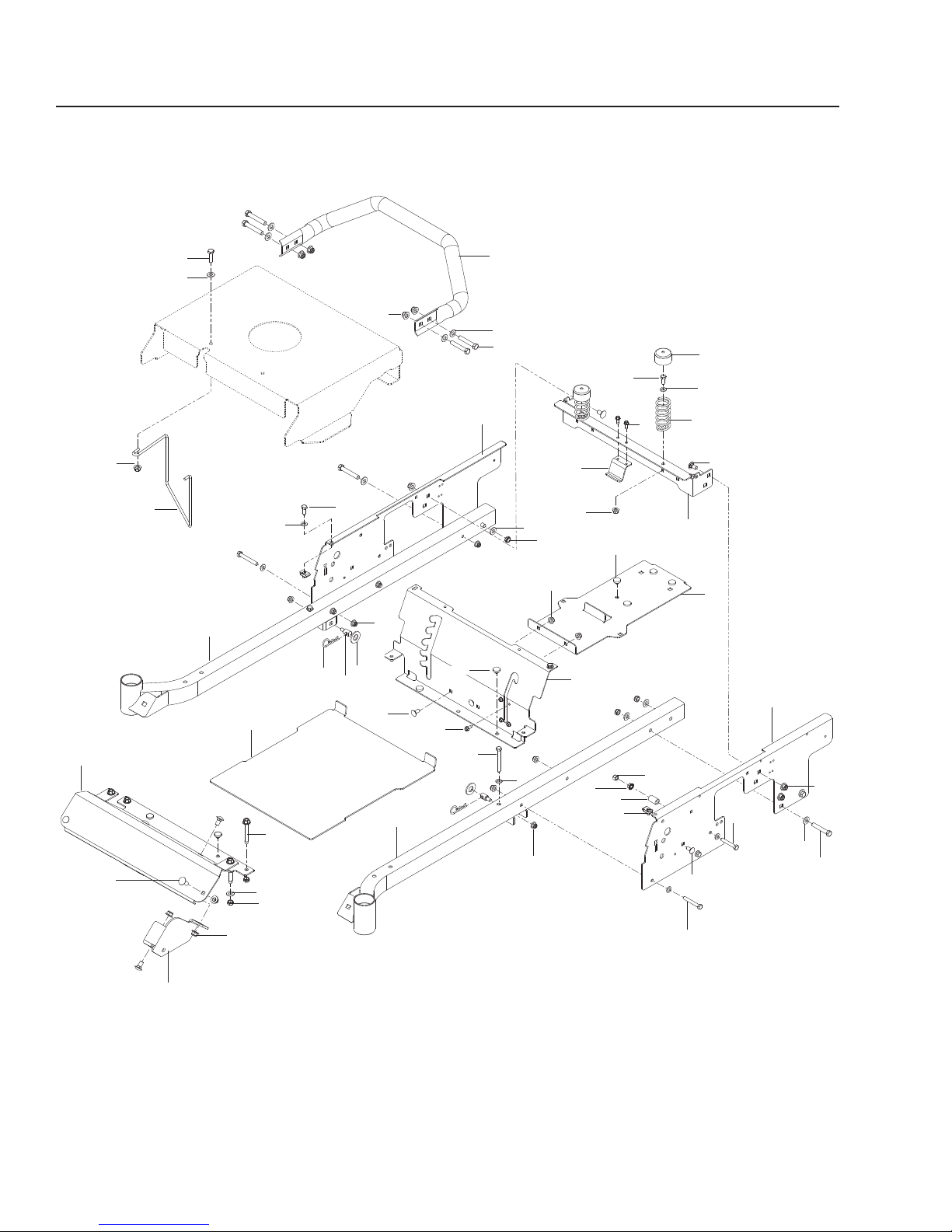

FRAME

19 20

22 23

27 28

ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION

FRAME

525 4547051.. ....1 .... FRAME TUBE, LH BLK

525 4549052.. ....1 .... FRAME TUBE, RH BLK

574 3564053.. ....1 .... SEAT SUPPORT, REAR BLK

532 1951614.. ....2 .... STUD w/ ANTI-ROTATE

539 9903625.. ....6 .... SCREW ¼-20 x 5/8 SLF TAP

525 8645026.. ....1 .... BRACKET, FUEL TANK BLK

539 9769417.. ....1 .... HCS 3/8-16 x 1¼

539 1128998.. ..14 .... NUT 5/16-18 HEX FLG NYLOC

539 9901889.. ..12 .... WASHER 5/16 SAE FLT

539 97693810.. ....4 .... HCS 5/16-18 x 2¼

539 99012211.. ..17 .... WASHER 3/8 SAE FLT

539 20028212.. ....8 .... NUT 3/8-16 HEX JAM NYLOC

539 11197613.. ....4 .... BOLT 3/8-16 x 25/8 THD FRM

521 99650114.. ..13 .... NUT 3/8-16 FLANGE NYLOC

539 99064515.. ....2 .... RHSNB 3/8-16 x 1

574 35470516.. ....1 .... GUARD, REAR BLK

539 11178517.. ....6 .... RHSNB 3/8-16 x ¾

539 99062918.. ....8 .... HCS 3/8-16 x 2¼

539 97698919.. ....2 .... HAIRPIN

539 97698220.. ....2 .... WASHER 5/8 SAE FLT

574 77980421.. ....1 .... FOOT REST BLK

539 10258722.. ....9 .... GROMMET, BUMPER

575 66130523.. ....1 .... PANEL, SEAT SUPPORT BLK

539 10476324.. ....4 .... RETAINER, U TYPE

576 41470125.. ....1 .... FOOT PLATE w/ DECALS BLK

539 10172126.. ....2 .... HCS 5/16-18 x 2¾

539 99058527.. ....4 .... NUT 5/16-18 HEX WHIZLK

539 11908728.. ....2 .... BUSHING

539 99071729.. ....6 .... NUT 5/16-18 HEX NYLOC

539 97693730.. ....2 .... HCS 5/16-18 x 2

539 12263231.. ....2 .... SPRING, SEAT

539 11988432.. ....2 .... CAP, SPRING

575 32840533.. ....1 .... PLATE, RH BLK

575 32830534.. ....1 .... PLATE, LH BLK

575 95220135.. ....1 .... GUIDE, BELT

539 99031636.. ....2 .... RHSNB 5/16-18 x ¾

539 97693437.. ....4 .... HCS 5/16-18 x ¾

525 79840238.. ....1 .... SUPPORT, TANK BLK

525 60550239.. ....1 .... BRACKET, FRONT DECK

NOT SHOWN

539 110290 ...2 .... FOAM STRIP

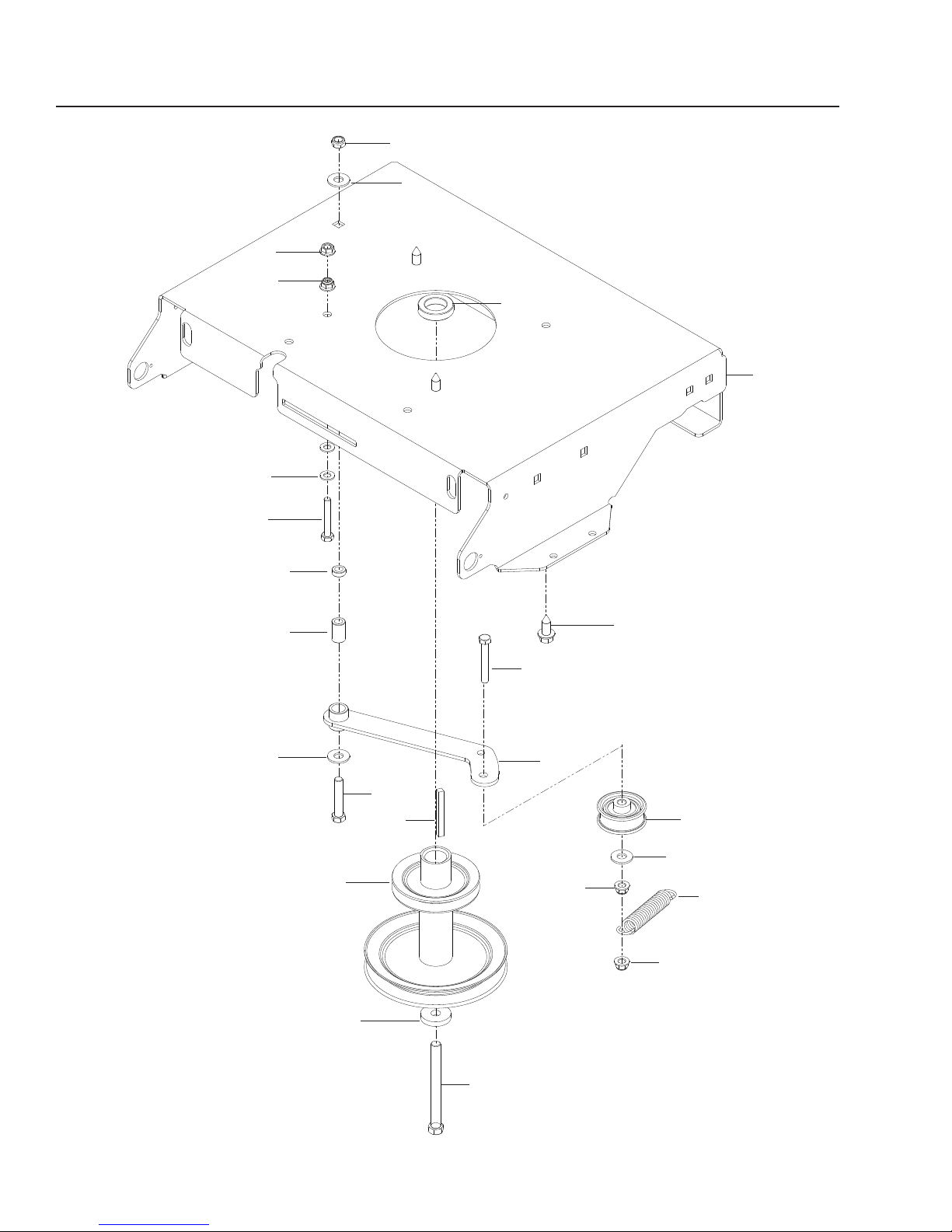

ENGINE PLATE

Torque to

55-75 ft-lbs

ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION

ENGINE PLATE

532 1206161.. ....3 .... HHFS 3/8-16 x 1 THD FRM

539 1128992.. ....3 .... NUT 5/16-18 HEX FLG NYLOC

539 9769373.. ....1 .... HCS 5/16-18 x 2

539 9905884.. ....1 .... HCS 3/8-16 x 2

539 9901885.. ....2 .... WASHER 5/16 SAE FLT

539 9170336.. ....1 .... KEY ¼ SQ x 2½ LG

539 9905177.. ....3 .... WASHER 3/8 FLT STD

539 1143878.. ....1 .... SPACER

539 2002829.. ....1 .... NUT 3/8-16 HEX JAM NYLOC

539 12081210.. ....1 .... PULLEY, IDLER

539 11527011.. ....1 .... BUSHING, METAL

574 35580512.. ....1 .... PLATE, ENGINE BLK

539 10839613.. ....1 .... HCS 5/16-18 x 2½

539 11635014.. ....1 .... SPRING 3½

574 49750415.. ....1 .... ARM IDLER

574 88280116.. ....1 .... HCS 7/16-20 x 4

539 11554617.. ....1 .... WASHER

574 382001 18.. ...1 .... PULLEY, ENGINE

539 99058519.. ....1 .... NUT 5/16-18 HEX WHIZLK

539 10956220.. ....1 .... WASHER 3/8 x ¾ SPEC

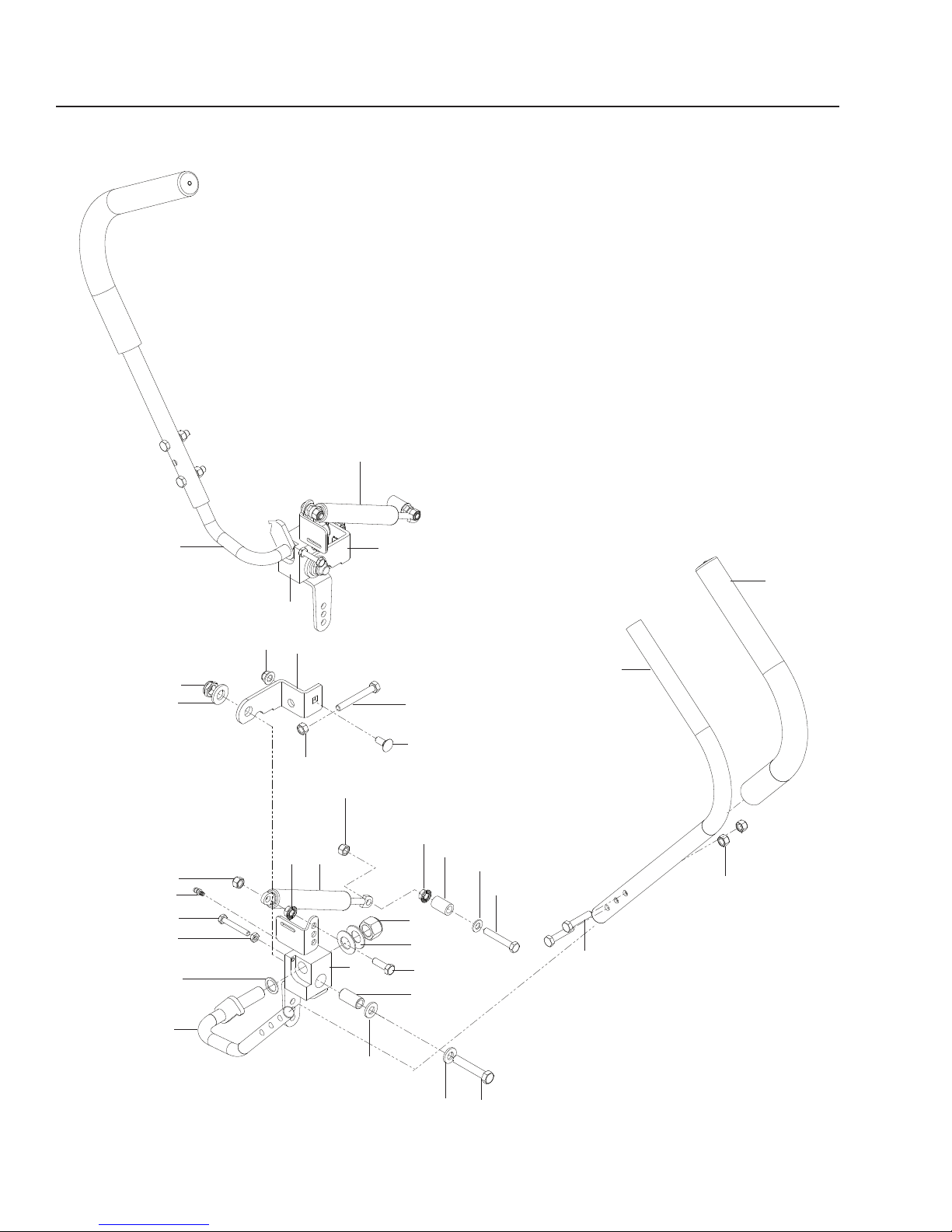

STEERING

ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION

STEERING

539 1208991.. ....2 .... GRIP

539 1201602.. ....2 .... LEVER, UPPER

539 1179493.. ....1 .... STOP, STEER CNTRL RH

539 1179504.. ....1 .... STOP, STEER CNTRL LH

539 1209845.. ....1 .... PIVOT, RH

539 1209836.. ....1 .... PIVOT, LH

539 1144537.. ....2 .... DAMPENER

539 1201598.. ....1 .... LOWER LEVER, RH

539 1201629.. ....1 .... LOWER LEVER, LH

539 97693510.. ....4 .... HCS 5/16-18 x 1½

539 10133211.. ....2 .... HCS ½-13 x 2¾

539 99025012.. ....6 .... WASHER ½ SAE

539 91112113.. ....4 .... WASHER 5/8 BELLEVILLE

539 99020914.. ....2 .... HCS 5/16-18 x 1

539 99031615.. ....2 .... RHSNB 5/16-18 x ¾

539 10839616.. ....2 .... BOLT, HEX 5/16-18 x 2½ TPBLT

539 99019617.. ....2 .... NUT, 5/16-18 HEX

539 11563818.. ....2 .... ZERK

539 12095619.. ....2 .... BUSHING ½ ID x ¾ OD

539 99058520.. ....2 .... NUT 5/16-18 HEX WHIZLK

539 99071721.. ....6 .... NUT 5/16-18 HEX NYLOC

539 10801022.. ....2 .... NUT ½-13 JAM NYLOC GR 2

539 11557023.. ....2 .... WASHER, SPECIAL

539 11034024.. ....2 .... NUT 5/8-11 NYLOC

539 99100325.. ....2 .... HCS ¼-20 x 1¾

539 99111226.. ....2 .... NUT ¼-20 JAM

539 11908727.. ....2 .... BUSHING

539 97693728.. ....2 .... HCS 5/16-18 x 2

539 99018829.. ....2 .... WASHER 5/16 SAE FLT

539 11289930.. ....2 .... NUT 5/16-18 FLG HEX NYLOC

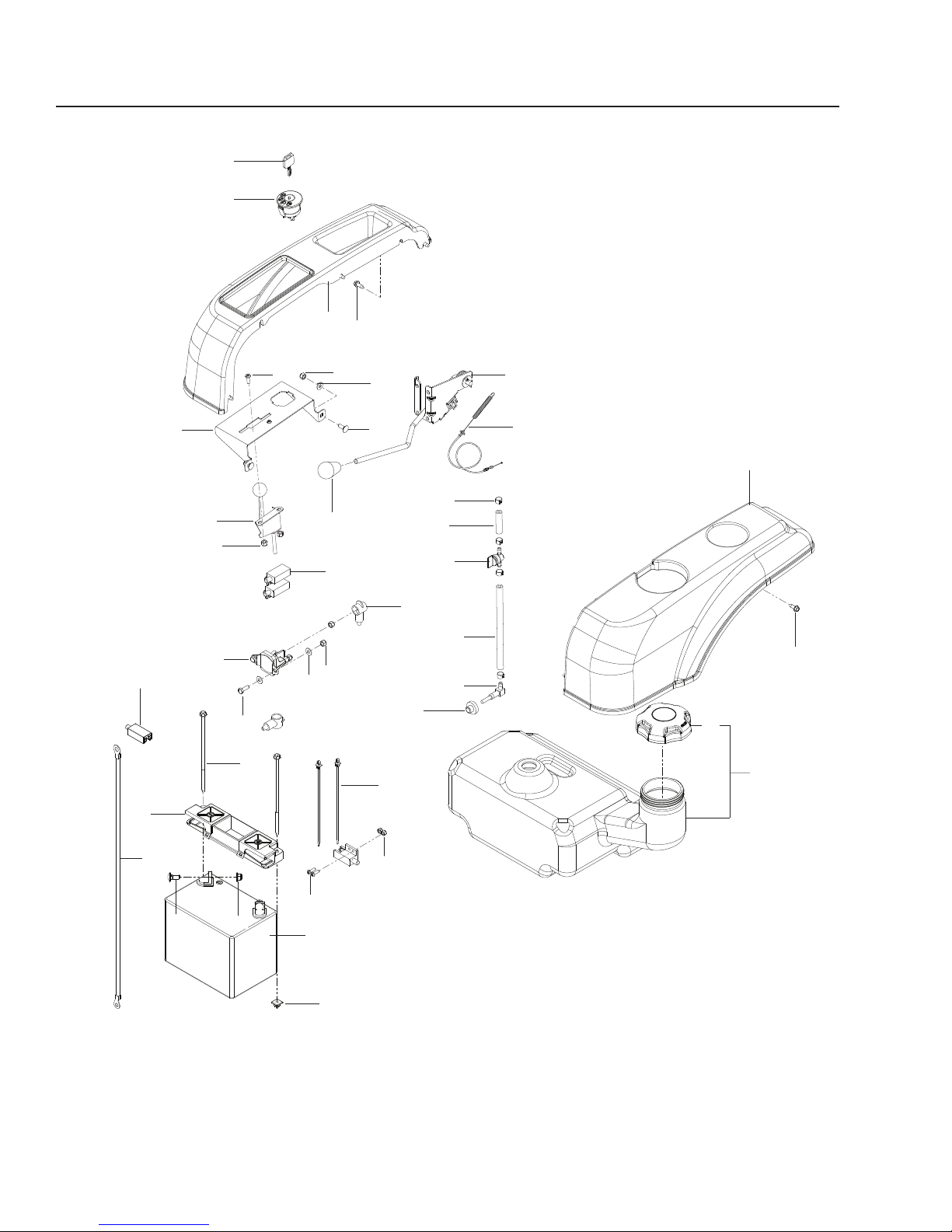

IGNITION

31 29

34 35
