McCulloch PM655FWG Setup guide
190366 Rev. 1 08.16.04 BY
ILLUSTRATED PARTS BREAKDOWN
PRO MAC
6.0 HORSEPOWER
22" REAR DISCHARGE LAWN MOWER
MODEL NO. PM655FWG (PM655FWGC)
964 79 57-00
2
ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC) PRODUCT NUMBER 964 79 57-00
3

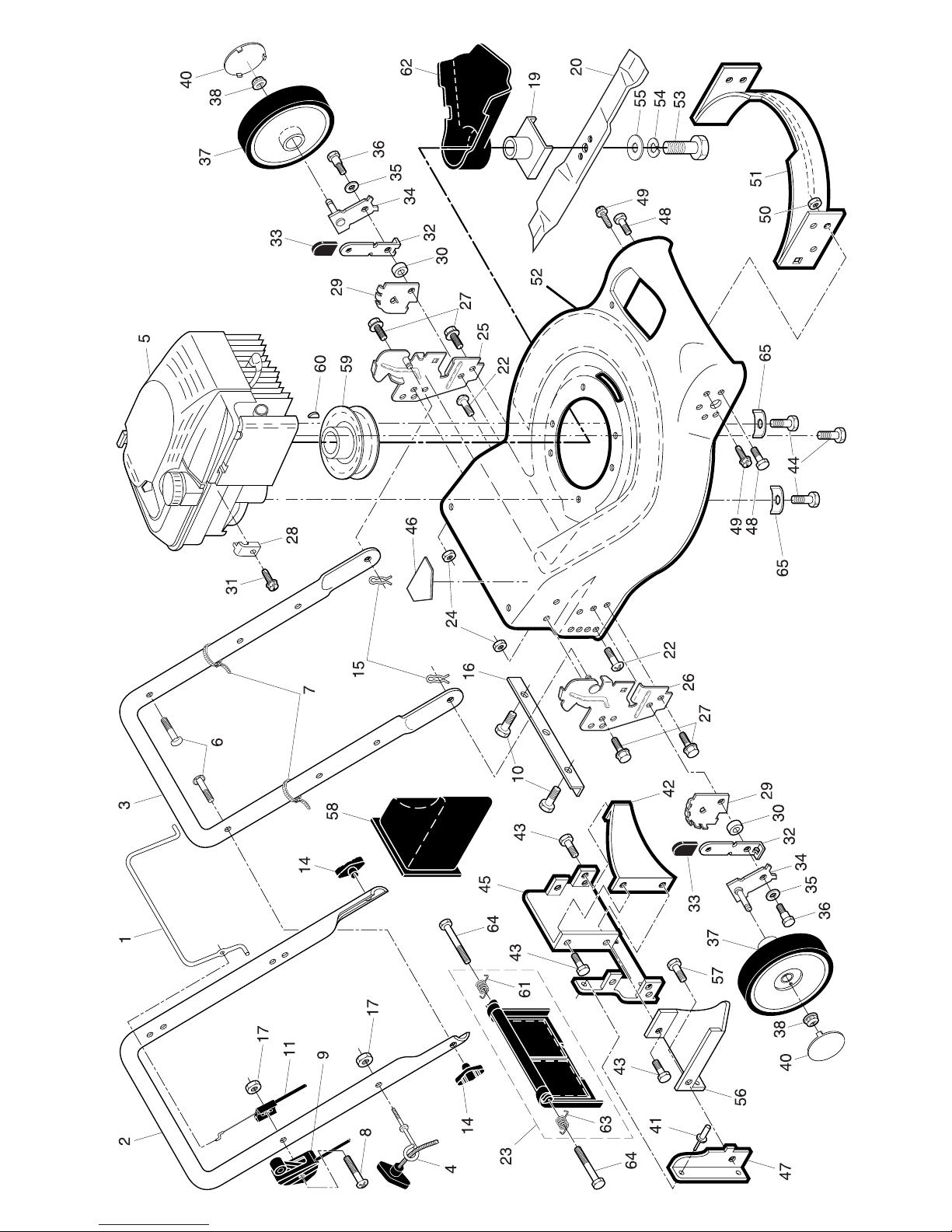

ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC) PRODUCT NUMBER 964 79 57-00
KEY PART
NO. NO. DESCRIPTION
1 532 18 52-42 Control Bar
2 532 17 76-98 Upper Handle
3 532 15 50-44 Lower Handle
4 532 17 95-85 Rope Guide
5 - - - Engine, Briggs & Stratton, Model Number 122K02
(Order parts from Engine Manufacturer)
6 532 13 19-59 Handle Bolt
7 532 06 64-26 Wire Tie
8 532 18 33-65 Hex Washer Head Screw 1/4-20 x 3
9 532 17 02-94 Throttle Control
10 532 14 66-94 Screw, Self-Tapping 1/4-20
11 532 13 08-61 Engine Zone Control Cable
14 532 17 01-46 Handle Knob
15 532 05 17-93 Hairpin Cotter
16 532 14 76-25 Footguard
17 532 13 20-04 Locknut, Hex 1/4-20
19 532 18 45-90 Blade Adapter
20 532 14 11-14 Blade, 22"
22 532 08 86-52 Screw, Hinge 1/4-20 x 1-1/4
23 532 17 09-47 Kit, Rear Door (Includes Key #61 and #63)
24 532 75 15-92 Locknut, Hex 3/8-16
25 532 18 68-19 Handle Bracket Assembly, LH
26 532 18 68-18 Handle Bracket Assembly, RH
27 532 15 00-78 Thread Cutting Screw 5/16-18 x 3/4
28 532 11 11-90 Cable Clamp
29 532 15 50-47 Wheel Adjusting Bracket
30 532 14 66-30 Spacer
31 532 08 38-16 Screw #10 x 5/8
32 532 14 17-30 Selector Spring
33 532 17 01-43 Selector Knob
34 532 14 98-57 Axle Arm Assembly
35 532 06 23-35 Belleville Washer
36 532 14 27-48 Shoulder Bolt 3/8-16
37 532 16 76-28 Wheel & Tire Assembly, Rear
KEY PART
NO. NO. DESCRIPTION
38 532 08 39-23 Nut, Hex, Flangelock 3/8-16
40 532 18 06-60 Hub Cap
41 532 12 84-15 Pop Rivet
42 532 12 53-48 Rear Baffle
43 532 05 45-83 Hex Head Tapping Screw 1/4-20 x 1/2
44 532 15 04-06 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
45 532 16 68-00 Back Plate
46 532 18 21-66 Danger Decal
47 532 13 88-60 Side Baffle
48 817 60 04-06 Screw, Hex Head, Serrated, Type TT 1/4-20
49 874 10 04-12 Screw, Machine, Flat Head 1/4-20 x 3/4
50 532 75 11-52 Nut, Hex, Flangelock 1/4-20
51 532 17 04-91 Kit, Front Baffle (Includes Key Numbers 48, 49 and 50)
52 532 19 02-75 Kit, Lawn Mower Housing
(Includes Key Numbers 42, 45, 46, 47 and 51)
53 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
54 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Grade 8
55 532 85 10-74 Hardened Washer
56 532 18 08-57 Discharge Baffle
57 532 15 00-50 Self-Tapping Screw #10-24
58 532 16 66-49 Mulcher Plug
59 532 18 49-41 Engine Pulley
60 532 18 77-23 Hi-Pro Key
61 532 17 09-38 Spring, Rear Door, LH
62 532 18 20-02 Debris Shield
63 532 17 09-39 Spring, Rear Door, RH
64 532 18 41-93 Bolt, Rear Door
65 532 12 50-78 Washer, Engine
- - 532 18 21-34 Decal, Warning (not shown)
- - 532 19 03-64 Operator’s Manual, European
- - 532 19 03-65 Operator’s Manual, Scandinavian
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
4
ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC) PRODUCT NUMBER 964 79 57-00
5

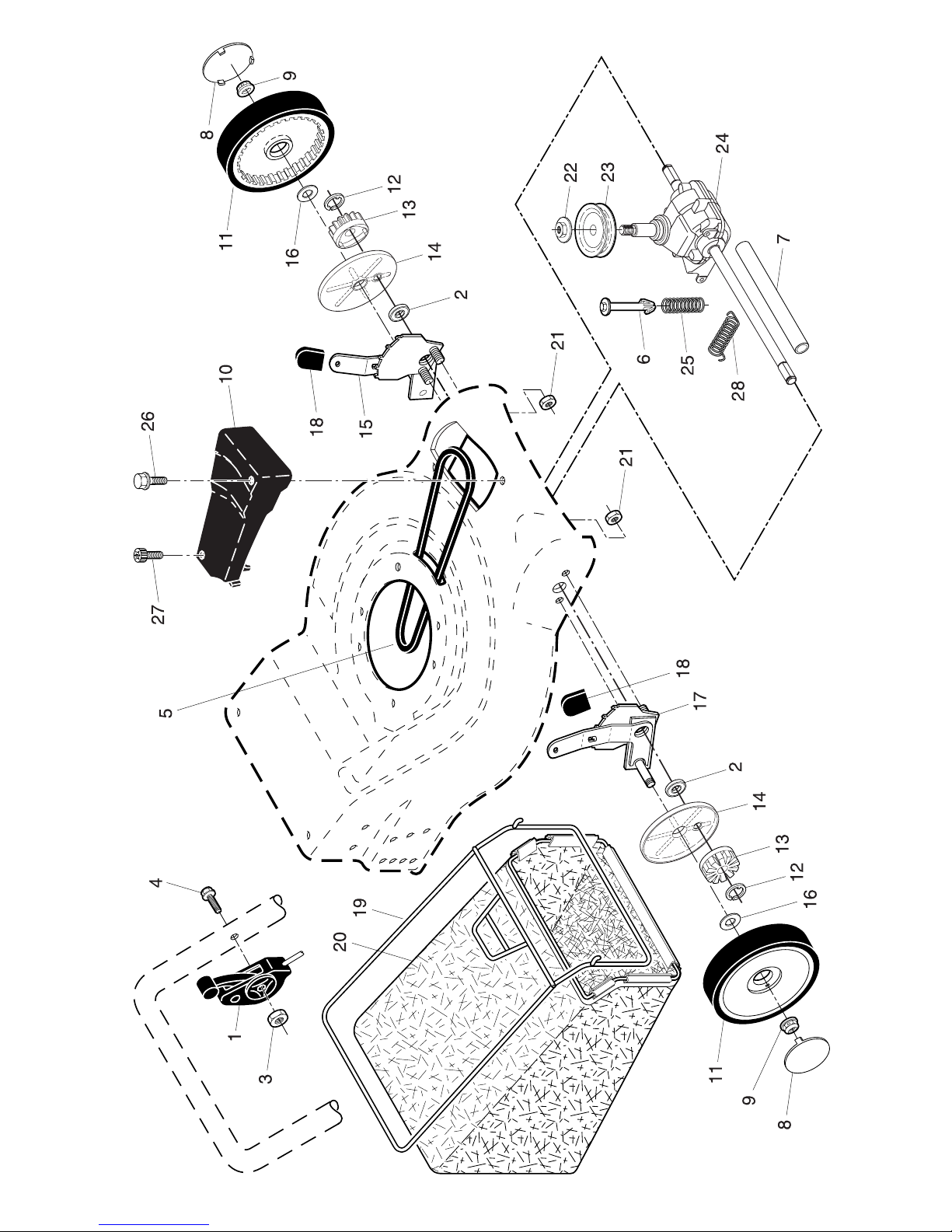

ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC) PRODUCT NUMBER 964 79 57-00
KEY PART
NO. NO. DESCRIPTION
1 532 18 45-87 Drive Control
2 532 16 73-87 Bearing, Wheel Adjuster
3 532 75 11-52 Nut, Hex, Flangelock 1/4-20
4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2-1/8
5 532 14 65-27 V-Belt
6 532 15 04-95 Spring Retainer
7 532 08 60-12 Driveshaft Cover
8 532 18 06-60 Hubcap
9 532 14 52-12 Nut, Hex, Flangelock
10 532 17 01-51 Drive Cover
11 532 18 07-67 Wheel & Tire Assembly , Front
12 812 00 00-58 E-Ring
13 532 13 70-54 Pinion
14 532 18 05-04 Dust Cover
15 532 17 22-91 Kit, Wheel Adjuster, LH
(Includes Knob and Bearing)
KEY PART
NO. NO. DESCRIPTION
16 532 06 77-25 Washer 1/2 x 1-1/2 x .134
17 532 17 22-90 Kit, Wheel Adjuster, RH
(Includes Knob and Bearing)
18 532 17 01-43 Selector Knob
19 532 16 99-31 Frame, Grassbag
20 532 19 10-22 Grassbag
21 873 80 04-00 Nut, Hex
22 532 13 20-10 Nut, Hex, Flanged, Zinc Plated 3/8-16
23 532 18 94-07 Drive Pulley
24 532 18 72-11 Gear Case Assembly (See Breakdown)
25 532 13 70-90 Spring
26 532 14 60-72 Hex Washer Head Screw #10-24 x 3/4
27 532 14 97-46 Screw, Slotted, Torx #10-24 x 1-3/4
28 532 07 51-92 Spring
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC)
PRODUCT NUMBER 964 79 57-00

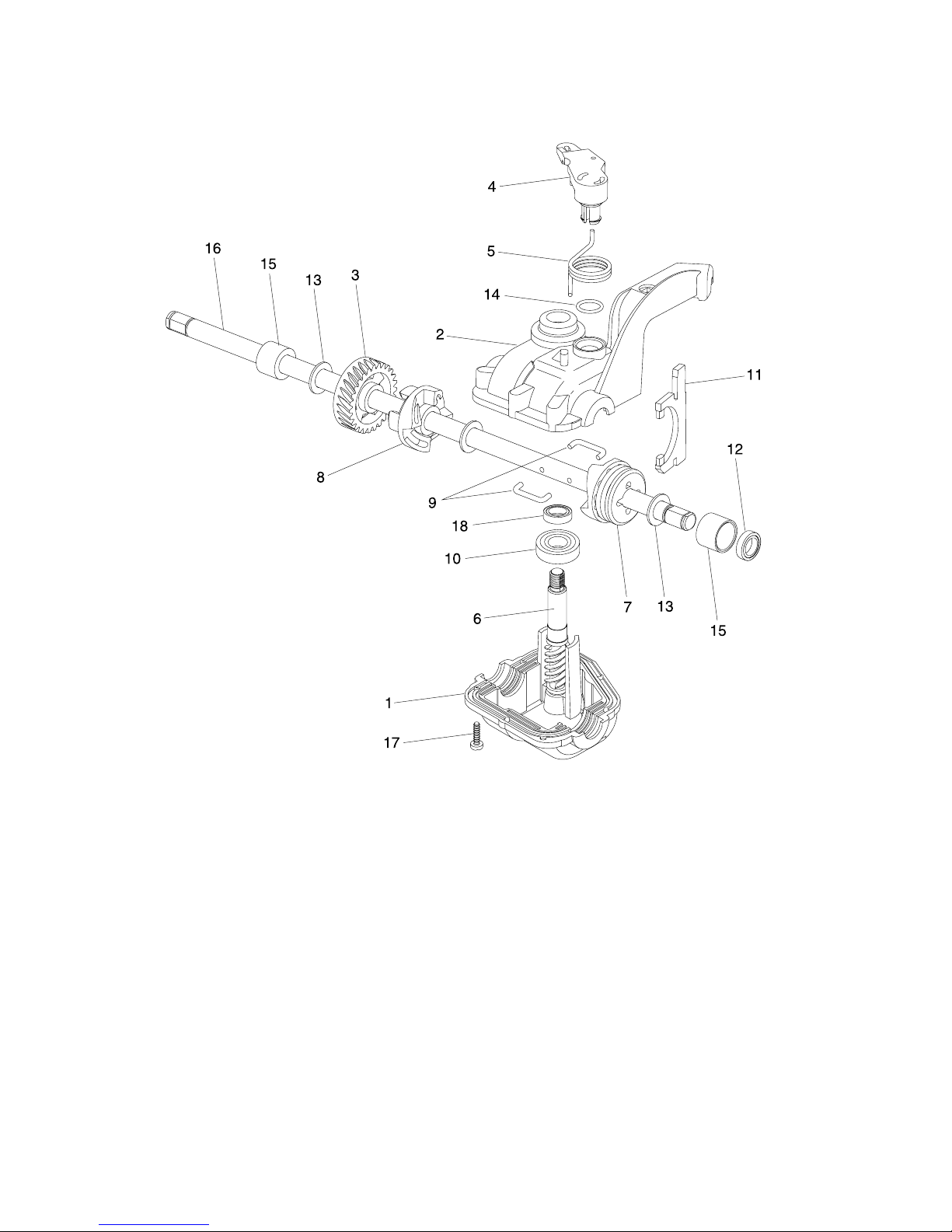

GEAR CASE ASSEMBLY - PART NUMBER 532 18 72-11
KEY PART
NO. NO. DESCRIPTION
1 532 18 34-97 Case, Lower
2 532 18 34-98 Case, Upper
3 532 18 34-99 Gear, 27 Teeth
4 532 18 35-00 Lever, Clutch
5 532 18 35-01 Spring, Return
6 532 18 35-02 Shaft, Input
7 532 18 35-03 Dog, Movable
8 532 18 35-04 Dog, Fixed
9 532 18 35-05 Wire, Formed
10 532 18 35-06 Bearing, Ball
11 532 18 35-07 Fork, Shift
12 532 18 35-08 Seal, Output Shaft
13 532 18 35-09 Washer
14 532 18 35-10 Seal, Case
15 532 18 35-11 Bushing
16 532 18 75-21 Shaft, Output
17 532 18 35-13 Screw
18 532 18 35-14 Seal, Input Shaft
NOTE: Use Dow Corning #709 to reseal Gear Case Halves.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
