Lovibond Tintometer SensoDirect Con110 User manual
SensoDirect Con110
Conductivity Meter - Instruction Manual
GB
Lovibond®Water Testing
Tintometer®Group
2SensoDirect Con110
CONTENTS
1. GENERAL DESCRIPTION
2. SPECIFICATION
3. FUNCTIONAL DESCRIPTION
4. TAKING MEASUREMENTS
5. CALIBRATION
6. CHANGING THE BATTERY
7. ACCESSORIES
1. GENERAL DESCRIPTION
* General purpose conductivity meter with broad application
including AQUARIA & FISH HATCHERIES, FOOD & BEVERAGE PRO-
CESSING, PHOTOGRAPHY, LABORATORY, PAPER INDUSTRY, PLATING
INDUSTRY, QUALITY CONTROL, EDUCATION, SWIMMING POOLS & WATER
CONDITIONING
* High quality, compact unit with a separate electrode that is designed for easy
operation
* Water resistant front panel with easy to read LCD display and rubberised function
keys

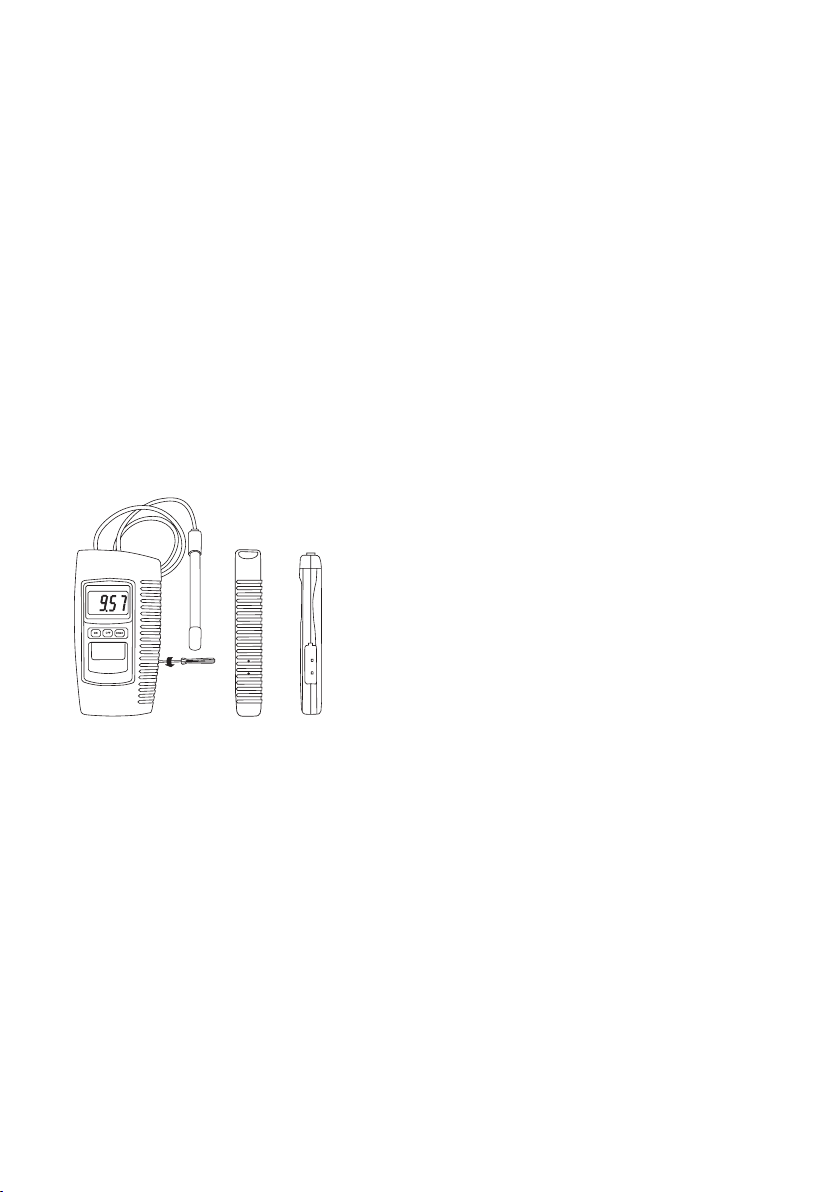

Unpacking
Please check that the shipment includes the following items:
• Lovibond®SensoDirect Con110
• Lovibond®SensoDirect Conductivity Sensor
• 9V Battery
• Protective Cover
• 7 Screws
• Screwdriver
• Plastic Cover Calibration Screws
• Instruction Manual
Battery installation
Prior to first use take the instrument out of the protective cover open the battery
compartment and insert the 9V battery. Ensure polarity is correct.
Protective Cover
The instrument is equipped as standard with the protective cover.
Prior to the first measurement please fix the cover by using the enclosed screws.
The protective cover ensures reliable operation even in harsh environments.
When the instrument is used without the protective cover please use the enclosed
plastic cover to protect the calibration screws against dust and humidity.
3
SensoDirect Con110
2. SPECIFICATION
Display LCD, 21.5 mm (0.7“) digit height
Maximum display count no. 1999
Measurement Range 2 ranges: 0 - 1.999 mS/cm, 0 - 19.99 mS/cm
Resolution 0.001 mS/cm for 0 - 1.999 mS/cm range
0.01 mS/cm for 0 - 19.99 mS/cm range
Accuracy (23 ± 5°C) 3% full scale + 1 digit
Sample Time Approx. 0.4 seconds
Over Range Indicator Display shows „1“
Data Hold Freezes the conductivity value on the display
Temperature
Compensation Automatic, 0 - 50°C (32 - 122°F)
Operating Temperature 0 - 100°C (32 - 212°F)
Operating Humidity Maximum 80% relative humidity
Power Supply 006P DC 9V battery (heavy-duty type),
MN1604 (PP3) or equivalent
Power Current Approx. DC 5 mA
Weight 380 g
Dimensions Meter: 208 x 110 x 34 mm (L x W x H)
Electrode: 22 mm diameter x 120 mm length
3. FUNCTIONAL DESCRIPTION

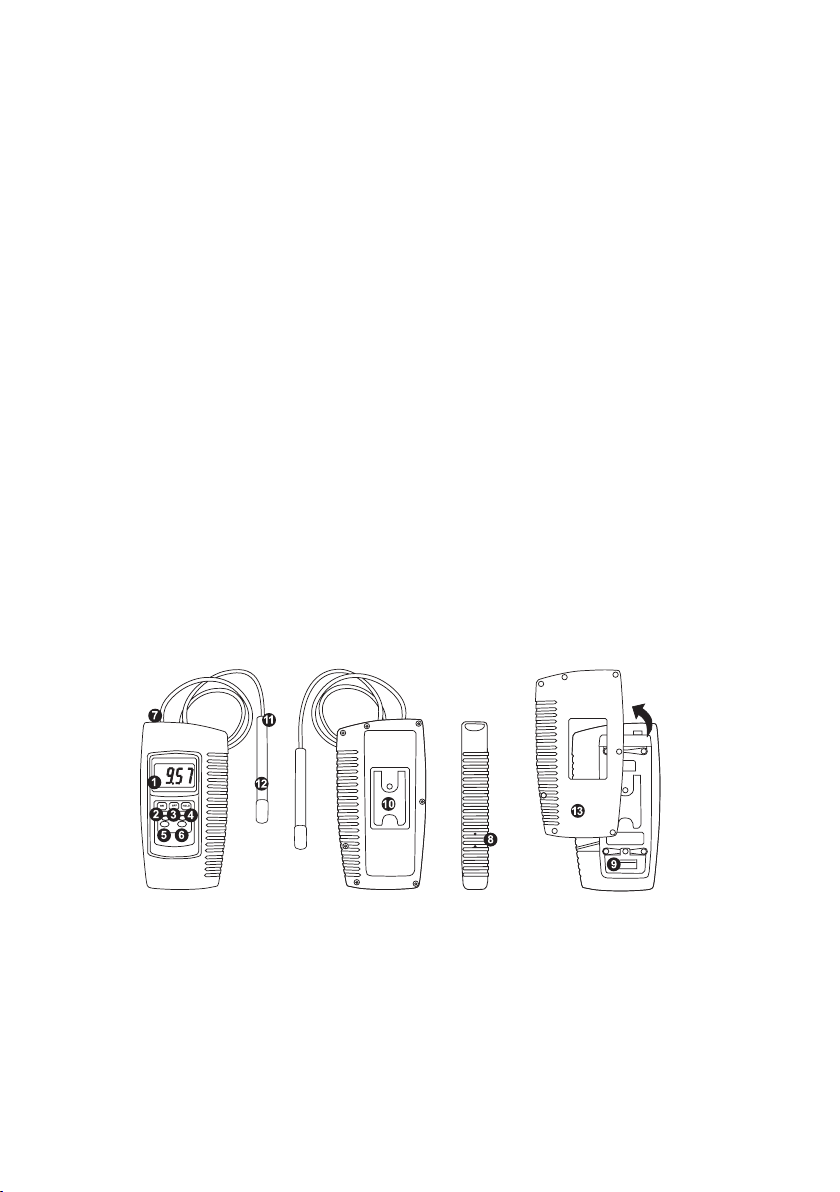

Figure 1
1 Display
2 Power ON Button
3 Power OFF Button
4 Data Hold Button
5 2 mS/cm Range Button
6 20 mS/cm Range Button
7 Electrode Input Socket
8 Calibration Adjust (HR, LR)
9 Battery compartment/cover
10 Stand
11 Electrode Handle
12 Conductivity Electrode
13 Protective Cover
4SensoDirect Con110
4. TAKING MEASUREMENTS
1) Connect the Conductivity Electrode (Figure 1, 12) to the Electrode
Input Socket (Figure 1, 7).
2) Power on the instrument by pressing the Power ON Button.
3) Select the 2 mS/cm or 20 mS/cm range by pressing the appropriate
range button (Figure 1, 5 or 6).
4) Holding the electrode handle (Figure 1, 11), immerse the conductivity
electrode completely in the sample.
Shake the electrode several times to remove air bubbles from the
electrode and therefore ensure stable readings. The instrument will display the
conductivity value in mS/cm.
Note: „1“ in the display indicates an out-of-range measurement. When operating in
the 20 mS/cm range, if the value obtained has one or more zeros after the decimal
point, change to the 2 mS/cm range for improved accuracy.
5. CALIBRATION
To calibrate the meter:
i) Prepare a 1.413 mS/cm calibration solution (Order Code 722250) or similar.
ii) Select the 2 mS/cm range (Figure 1, 5).
iii) Holding the conductivity electrode by its handle (Figure 1, 11), immerse it
completely in the calibration solution. Shake the electrode to disperse air bubbles
on it and allow measurements to stabilise. Adjust „Calibration Adjust LR“ (see
above) until the display reads exactly 1.413 mS/cm.
5
SensoDirect Con110
9 V
6. CHANGING THE BATTERY
i) „ “ in the left corner of the display indicates that it is necessary to replace
the battery. However, accurate measurements may still be made for several
hours after the “Low Battery” indicator first appears.

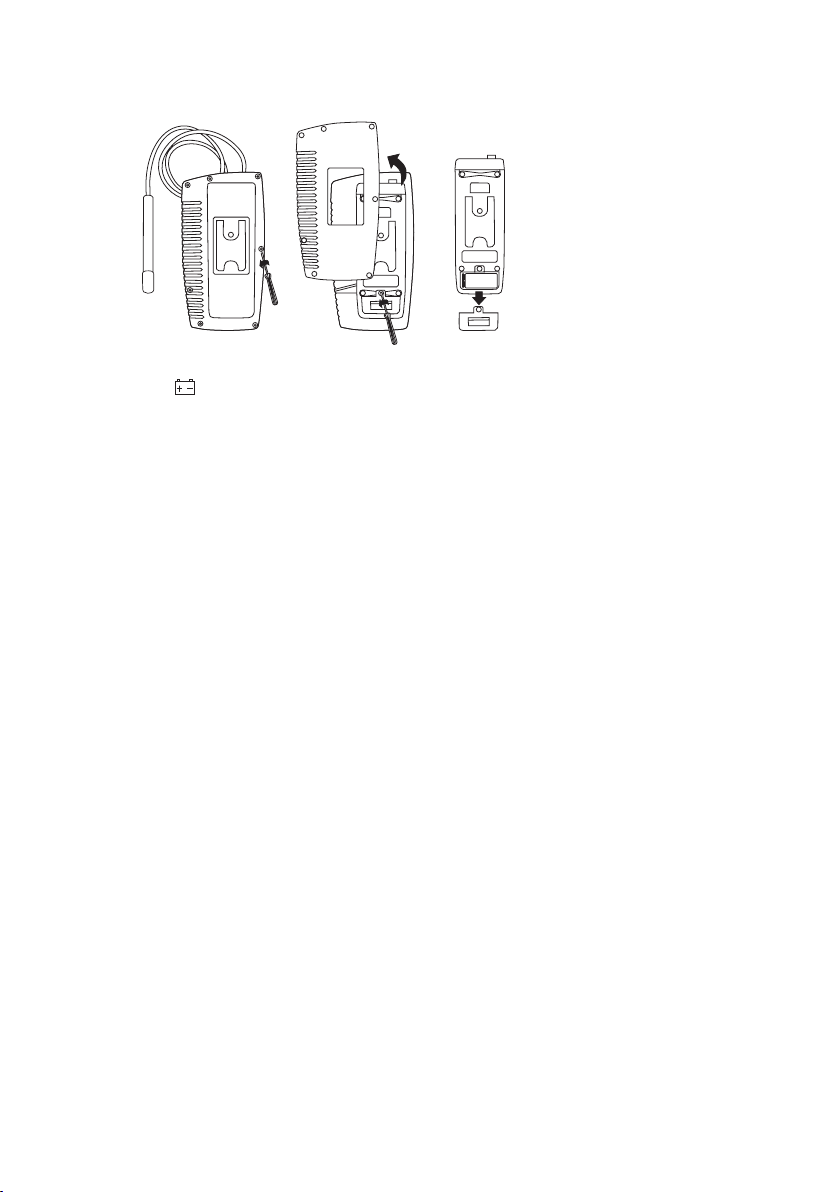

ii) Remove the protective cover before replacing the battery. To replace the battery,
remove the Battery Compartment Cover (Figure 1, 9) on the rear of the meter.
iii)Remove the battery, install a replacement one (006P DC 9V battery
(heavy duty type), MN1604 (PP3) or equivalent) and replace the battery
compartment cover.
7. ACCESSORIES
722250 Calibration solution 1413 μS/cm, 500 mL, traceable to N.I.S.T.
6SensoDirect Con110
Notes
7
SensoDirect Con110
Notes
Technical changes without notice
Printed in Germany 02/19
