Land Pride ZT60 User manual

Commercial Accu Z • Residential Razor

Zero Turn Mowers

If you Gotta Mow… You might as well do it

… In Comfort

Our choice of seats, ergonomically designed

control panel and ample leg room provide a level

of unsurpassed comfort.

… In Speed

There is no comparison between a Zero Turn Mower

and any other powered mower when it comes to

saving time. A Land Pride Zero Turn Mower can cut

square corners, around trees and increase overall

productivity on the farm, in your yard, or in your

business.

… In Color

The Accu Z and Razor are available in

baked on powder paint in Land Pride

Buckskin or Red.

… In Total Confidence

High quality components, craftsmanship

by longstanding skilled employees,

a nationwide network of top quality

dealers, and a generous warranty lets

you own and operate your Land Pride

mowers with Total Confidence.

…

e…

…

pee

…

or…

ence…

Color… In Total Confidence

d… InCo

peed… In

…

e…

ort…

pee

…

or…

In Speed… I

Color…

mfort…In

Comfort…

Loaded with value added

• Honda, Kawasaki or Kohler Engine

• Optimal dispersal due to

high blade tip speed

• Anti-scalp rollers

• Seat safety interlock

• Engine oil cooler

• Easily greaseable cast blade

spindle housings

• Forward tilting seat for drive system

and battery access

• Choice of adjustable operator’s seats

Kawasaki: 25 HP

Honda: 24 HP

Kohler: 27 & 30 HP

Kawasaki: 25 HP

Kohler: 27 & 30 HP

ZT60

ZT72

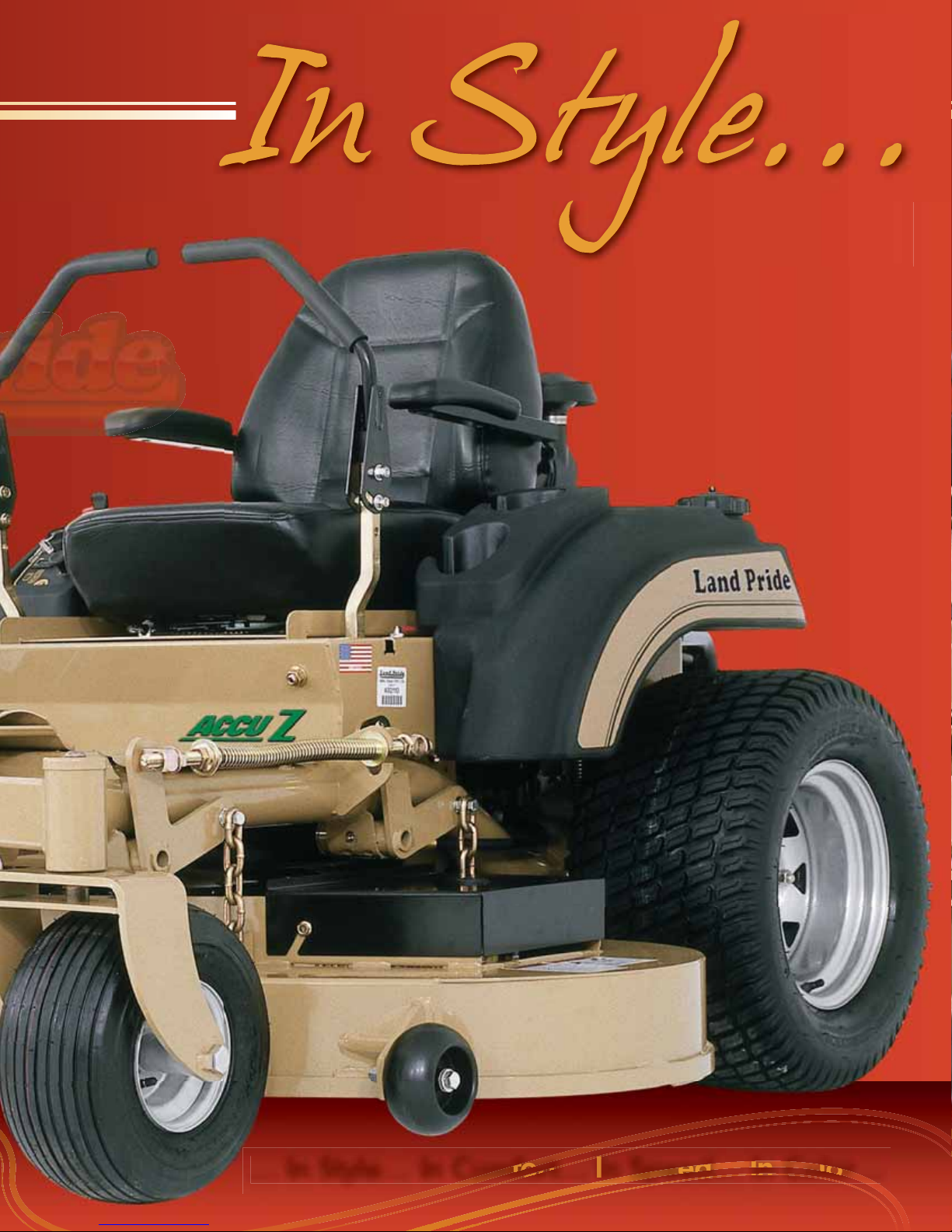

COMMERCIAL-DUTY ZERO TURN MOWER

Innovative Tubular Construction

The industry’s first tubular frame is also

used as the hydraulic reservoir. Internal

baffles allow the oil to circulate

keeping the temperature

at peak efficiency at all

times. This innovative

design allows for plenty

of area to dissipate the

heat, and greatly

opens up the

service area.

Front Axle Pivot Shaft

The massive 2 1/2” x 18” solid steel pivot shaft provides

unexcelled strength and support for the floating front axle,

and additional support for the mower frame.

Independent Hydrostatic Drives

The left and right hydrostatic drives and pumps

are independent of each other. The tubular

frame ‘dual’ oil reservoir keeps the oil from

each pump independent from the other,

eliminating cross contamination

from pump to pump.

Engine Access

The Accu Z offers enhanced engine

access as spark plugs, air filter, oil filter

& oil drain are placed easily within reach.

Center mounted rear engine provides additional stability,

maximum ease of service, and maximum legroom. The muffler

is also hidden and tucked under to reduce noise and provide

an added measure of protection against contact.

r the floa

wer frame.

and pumps

he tubular

oil from

other,

filter

SERIES

Construction

lar frame is also

reservoir. Internal

circulate

ure

Steering Levers

Steering levers are adjustable several ways to allow you to

fit your physical size and comfortable reach.

Park Brake

Easily set the Park Brake every time you spread the steering

levers in the neutral and out position. Never again will you

forget to set, or release the Park Brake!

Superior Deck Construction

The 10 gauge deck with 1/4” additional

reinforcement provides a lifetime warranty if

the front edge should ever enter the

blade path.

Baffle Enhanced Deck

Strategically placed baffles enhance

the overall performance of the deck.

The suction, the cut and the powerful

discharge all combine to create a

professional look every time.

Floating Front Axle

The floating front axle provides for a smoother ride, more

uniform cut, and optimal traction capability by keeping all

tires equally in contact with the ground over uneven terrain.

Easily lock the axle in float or rigid position with two pins.

Exceptional Warranty*

• Overall Unit - 2 years or 1200 hours

• Hydraulic Wheel Motors & Pumps - 3 Years

• Engine - 2 years

• Mower Deck - Lifetime on front edge

• Frame - Lifetime against breakage

• Blade Spindle - 3 years or 1200 hours

• Gauge Wheel Yoke Bearings - 3 years

2yr

* See our warranty statement for complete details.

RESIDENTIAL ZERO TURN MOWER

Briggs & Stratton:

22 HP

Honda: 18 HP Briggs & Stratton:

22 & 26 HP

Honda: 18 & 20 HP

Exceptional Warranty*

• Overall Unit - 4 years

• Engine - 2 years

• Mower Deck - Lifetime on front edge

• Frame - Lifetime against breakage

• Blade Spindle - 3 years

• Gauge Wheel Yoke Bearings - 3 years

4yr

* See our warranty statement for complete details.

Quality Features

You may spend less time in the seat than a commercial

user, but you still deserve the same features and comforts

they do. We’ve incorporated similar designs from our

Accu Z Commercial Series into our Accu Z Razor®

Residential Series with the floating front axle, superior

deck construction and overall ease of use.

Land Pride’s Zero Turn Razor is sized right, equipped right,

and priced right for your residential mowing needs. With

more leg and body room and more ground hugging

stability than almost any mower in its class, the Razor

lets you mow with absolute comfort and confidence.

Compact Size

44” and 52” Deck widths are just right for many

gates as well as trailers. The compact size works well

for most urban-sized residential properties and is not

too intimidating if you’re looking to convert from a

walk-behind model.

Floating Front Axle

The floating front axle provides for

a smoother ride, more uniform

cut, and optimal traction

capability by keeping

all tires equally in

contact with the

ground over

uneven terrain.

Easily lock the axle

in float or rigid

position with two pins.

Spend less time mowing…

Steering Levers

Easier and more comfortable than a steering wheel, less

effort is needed to navigate around flower beds, walkways

and obstructions. Negotiate tighter turns without backing

up, greatly reducing your time in the seat.

Ease of Maintenance

• Deck Belt - Single deck belt is

easy to adjust and change.

• Drive Belt - Easy access

to single drive belt.

• Blade spindles- Easy to

grease bearings in a

cast housing.

Engine Maintenance

Razor engines are mounted to provide

unexcelled ease of service access to air filters,

spark plugs, oil filters and oil drain valve port.

Hydraulic Pump & Drive Motors

The hydraulic pump and drive motors are a self contained

and virtually maintenance free drive component with an easy

to change filter. Each rear wheel has its own drive motor,

which quickly responds to forward or reverse direction.

Comfort

Our low to the ground design offers an excellent view

of your work area, and the well-defined center of gravity

provides overall stability and comfort. Our control panel

and cup holders are comfortably located.

Loaded with value added

• Briggs & Stratton or Honda Engine

• Easy to change, foot-operated height

adjustment

• Deluxe cushion seat with armrests

available

• Easily set Park Brake

• Dual gas tanks with a total of

12 US Gallons

• Mulching blades available

xle provides

ore uniform

ction

Printed in U.S.A BAC 40159/8/07

A Division of Great Plains Mfg., Inc.

1525 E. North St. • P.O. Box 5060

Salina, Kansas 67401

Visit our dealer locator at landpride.com

COMMERCIAL-DUTY ZERO TURN MOWERRESIDENTIAL ZERO TURN MOWER

Models Z44, Z52 ZT60, ZT72

Engine Briggs & Stratton, Honda, Air Cooled Honda, Kawasaki or Kohler, Air Cooled

Cutting Height 1 1/2” - 4 1/2” in 1/4” Increments 1” - 5” in 1/4” Increments

Overall Width w/Discharge Chute Up 44: 49” 52: 56” 60: 69” 72: 81”

Tire to Tire Width 44: 43” 52: 44” 58”

Deck Thickness 11 Gauge with Reinforcements 10 Gauge with Reinforcements

Blade Tip Speed 44: 16,811 fpm; 52: 18,937 fpm 60 Deck: 18,768 fpm; 72 Deck: 18,574 fpm

Blade Belt Single V-Belt B-Section with Kevlar

Blade Spindles 1” with Cast Housing, 1” with Cast Housing,

Upper & Lower Greaseable Bearings Upper & Lower Greaseable Bearings

Front Tires 11 x 4 - 5, Rib Tread 13 x 6.50 - 6, Rib Tread

Rear Drive Tires 44: 18 x 8.5 - 8, Turf Tread; 24 x 12.00 - 12, Turf Tread

52: 18 x 9.5 - 8, Turf Tread

Ignition 12 Volt Solid State 12 Volt Solid State

Hourmeter Engine Run Time Engine Run Time

Fuel Capacity 12 U.S. Gallons 12 U.S. Gallons

Drive System Independent Pump & Wheel Motors Dual Hydrostatic Pump & Wheel Motors

Drive V-Belt from Engine Crankshaft V-Belt from Engine Crankshaft

Ground Speed Forward 0-7 mph, Reverse 0-5 mph Forward 0-11 mph, Reverse 0-5 mph

Grass Catchers are available in

rear and side mount for the Razor

and rear mount for the Accu Z.

rass

hers are available in

rea

nt f

r th

nd rear mount for the Accu Z.

SPECIFICATIONS

Optional ROPS is available for added

operator protection. Available in fixed or

folding for cutting under trees.

An easy to attach light

kit is available for the

Razor and Accu Z.

Get more use from your LP Zero Turn

Mower by attaching a front snow blade.

Available in 60” and 72” widths, this

blade easily attaches to your Razor or

Accu Z mower for the winter months.

Keep the sun off with this easily assembled,

ROPS attached canopy. Made with a

lightweight aluminum frame and acrylic

coated polyester, you’ll be more

comfortable during those sunny afternoons.
