KUHN PZ320 User manual
PZ320
Operation manual
Issue 4/2010
Date of printing 4.2010
Language EN
From machine number (PIN) VGPP000001
Serial Number (PSN) 01PP01
Reference number ZNA048EN
Identification of the machine
To support you as soon as possible your dealer requires several details of your machine.
Please enter the information here.
Designation
PIN
Mounted options
Dealer's address
Manufacturer’s
address
KUHN is continually striving to improve its products and, therefore, reserves the right to make improvements or changes when it becomes practical
to do so, without incurring any obligations to make changes or additions to the equipment sold before.
Copyright 2010 KUHN-GELDROP B.V..
PZ320
VGPP ...............................
KUHN-GELDROP BV
Nuenenseweg 165
5667 KP Geldrop
The Netherlands
Phone +31 40 2893300
BG ÀɤȠ ɬȠɜa pɔƸȠɜȠȾcɬɜȠ e ɩoɥyɱɟɧɨ ɧɚ ɟɡɢɤ,ɤɨɣɬɨ ɧɟ ɦɨԓɟ ɞɚ ɛɴɞɟ ɪɚɡɛɪɚɧ ɨɬ ɨɩɟɪɚɬɨɪɚ ɧɚ
ɦɚɲɢɧɚɬɚ,ɫɜɴɪԓɟɬɟ ɫɟ ɫ ɜɚɲɢɹ ɞɢɥɴɪ.
CS Pokud obdr_íte tento návod v jazyce, kterému pracovník obsluhy stroje nerozumí, spojte se s
Vašim prodejcem.
DA Hvis du har modtaget manualen på et sprog, som operatøren af maskinen ikke forstår, skal du
kontakte forhandleren.
DE Sollten Sie diese Betriebsanleitung in einer Sprache erhalten haben, die der Bediener dieser
Maschine nicht versteht, kontaktieren Sie bitte Ihren Händler.
EL EȐvĮȣIJȩ IJo EȖȤİȚȡȓįȚȠ OįȘȖȚȫv XȡȒıȘȢ,İȓvĮȚ ıİ ȖȜȫııĮ ʌȠȣ įİvȝʌoȡİȓ vĮįȚĮȕĮıIJİȓ Įʌȩ
IJov ȤİȚȡıIJȒ IJoȣ ȝȘȤĮvȒȝĮIJoȢ,ʌĮȡĮțĮȜȠȪȝİ vĮĮʌİȣșȣvșİȚIJİ ıIJov IJoʌȚțȩ ıĮȢ ĮvIJȚʌȡȩıȦʌo.
EN If this manual is received in a language which cannot be understood by the operator of the
machine, contact your dealer.
ES Si recibe este manual en un idioma que no pueda ser entendido por el usuario de la máquina,
póngase en contacto con su proveedor.
ET Kui käesolev juhend saadakse keeles, millest masinajuht ei saa aru, siis pöörduge edasimüüja
poole
FI Jos käyttöohjeen kieli on sellainen, jota koneenkäyttäjä ei ymmärrä, on otettava yhteys
jälleenmyyjään
FR Si vous recevez ce manuel dans une langue que l’opérateur de la machine ne comprend pas,
veuillez contacter votre concessionnaire.
GA Má fhaightear an lámhleabhar seo i dteanga nach dtuigeann oibreoir an mheaisín, téigh i
dteagmháil le do cheannaí.
HR Ako je ovaj priruþnik dostavljen na jeziku koji rukovatelj stroja ne razumije, kontaktirajte Vašeg
prodavaþa.
HU Ha ez a gépkönyv olyan nyelven készült, amelyet a gép kezelĘje nem ért, vegye fel a kapcsolatot
a forgalmazóval
IS Ef handbókin er á tungumáli sem notandinn skilur ekki, skal hafa samband við söluaðila.
IT Se l’utente della macchina riceve il presente manuale in una lingua che non comprende,
suggeriamo di contattare il rivenditore.
LT Jei šƳvadovągavote kalba, kurios mašinos operatorius nesupranta, kreipkitơsƳplatintoją.
LV Ja saĖemtâ rokasgrâmata ir maÿînas operatoram nesaprotamâ valodâ, sazinieties ar tirgotâju.
MT Jekk dan il-manwal jiƥi rƛevut f’lingwa li ma tkunx tista’ tinftiehem mill-operatur tal-magna,
ikkuntattja lill-aƥent tiegƫek
NL Als u deze handleiding heeft ontvangen in een taal die voor de bediener van de machine niet
begrijpelijk is, raadpleeg uw dealer.
NO Kontakt forhandleren hvis denne bruksanvisningen er på et språk som maskinoperatøren ikke
forstår.
PT Se este manual for recebido num idioma que não seja entendido pelo operador da alfaia,
contacte o seu concessionário.
PL Ja saĖemtâ rokasgrâmata ir maÿînas operatoram nesaprotamâ valodâ, sazinieties ar tirgotâju.
RO Dacăprezentul manual este primit într-o limbăcare nu poate fi înĠeleasăde către operatorul
maúinii, contactaĠi distribuitorul dumneavoastră.
RU ȿɟɥɢ ɨɩɟɪɚɬɨɪ ɩɨɥɭɱɢɥ ɪɭɤɨɜɨɞɟɫɬɜɨ ɧɚ ɹɡɵɤɟ,ɤɨɬɨɪɵɣ ɨɧ ɧɟ ɩɨɧɢɦɚɟɬ,ɧɟɨɛɯɨɞɢɦɨ
ɨɛɪɚɬɢɬɖɫɹ ɤ ɞɢɥɟɪɭ.
SK Ak dostanete túto príruþku v jazyku, ktorému operátor stroja nerozumie, spojte sa so svojím
predajcom.
SL ýe ta priroþnik prejmete v jeziku, ki ga upravljavec stroja ne razume, se obrnite na svojega
trgovca.
SV Kontakta återförsäljaren om denna manual tagits emot på ett språk, som inte förstås av
maskinoperatören.
Inhoudsopgave
5
Inhoudso pgave
Preface .............................................................6
Target group of this operation manual 6
Training 6
Symbols used 7
Safety instructions .........................................8
For your safety 8
Safety decals 9
Who is allowed to operate the machine? 12
General 12
Hitching the machine 14
PTO drive shaft 14
Tractor loads 15
Hydraulics 18
Road transport 19
Operation 20
Unhitching the machine 22
Maintenance 23
Further prescriptions 24
Warranty and responsibility 24
Familiarize yourself with the machine ........25
General 25
Product description 25
Main components overview 25
Technical specifications 26
Delivery and preparation .............................28
Check the scope of delivery 28
Hitching the machine ...................................29
Safety 29
Hydraulic connections 29
Hitching to the 3-point hitch 30
Hitching 31
Coupling the pto drive shaft 33
Pto drive shaft 33
Electronic connections[+] 34
Preparation for use .......................................35
Safety 35
Top link adjustment 35
Hitch frame adjustment 35
Checklist 36
Road transport ..............................................37
Safety 37
General conditions 38
Place the machine into transport
position 38
Checklist 40
Preparation at the field .................................41
Safety 41
Change settings 41
Set the machine into operating mode 41
Mowing unit 42
Operation ...................................................... 45
Safety 45
Start position 45
Mowing 46
Cleaning ........................................................ 47
Cleaning 47
Parking and storage ..................................... 48
Safety 48
Unhitching the machine 48
After the season 50
Maintenance .................................................. 51
Safety 51
General 53
Maintenance table 54
Complete machine 55
Bolted connections 55
Torques for bolted connections 56
Drums 57
Gearboxes 60
Drive shafts 64
Hitch frame 67
Troubleshooting ........................................... 68
General 68
Mowing unit 69
Hydraulics 69
Optional equipment ...................................... 70
General 70
Road lighting set 70
Disposal of the machine .............................. 71
EC Declaration of conformity ...................... 72
Index .............................................................. 73
6
Preface
Preface
Target group of
this operation
manual
This operation manual is directed at trained farmers and individuals
who are otherwise qualified to perform agricultural activities and who
have received instruction to handle the machine.
For your safety
You have to familiarize yourself with the contents of this operation
manual before assembly or initial operation of the machine. In this
way, operating and work safety are optimized. The operation manual
is an integral part of the machine and must always be kept to hand.
This will allow:
•Accidents to be avoided.
•The warranty conditions to be met.
•A well-functioning machine in good working order.
N
OTE
If anything in this manual is unclear or is incomprehensible, contact
your dealer.
Training
Your dealer will give you instruction about operation and care of the
machine.
Employer information
All personnel has to be regularly instructed how to operate the
machine. At least once a year, in accordance with the regulations of
the national organization for Health and Safety at Work. Untrained or
unauthorized individuals are not allowed to use this machine.
You are personally responsible for the safe operation and
maintenance of the machine. Always ensure all personnel that
operate or maintain the machine are familiar with the operation and
maintenance instructions and the relevant safety instructions from this
operation manual.
Preface
7
Symbols used
In this operation manual the following symbols and terms are used:
•A dot accompanies each item in a list.
> A triangle indicates operating functions which have to be executed.
→An arrow indicates a cross-reference to another section of this
manual.
[+] A plus sign indicates an accessory, which is not included in the
basic version.
(X) A number between brackets within the text refers to the number in
the drawing(s) belonging to the paragraph.
Next to these symbols, pictographs are used to help you locate other
sections of this manual.
N
OTE
The term “Note“ indicates tips and notes on operation.
The warning triangle indicates important safety instructions. Failure to
observe these safety instructions can result in:
•Serious faults in the correct operation of the machine.
•Damage to the machine.
•Personal injuries or accidents.
The wrench indicates tips during assemby or adjustments.
0
A star indicates examples that assist comprehension of the
instructions.
8
Safety instructions
Safety instruc tions
For your safety
This chapter contains general safety instructions. Each chapter of the
operation manual contains additional specific safety instructions
which are not described in this chapter. Observe the safety
instructions:
•In the importance of your own safety.
•In the importance of the safety of others.
•To ensure the safety of the machine.
Numerous risks can result from incorrect handling of agricultural
machines. Therefore, always work with special care and never under
pressure.
For the employer
At regular intervals, inform those who work with the machine about
these safety instructions and the statutory regulations.
Safety instructions
9
Safety decals
The machine has safety decals for indicating attention to dangers. The
labels may not be removed. Keep all safety decals clean and legible.
In case safety decals are damaged, perished or lost, order new decals
as spare parts and affix them on the machine.
Safety decals
overview
TR 2025
TR2025
TR 2011
TR2011
TR1009
TR1009
TR1009
TR1009
TR 2007
TR 2023
TR 2055
TR 3183
TR2007
TR2095TR2097 TR2097
TR2095
TR2055
TR3183 TR2023
TR2097 TR2097
10
Safety instructions

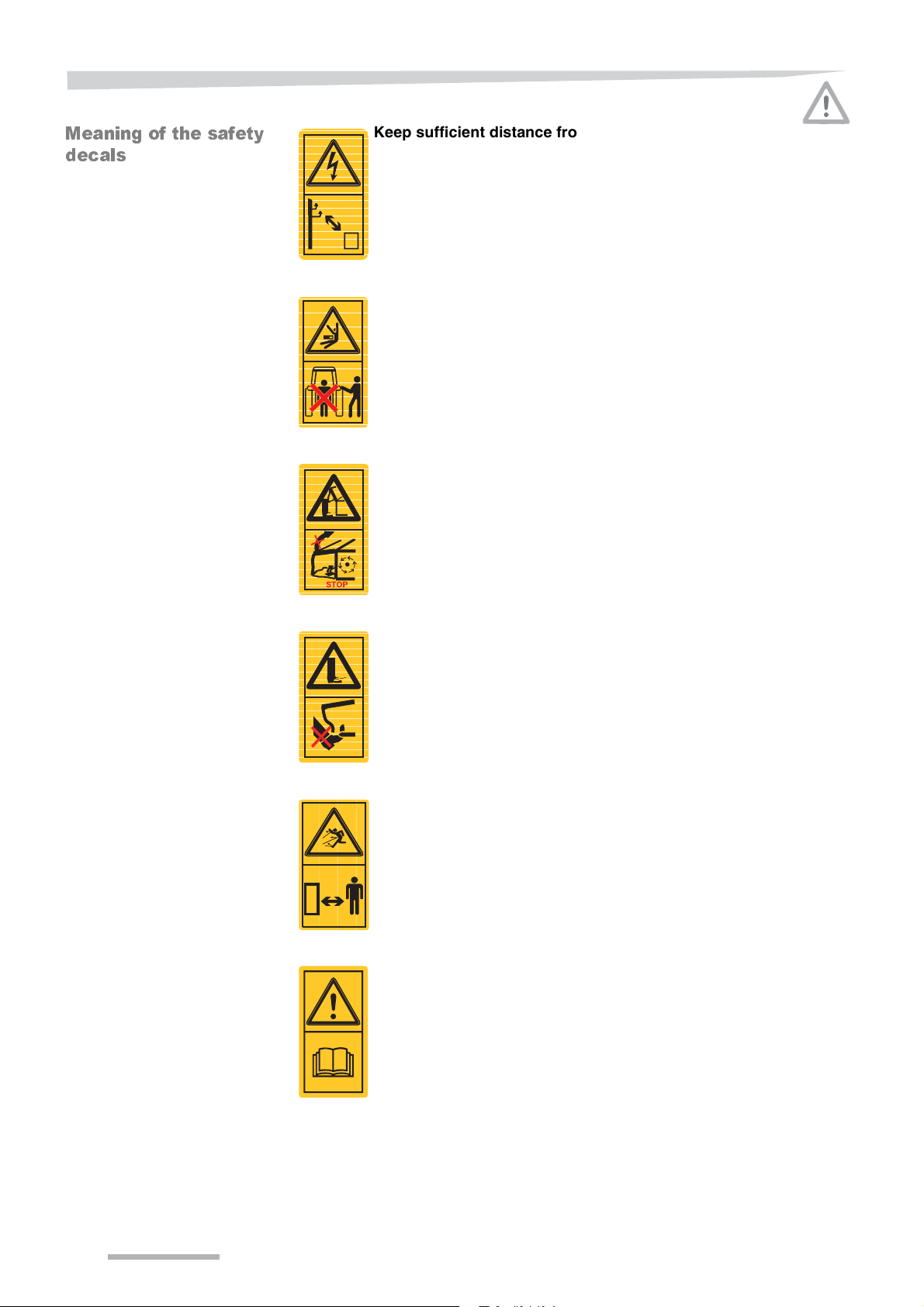

Meaning of the safety
decals
Keep sufficient distance from electrical power lines
Keep sufficient distance from electrical powerlines, especially when
driving with the machine in transport position.
Do not stand between the tractor and machine
During attachment/detachment of the machine, it is not allowed to stay
between the machine and the tractor. Danger of crushing.
Close shields and guards prior to operate the machine
Keep al shields and covers closed while the machine is running.
Do not open or remove any shield or guard untill the machine has come
to a complete standstill. Danger of serious injuries
Never bring your feet under the machine
Never bring your feet under the machine while parts are running.
Feet can be cut off. Danger of serious injuries.
Stay clear of a running machine
Keep at a safe distance of the machine; objects like stones and other
debris, may fly away at very high speed (250 - 300 km/h).
Danger of serious injuries
Read the operation manual
The machine may only be commissioned once the operation manual
has been read and fully understood. This applies in particular to the
safety instructions.
TR 2025
TR 2011
TR2097
TR2095
TR1009
TR 2085
Table of contents
Other KUHN Lawn Mower manuals
KUHN
KUHN GMD700GII User manual
KUHN
KUHN FC302RG User manual
KUHN
KUHN FC813R User manual
KUHN
KUHN ALTERNA 400 User manual
KUHN
KUHN ALTERNA 400 User manual
KUHN
KUHN FC283 R User manual
KUHN
KUHN FC250RG User manual
KUHN
KUHN GMD802 Series User manual
KUHN
KUHN GMD 602 F User manual
KUHN
KUHN SpeedRake SR108 GII User manual
Popular Lawn Mower manuals by other brands
TALEN TOOLS
TALEN TOOLS AVR HGM30 manual
DEWEZE
DEWEZE ATM-725 Operation and service manual
Weed Eater
Weed Eater 180083 owner's manual
Husqvarna
Husqvarna Poulan Pro PP185A42 Operator's manual
Better Outdoor Products
Better Outdoor Products Quick Series Operator's manual
Cub Cadet
Cub Cadet 23HP Z-Force 60 Operator's and service manual
