Komatsu D37EXi-24 Manual
BULLDOZER
TEN00766-02
D37EXi
-24
D37PXi
-24
D39EXi
-24
D39PXi
-24
SERIAL NUMBERS
D37-85001
D39-95497
and up
Komatsu has Operation & Maintenance Manuals
written in some other languages. If a foreign language
manual is necessary, contact your local distributor for
availability.
NOTICE
Unsafe use of this machine may cause serious injury or
death. Operators and maintenance personnel must read
this manual before operating or maintaining this machine.
This manual should be kept near the machine for
reference and periodically reviewed by all personnel who
will come into contact with it.
WARNING
epcatalogs.com
WARNING
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals and
related accessories contain lead
and lead compounds, chemicals
known to the State of California
to cause cancer, birth defects and
reproductive harm.
CALIFORNIA
Proposition 65 Warning
Wash hands after handling.
Diesel engine exhaust and some of its
constituents are known to the State
of California to cause cancer, birth
defects, and other reproductive
harm.
This Operation and Maintenance Manualgives information re-
lated to "intelligent Machine Control".
Please read this Operation and Maintenance Manualafter read-
ing the manual for the standard machine.
FOREWORD
1-1
epcatalogs.com
READ THIS MANUAL
Before reading this manual, read the Operation and Maintenance Manual of standard machine (D37EX-24,
D37PX-24, D39EX-24, D39PX-24).
This manual describes only the special device or function for D37EXI-24, D37PXI-24, D39EXI-24, and
D39PXI-24. For the other part than described in this manual, see the Operation and Maintenance Manual of
standard machine.
This manual gives details of the operation and methods of inspection and maintenance for this machine that
must be observed in order to use the machine safely. Most accidents are caused by the failure to follow funda-
mental safety rules for the operation and maintenance of machines.
Read, understand and follow all precautions and warnings in this manual and on the machine before performing
operation and maintenance. Failure to do so may result in serious injury or death.
Komatsu cannot predict every circumstance that might involve a potential hazard when the machine is used.
Therefore, the safety messages in this manual and on the machine may not include all possible safety precau-
tions.
If you perform any operation, inspection, or maintenance under conditions that are not described in this manual,
understand that it is your responsibility to take the necessary precautions to ensure safety. In no event should
you or others engage in the prohibited uses or actions described in this manual. It is dangerous to perform im-
proper operation and maintenance of the machine. It may cause serious injury or death.
If you sell the machine, be sure to give this manual to the new owner together with the machine.
Always keep this Operation and Maintenance Manual in the indicated location so that all relevant personnel can
read it at any time.
Storage location for the Operation and Maintenance Manual
It is provided on the back of the backrest of operator's seat.
If this manual is lost or damaged, contact Komatsu or your Komatsu distributor and tell them about the machine
model name and the serial No. immediately to arrange for its replacement.
For details regarding the machine model name and the serial No., see the machine serial No. plate. In order to
arrange the proper Operation and Maintenance Manual, you will need to provide the machine model name and
the serial No.
This manual uses the International System of Units (SI) for units of measurement. For reference, units that have
been used in the past are given in { }.
The explanations, values, and illustrations in this manual have been prepared based on the latest information
available as of the date of its publication. Continuing improvements in the design of this machine may lead to
additional changes that are not reflected in this manual. If there is any question or suggestion, consult your Ko-
matsu distributor.
The numbers in the illustrations correspond to the numbers in ( ) in the text. (Example: 1 → (1))
Komatsu delivers machines that comply with all applicable regulations and standards of the country to which it
has been shipped. If this machine has been purchased in another country, it may lack certain safety devices and
specifications that are necessary for use in your country. If there is any question about whether your product
complies with the applicable standards and regulations of your country, consult your Komatsu distributor before
operating the machine.
READ THIS MANUAL FOREWORD
1-2
epcatalogs.com
SAFETY INFORMATION
To enable you to use the machine safely, and to prevent personal injury to operators, service personnel or by-
standers, the precautions and warnings included in this manual and the safety signs attached to the machine
must always be observed.
To identify important safety messages in the manual and on the machine labels, the following signal words are
used.
The "Safety Alert Symbol" identifies important safety messages on machines, in manuals, and elsewhere. When
you see this symbol, be alert to the risk of personal injury or death. Follow the instructions in the safety mes-
sage.
This signal word indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury. It may also be used to alert against unsafe practices that may
cause property damage.
The following signal words are used to alert you to information that must be followed to avoid damage to the
machine.
If precautions described are not observed, the machine may be damaged or the service life
may be reduced.
This word is used for information that is useful to know.
FOREWORD SAFETY INFORMATION
1-3
epcatalogs.com

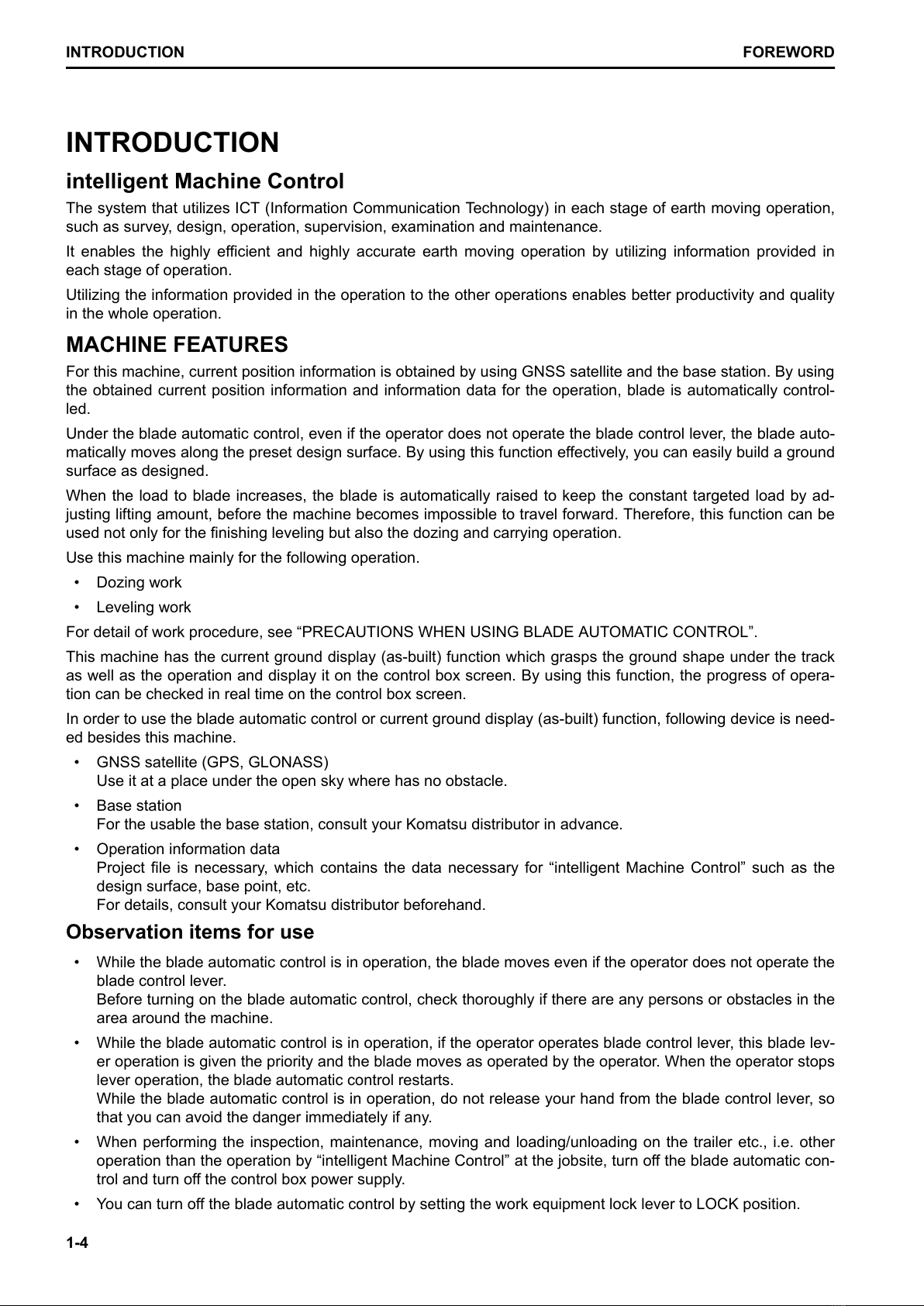

INTRODUCTION
intelligent Machine Control
The system that utilizes ICT (Information Communication Technology) in each stage of earth moving operation,
such as survey, design, operation, supervision, examination and maintenance.
It enables the highly efficient and highly accurate earth moving operation by utilizing information provided in
each stage of operation.
Utilizing the information provided in the operation to the other operations enables better productivity and quality
in the whole operation.
MACHINE FEATURES
For this machine, current position information is obtained by using GNSS satellite and the base station. By using
the obtained current position information and information data for the operation, blade is automatically control-
led.
Under the blade automatic control, even if the operator does not operate the blade control lever, the blade auto-
matically moves along the preset design surface. By using this function effectively, you can easily build a ground
surface as designed.
When the load to blade increases, the blade is automatically raised to keep the constant targeted load by ad-
justing lifting amount, before the machine becomes impossible to travel forward. Therefore, this function can be
used not only for the finishing leveling but also the dozing and carrying operation.
Use this machine mainly for the following operation.
• Dozing work
• Leveling work
For detail of work procedure, see “PRECAUTIONS WHEN USING BLADE AUTOMATIC CONTROL”.
This machine has the current ground display (as-built) function which grasps the ground shape under the track
as well as the operation and display it on the control box screen. By using this function, the progress of opera-
tion can be checked in real time on the control box screen.
In order to use the blade automatic control or current ground display (as-built) function, following device is need-
ed besides this machine.
• GNSS satellite (GPS, GLONASS)
Use it at a place under the open sky where has no obstacle.
• Base station
For the usable the base station, consult your Komatsu distributor in advance.
• Operation information data
Project file is necessary, which contains the data necessary for “intelligent Machine Control” such as the
design surface, base point, etc.
For details, consult your Komatsu distributor beforehand.
Observation items for use
• While the blade automatic control is in operation, the blade moves even if the operator does not operate the
blade control lever.
Before turning on the blade automatic control, check thoroughly if there are any persons or obstacles in the
area around the machine.
• While the blade automatic control is in operation, if the operator operates blade control lever, this blade lev-
er operation is given the priority and the blade moves as operated by the operator. When the operator stops
lever operation, the blade automatic control restarts.
While the blade automatic control is in operation, do not release your hand from the blade control lever, so
that you can avoid the danger immediately if any.
• When performing the inspection, maintenance, moving and loading/unloading on the trailer etc., i.e. other
operation than the operation by “intelligent Machine Control” at the jobsite, turn off the blade automatic con-
trol and turn off the control box power supply.
• You can turn off the blade automatic control by setting the work equipment lock lever to LOCK position.
INTRODUCTION FOREWORD
1-4
