Instruction Manual

54” Lehr II

A Kichler®Decor™

ceiling fan

Includes our new

CoolTouchTM 6 Speed DC Control System

Looks permanent, but goes wherever you go!

U.S. Patent Pending

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualiﬁed

licensed electrician.

3. WARNING: Not Suitable for use with

solid-state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting ﬁxtures are not acceptable for fan

support and may need to be replaced,

consult a qualiﬁed electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only ETL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the ﬂoor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. WARNING: Use only with light kit marked

"Suitable for Use in Wet Locations".

9. Avoid placing objects in the path of the

blades.

10. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

11. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

12. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the grounded conductor and

the equipment-grounding conductor on

one side of the outlet box.

13. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be ETL Listed and marked suitable

for use with the model fan you are

installing. Switches must be ETL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

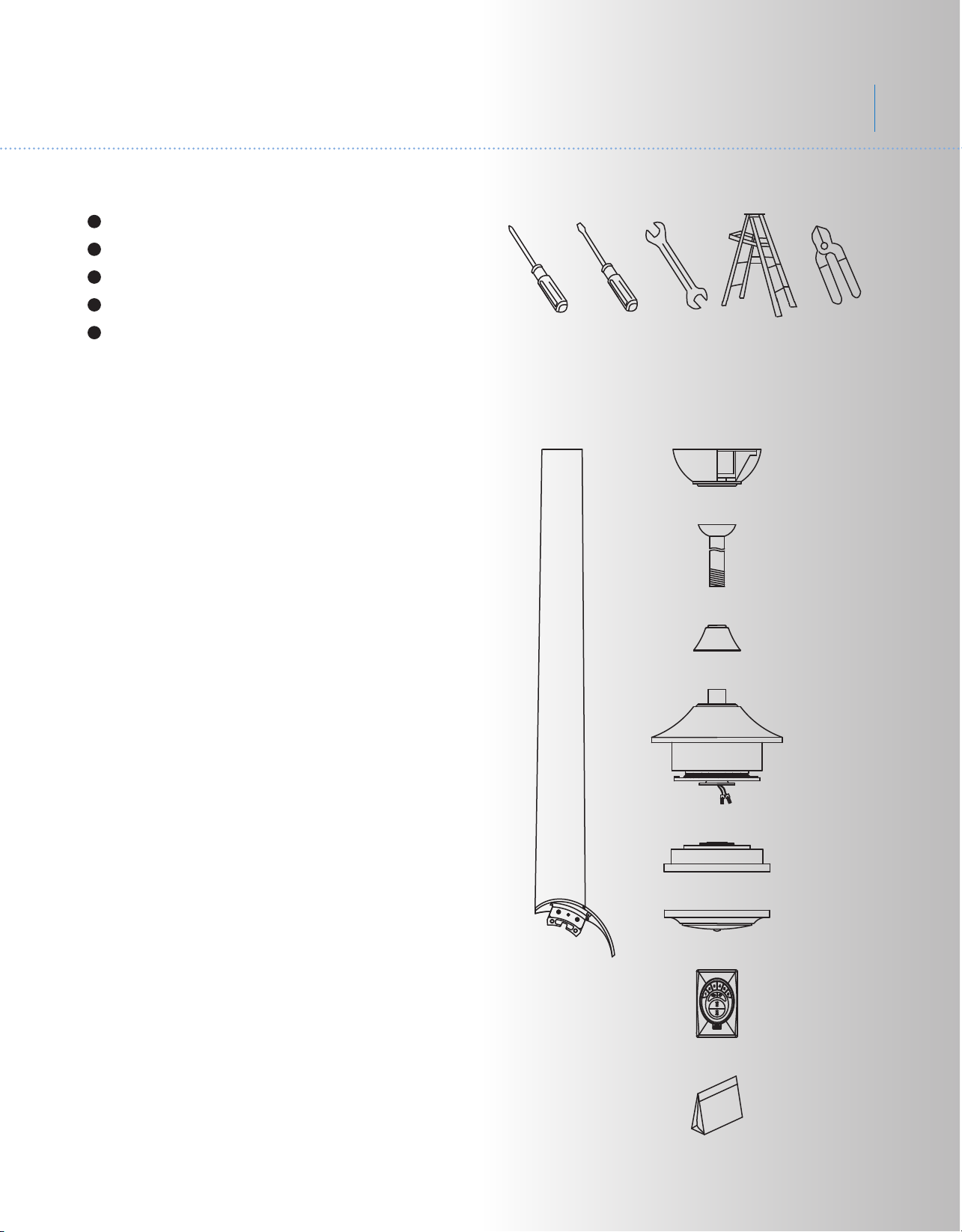

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blade assembly (7)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Mounting plate

g. Motor bottom housing

h. CoolTouch™ Control System

j. Part bag contents

1) Mounting hardware:

wood screws (2), ﬂat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade brackets hardware:

screws (2)

4) Safety cable hardware:

wood screw, spring washer, ﬂat washer

5) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

54” LehrTM

4. MOUNTING OPTIONS

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

If there isn't an existing ETL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling.

A minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Fig. 6

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

CUL Listed

electrial

box

120V Wires

Washers

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set

screw, removing the cross pin and

unscrewing the ball off the rod. (Fig.7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Downrod

Cross pin

Hanger

ball Set screw

Supply wires

Downrod

Hitch pin

Retaining clip Set screws

Set screws

Fig. 5

Hanger bracket

Ceiling

canopy

Canopy

cover

5. HANGING THE FAN

54” LehrTM

Fig. 9

Fig. 10

Registration slot

Downrod

Canopy

Canopy cover

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats rmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Set screws

Hitch pin Retaining clip

Coupling cover

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 12

7. ELECTRICAL CONNECTIONS

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please

install it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end

of the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan. Secure

the connectors with electrical tape. Make sure

there are no loose wire strands or connections.

Step 1. Connect the fan supply (black) wire to

the black household supply wire as shown in

Figure 12.

Step 2. Connect the neutral fan (white) wire to

the neutral household (white) wire.

Step 3. Connect the fan ground wire (green) to

the household ground wire.

Step 4. After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and the black

and blue wires are on the other side.

Step 5. Turn the connecting nuts upward and

push the wiring into the outlet box.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Ground (green)

(Connect to ground wire

on hanger bracket if no

house ground wire exists.)

Outlet box

Black ("AC IN L")

Black (motor)

54” LehrTM

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See ﬁgure 13.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting

screw heads by inserting the screw heads into

the bottom side of the canopy cover and

rotating the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 13)

Warning: Make sure the "Check Tab" at the

bottom of the hanger bracket is properly

seated in the "Registration Slot" on the side of

the hanger ball before attaching the canopy to

the bracket. Failure to properly seat the

"Check Tab" could damage the electrical

wires when to ceiling fan blade direction is

changed while the fan is running.

8. FINISHING THE INSTALLATION

Fig. 13

Outlet box

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

9. ATTACHING THE FAN BLADES

54” LehrTM

Step 1 Attach the rst blade assembly to the

fan motor by lining up the slot of the blade

assembly with the tab on the motor. Fasten

the blade assembly to the motor using two

screws and washer provided. (Fig. 14)

Step 2 Installing the second blade assembly

to the fan motor; lining up the slot of the blade

assembly with the tab on the motor, Insert the

tab in the second blade assembly to the slot

on the top of rst blade assembly (see the

drawing circled in Fig. 15)

Step 3 Follow the step 2 procedure for the

remaining blade assemblies.

Fig. 14

Fig. 15

Blade

assembly Screws

Motor

Tab

Slot

Tab

Fig. 17

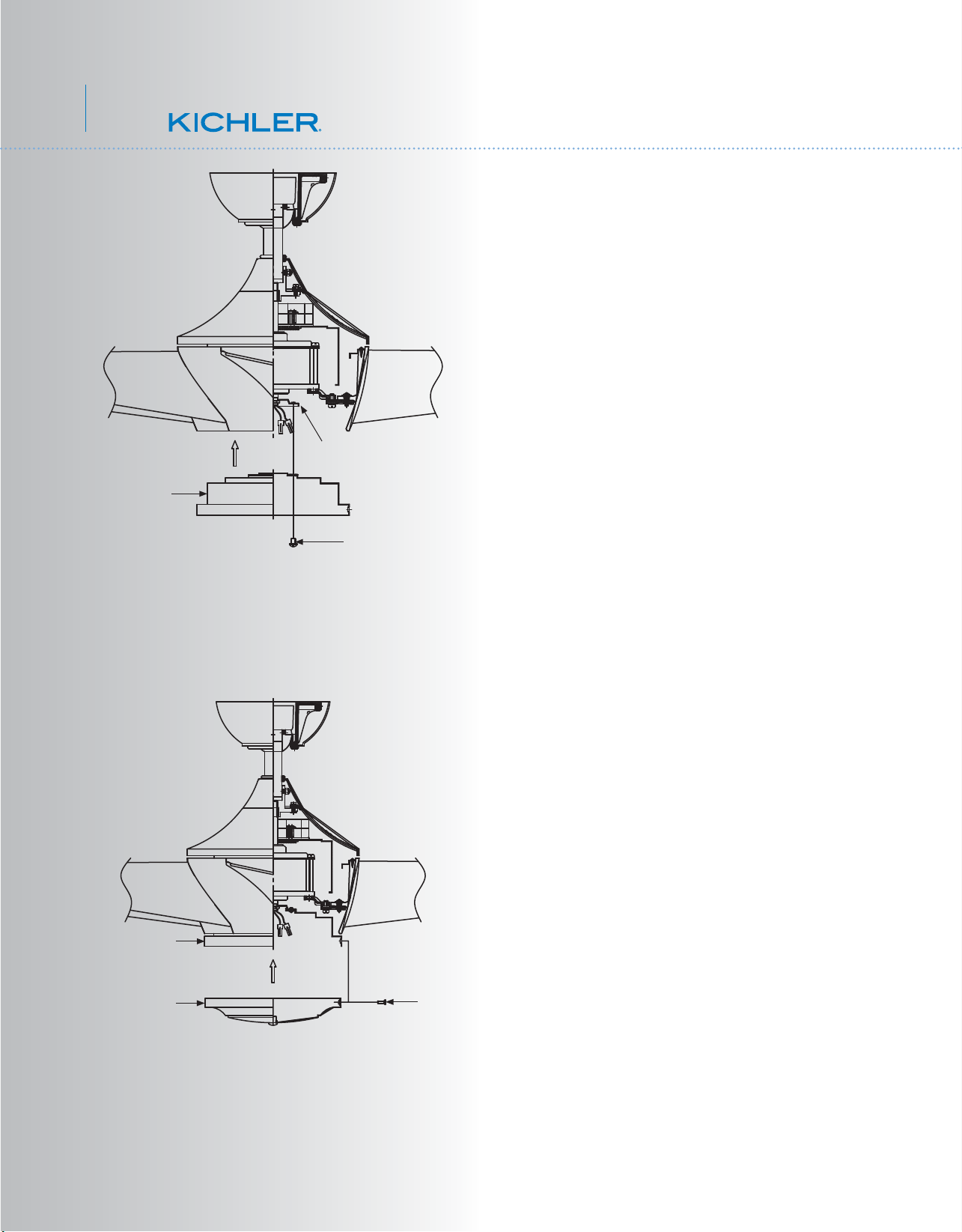

11. INSTALLING THE MOTOR

BOTTOM HOUSING

Step 1. Loosen the three mounting screws on

the inside of the motor bottom housing. (Fig.

17)

Step 2. Place the key holes on the motor

bottom housing over the 2 screws previously

loosened from the mounting plate, turn the

motor bottom housing until it locks in place at

the narrow section of the key holes. Secure by

tightening all three screws. (Fig.17)

Mounting

plate

Screws

Motor

bottom

housing

10. INSTALLING THE MOUNTING PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 16)

Step 2. Place the key holes on the mounting

plate over the 2 screws previously loosened

from the mounting ring, turn mounting plate

until it locks in place at the narrow section of

the key holes. Secure by tightening the 2

screws previously loosened and the one

previously removed. (Fig. 16)

Fig. 16

Mounting

plate

Screws

Mounting ring

This manual suits for next models

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Cameron User manual

Kichler Lighting

Kichler Lighting Monarch II Select User manual

Kichler Lighting

Kichler Lighting Canfield 300117WH User manual

Kichler Lighting

Kichler Lighting Lucia User manual

Kichler Lighting

Kichler Lighting Arkwet Patio User manual

Kichler Lighting

Kichler Lighting Maeve LED 52 User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting Humble 300415 User manual

Kichler Lighting

Kichler Lighting Verdi User manual

Kichler Lighting

Kichler Lighting 300044 User manual

Kichler Lighting

Kichler Lighting 300026 User manual

Kichler Lighting

Kichler Lighting Rivetta User manual

Kichler Lighting

Kichler Lighting Sterling Manor Patio User manual

Kichler Lighting

Kichler Lighting 300457 User manual

Kichler Lighting

Kichler Lighting Richland II User manual

Kichler Lighting

Kichler Lighting Todo 330025 User manual

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR User manual

Kichler Lighting

Kichler Lighting KLF-SOLA-34-WHT-BN User manual

Kichler Lighting

Kichler Lighting Logan User manual

Kichler Lighting

Kichler Lighting Kittery Point User manual

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting Industrial Fan User manual

Kichler Lighting

Kichler Lighting Decor Kimberley User manual

Kichler Lighting

Kichler Lighting Decor InnesII 300130 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
