Infinova V6812-T00 Series User manual

V6812-T00 Series

HD 1MP IP Minidome Camera

User Manual

Notice

This manual may not be reproduced in any form or by any means to create any

derivative such as translation, transformation, or adaptation without the prior

written permission of Infinova.

Infinova reserves the right to change this manual and the specifications without

prior notice. The most recent product specifications and user documentation for

all Infinova products are available on our web site www.infinova.com.

Trademarks

Infinova® is a trademark of Infinova.

All other trademarks that may appear belong to their respective proprietors.

FCC Warning

The V6812-T00 Series HD 1MP IP minidome cameras comply with the FCC

rules.

Operation is subject to the following two conditions:

This device will not cause harmful interference.

This device must accept any interference received, including interference

that may cause undesired operations.

The V6812-T00 Series HD 1MP IP minidome cameras have been tested and

found to comply with the limits for a Class A digital device, pursuant to the

FCC rules. With these rules and regulations being obeyed to maintain the good

working condition of device, the operation is not supposed to be affected by the

external interruptions under certain circumstances. This device is

electromagnetic, so all the installation and application processing along the

device has to follow strictly to the manual, or it may hamper the

telecommunication around. Meanwhile, there is no guarantee that interference

will not occur in a certain particular installation situation.

Read this manual carefully before installation. This manual

should be saved for future use.

Important Safety Instructions and Warnings:

Electronic devices must be kept away from water, fire or high magnetic

radiation.

Clean with a dry cloth.

Provide adequate ventilation.

Unplug the power supply when the device is not to be used for an extended

period of time.

Only use components and parts recommended by manufacturer.

Position power source and related wires to assure to be kept away from

ground and entrance.

Refer to qualified personnel for all service matters.

Save product packaging to ensure availability of proper shipping containers

for future transportation.

Indicates that the un-insulated components within the product may carry

a voltage harmful to humans.

Indicates operations that should be conducted in strict compliance with

instructions and guidelines contained in this manual.

Warning: To avoid risk of fire and electric shock, keep the product away

from rain and moisture!

CONTENTS

ChapterI System Introduction.....................................................................1

1.1 Product Description ....................................................................................1

1.2 Product Features .........................................................................................1

1.3 System Requirement...................................................................................2

1.4 Product Model.............................................................................................2

1.5 Specifications..............................................................................................3

1.6 Precautions..................................................................................................5

ChapterII Installation Instruction ..............................................................6

ChapterIII IE Browser Settings.................................................................15

3.1 Equipment Connection.............................................................................15

3.2 Software Installation.................................................................................15

Chapter IV Basic Function Operation.......................................................18

4.1 Browsing Videos.......................................................................................18

4.2 System .......................................................................................................21

4.3 Network Settings ......................................................................................27

4.4 Camera Settings........................................................................................34

4.5 Audio & Video Settings............................................................................39

4.6 Alarm Settings...........................................................................................49

4.7 Record Management.................................................................................50

4.8 Account Settings .......................................................................................54

4.9 System Log ...............................................................................................56

Appendix I Magnetic Ring FilterInstruction...........................................58

Appendix II Questions & Solutions............................................................59

Appendix III Cable Diameter Calculation and Lightning & Surge

Protection .......................................................................................................60

CHAPTER I SYSTEM INTRODUCTION

1.1 Product Description

V6812-T00 series IP minidome camera features 1/3" progressive scan CMOS

sensor and built-in megapixel HD lens with the focal length of 2.8~12mm. With

H.264 High profile/ M-JPEG compression format utilized, this camera can

output HD full-frame videos with the resolution up to 720P.

V6812-T00 series IP minidome camera provides motion detection and privacy

mask function which can protect certain private areas from being seen by

operators. In addition, Power over Ethernet (PoE) greatly simplifies

transmission cable.

Compact structure makes it easy to install. Also, this camera provides 3-axis

adjustment, easy to adjust the monitoring angle.

V6812-T00 series IP minidome camera is suitable for financial institutions,

telecommunications, governments, schools, airports, factories, hotels, museums,

city streets and other high-resolution surveillance applications.

1.2 Product Features

Infinova’s V6812-T00 series camera has the following features and functions:

1/3" progressive scan CMOS sensor

IR-Cut Removable (ICR) Filter for Day/Night switching

Onvif Profile S

H.264 High profile/M-JPEG encoding

Full-frame HD video output, with the resolution up to 1280720@30fps

High encoding efficiency, low data rate and high image quality

Smooth videos and clear images of moving objects, free from ghost and

smear

Provide WDR function

Supports storage with TF card

Supports active video tampering

Motion detection and privacy mask

Bi-directional audio, G.711

Supports alarm input and output

PoE power supply

Surface, Bracket or Recessed Mount

3-axis adjustment

1.3 System Requirement

Minimum PC Requirements:

CPU: Intel Pentium 4, 2.4 GHz or above

RAM: 512 MB or above

Network Port: 100M Ethernet port

Operating System: Microsoft Windows 7, Microsoft Windows XP

IE browser version: Microsoft Internet Explorer 6.0 or above

1.4 Product Model

This manual is for the following models:

V6812-T0020SP Megapixel IP minidome camera, 3-axis, Day/night,

1/3 inch CMOS sensor, H.264/M-JPEG, 1.0Mpx, PoE,

Surface mount, 2.8-12mm vari-focal lens

V6812-T0020PP Megapixel IP minidome camera, 3-axis, Day/night,

1/3 inch CMOS sensor, H.264/M-JPEG, 1.0Mpx, PoE,

Bracket mount, 2.8-12mm vari-focal lens

V6812-T0020RP Megapixel IP minidome camera, 3-axis, Day/night,

1/3 inch CMOS sensor, H.264/M-JPEG, 1.0Mpx, PoE,

Recessed ceiling mount, 2.8-12mm vari-focal lens

1.5 Specifications

Model V6812-T00

Image Sensor 1/3" progressive scan CMOS

Dynamic Range 83.5dB

S/N Ratio 50dB

Lens F1.4, f=2.8-12mm

Angle of View

(Horizontal) 92°~27.2°

CameraAngle

Adjustment X (Panning): 0°~360°; Y (Tilting): -75°~75°;

Z (Rotating): 0°~360°

Day/Night

Functionality ICR

Sensitivity Color mode: 0.5 lux @ F1.4 (30IRE, AGC ON);

B/W mode: 0.1 lux @ F1.4 (30IRE, AGC ON)

Exposure Scene Mode, Manual mode, Shutter priority mode

Shutter Auto/Manual (1/25s~1/8000s)

White Balance Auto/Manual/Incandescent light/ Cool white fluorescent

light/Sun light/Cloudy/Natrium light

Gain Control Auto/Manual

Noise Reduction 3D

Video Compression H.264 High profile/M-JPEG

Maximum Resolution 1280720@H.264/M-JPEG

Optional Resolution

Major stream: 1280720, 1024768, 800600;

Minor stream: 720576, 720480, 640480, 352288,

352240

Maximum Frame

Rate 30fps @1280720

Data Rate Variable bit rate;

Constant bit rate: 256Kbps~10000Kbps

Audio

Audio Compression: G.711-u;

1 input (Linear level, Resistance: 1000 Ohm),

1 output (Linear level, Resistance: 600 Ohm)

Motion Detection Up to 4 areas

Privacy Mask Up to 4 masks

Local Recording Av ai la bl e

TF Card Storage Available, up to 32G

Upgrade Online Av ai la bl e

Password Protection Av ai l able

Network Port 1 RJ45 10/100M self-adaptive Ethernet port

Applicable Protocols

IPv4, IPv6, TCP, UDP, IGMP, DHCP, FTP, SNMP (V3),

SMTP, NTP, RTP, RTSP, RTCP, HTTP, HTTPS, TSL,

SSL, 802.1X, QoS, PPPoE, DNS, ARP, ICMP, UPNP,

DDNS, Profile S

Alarm 1 alarm input, 1 relay output

Power Supply PoE IEEE 802.3af Class 2

Power Consumption <3W

Operating

Temperature 14° F ~ 122° F (-10° C ~ 50° C)

Storage Temperature -4° F ~ 140° F (-20° C ~ 60° C)

Operating Humidity 0~90% RH (non-condensing)

Unit Dimensions

(H×Ø) 3.88"×5.31" (98.5mm ×135mm)

Box Dimensions

(L×W×H) 8.03"×7.48"×7.13" (204 mm×190 mm×181mm)

Unit Weight 1.06lbs. (0.48kg)

Shipping Weight 2.01lbs. (0.91kg)

1.6 Precautions

1. Do not drop the camera or subject it to strong knock.

2. Do not point the camera lens toward the sun or other strong light.

3. Do not install the camera in environment with temperature beyond the

acceptable range (from -10°C to 50°C).

4. Never let liquid of any kind flow into this unit.

5. Do not directly touch the CMOS element. If it is necessary to clean the

element, use a soft cloth moistened with alcohol to wipe off the dust.

6. If any abnormality occurs, make sure to unplug the unit and contact your

local dealer.

7. This camera features AGC circuit, so when the camera is applied under

low illumination, sensitivity will enhance automatically, making images

look rough, which is normal.

8. Under the default setting, the lens has been adjusted till the object in a

1.5m-distance becomes clear. The lens can be readjusted as per the actual

surveillance scenes.

9. The camera power supply can be PoE.

10.Firstly perform network settings after login. Gateway IP address should be

set to the IP address of the gateway that the device connects to.

11.The IP address of the device should not conflict with other IP address; or

else no video will be available.

CHAPTER II INSTALLATION INSTRUCTION

2.1 Surface Mounting

Step 1:Take off the bubble

Loosen the 3 Torx T20 screws with an L-Shaped Torx wrench (T20) and take

off the bubble.

Step 2: Install camera module

Install the camera module to the ceiling with 3 tapping screws.

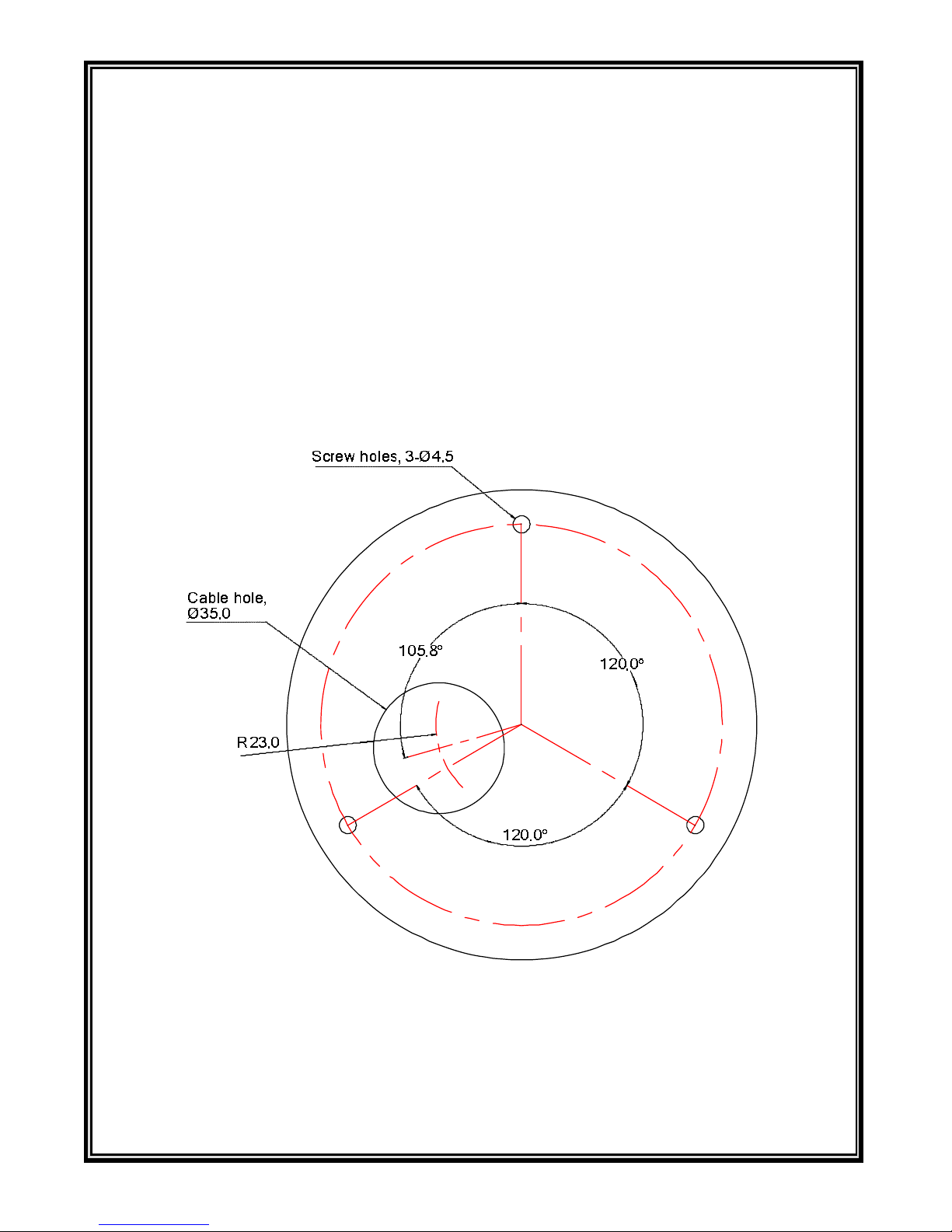

Drill screw holes and cable hole at the desired position as per Figure 2-1.

(Unit: mm)

Figure 2-1

Table of contents

Other Infinova IP Camera manuals

Infinova

Infinova V6202IR-H02 Series User manual

Infinova

Infinova V6202-T03 Series User manual

Infinova

Infinova V6202-TA Series User manual

Infinova

Infinova V6812IR-H0 Series User manual

Infinova

Infinova V1700N-NE2 Series User manual

Infinova

Infinova V6202-T00 Series User manual

Infinova

Infinova V5422IR-A8065ST-W User manual

Infinova

Infinova V5112IR-A8 series User manual

Infinova

Infinova V1700N-NE2 Series User manual

Infinova

Infinova V1492N-18N05 User manual

Popular IP Camera manuals by other brands

FLIR

FLIR Exx series user manual

Avigilon

Avigilon H4A-BO1-IR installation guide

Digital Watchdog

Digital Watchdog DWCA-C128-64 manual

ShareTech

ShareTech AV1 user manual

Ezviz

Ezviz C6C quick start guide

Melchioni

Melchioni UCAM 2015 manual

Geutebruck

Geutebruck G-Cam/ESD-4630 quick guide

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG installation manual

Mitel

Mitel 6800i Series Administrator's guide

Vitek

Vitek VTC-IR403-212NP quick start guide

THOMSON

THOMSON DSC - 323W user guide

AVer

AVer FB2027 user manual

ENFORCER

ENFORCER EV-T5105-N2SQ manual

Wansview

Wansview NC543 user manual

Eneo

Eneo MCB-64A0003M0A Quick installation guide

deView electronics

deView electronics CBDNI36F instruction manual

Swann

Swann SwannEye user manual

LevelOne

LevelOne IP CamSecure user manual
