1. General Description
2. Safety Information
Intended Use
4. Technical Specifications
5. Structure
6. Package Contents
7. Installation Instructions
8. Computer Setup
9. Cleaning and Maintenance
10. Site and System Validation Checklist
11. Troubleshooting
12. About ICI
Contents
4
4
4
5
7
8
9
17
18
19
21
8000 SERIES IR CAMERA USER MANUAL
4
1. General Description
8000 Series IR Cameras are used as an adjunct to other clinical diagnostic procedures
for elevated human body temperature screening based on the skin surface temperature
visualized from the human face. These compact devices are a winning combination of pixel
resolution and accuracy.
2. Safety Information
• This device must be installed by qualified service personnel or system installation
personnel.
• Do take precautions to prevent the lens from being worn, scratched or broken. Avoid
touching the lens to prevent it from being damaged or getting dirty.
• Given that the uncooled thermal infrared image camera uses a very sensitive thermal
sensor, under no circumstances (powered on or off) should the lens be pointed directly
at a strong radiation source (such as sun, direct or reflected laser beam, etc.), otherwise
permanent damage will be caused to the uncooled thermal imager.
• This product is a precise electronic device that must be handled with care during use,
storage, and transportation to prevent dangerous actions such as the device being hit
by external force, or falling from heights.
• During transportation and storage the original packaging box must be used.
• Prior to start of the device, make sure that the power supply is properly connected. If
the power supply is connected incorrectly, the device may be damaged.
• Do not place any objects on the power cord, and do not place the device where the
power cord can be easily touched.
• Do not submerge the device in water. Protect the device from heavy seas and projecting
jets of water. Rated for environments of 5% to 95% non-condensing humidity.
• Do not drop or throw the device.
• Do not put the product into a fire.
• It is recommended to calibrate the device(s) annually.
• If the device operates abnormally, please contact the supplier and do not dismantle the
device on your own.
3. Intended Use
8000 Series IR Cameras are used as an adjunct to other clinical diagnostic procedures for
elevated body temperature screening based on the skin surface temperature visualized from
the human face.
Patient population: All age groups
Environment of use: hospitals, sub-acute healthcare settings, public areas, i.e., airports.
8000 SERIES IR CAMERA USER MANUAL
5
4. Technical Specifications
Detector Array UFPA (VOx)
FOV Lens dependent
Measurement Distance Lens dependent
<
60 Hz
14-bit
5% to 95% non-condensing
Accuracy
> 99 %
44.5 mm x 44.5 mm x 46.5 mm (L x W x D ± 0.5 mm)
5 V DC 500 mA, < 1 W 5 V DC 500 mA, < 1.2 W
< 72 g (2.5 oz)
Interface USB Mini-B/USB 2.0
Raw
0.01 to 1.0
IP 54
Built-in shutter
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
8000 SERIES IR CAMERA USER MANUAL
6
Detector Array UFPA (VOx)
FOV Lens dependent
Measurement Distance Lens dependent
7.5 Hz
14-bit
5% to 95% non-condensing
Accuracy
> 99 %
44.5 mm x 44.5 mm x 46.5 mm (L x W x D ± 0.5 mm)
5 V DC 500 mA, < 1 W 5 V DC 500 mA, < 1.2 W
< 72 g
Interface USB Mini-B/USB 2.0
Raw
0.01 to 1.0
IP 54
Built-in shutter
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
8000 SERIES IR CAMERA USER MANUAL
7
1. Mini-USB interface
1.
5. Structure
8000 SERIES IR CAMERA USER MANUAL
8
6. Package Contents
ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE
PRESENT BEFORE BEGINNING INSTALLATION
Mounting Bracket
Laptop Laptop AC Power Cord
Software USB Drive
Temperature Reference AC Power Cord
Laptop AC Power Adapter
8000 Series IR Camera Mini-USB to USB Cable
8000 SERIES IR CAMERA USER MANUAL
9
A. B.

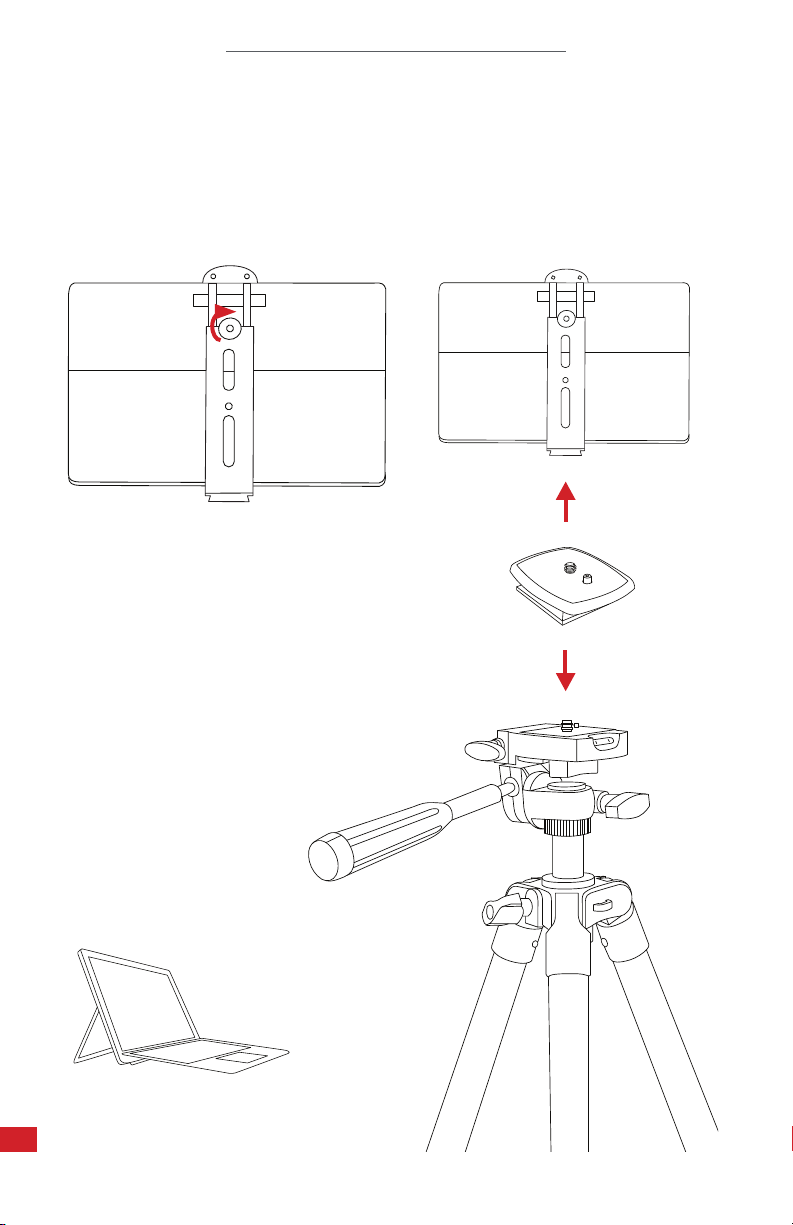

Loosen mounting bracket by
turning dial to the left.
7. Installation Instructions
SELECT AN APPROPRIATE AREA FREE OF IMMEDIATE AIRFLOW
FROM DOORWAYS AND AIR CONDITIONING/VENTILATION
SYSTEMS. THE SELECTED AREA SHOULD HAVE A STABLE
Place mounting bracket securely
on back of laptop computer.*
8000 SERIES IR CAMERA USER MANUAL
10
D.
C.
Tighten mounting bracket by
turning the dial to the right.
If you did not purchase tripod accessories
place the laptop on a stable desk or table
Mount the mounting bracket to a
tripod using the ¼-20 mount.
