Hustler®Parts Manual

Inspect spark arrester daily; replace every 500 hours or as needed.

The Engine Owner’s Manual provides information regarding the U.S. Environmental Protection Agency

(EPA) and the California Emission Control Regulation of emission systems, maintenance and warranty.

Keep Engine Owner’s Manual with your unit. Should the Engine Owner’s Manual become damaged or

illegible, replace immediately. Replacements may be ordered per the information found in the Product

Information section of the owner’s manual.

Federal law and California State law prohibit the following acts or the causing thereof:

1. The removal or rendering inoperative by any person other than for purposes of maintenance,

repair, replacement, of any device or element of design incorporated into any equipment for

the purposes of emissions control prior to or after its sales or delivery to the ultimate

purchaser or while it is in use, or

2. The use of the equipment after such device or element of design has been removed or

rendered inoperative by any person.

WARNING

The engine exhaust from this product

contains chemicals known to the state

of California to cause cancer, birth

defects or other reproductive harm.

NOTICE OF REQUIREMENT OF SPARK ARRESTER MUFFLER

This equipment may create sparks that can start fires around dry vegetation. California Public Resources Code

Section 4442.6 provides that it is unlawful to use or operate an internal combustion engine on any forest-covered,

brush-covered, or grass-covered land unless the engine is equipped with a spark arrester maintained in effective

working order. A spark arrester is a device constructed of nonflammable materials specifically for the purpose of

removing and retaining carbon and other flammable particles over 0.0232 of an inch in size from the exhaust flow of

an internal combustion engine that uses hydrocarbon fuels or which is qualified and rated by the United States

Forest Service. Other states or federal areas may have similar laws. The Operator Should Contact Local Fire

Agencies For Laws or Regulations Relating to Fire Prevention Requirements. THIS EQUIPMENT DOES NOT HAVE

A SPARK ARRESTER AND YOU SHOULD CONTACT YOUR AUTHORIZED DEALER FOR THE PURCHASE OF

A SPARK ARRESTER.

General Information 1

Frame, Footrest & Engine Guard

Frame 3-1

Footrest 3-2

Engine Guard, FX850 Only 3-3

Engine Guard 3-4

Decals - Models Ending in "US" 3-5

Hydraulic System, Drive Belt, Clutch, Steering & Brake

Hydraulic System 4-1

Hydraulic Pump Service Parts 4-2

Hydraulic Motor Service Parts 4-3

Pump Drive, Clutch & Drive Belt 4-4

Steering 4-5

Steering Cover Assembly (Multi-Page) 4-6

Steering Box Breakdown 4-7

Brake 4-8

Wheels & Tires

Wheel & Tire 5-1

Front Tire Assembly Breakdown - Smooth 5-2

Front Tire Assembly Breakdown - Ribbed 5-3

Drive Wheel Breakdown - 48" & 54" Decks 5-4

Drive Wheel Breakdown - 60" Deck 5-5

Engine, Muffler & Fuel System

HONDA ENGINE

Engine, Honda GXV690 6.1-1

Engine Service Parts, Honda GXV690 6.1-2

Fuel System, Honda GXV690 6.1-3

Fuel System without Carbon Canister - S/N 13020642 & HIGHER 6.1-4

Fuel System without Carbon Canister - S/N 12022042 TO 13020642 6.1-5

Fuel System without Carbon Canister - S/N PRIOR TO 12022042 6.1-6

Fuel System with Carbon Canister–S/N 13020001 & HIGHER (Multi-Page) 6.1-7

Fuel System with Carbon Canister—S/N 12022042–13020001 (Multi-Page) 6.1-8

Fuel System with Carbon Canister—S/N PRIOR TO 12022042 (Multi-Page) 6.1-9

Fuel & Evap Service Parts 6.1-10

KAWASAKI ENGINE

Engine, Kawasaki FX691V & FX730V 6.2-1

Engine, Kawasaki FX850V 6.2-2

Engine Service Parts, Kawasaki 6.2-3

Fuel System without Carbon Canister - S/N 13020642 & HIGHER 6.2-4

Fuel System without Carbon Canister - S/N 12022042 TO 13020642 6.2-5

Fuel System without Carbon Canister - S/N PRIOR TO 12022042 6.2-6

Fuel System with Carbon Canister–S/N 13020001 & HIGHER (Multi-Page) 6.2-7

Fuel System with Carbon Canister—S/N 12022042–13020001 (Multi-Page) 6.2-8

Fuel System with Carbon Canister—S/N PRIOR TO 12022042 (Multi-Page) 6.2-9

Fuel & Evap Service Parts 6.2-10

KOHLER ENGINE

Engine, Kohler CV730 & CV740 6.3-1

Engine, Kohler ECV749 6.3-2

Engine Service Parts, Kohler 6.3-3

Fuel System with Carbon Canister—S/N PRIOR TO 12022042 (Multi-Page) 6.3-4

Fuel System with Carbon Canister—S/N 12022042–13020001 (Multi-Page) 6.3-5

Fuel System with Carbon Canister–S/N 13020001 & HIGHER (Multi-Page) 6.3-6

Fuel System without Carbon Canister - S/N PRIOR TO 12022042 6.3-7

Fuel System without Carbon Canister - S/N 12022042 TO 13020642 6.3-8

Fuel System without Carbon Canister - S/N 13020642 & HIGHER 6.3-9

Fuel & Evap Service Parts 6.3-10

Instrument Panel, Wire Harness & Battery

Instrument Panel - HONDA - S/N PRIOR TO 12022042 7-1

Instrument Panel, KAWASAKI & KOHLER - S/N PRIOR TO 12022042 7-2

Instrument Panel - KAWASAKI & KOHLER - S/N 12022042 & HIGHER 7-3

Instrument Panel, KOHLER EFI - S/N PRIOR TO 12022042 7-4

Instrument Panel - KOHLER EFI - S/N 12022042 & HIGHER 7-5

Battery 7-6

Deck, Deck Belt, Blades & Deck Lift

48" SIDE DISCHARGE DECK

48" Side Discharge - Service Deck 8.1-1

48" Side Discharge - Deck Pulleys & Spindles 8.1-2

Spindle Assembly Service Parts - 607407 8.1-3

48" Side Discharge - Deck Belt, Discharge Chute, Pulley Covers & Blades 8.1-4

Side Discharge Deck Lift 8.1-5

Side Discharge Deck Mounting Hardware 8.1-6

54" SIDE DISCHARGE DECK

54" Side Discharge - Service Deck 8.2-1

54" Side Discharge - Deck Pulleys & Spindles 8.2-2

Spindle Assembly Service Parts - 607407 8.2-3

54" Side Discharge - Deck Belt, Discharge Chute, Pulley Covers & Blades 8.2-4

Side Discharge Deck Lift 8.2-5

Side Discharge Deck Mounting Hardware 8.2-6

54" REAR DISCHARGE DECK

54" Rear Discharge - Service Deck 8.3-1

54" Rear Discharge - Deck Pulleys & Spindles 8.3-2

Spindle Assembly Service Parts - 607407 & 607408 8.3-3

54" Rear Discharge - Deck Dust Shield 8.3-4

54" Rear Discharge - Deck Belt, Pulley Covers & Blades 8.3-5

Rear Discharge Deck Lift 8.3-6

Rear Discharge Deck Mounting Hardware 8.3-7

60" SIDE DISCHARGE DECK

60" Side Discharge - Service Deck 8.4-1

60" Side Discharge - Deck Pulleys & Spindles 8.4-2

Spindle Assembly Service Parts - 607407 8.4-3

60" Side Discharge - Deck Belt, Discharge Chute, Pulley Covers & Blades 8.4-4

Side Discharge Deck Lift 8.4-5

Side Discharge Deck Mounting Hardware 8.4-6

60" REAR DISCHARGE DECK

60" Rear Discharge - Service Deck 8.5-1

60" Rear Discharge - Deck Pulleys 8.5-2

60" Rear Discharge - Deck Spindles 8.5-3

Spindle Assembly Service Parts - 607407 & 607408 8.5-4

60" Rear Discharge - Blades 8.5-5

60" Rear Discharge - Deck Belt & Pulley Covers 8.5-6

60" Rear Discharge - Deck Dust Shield 8.5-7

Rear Discharge Deck Lift 8.5-8

Rear Discharge Deck Mounting Hardware 8.5-9

Seat & ROPS

Seat Assembly for Standard Seat

Seat, Standard - S/N PRIOR TO 11020000 9.1-1

Seat, Standard - S/N 11020000 & HIGHER 9.1-2

Seat Service Parts - 602967 9.1-3

Seat Assembly for Super Deluxe Seat

Seat, Super Deluxe 9.2-1

Seat Service Parts - 602966 9.2-2

Seat Assembly for Suspension Seat

Seat, Suspension 9.3-1

Seat Service Parts - 792051 9.3-2

ROPS 9-4

Frame, Footrest & Engine Guard

Frame Hustler X-ONE Parts Manual

Tue May 19 17:14:34 UTC 2020 3-1

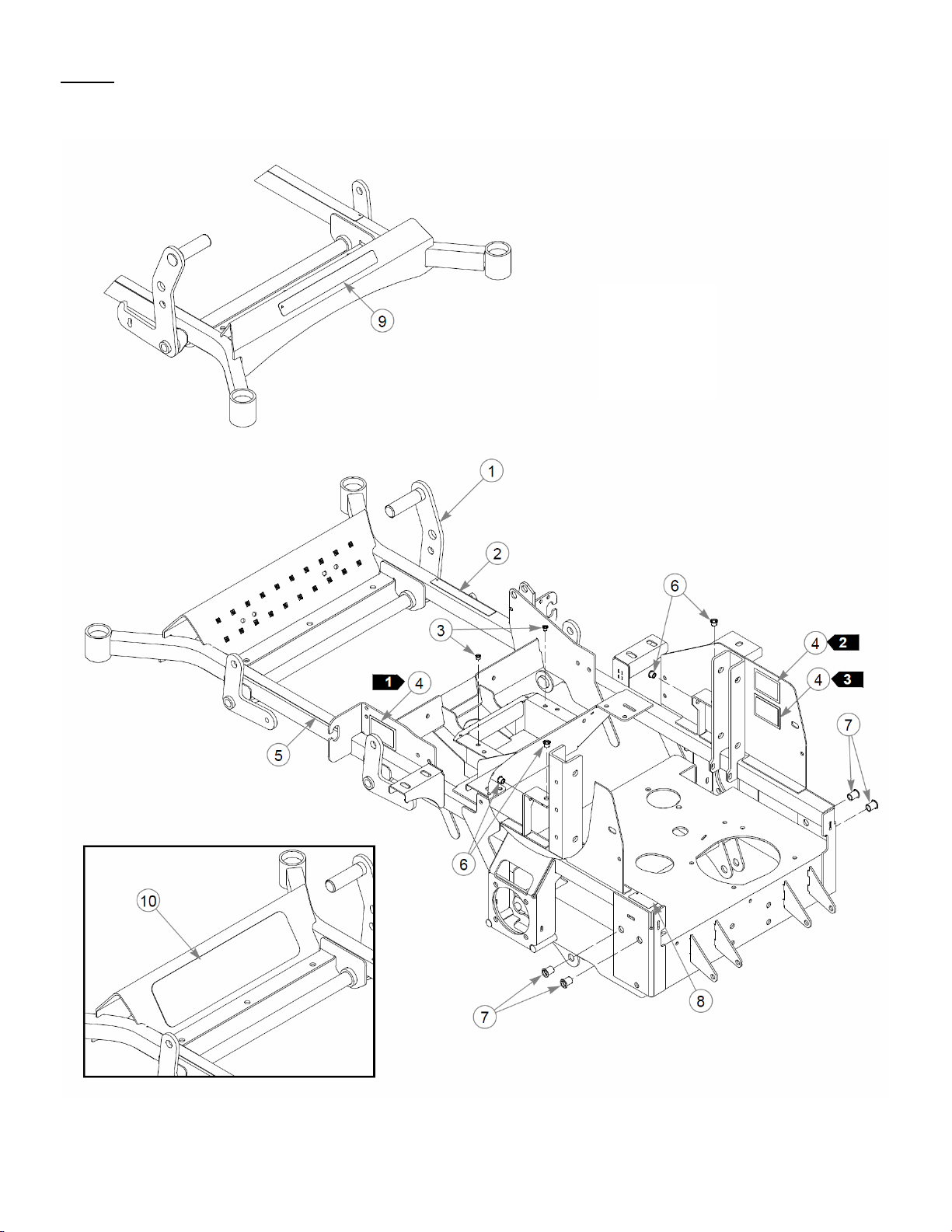

Comments for Page: Frame

1. In the event the serial number tag becomes damaged or illegible, please contact your dealer to order a replacement.

2. EPA compliance plate.

3. Patent numbers plate.

4. The frames include decals and rivet nuts.

Item Part No. Qty Name

1 550745 1 FRAME 48", SERVICE

Not Shown 550746 1 FRAME 54", SERVICE

Not Shown 550747 1 FRAME 60", SERVICE

Not Shown 550847 1 FRM INSTL 54RD, SERVICE

Not Shown 550848 1 FRM INSTL 60RD, SERVICE

2 781427 1 DECAL, DECK HEIGHT INDI

3 808477 2 RIVET NUT, 1/4-20 THREA

4 N/A 3 SERIAL NUMBER / SPEC DECAL

5 601993 1 DECAL, SAFE OPERATION

6 808493 4 RIVET NUT, 3/8-16 THREA

7 600961 4 RIVET NUT, 1/2-13 THREAD

8 602041 1 DECAL, HOT

9 602407 1 DECAL, HUSTLER ID

10 602323 1 STEP TREAD

Frame Hustler X-ONE Parts Manual

Tue May 19 17:14:35 UTC 2020 3-1

Frame, Footrest & Engine Guard

Footrest Hustler X-ONE Parts Manual

Tue May 19 17:14:35 UTC 2020 3-2
