Husqvarna YTH2246TDR Setup guide

583 91 58-28 Rev. 2

ILLUSTRATED PARTS LIST

MFG. ID NO. 96041027201/02

CUSTOMER CATALOG NO. YTH2246TDR

PRODUCT NO. 960 41 02-72

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Front Service

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire Front

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 12 20-82 Tire Rear

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" rear Service

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 43 29-14 Decal, Engine

2 581 62 73-01 Decal, Badge

3 532 44 40-40 Decal, Panel SD

4 581 57 97-01 Decal, Eng. HP

6 532 44 38-37 Decal, Replacement

7 581 72 40-01 Decal, Brake/Clutch

8 581 57 91-01 Decal, Cutfinger

9 532 14 50-05 Decal, Battery Dnge/Poi

10 581 57 92-01 Decal, Defl.

11 581 72 42-01 Decal, Warn. Fuel Reserve

12 581 58 00-01 Decal, Mower V-Belt Schematic

13 581 57 81-01 Decal, Warning Symbols

14 532 41 86-00 Decal, Pedal Dealer Pro

16 581 57 96-01 Decal, Chassis

17 581 57 80-01 Decal, Saddle Brake

18 581 57 86-01 Decal, Oper. Cruise

- - 581 72 46-01 Decal, Drawbar

- - 581 72 48-01 Decal, Bypass

- - 532 43 98-82 Pad, Footrest, LH

- - 532 43 98-81 Pad, Footrest, RH

- - 583 91 59-28 Manual, Operator's (English)

12 13

17 6

16 16

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

DECALS

NOTES

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-15 AMP DC @ 3600 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH13

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1

START

M+G+A1

B+A1

RUN

“MAKE”

L+A2

POWER OUTLET

(OPTIONAL)

12V

AMMETER

(OPTIONAL)

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

PTO SWITCH

BLUE BLACK

85 86

30 87

87A

87A 8586

RELAY

BLUE

BLUE BLACK

BLACK

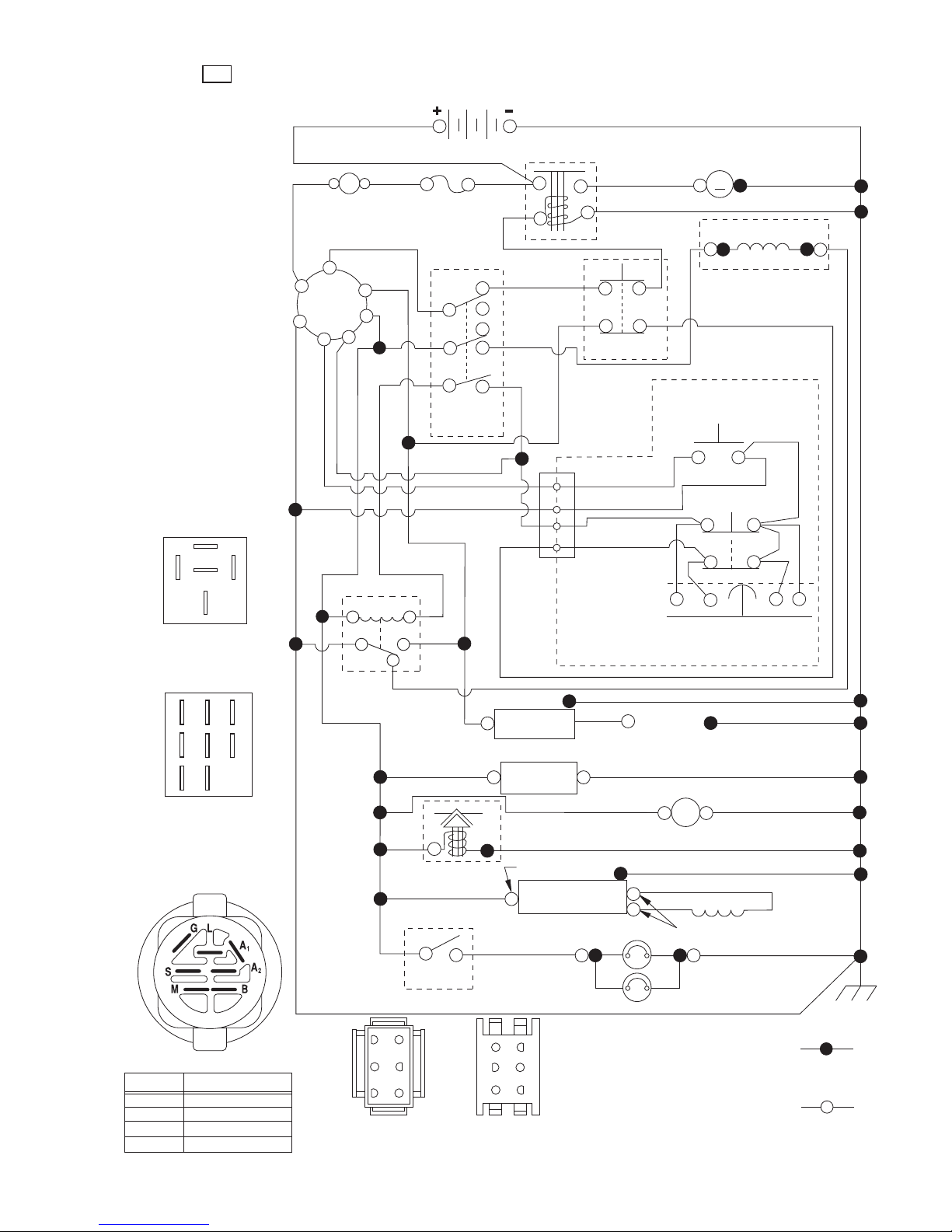

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

SCHEMATIC

100

227

79 21

With Service Minder Option

4646

With 12V Outlet Option

103

T20S

102

105

With Charge Indicator Option

142

(+) (-)

143

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 18 64-91 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

24 532 40 02-53 Cable Battery

25 532 41 28-95 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-33 Key\Chain

34 532 11 07-12 Switch Light / Reset

40 581 02 28-01 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Servicereminder Hrmtr

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

59 532 40 03-03 Outlet 12-Volt

71 532 19 42-76 Harness Ign. Chassis

79 532 17 52-42 Socket Asm Bulb Twistlock

81 532 40 96-15 Relay Harness Sealed

90 532 43 53-95 Cover Terminal

91 532 19 02-70 Strap Battery Mount

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

102 532 40 44-54 Harness Pigtail

103 532 40 79-62 Harness Pigtail 12-Volt

105 532 40 75-68 Switch Reverse TT Pedal Control

142 583 85 78-01 Charge Port Pigtail

143 532 44 80-59 Indicator Battery

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

ELECTRICAL

182

176

175

177

150

130

159

152

217

chassis-tex_GT HUSQ II_147_r1

178

183

236

235

161

162

196

221

213

218

165

228

194

180

189

194

162

199

159

202

203

205 151

206

137

214

204

208

207

297

191

130

234

176

350

335

350

336

306

125

146

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

3 532 43 97-52 Applique

5 532 43 74-86 Dash

14 532 44 11-77 Hood

15 532 43 97-33 Lens LH

18 532 43 77-62 Grille

25 532 44 33-85 Lens RH

34 580 91 08-01 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 12-08 Fender

52 873 68 05-00 Nut Lock 5/16-18

58 532 41 22-81 Drawbar Upper

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

125 581 68 48-01 Clip Fuel Line

130 532 41 63-58 Screw 10 x .750 BOS Thread

137 532 40 75-90 Bumper Dash

146 581 85 79-01 Bolt

150 532 43 97-74 Air Duct

151 532 43 66-70 Bracket Pivot Hood

152 532 43-98-70 Shield Browning

159 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

161 532 43 99-29 Window, Fuel

162 532 14 24-32 Screw Hex Wsh 1/4 x 1/2 unc

165 532 19 68-26 Support Tank Rear

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Net Asm.

180 532 41 50-64 Chassis

182 532 40 68-59 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4 Full Thd.

189 817 00 05-12 Screw 5/16-18 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

191 532 43 74-55 Insert Reflective LH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 43 96-74 Console Asm Decklift

199 532 19 82-59 Plate Deck Lift

202 532 43 97-28 Vent Side Hood RH

203 532 43 97-27 Vent Side Hood LH

204 532 43 57-14 Vent Top Hood

205 532 43 97-30 Skirt Hood Side RH

206 532 43 97-29 Skirt Hood Side LH

207 532 43 97-34 Bezel RH

208 532 43 97-35 Bezel LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer Tinner

217 532 40 91-67 Rod Pivot

218 532 19 63-95 X-Piece Hood Stop

221 532 19 89-09 Reflective LH

228 532 19 51-61 Stud Fastner

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

297 532 43 74-56 Insert Reflective RH

306 873 90 06-00 Nut Lock

335 532 44 82-04 Cover RH Close Out

336 532 44 53-09 Cover LH Close Out

350 532 44 51-43 Clip X-mas Tree

- - 532 43 18-83 Kit Bumper

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

CHASSIS AND ENCLOSURES

307 214

225

125

drive-tex_K46_pedal_40_r2

73 33

205

116

230

183

205

116

188

161

184

167

160

159

221

186

189

187

190

185 210

284

125

215

153

208

166

211

222

163

153

220

74 56

170

216

143 171

213

221

160

206

207

209

92 125

116

125

227

226

197

196

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 – – – – – – Transaxle, TUFFTORQ K46CR

(426121) (Order parts from

transaxle manufacturer.)

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 583 86 45-01 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

70 532 43 96-61 Console Asm

73 874 49 05-40 Bolt Hex 5/16-18 x 2. 1/2 Gr. 5

74 532 14 24-32 Screw Hex 1/4 x 1/2 unc

80 532 44 06-19 Strap Torque

92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

163 532 44 82-75 Rod Pedal Control

166 532 42 91-64 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2

183 532 13 70-57 Spacer Split

184 532 44 14-55 Handle Parking Brake

185 872 11 06-22 Bolt Rdhd Sqnk 3/8-16 x 2-3/4 Gr. 5

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 58-04 Bracket Clutch Anti-Rotation

205 532 12 17-48 Washer

206 532 44 85-96 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 95-92 Rod Control Cruise

210 532 19 78-60 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

213 532 40 31-19 Knob Control Cruise

214 532 41 68-63 Pedal Forward

215 532 40 17-23 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.

225 532 40 33-19 Keeper Belt Trans.

226 532 40 15-64 Bracket Mount Touque

227 817 49 05-12 Screw 5/16-18 x 3/4

230 532 18 89-67 Washer Hardened

284 532 41 76-93 Nut U-CHNL 1/4-20

307 874 18 04-12 Screw Mach. CR. 1/4-20 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

DRIVE

















30!2+ª!22%34%2ª+)4



























ENGINETEX?BSCYL?















TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

ENGINE

Other manuals for YTH2246TDR

Table of contents

Other Husqvarna Lawn Mower manuals

Husqvarna

Husqvarna TS 354XD User manual

Husqvarna

Husqvarna P-ZT26 CE User manual

Husqvarna

Husqvarna AUTOMOWER 420 User manual

Husqvarna

Husqvarna MZ5225/968999717 User manual

Husqvarna

Husqvarna LTH126 User manual

Husqvarna

Husqvarna AUTOMOWER 105 User manual

Husqvarna

Husqvarna PT 26D Instruction manual

Husqvarna

Husqvarna Automower 305 User manual

Husqvarna

Husqvarna 7021CP User manual

Husqvarna

Husqvarna GTH3052TF User manual

Husqvarna

Husqvarna LC221RH User manual

Husqvarna

Husqvarna 87521HVE User manual

Husqvarna

Husqvarna YTH2648TDRF Owner's manual

Husqvarna

Husqvarna LZ5227, LZ6130 User manual

Husqvarna

Husqvarna 917.279241 User manual

Husqvarna

Husqvarna 87521RSX User manual

Husqvarna

Husqvarna GTH26V48LS User manual

Husqvarna

Husqvarna 968999245/ CZ3815 User manual

Husqvarna

Husqvarna 62522SH User manual

Husqvarna

Husqvarna Z560 series User manual

Husqvarna

Husqvarna AUTOMOWER 550 EPOS User manual

Husqvarna

Husqvarna LTH126 User manual

Husqvarna

Husqvarna ZTHKH4818A User manual

Husqvarna

Husqvarna M51-150WF User manual

Popular Lawn Mower manuals by other brands

RHINO

RHINO 1958 parts manual

Wolf Garten

Wolf Garten Compact plus 40 B instruction manual

Cub Cadet

Cub Cadet LTX 1045 brochure

Craftsman

Craftsman 917.378461 owner's manual

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Operator's manual

Challenge

Challenge CH18V2 Original manual

TALEN TOOLS

TALEN TOOLS AVR HGM30 manual

DEWEZE

DEWEZE ATM-725 Operation and service manual

Weed Eater

Weed Eater 180083 owner's manual

Better Outdoor Products

Better Outdoor Products Quick Series Operator's manual

Cub Cadet

Cub Cadet 23HP Z-Force 60 Operator's and service manual

MTD

MTD 795, 792, 791, 790 Operator's manual

Toro

Toro Groundsmaster 3505-D Service manual

Dennis

Dennis FT 610 instruction manual

AIRFORCE

AIRFORCE F-15 Gen 3 owner's manual

MTD

MTD 126-220-000 owner's guide

Toro

Toro 74806 Operator's manual

Stihl

Stihl RMA 443 PV instruction manual
