Husqvarna R52 S Guide

SERVICE

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

IPL, R52 S, 96141006005, 2008-02, 532 41 60-68

R52 S

532 41 60-68

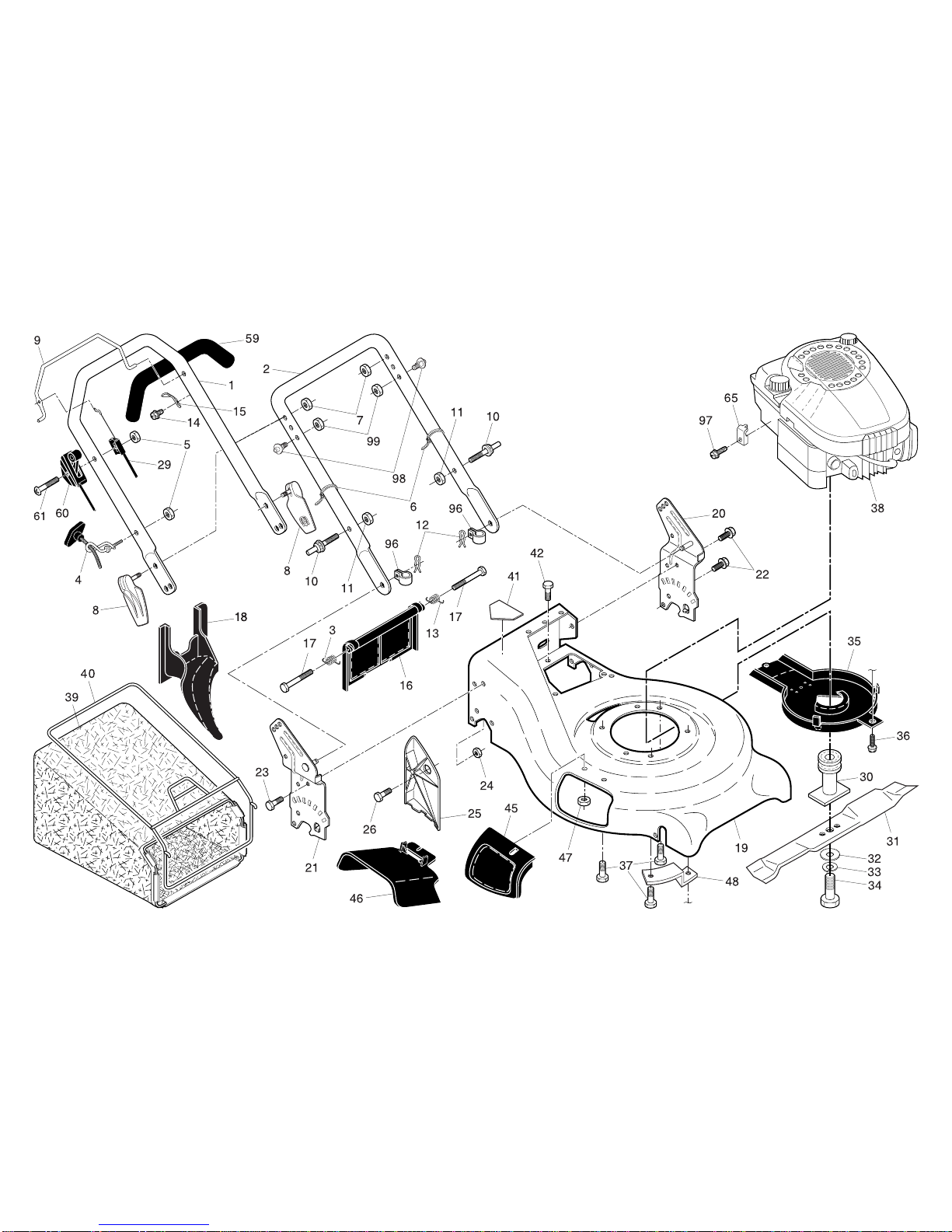

ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60

1 532 41 60-58 Handle, Upper, Deluxe Comfort (Includes Grip)

2 532 41 67-03 Handle, Lower

3 532 40 54-16 Spring, Rear Door, RH

4 532 19 47-88 Guide, Rope, Side

5 532 13 20-04 Nut, Hex, with Lock Washer Insert 1/4-20

6 532 06 64-26 Wire, Tie

7 532 19 17-30 Locknut, Hex 1/4-20

8 532 41 66-68 Knob, Handle

9 532 41 10-83 Control Bar, Wire, Deluxe Comfort

10 532 18 88-21 Bolt, Carriage

11 532 75 11-53 Nut, Hex, with Lock Washer Insert 5/16-18 UNC

12 532 05 17-93 Cotter, Hairpin

13 532 40 54-15 Spring, Rear Door, LH

14 532 75 06-34 Screw, Tapping, Hex Washer Head #10-24

15 532 12 51-62 Bracket, Upstop

16 532 40 88-88 Rear Door Assembly

17 532 18 41-93 Bolt, Rear Door

18 532 19 81-70 Plug, Mulcher

19 532 40 80-00 Kit, Lawn Mower Housing

20 532 19 40-29 Handle Bracket Assembly, Left

21 532 19 40-31 Handle Bracket Assembly, Right

22 532 15 00-78 Screw, Hex Washer Head

23 532 16 31-83 Bolt, Hex Head 5/16-18 x 5/8

24 873 80 05-00 Nut, Hex, with Lock Washer Insert 5/16-18

25 532 16 13-33 Bafﬂe, Side

26 532 16 34-09 Screw, Hi-Lo Thread #12 x 5/8

29 532 13 31-07 Cable

30 532 18 91-79 Blade Adapter / Pulley

31 532 19 93-77 Blade, 21"

32 532 85 10-74 Washer, Hardened

33 532 85 02-63 Lock Washer, Helical Spring 3/8

34 532 85 10-84 Screw, Hex Head 3/8-24 x 1.38

35 532 40 58-43 Shield, Debris

36 532 19 23-25 Screw

37 532 15 04-06 Bolt, Engine, Special, Zinc-Plated

38 - - - Engine, Briggs & Stratton, Model Number 126T02

(Order parts from engine manufacturer)

39 532 41 04-68 Grassbag

40 532 41 19-51 Frame, Grassbag

41 532 18 21-66 Decal, Danger

42 532 05 45-83 Self-Tapping Screw

45 532 19 05-10 Mulcher Door Assembly

46 532 19 05-12 Discharge Deﬂector

47 532 08 83-49 Nut, Hex

48 532 19 09-39 Mounting Bracket, Debris Shield

59 532 16 42-65 Grip, Handle, Foam, Smooth

60 532 18 21-54 Throttle Control

61 532 18 33-65 Screw

65 532 11 11-90 Cable Clamp

96 532 19 79-91 Clip, Cable

97 532 08 38-16 Screw

98 532 19 92-55 Stud

99 532 75 11-53 Nut, Hex

- - 532 18 21-34 Warning Decal

- - 532 41 12-66 Operator’s Manual, European

- - 532 41 12-67 Operator’s Manual, Scandinavian

- - 532 41 12-70 Operator’s Manual, East Bloc

- - 532 41 12-68 Operator’s Manual, Baltic

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

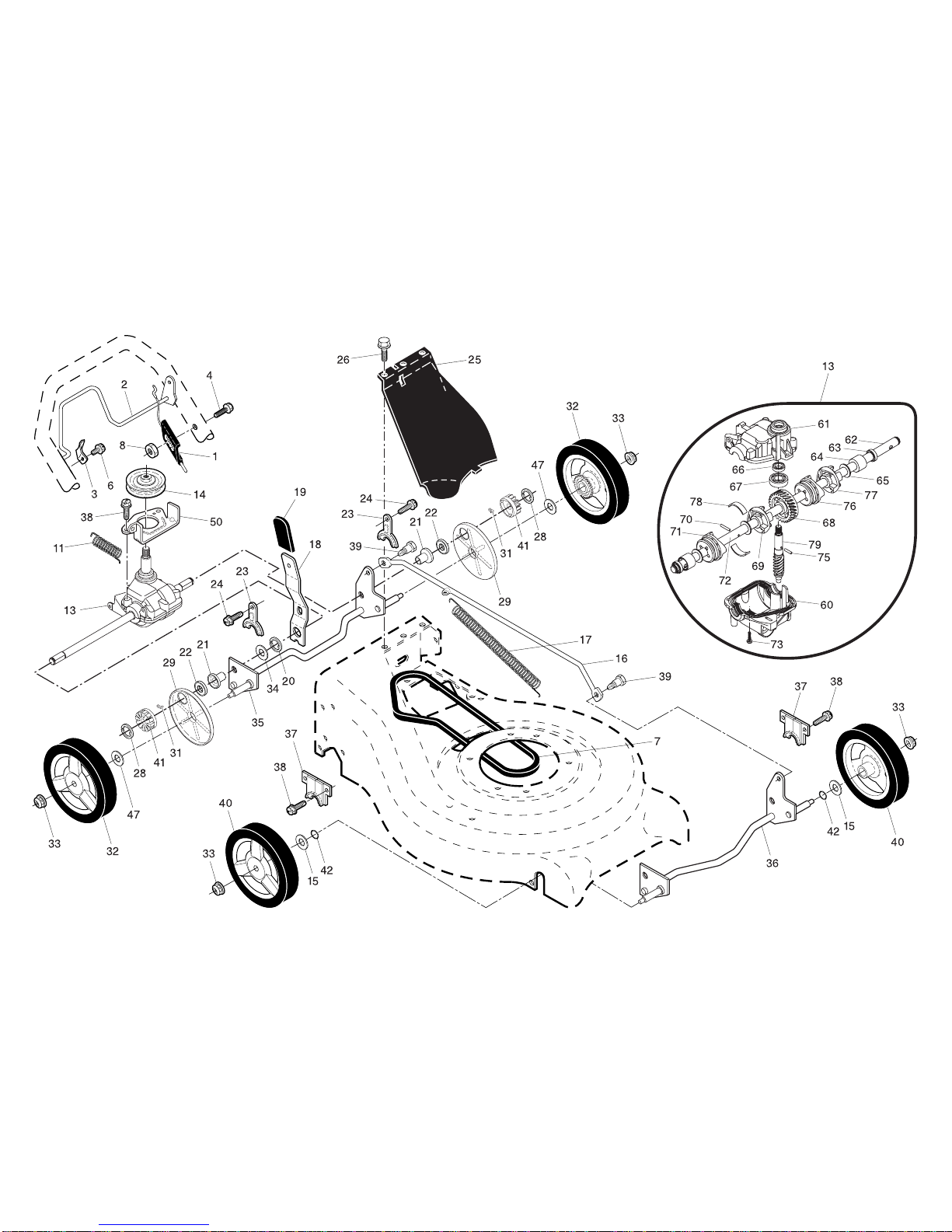

ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60

1 532 40 65-31 Cable, Drive

2 532 18 87-60 Bar, Control, Drive

3 532 16 45-57 Bracket, Downstop

4 532 19 96-87 Screw

6 532 75 06-34 Screw, Tapping, Hex Washer Head #10-24

7 532 40 65-57 V-Belt

8 532 19 17-30 Nut, Hex, Flangelock, Zinc Plated 3/8-16

11 532 40 65-58 Spring, Return

13 532 40 48-39 Gearcase Assembly, Complete

14 532 40 57-03 Pulley, Drive

15 532 08 83-48 Washer, Flat 3/8

16 532 40 71-47 Rod, Connecting

17 532 40 96-16 Spring, Extension

18 532 19 61-62 Spring, Selector

19 532 19 00-69 Knob, Selector Spring

20 812 00 00-22 E-Ring 7/8

21 532 41 24-50 Bearing Support

22 532 19 10-39 Bearing, Ball

23 532 16 45-55 Retainer, Drive Assembly, Stamped

24 532 05 78-08 Screw, Tapping, Hex Head 1/4-20 x 3/4

25 532 40 07-83 Cover, Drive

26 532 75 06-34 Screw, Tapping, Hex Washer Head #10-24 x 1/2

28 812 00 00-58 E-Ring 7/16

29 532 18 94-03 Cover, Dust, Wheel

31 532 40 48-45 Pawl, Drive

32 532 41 31-05 Wheel & Tire Assembly, Rear, Driven

33 532 40 91-48 Nut, Hex Flangelock

34 532 85 12-26 Washer

35 532 41 09-22 Shaft Assembly, Rear

36 532 41 09-33 Shaft Assembly, Front

37 532 16 14-63 Retainer, Front Shaft

38 532 16 34-09 Screw, Hi-Lo Thread #12 x 5/8

39 532 40 70-59 Bolt, Hi-Lo Thread, Semi-Gimlett Point

40 532 41 08-31 Wheel & Tire Assembly, Front

41 532 40 48-35 Pinion

42 532 19 74-80 O-Ring

47 532 06 77-25 Washer 1/2 x 1-1/2 x .134

50 532 41 37-22 Belt Keeper

60 532 41 27-47 Case, Lower

61 532 41 27-36 Case, Upper

62 532 41 27-57 Shaft, Output, Long

63 532 18 35-08 Seal, Output Shaft

64 532 18 35-11 Bushing

65 532 18 35-09 Washer

66 532 18 35-14 Seal, Worm Shaft

67 532 18 35-06 Bearing, Ball

68 532 41 27-42 Gear, 28 Teeth

69 532 41 27-39 Fixed Dog Clutch, LH

70 532 41 27-41 Pin, Output Shaft

71 532 41 27-40 Movable Dog Clutch, LH

72 532 41 27-56 Shaft, Output, Short

73 532 18 35-13 Screw, Case

75 532 41 27-46 Pin, Worm Shaft

76 532 41 27-44 Fixed Dog Clutch, RH

77 532 41 27-43 Movable Dog Clutch, RH

78 532 41 07-31 Spring, Leaf

79 532 41 27-37 Shaft, Worm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
