Husqvarna Automower 308 Guide

IPL, Automower 308, 581 84 67-01, 2013-06

308

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

2013

AAUTOMOWER 308

COVER

PAGE A AUTOMOWER 308 COVER

Position Article Quantity Notes Kit

1 577 73 47-02 1 Bumper front, Grey

1 577 73 47-01 1 Bumper front, White

2 577 74 72-02 1 Main body kit

3 576 21 39-01 2 Screw M5x12

4 574 46 90-02 2 Bracket, lift sensor

5 574 46 91-02 2 Rubber damper

6 574 48 51-02 2 Spring, lift sensor

7 576 24 00-01 1 Warning label 3

8 576 18 32-01 1 Magnet, lift sensor 3

9 575 54 33-14 7 Screw, grey (14mm)

10 576 03 01-01 1 Plate, collision sensor 3

11 576 18 33-01 1 Magnet, collision sensor 3

12 576 21 39-01 2 Screw M5x12

13 575 41 60-02 2 Support clamp

14 575 54 33-14 4 Screw, grey (14mm)

15 574 46 91-02 2 Rubber damper

16 574 46 52-01 1 Bumper, rear

17 575 54 33-14 2 Screw, grey (14mm)

18 577 95 53-02 1 Cover, Kit Complete, Grey

18 577 95 53-01 1 Cover, Kit Complete, White

113

BAUTOMOWER 308

CHASSIS UPPER

PAGE B AUTOMOWER 308 CHASSIS UPPER

Position Article Quantity Notes Kit

1 580 79 29-01 1 Cover, height adjustment, WHITE

1 580 79 29-02 1 Cover, height adjustment, GREY

2 574 46 47-01 1 Stop button

3 575 54 33-14 2 Screw, grey (14mm)

4 574 37 79-01 1 Hinge, height adjustment lid

5 575 77 94-01 1 Keyboard 8

6 576 24 21-01 1 Spring, height adjustment lid

7 574 48 70-01 1 Spring, stop button

8 577 75 28-02 1 Display cover kit incl. sealing & keypad

9 575 54 33-14 5 Screw, grey (14mm)

10 574 48 03-01 1 Micro switch, stop button

11 535 08 98-01 1 Clip, stop button

12 574 47 59-01 1 Buzzer, display cover

13 575 64 01-01 1 Display/MMI, circuit board

14 575 40 90-01 1 Lock, stop button

15 576 24 22-01 1 Spring lock, stop button

16 575 41 58-01 1 Spring holder, stop button

17 575 54 33-14 2 Screw, grey (14mm)

18 575 54 33-14 1 Screw, grey (14mm)

19 576 05 39-01 1 Cover, height indicator

20 577 75 36-01 1 Sealing strip kit (10 pcs)

20 574 87 47-04 1 Sealing strip

21 575 54 33-14 2 Screw, grey (14mm)

22 576 69 70-01 1 Cover, air filter

23 577 75 37-01 1 Air filter kit (10 pcs)

24 577 75 29-01 1 Chassis upper kit incl. sealing & air filter

25 576 21 39-01 2 Screw

26 574 45 01-01 10 Screw

27 579 74 24-01 1 Knob, kit incl. label

10 11

CAUTOMOWER 308

CHASSIS LOWER

PAGE C AUTOMOWER 308 CHASSIS LOWER

Position Article Quantity Notes Kit

1 577 70 79-01 2 Hub cap, drive wheel

2 576 21 39-02 6 Screw

3 577 09 32-01 2 Washer, drive wheel

4 574 46 51-01 2 Wheel, drive wheel

5 575 54 33-14 6 Screw, grey (14mm)

6 577 83 99-02 2 Wheel motor kit incl. sealing

7 581 22 10-01 1 Main circuit board (MCB)

8 535 13 03-10 2 Screw (10mm)

9 576 22 02-01 1 Loom, buzzer extension

10 574 47 92-01 1 Loom, display

11 574 47 90-01 1 Loom, loop and lift sensor

12 535 13 03-10 1 Screw (10mm)

13 575 64 09-01 1 PCB sensor board

14 577 75 36-01 1 Sealing strip kit (10 pcs)

14 574 87 47-04 1 Sealing strip

15 577 84 36-01 1 Sealing strip kit, chassis (10 pcs)

15 574 87 47-03 1 Sealing strip, chassis

16 574 37 37-01 2 Sealing/gasket, motor flange 6

17 574 47 98-01 1 Loom, Li-Ion battery

18 574 50 19-01 2 Guide rail, motor bowl

19 574 48 46-01 1 Height adjustment screw

20 575 40 82-01 1 Lock, battery plug

21 577 10 32-01 1 Locking spring

22 577 84 62-01 1 Chassis lower kit, incl sealing

23 576 21 39-01 2 Screw

24 574 47 77-02 1 Loom, charge plate

25 575 54 33-14 2 Screw, grey (14mm)

26 535 08 74-01 2 Washer, vulcanized fiber

27 574 49 00-01 2 Charge plate

28 579 70 87-01 1 Swith ON/OFF with Seal

29 574 46 72-01 1 Housing, rear wheel

30 575 54 33-14 3 Screw, grey (14mm)

31 583 85 39-01 1 Rear wheel kit 32

32 578 27 51-01 1 Rear wheel kit complete

33 578 27 52-01 1 Bearing (x2), sealing (x2), O-ring (x1) 32

34 577 71 50-01 2 Bearing housing, rear wheel 32

35 575 54 33-14 4 Screw, grey (14mm)

36 574 45 01-01 4 Screw

37 574 46 73-01 1 Cover, battery

38 574 47 68-01 1 Battery, Lithium 18V

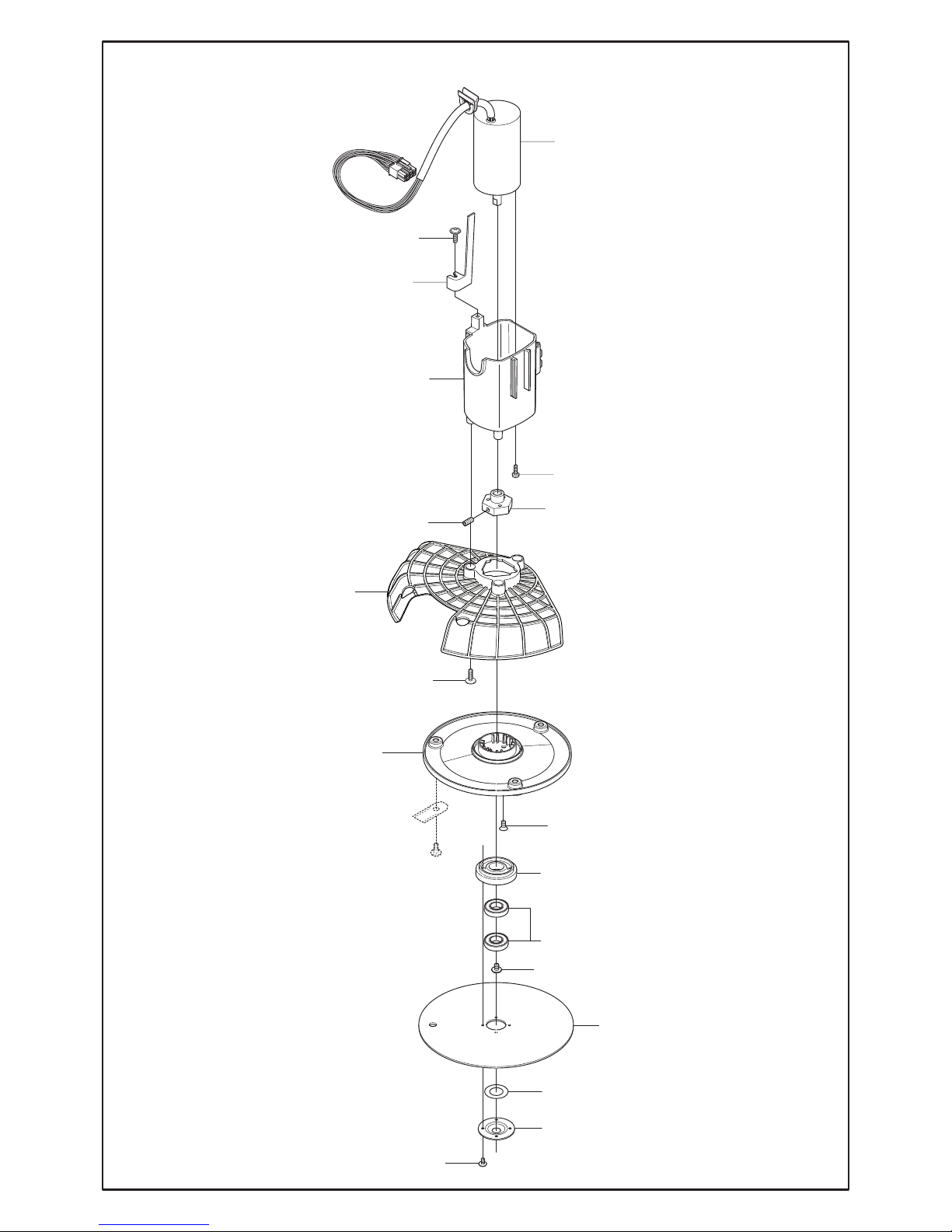

DAUTOMOWER 308

BLADE MOTOR & CUTTING EQUIPMENT

PAGE D AUTOMOWER 308 BLADE MOTOR & CUTTING EQUIPMENT

Position Article Quantity Notes Kit

1 574 46 89-02 1 Cutting motor

2 575 54 33-14 1 Screw, grey (14mm)

3 574 50 35-01 1 Height indicator

4 574 48 45-02 1 Motor housing

5 576 21 38-01 3 Screw

6 580 79 31-01 1 Hub, cutting motor

7 576 21 35-01 1 Stop screw

8 577 85 02-02 1 Guard, cutting disc

9 575 54 33-14 3 Screw, grey (14mm)

10 580 79 28-01 1 Cutting disc

11 535 13 05-01 3 Screw

12 535 12 64-01 1 Bearing box

13 535 07 57-02 1 Ball bearing

14 535 07 60-01 1 Screw

15 580 79 27-01 1 Skid plate

16 535 08 25-01 1 Gasket

17 535 08 15-01 1 Cover washer

18 575 54 33-10 4 Screw

EAUTOMOWER 308

CHARGING STATION
