Honeywell H Series User manual

Place bar code here

62-0424-02

INSTALLATION INSTRUCTIONS

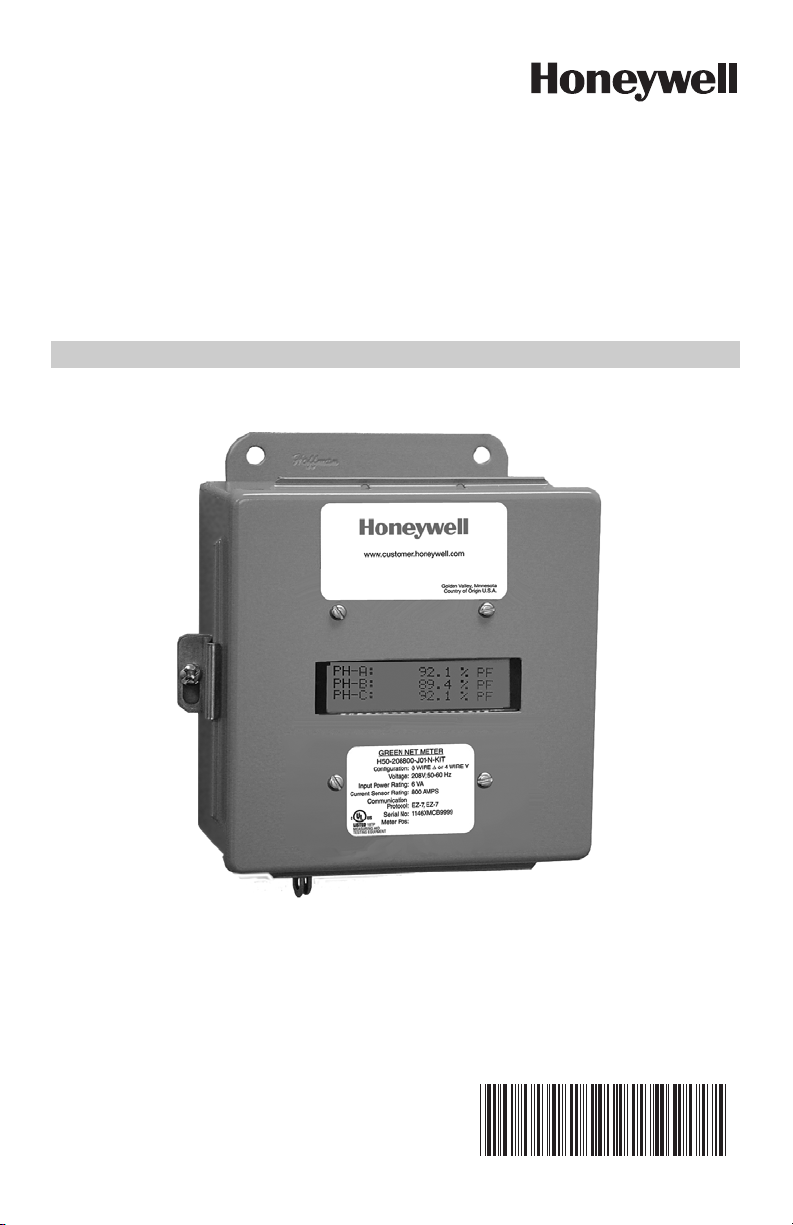

H-Series

Green Class Net Meter

ADVANCED KWH/DEMAND METER

WITH CO2 FOOTPRINT

H-SERIES GREEN CLASS NET METER

62-0424-02 2

TABLE OF CONTENTS

Section 1.0 Introduction 3

Section 2.0 Internal Electronic Assemblies 5

Section 2.1 Main Power Board 6

Section 2.2 Display Board 7

Section 2.3 Input Board 8

Section 3.0 Meter Technical Specifications 8

Section 4.0 Safety Label Definitions and Information 12

Section 5.0 Precautionary/Safety Information 13

Section 6.0 Meter Installation 14

Section 6.1 Mounting the Green Class Net Meter 14

Section 6.2 Main Power Board Connections 14

Section 6.3 Phasing of Line Voltage 16

Section 6.4 Current Sensor Installation & Wiring 18

Section 6.5 Main Power & Current Sensor Wiring Diagram 20

Section 6.6 Line Voltage/Current Sensor Diagnostics 22

Section 6.7 RS-485 Wiring 24

Section 6.8 RS-232 Communications 26

Section 6.9 Connecting Green Class Net Meters to USB Key using RS485 30

Section 6.10 Ethernet Communications 31

Section 7.0 Multiple Load Monitoring 33

Section 8.0 Preventative/Scheduled Maintenance 34

Section 9.0 Lithium Battery Replacement 35

Section 10.0 Green Class Net Meter Features 37

Section 10.1 Display Board Push Buttons 37

Section 10.2 Reading The Green Class Net Meter Display 40

Section 11.0 Frequently Asked Questions 41

Section 12.0 Modbus Point Maps 42

Section 13.0 Meter Limited Warranty 48

H-SERIES GREEN CLASS NET METER

3 62-0424-02

1.0 INTRODUCTION

The Honeywell Green Class Net meter is a 3-phase meter with communications. The

device is used to monitor electric power usage of individual loads after the utility meter

and store kW and kVAR data for automatic meter reading. The Green Class Net meter

is dual protocol capable and provides both RS485 and Ethernet communications.

Installation must only be performed by qualified personnel and in accordance with

these instructions and all applicable local and national electrical codes. Honeywell and

its representatives assume no responsibility for damages or injury resulting from the

improper installation of this meter.

Verify the input voltage rating and configuration on the unit panel label to ensure that it

is suitable for the intended electrical service. For example, Green Class Net meters

labeled for 120/208V service MUST NOT be installed on service feeds of 277/480 volts

or 347/600 and vice versa (see chart below):

Verify that the Green Class Net meter’s current sensors are sized suitably for the load

to be monitored. Compare the color of the arrows on the current sensors to the chart

below to confirm the correct current sensor is being used.

Meter Labeled: Works On:

120V 120V, Single Phase

120/240V 120/240V, Single Phase

277V 277V, Single Phase

208V 208V, Three Phase

240V 240V, Three Phase

400V (380V,415V) 400V, Three Phase

480V 480V, Three Phase

600V 600V, Three Phase

Sensor Arrow Color Code Sensor Rating

Brown 100 A

Red 200 A

Yellow 400 A

Black 800 A

Blue 1600 A

White/Black 3200 A

H-SERIES GREEN CLASS NET METER

62-0424-02 4

CAUTION

Internal circuit card components are extremely sensitive to electrostatic

discharge. Prior to handling or touching internal circuitry, discharge any static

buildup on your person. To discharge yourself, touch a grounded metal object

such as conduit or an earth grounded metal enclosure.

WARNING

Use of this instrument, Green Class Net meter, in a manner inconsistent with

this manual or not specified by the manufacturer in writing, can cause

permanent damage to the unit and/or serious injury to the operator. The

protection and safety features provided by this equipment may become

impaired or otherwise compromised.

H-SERIES GREEN CLASS NET METER

5 62-0424-02

2.0 INTERNAL ELECTRONIC ASSEMBLIES

The unit is comprised of two major subassembly boards, the main power board and

the display board. Both circuit boards are mounted inside either a JIC STEEL

Enclosure.

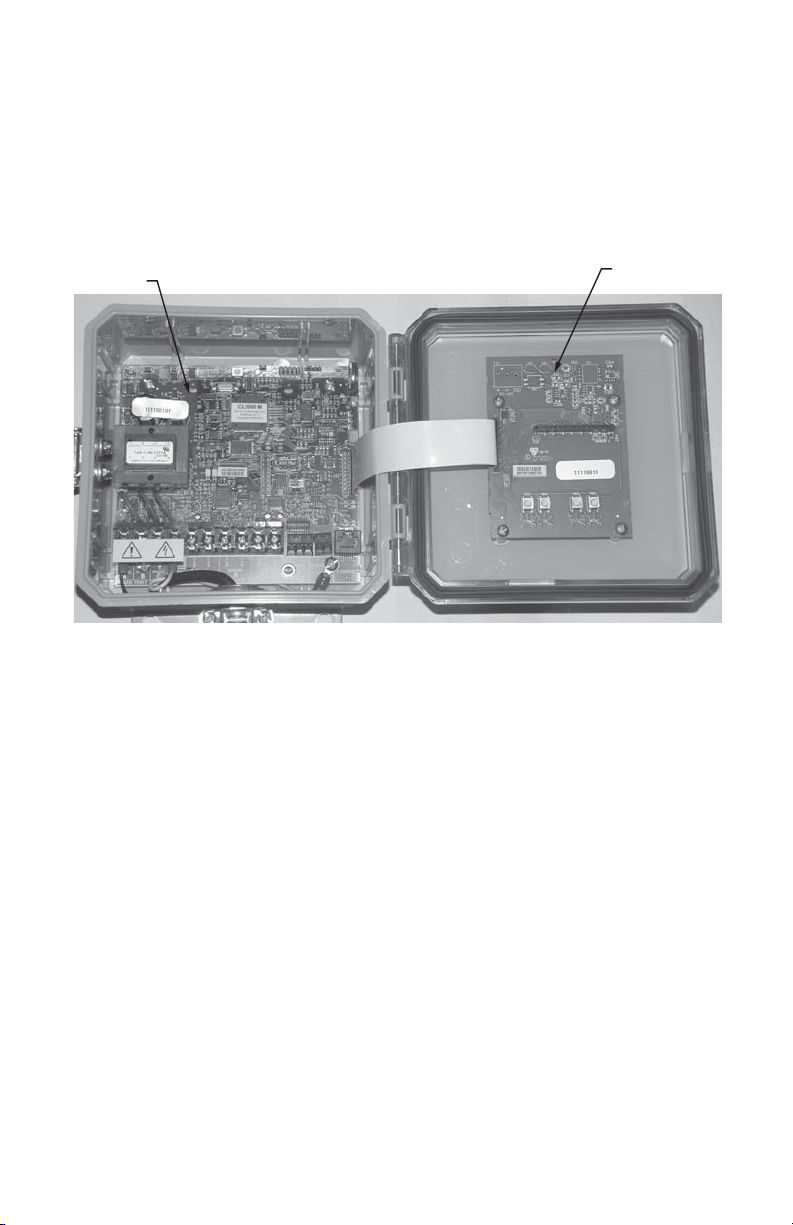

Fig. 1. Internal Electronic Assemblies.

MAIN POWER

BOARD

DISPLAY

BOARD

M33270

H-SERIES GREEN CLASS NET METER

62-0424-02 6

2.1 Main Power Board

Connections to this board include the MAIN Power Input and current sensors. The

MAIN Power Input terminals are positions one through four on the four position screw

terminal block, TB1. These terminals are covered with a protective shield for safety

purposes. The current sensor assemblies interface to the TB2, TB3 and TB4. Each

terminal block corresponds to an input voltage phase; care must be exercised to

ensure that each current sensor is connected to the correct terminal block. One three

terminal screw connector(TB42) is provided for RS-485 communications. One RJ-45

jack (J8) is provided for 10/100-base T Ethernet. One two terminal screw connector

provides phase loss alarming.

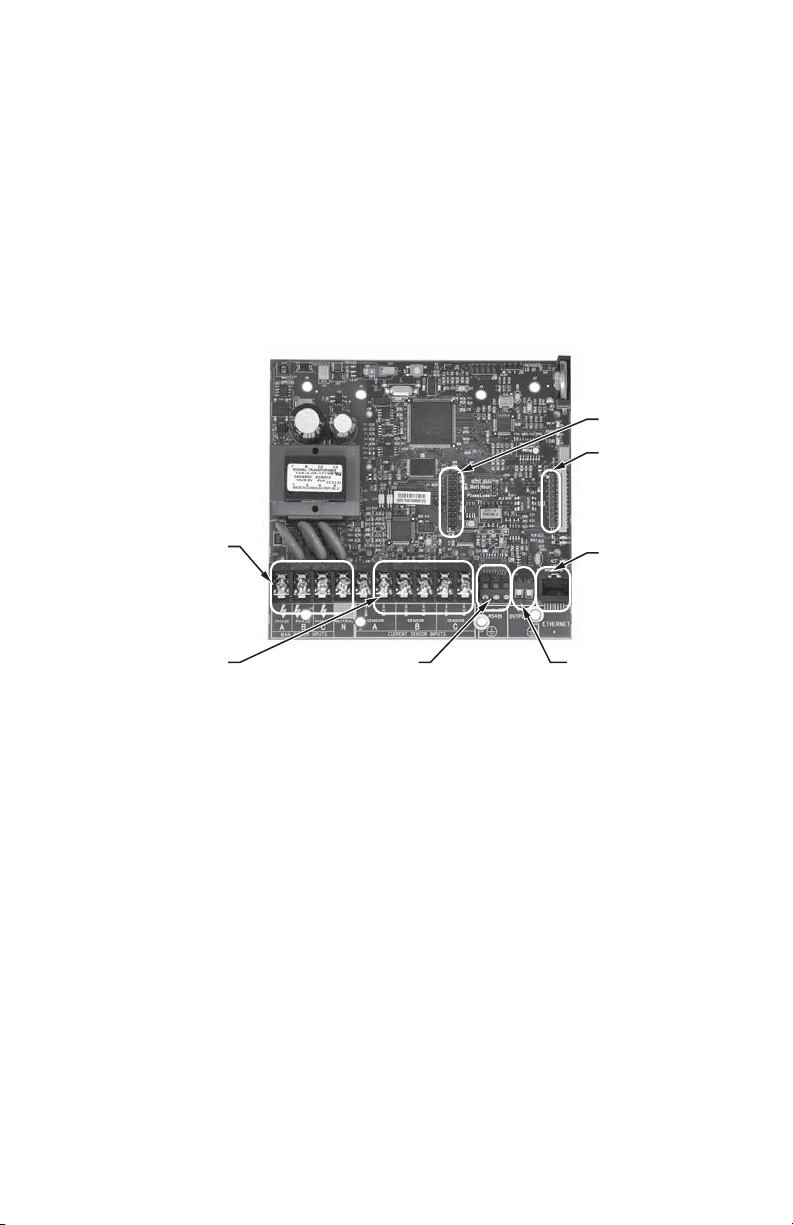

Fig. 2. Main Power Board Connections.

M33271

TB1

POSITIONS 1-4

MAIN POWER INPUT

TB1 POSITIONS 6-10

CURRENT SENSOR

INPUTS

ETHERNET

CONNECTION

RS-485

CONNECTION

PHASE OUTPUT

H-SERIES GREEN CLASS NET METER

7 62-0424-02

2.2 Display Board

The display board connects to the main power board via a flex ribbon cable and the

board mounts on the inside of the housing door.

No additional connections to the display board are required. The display board’s LCD

readout indicates the metered values as well as errors associated with the Green

Class Net meter, such as phase loss or sensor error conditions.

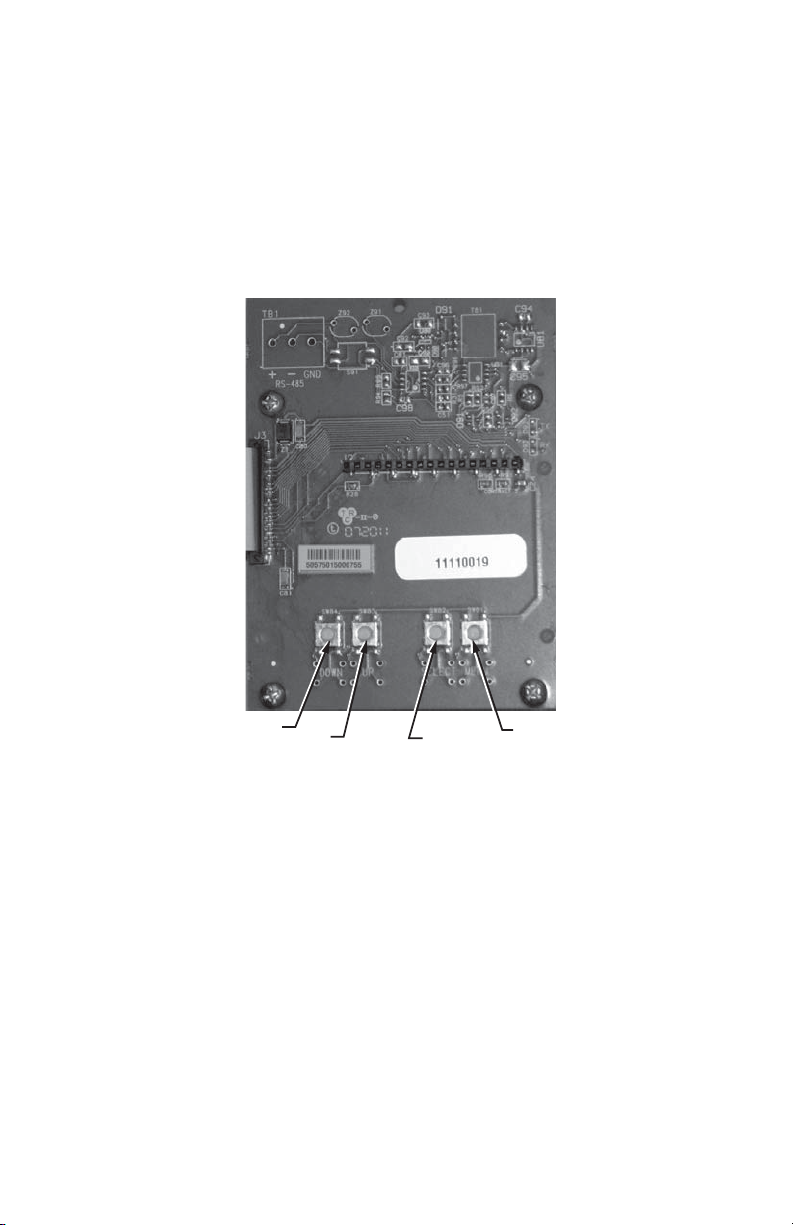

Fig. 3. Display Board.

M33279

DOWN UP SELECT MENU

H-SERIES GREEN CLASS NET METER

62-0424-02 8

2.3 Input Board

The Green Class Net meter is supplied with an input board which allows it to accept

pulses (dry contact) from third party meters, such as gas, water, BTU, etc. This 3rd

party meter information that comes in through the pulse input can be communicated

via the communication protocols. Only one input is available with EZ7 PROTOCOL.

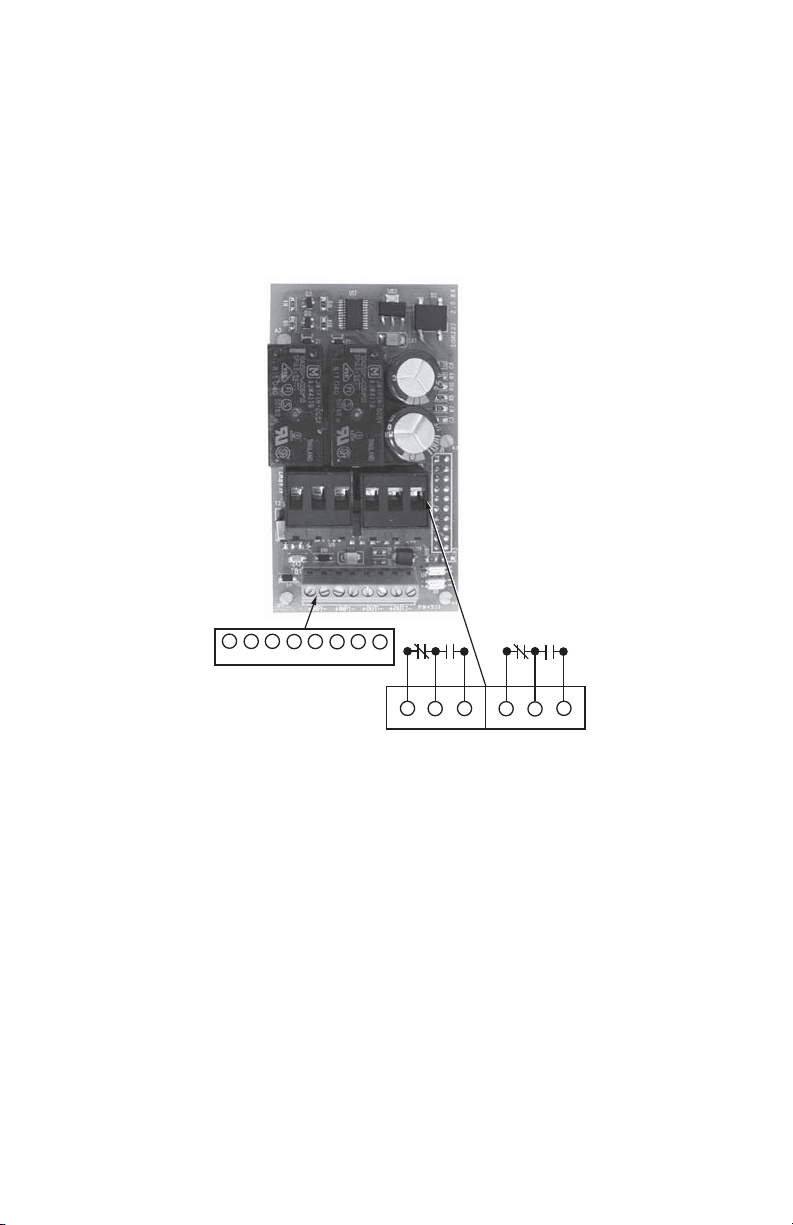

Fig. 4. Input Board.

The input terminals and output terminals are used by the Green Class Net meter.

Connect metering devices with “dry contacts” only. If the contacts are from solid - state

(electronic) sources, polarity must be observed for proper operation.

M33321

+–

INP1

+–+–+–

INP2 OUT1 OUT2

NC COM2 NO NC COM1 NO

IO - Terminals

Relay - Terminals

H-SERIES GREEN CLASS NET METER

9 62-0424-02

3.0 METER TECHNICAL SPECIFICATIONS

Ordering Information: Define brand, class, input voltage, current sensor rating,

enclosure, protocols/options, and sensor type in the format A-BB-CCC-DDDD-E-FF-G-

HHH, where:

A = Brand: H for Honeywell

BB = designates Class: 320 (32) or 500 (50) meter

CCC = input voltage: (208, 480, 600, 120 volt for high voltage applications only)

DDDD = current sensor rating: (100, 200, 400, 800, 1600, 3200, 25HV)

E = enclosure: J = metal (type 1), R = non-metallic (rain tight) (type 4X)

FF= protocol option:

G = no package = “blank”

NSP= Single or Two Phase (Optional)

HHH= Sensor Type: kit=split-core, scs= solid-core, non-supplied blank”

Brand

Class

Voltage

Amperage

Enclosure

Communication

Protocol

Current

Sensor/Option

Current

Sensor/Option

Current

Sensor/Option

Example H 50- 208 100- J 01 -N- KIT

H50-208100-J01-N-KIT

Brand Honeywell

Class 500

Voltage 120, 208, 400 (380-415), 480, 600

Amperage 2HV, 100, 200, 400, 800, 1600, 3200

Enclosure J (JIC Steel), I (Interior only), R (Rain tight)

Communication

Protocol

01 (EZ-7, EZ-7 ETHERNET),

02 (MODBUS RTU, EZ-7 ETHERNET),

03 (BACNET MSTP, EZ-7 ETHERNET),

04 (EZ-7, MODBUS TCP/IP),

05 (EZ-7, BACNET IP),

06 (MODBUS RTU, MODBUS TCP/IP),

07 (LONWORKS TP,EZ-7 ETHERNET),

08 (LONWORKS TP, MODBUS TCP/IP),

09 (EX-7, EZ-7 ETHERNET WITH MODEM),

10 (EZ-7, MODBUS TCP/IP WITH MODEM),

11 (EZ-7, BACNET IP WITH MODEM)

Current Sensors/

Options

-N- (GREEN CLASS NET METER), KIT (Split Core), SCS

(Solid-Core), NSP (Single or Two phase Green Class Net

Meter - 2 element)

H-SERIES GREEN CLASS NET METER

62-0424-02 10

3.0 METER TECHNICAL SPECIFICATIONS

Input Voltage

Configuration

3-wire (Delta) Or 4-wire (Wye)

Mains Voltage Input Up To 600 VAC RMS Available

Input Power 12 VA Maximum Rating

Current Sensor Rating Up To 3200 Amps RMS AC Available

Power Factor 0.5 Leading Or Lagging

Line Frequency 50-60 Hz

Metering Accuracy ANSI C12.20

Voltage Operating

Range

+/-10% Of Rated Load

Temperature Range -20 C To +50 C

Relative Humidity

Range

0-95% Non-condensing

Altitude 2000 Meters Maximum

Voltage Overload +25% Continuously: +100% For 20 Cycles

Current Sensor

Overload

100% For 1 Minute Without Damaging Meter

Pollution Degree Degree 2 In Accordance With IEC 664

Installation

(Overvoltage) Category

Category 111

Measurement
