ATM 72 LC
R

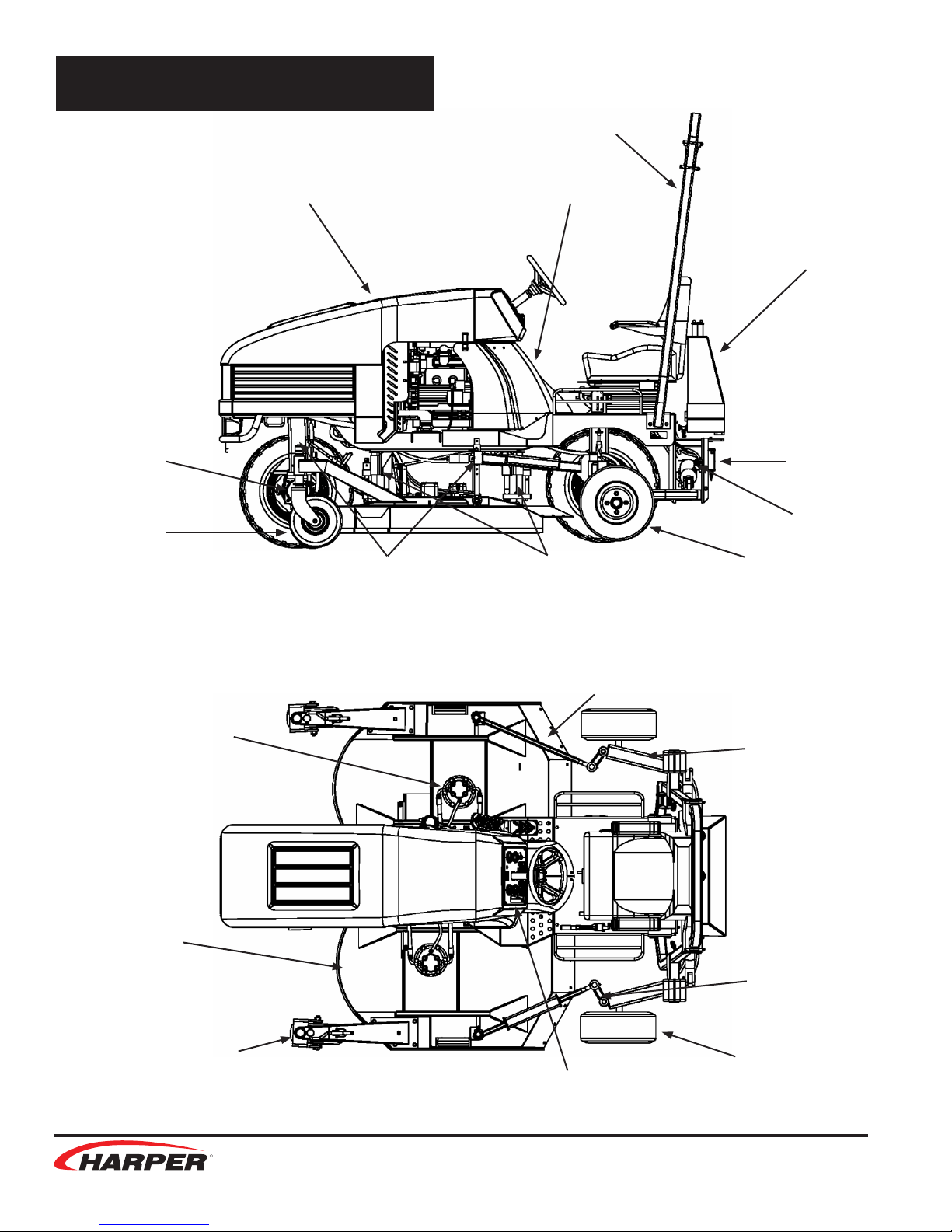

Introduction
The objective of Harper Industries in design-
ing the ATM 72 was to create a mowing ma-
chine that could function safely and comfort-
ably on slopes and inclines. The result is an
All-Terrain Mower that will automatically adjust
itself to keep the operator in a vertical position
on all slopes up to 34 degrees.
Driving with an automatic leveling device will
be a new and different experience. After sev-
eral minutes of driving, the smooth control and
sturdy feel will become comfortable to you.
The security of always sitting upright and the
feel of powerful, positive traction will give you
condence and comfort in most mowing situ-
ations. However, we urge EXTREME CAU-
TION lest your condence in these features
get you into trouble.
REMEMBER: The features of the ATM 72
cannot replace good common sense.
Operating Guide
Starting
• Mower may be leaning after setting for
a period of time, from internal hydrau-
lic leakage. This will not affect operat-
ing leveling during mowing operations.
• COLD WEATHER starting: Turn key to
Pre-heat, light on dash will light, hold
until the light goes out, then start. The
engine is designed for easy starting
above 32°. Do not run starter for more
than 15 seconds at a time or damage
may occur to the fuel solenoid and
starter motor.
• Engine will shut down if hydraulic oil
over-heats, and will not start until
cooled down.
Deck Service Mode
• Turn Auto Level OFF.
• With Manual Override switch, lean
mower to right or left.
• Close the ball valve located on the
leveling cylinder on the side the mower
is leaning towards.
• Switch the Auto Level ON, or push
the manual switch toward the deck to
raise.
• Deck will raise.
• Turn engine OFF.
• Block deck up before working under
the deck.
Cutting Height
• Adjust center of decks with the toggle
switch on dash, raising the decks to
maximum height.
Adjust the pins and bushings at front
and rear of center deck adjustments,
up or down to desired height. By turn-
ing the bushings upside down, adjust-
ments can be made in ½” increments.
• Adjust the front castor wheels on each
deck with the hand cranks, to corre-
spond with the change made on center
deck.
• Adjust outer decks by moving the pins
and bushings; can be adjusted in ½”
increments.
Lubrication
• GREASE DAILY:
Castor wheels
Steering cylinder
Stabilizer arms
Vertical Adjusting Shafts, outer
decks
• ENGINE:
50 Hours on new engine:
Change oil and lter.
100 Hours, after initial change:
Change oil and lter.
