Instruction Manual

HI 96832

Propylene Glycol Refractometer

www.hannainst.com

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the

Remove the instrument from the packing materials and examine carefully to ensure no

damage has occurred during shipping. If any damage has occurred, notify your Dealer

or closest Hanna Customer Service Center.

Each instrument is supplied with:

• 9 V battery

• Instruction manual

Note:Save all packing material until you are sure that the instrument functions

correctly. A defective instrument must be returned in its original packing.

Dear Customer,

Thank you for choosing a Hanna product. This manual will provide you with the necessary

information for the correct use of this instrument. Please read it carefully before using the meter. If

you need additional technical information, do not hesitate to e-mail us at [email protected].

TABLE OF CONTENTS

PRELIMINARY EXAMINATION

PRELIMINARY EXAMINATION ............................................................................................. 2

GENERAL DESCRIPTION ..................................................................................................... 3

SPECIFICATIONS .................................................................................................................. 3

PRINCIPLE OF OPERATION ................................................................................................ 4

MEASUREMENT UNITS ........................................................................................................ 5

FUNCTIONAL DESCRIPTION................................................................................................ 5

DISPLAY ELEMENTS............................................................................................................ 6

MEASUREMENT GUIDELINES .............................................................................................. 7

CALIBRATION PROCEDURE ................................................................................................ 7

MEASUREMENT PROCEDURE ............................................................................................. 8

TO CHANGE MEASUREMENT UNIT ..................................................................................... 9

TO CHANGE TEMPERATURE UNIT ...................................................................................... 9

MAKING A STANDARD SOLUTION....................................................................................10

BATTERY REPLACEMENT .................................................................................................10

WARRANTY ........................................................................................................................10

ERROR MESSAGES ............................................................................................................11

GENERAL DESCRIPTION

SPECIFICATIONS

Temperature Compensation: Automatic between 0 and 40 °C (32 - 104 °F)

Measurement Time: Approximately 1.5 seconds

Minimum Sample Volume: 100 μL (cover prism totally)

Light Source: Yellow LED

Sample Cell: Stainless Steel ring and flint glass prism

Case Material: ABS

Enclosure Rating: IP 65

The HI 96832 Digital Refractometer is a rugged portable, water resistant device that utilizes the

measurement of refractive index to determine the % volume and freezing point of propylene glycol

based solutions.

Propylene glycol is used in many applications including:

• pharmaceutical solvent

• humectant food additive

• emulsification agent

• moisturizer in cosmetics, toothpaste, tabacco products, etc.

• hand sanitizer and lotion

• antifreeze

The HI 96832 device benefits from Hanna’s years of experience as a manufacturer of analytical

instruments. The digital refractometer eliminates the uncertainty associated with mechanical

refractometers and is easily portable for use in the field.

The HI 96832 refractometer is an optical device that is simple and quick to use. Samples are

measured after a simple user calibration with distilled or deionized water. Within seconds, the

refractive index and temperature are measured and converted into one of two measurement units;

% Volume or Freezing Point. The instrument utilizes internationally recognized references for unit

conversion and temperature compensation for propylene glycol solutions (e.g. CRC Handbook of

Chemistry and Physics, 87th Edition).

The temperature (in °C or °F) is also displayed on the large dual level display along with helpful

message codes.

Key features include:

• IP65 waterproof protection

• Automatic Temperature Compensation (ATC)

• Battery operation with Low Power indicator (BEPS)

• Automatically turns off after 3 minutes of non-use

emuloV%tnioPgnizeerF)F°(C°

:egnaR %001ot0)F°8.95-ot23(C°15-ot0)F°671ot23(C°08ot0

:noituloseR %1.0)F°1.0(C°1.0)F

°1.0(C°1.0

:ycaruccA %3.0±)F°0.1±(C°5.0±)F°5.0±(C°3.0±

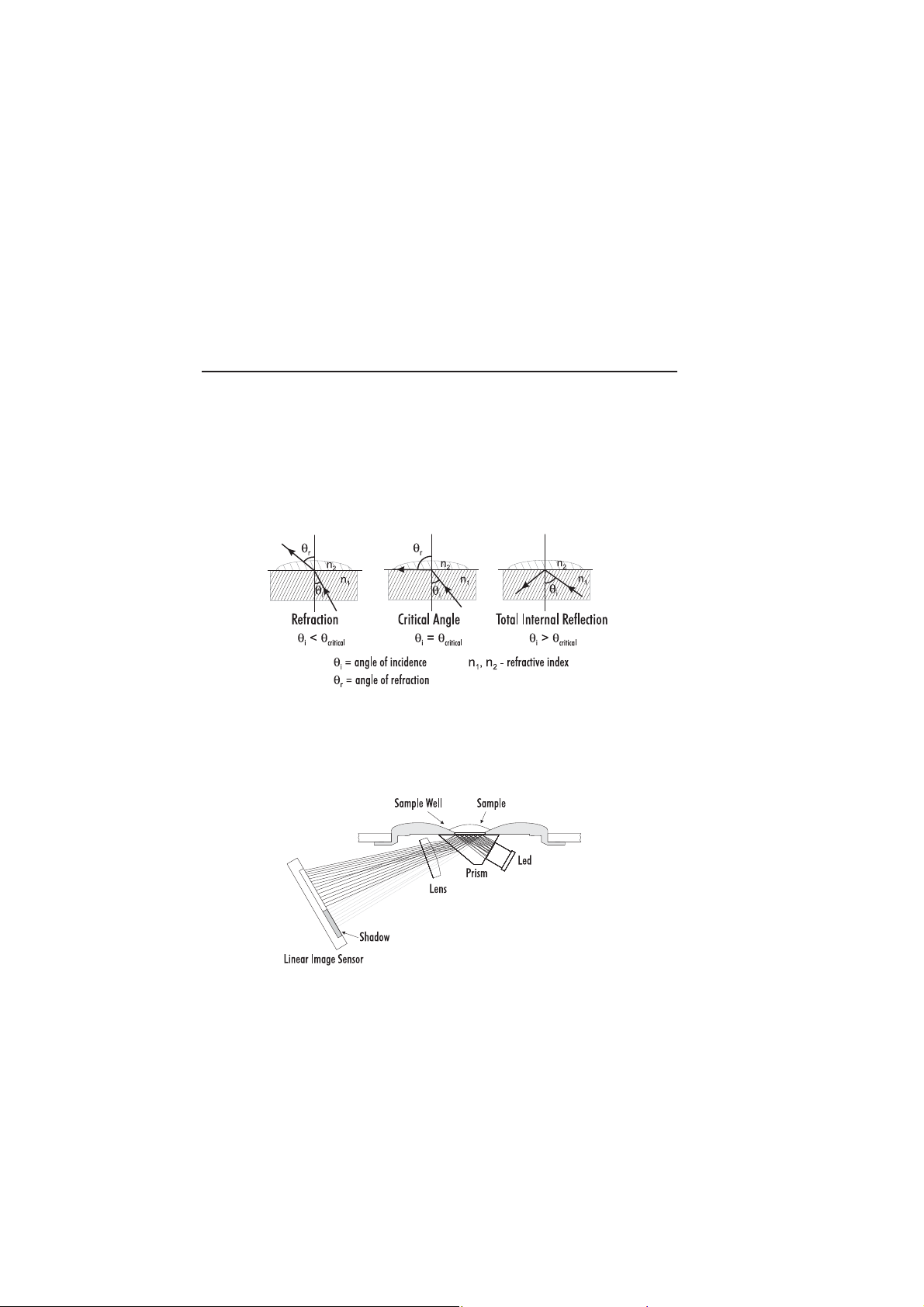

Propylene Glycol determinations are made by measuring the refractive index of a solution. Refractive

Index is an optical characteristic of a substance and the number of dissolved particles in it.

Refractive Index is defined as the ratio of the speed of light in empty space to the speed of light in

the substance. A result of this property is that light will “bend”, or change direction, when it travels

through a substance of different refractive index. This is called refraction.

When passing from a material with a higher to lower refractive index, there is a critical angle at

which an incoming beam of light can no longer refract, but will instead be reflected off the interface.

The critical angle can be used to easily calculate the refractive index according to the equation:

sin (θcritical) = n2/ n1

Where n2is the refractive index of the lower-density medium; n1is the refractive index of the

higher-density medium.

In the HI 96832 refractometer, light from an LED passes through a prism in contact with the sample.

An image sensor determines the critical angle at which the light is no longer refracted through the

sample. Specialized algorithms then apply temperature compensation to the measurement and

convert the refractive index to: % Volume or Freezing Point.

PRINCIPLE OF OPERATION

Battery Type / Life: 1 X 9V / 5000 readings

Auto-Off: After 3 minutes of non-use

Dimensions: 19.2(W) x 10.2(D) x 6.7(H) cm

Mass: 420 g

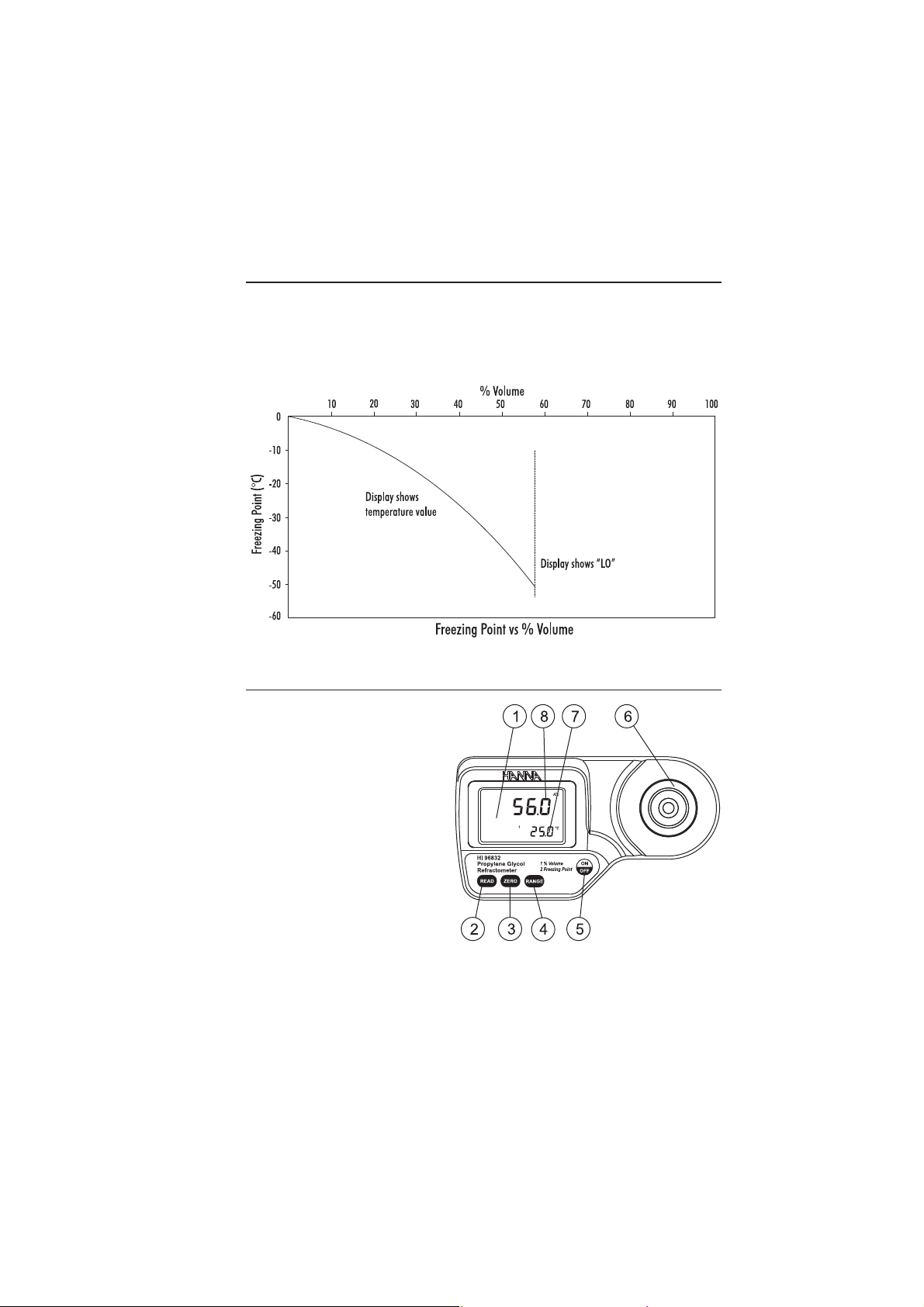

MEASUREMENT UNITS

Freezing point is displayed as a temperature from 0.0 to -51.0 °C corresponding to 0-60 % by

volume.

When the display shows “LO”, the freezing point is at a minimum (below -51 °C).

FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION

FUNCTIONAL DESCRIPTION

1. Liquid Crystal Display (LCD)

2. READ Key (User Measurement)

3. ZERO Key (User Calibration)

4. RANGE Key (User Measurement Unit)

5. ON/OFF

6. Stainless Steel Sample Well and Prism

7. Secondary Display

8. Primary Display

TOP VIEW

DISPLAY ELEMENTSDISPLAY ELEMENTS

DISPLAY ELEMENTS

1. Battery (blinks when low battery condition detected)

2. Measurement in Progress Tag

3. SETUP: Factory Calibration Tag

4. CAL: Calibration Tag

5. Automatic Temperature Compensation

(blinks when temperature exceeds 0-40°C / 32-104°F range)

6. Primary Display (displays measurement and error messages)

7. Temperature Units

8. Secondary Display (displays temperature measurements; when blinking,

temperature has exceeded operation range: 0-80°C / 32-176°F)

9. Range indicator

9. Battery Cover

10.Battery Compartment

BOTTOM VIEW

• Handle instrument carefully. Do not drop.

• Do not immerse instrument under water.

• Do not spray water to any part of instrument except the “sample well” located over the prism.

• The instrument is intended to measure propylene glycol solutions. Do not expose instrument

or prism to solvents that will damage it. This includes most organic solvents and extremely hot

or cold solutions.

• Particulate matter in a sample may scratch the prism. Absorb sample with a soft tissue and

rinse sample well with deionized or distilled water between samples.

• Use plastic pipettes to transfer all solutions. Do not use metallic tools such as needles, spoons

or tweezers as these will scratch the prism.

• Cover sample well with hand if measuring in direct sun.

• To reduce the effects of evaporation or absorption of water when taking readings over a period

of time, the prism and sample well can be covered with plastic wrap.

MEASUREMENT GUIDELINESMEASUREMENT GUIDELINES

MEASUREMENT GUIDELINES

CALIBRATION PROCEDURECALIBRATION PROCEDURE

CALIBRATION PROCEDURE

Calibration should be performed daily, before measurements are made, when the battery has

been replaced, between a long series of measurements, or if environmental changes have

occurred since the last calibration.

1. Press the ON/OFF key, then release. Two instrument test screens will be displayed briefly;

all LCD segments followed by the percentage of remaining battery life. The meter will then

briefly display an indication of the measurement unit set. When the LCD displays dashes, the

instrument is ready.

2. Using a plastic pipette, fill the sample well with distilled or deionized water. Make sure the

prism is completely covered.

Note: If the ZERO sample is subject to intense light such as sunlight or another strong source,

cover the sample well with your hand or other shade during the calibration.

MEASUREMENT PROCEDUREMEASUREMENT PROCEDURE

MEASUREMENT PROCEDURE

Verify the instrument has been calibrated before taking measurements.

1. Wipe off prism surface located at the bottom of the sample well. Make sure the prism and

sample well are completely dry.

2. Using a plastic pipette, drip sample onto the prism surface. Fill the well completely.

Note: If the temperature of the sample differs significantly from the temperature of the

instrument, wait approximately 1 minute to allow thermal equilibration.

3. Press the READ key. The

results are displayed as %

Volume or Freezing Point.

Note: The last measurement value will be displayed until the next sample is measured or the

instrument is turned off. Temperature will be continuously updated.

Note: The ”ATC”tag blinks and automatic temperature compensation is disabled if the

temperature exceeds the 0-40 °C / 32-104 °F range.

3. Press the ZERO key. If no error messages appear, your unit is calibrated.

(For a description of ERROR MESSAGES see page 11).

Note: The 0.0 screen will remain until a sample is measured or the instrument is turned off.

4. Gently absorb the ZERO water standard with a soft tissue. Use care not

to scratch the prism surface. Dry the surface completely. The instrument

is ready for sample measurement.

Note: If the instrument is turned off the calibration will not be lost.

4. Remove sample from the sample well by absorbing

with a soft tissue.

5. Using a plastic pipette, rinse prism and sample

well with distilled or deionized water. Wipe dry.

The instrument is ready for the next sample.

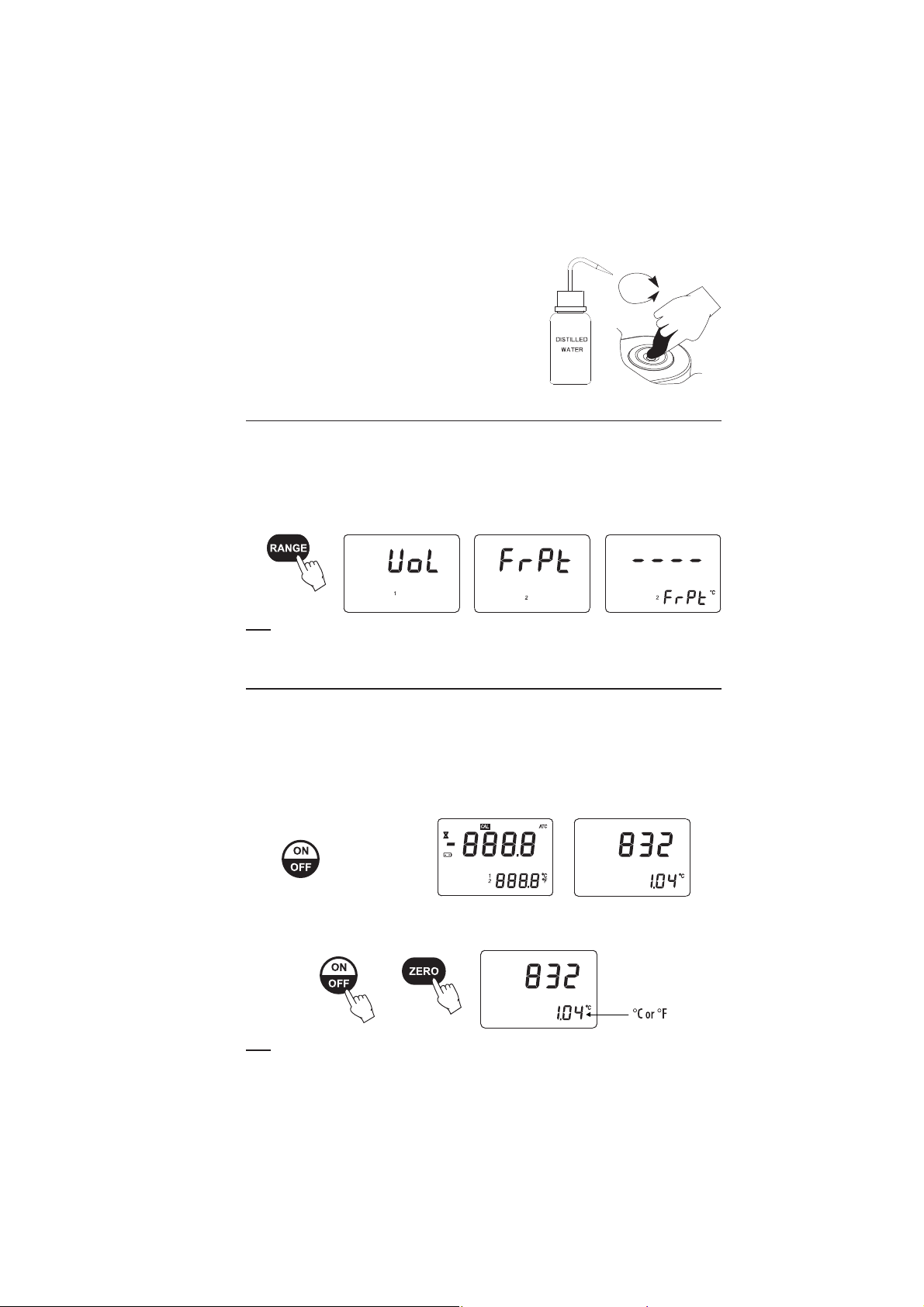

TO CHANGE MEASUREMENT UNITTO CHANGE MEASUREMENT UNIT

TO CHANGE MEASUREMENT UNIT

Press the RANGE key to select the measurement units. The instrument toggles between the

two measurement scales each time the key is pressed and the primary display indicates “Vol”

% Volume or “FrPt” for Freezing Point. When the instrument displays the screen with 4 dashes,

the instrument is ready for measurement. A number on the display indicates the selected unit: “1”

denotes % Volume and “2” denotes Freezing Point (as indicated on the instrument cover).

Note: The temperature measurement is not displayed in Freezing Point mode.

8 seconds

TO CHANGE TEMPERATURE UNITTO CHANGE TEMPERATURE UNIT

TO CHANGE TEMPERATURE UNIT

To change the temperature measurement unit from Celsius to Fahrenheit (or vice versa), follow this

procedure.

1. Press and hold the ON/OFF key continuously for approximately 8 seconds. The LCD will

display the “all segment” screen followed by a screen with the model number on the primary

display and the version number on the secondary display. Continue pressing the ON/OFF

key.

2. While continuing to hold the ON/OFF key, press the ZERO key. The temperature unit will

change from °C to °F or vice versa.

Note: The selected unit will be used in Freezing Point mode.

To make a Propylene Glycol Solution, follow the procedure below:

•To make an X % propylene glycol solution volumetrically add X mL of high purity propylene

glycol (CAS #: 57-55-2; MW 76.09) to a 100 mL Grade A volumetric flask.

•Use distilled or deionized water to bring the flask close to the total volume, mix, allow the

solution to return to room temperature.

•Once the solution has returned to room temperature use distilled or deionized water to bring

the total volume to 100 mL. Mix solution well before use.

WARRANTYWARRANTY

WARRANTY

The HI 96832 is warranted for two years against defects in workmanship and materials when

used for its intended purpose and maintained according to the instructions.

This warranty is limited to repair or replacement free of charge.

Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered.

If service is required, contact your dealer. If under warranty, report the model number, date of

purchase, serial number and the nature of the failure. If the repair is not covered by the warranty,

you will be notified of the charges incurred.

If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization

Number from the Customer Service Department and then send it with shipment costs prepaid. When

shipping any instrument, make sure it is properly packaged for complete protection.

To validate your warranty, fill out and return the enclosed warranty card within 14 days from the

date of purchase.

locylGenelyporPemuloVlatoTeulaVtnioPgnizeerFdetcepxE

V%01 Lm00.01Lm00.001)F°9.52(C°4.3-

V%04 Lm00.04Lm00.001)F°

3.6-(C°3.12-

MAKING A STANDARD SOLUTIONMAKING A STANDARD SOLUTION

MAKING A STANDARD SOLUTION

To replace the instrument’s battery, follow these steps:

• Make sure the instrument is off.

• Turn instrument upside down and remove the battery cover by turning it counterclockwise.

• Extract the battery from its location.

• Replace with a new 9V battery making sure to observe polarity.

• Insert the back battery cover and fasten it by turning clockwise to engage.

BATTERY REPLACEMENTBATTERY REPLACEMENT

BATTERY REPLACEMENT

Table of contents

Other Hanna Instruments Measuring Instrument manuals

Hanna Instruments

Hanna Instruments HI-96730 User manual

Hanna Instruments

Hanna Instruments HI706 User manual

Hanna Instruments

Hanna Instruments HI 142 Series User manual

Hanna Instruments

Hanna Instruments HI 98180 User manual

Hanna Instruments

Hanna Instruments HI 991301 User manual

Hanna Instruments

Hanna Instruments HI 2300 User manual

Hanna Instruments

Hanna Instruments HI 8014 User manual

Hanna Instruments

Hanna Instruments HI759 User manual

Hanna Instruments

Hanna Instruments HI 222 User manual

Hanna Instruments

Hanna Instruments pH 209V User manual

Hanna Instruments

Hanna Instruments HI 9813-6 User manual

Hanna Instruments

Hanna Instruments HI 98240 User manual

Hanna Instruments

Hanna Instruments HI 1285-5 User manual

Hanna Instruments

Hanna Instruments HALO 2 HI9810302 User manual

Hanna Instruments

Hanna Instruments HI 93735 User manual

Hanna Instruments

Hanna Instruments HI97727 User manual

Hanna Instruments

Hanna Instruments HI 96715C User manual

Hanna Instruments

Hanna Instruments HI 749 User manual

Hanna Instruments

Hanna Instruments HI 38019 User manual

Hanna Instruments

Hanna Instruments AquaDip User manual

Hanna Instruments

Hanna Instruments HI 96707C User manual

Hanna Instruments

Hanna Instruments HI97731 User manual

Hanna Instruments

Hanna Instruments HALO FC2142 User manual

Hanna Instruments

Hanna Instruments pHep HI 98107 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
