Hammerhead HLMT130 User manual
COMPACT LASER
MEASURING TOOL
MODEL HLMT130
CHARGE THE BATTERY BEFORE FIRST USE.
ATTACH YOUR RECEIPT HERE
Serial Number ______________________ Purchase Date_______________________
Questions, problems, missing parts? Before returning to your retailer,
call our customer service department at 1-877-888-1880, 8:30 a.m. – 8:00
p.m. EST (Monday – Friday) & 10:00 a.m. – 6:00 p.m. EST (Saturday and
Sunday).
MEASURE
2 COMPACT LASER MEASURING TOOL
TABLE OF CONTENTS
Technical Specications ...........................................2
Safety Instructions ...............................................3
Unpacking .....................................................6
Description .....................................................7
Operation ......................................................9
Maintenance...................................................16
Troubleshooting ................................................16
Warranty......................................................17
TECHNICAL SPECIFICATIONS
COMPONENT SPECIFICATIONS
Battery voltage 500mAh 3.7 V Lithium
Laser λ=635nm, Class II laser,
maximum laser output ≤ 1mW
Measuring range (typically) 1-130 feet (0.2-40m)*
Measuring accuracy (typically) ±1/8 inch (±3 mm)*
Smallest unit displayed 1/16 inch (1 mm)
Automatic switch off Laser: 20 seconds
Measuring tool: 3 minutes
Estimated battery life Up to 5000 single measurements
Optimum operating temperature 32°F to 104°F (0ºC to 40ºC)
Storage temperature -4°F to 158°F (-20ºC to 70ºC)
*Important: Under unfavorable conditions, such as in bright sunlight or when
measuring poorly reecting or very rough surfaces, the tool’s measuring range and
accuracy will be reduced.
COMPACT LASER MEASURING TOOL 3
SAFETY INSTRUCTIONS
Safety Instructions for Compact Laser Measuring Tool
WARNING
LASER RADIATION. Do not stare into beam.
ClassII laser product. Turn the laser beam on
only when using this tool.
• Do not remove or deface any product
labels.
• Avoid direct eye exposure. The laser
beam can cause ash blindness.
• Do not operate the tool around children or
allow children to operate the tool.
• Do not place the tool in a position
that may cause anyone to stare at the
laser beam, whether intentionally or
unintentionally.
• Do not use on surfaces such as sheet
steel that have shiny, reective surfaces.
The shiny surface could reect the beam
back at the operator.
• Always turn the laser tool off when not in use. Leaving the tool on
increases the risk of someone inadvertently staring into the laser beam.
• Do not attempt to modify the performance of this laser device in any way.
This may result in a dangerous exposure to laser radiation.
• Do not attempt to repair or disassemble the laser-measuring tool. If
unqualied persons attempt to repair this product, serious injury may occur.
Any repair required on this laser product should be performed only by
qualied service personnel.
CAUTION
PRECAUCIÓN
ATTENTION
CAN ICES-3(B)/NMB-3(B)
Patent Pending/Patente en
trámite/Brevet en instance
AVOID EXPOSURE/EVITE LA EXPOSICIÓN/
ÉVITEZ L’EXPOSITION
LASER RADIATION IS EMITTED FROM THIS APERTURE
LA RADIACIÓN LÁSER SE EMITE DE ESTA ABERTURA
CET OUTIL PRODUIT UN RAYONNEMENT LASER
LASER RADIATION– DO NOT STARE INTO BEAM
RADIACIÓN LÁSER: NO MIRE DIRECTAMENTE EL RAYO
RAYONNEMENT LASER – NE FIXEZ PAS DES
YEUX LE RAYON LASER
635nm, OUTPUT ≤1mW/CLASS II LASERPRODUCT
COMPLIES WITH 21 CFR PARTS 1040.10 AND 1040.11
3.7V 500mAh Li-Polymer
PRODUCTO LÁSER CON SALIDA ≤1mW.CLASE II, 635 nm,
CUMPLE CON LAS SECCIONES 21 CFR 1040.10 Y 1040.11
3,7V 500mAh polímero de litio
CAUTION: Risk of fire and burns. Donot open, crush, heat above 100ºC
(212º F) or incinerate.
PRECAUCIÓN : Riesgodeincendioy quemaduras. Noabra, triture,
permita que esté a mayor temperatura que100 ºC (212 ºF) ni incinere.
ATTENTION : Risque d’incendie et debrûlures. N’ouvrez pas leproduit,
ne l’écrasez pas, nelechauffez pas àplus de100 ºC (212 ºF) et ne
l’incinérezpas.
LASER MEASURING TOOL
HERRAMIENTA DE MEDICIÓN CON LÁSER
OUTIL À MESURER AU LASER
MADE IN CHINA
HECHO EN CHINA
FABRIQUÉ EN CHINE
SERIAL NO.
SERIE NO.
NUMÉRO DE SÉRIE
Model/Modelo / Modèle: HLMT130
MODES / MODOS/ MODES
AREA MEASURE
MEDIDA DEL ÁREA
MESURE DE L’AIRE
DISTANCE
DISTANCE
DISTANCIA
CONT. MEASUR
CONTINUACIÓN DE
LA MEDIDA
MESURE CONTINUE
635 nm, SORTIE ≤1 mW/PRODUIT LASER DE CLASSE II
CONFORME AUX NORMES 21CFR ARTICLES 1040.10 ET 1040.11
Pile au lithium-polymère de 3,7 V, 500 mAh
1.85Wh
4 COMPACT LASER MEASURING TOOL
SAFETY INSTRUCTIONS
• Use of other accessories that have been designed for use with other laser
tools could result in serious injury.
• Do not operate the tool outdoors.
• Do not place or store tool under extreme temperature conditions.
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW
THESE INSTRUCTIONS
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
COMPACT LASER MEASURING TOOL 5
SAFETY INSTRUCTIONS
NOTICE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna. Increase the separation between the equipment
and receiver. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected. Consult the dealer or an experienced radio/TV
technician for help.
DANGER
People with electronic devices, such as pacemakers, should consult their
physician(s) before using this product. Operation of electrical equipment in
close proximity to a heart pacemaker could cause interference or failure of the
pacemaker.
6 COMPACT LASER MEASURING TOOL
UNPACKING
When unpacking the box, do not discard any packing materials until all of the
contents are accounted for:
a.
Open the carton to locate the following:
• Compact Laser Measuring Tool
• USB charging cable
• Operator’s manual
b. Carefully lift the compact laser measuring tool out of the carton and
place it on a stable, flat surface.
COMPACT LASER MEASURING TOOL 7
DESCRIPTION
KNOW YOUR COMPACT LASER MEASURING TOOL
The compact laser measuring tool is a highly accurate measuring tool for fast, easy
operation:
• Measures distances from 1-130 feet with an accuracy of ±1/8 inch.
• Measures distances and computes area.
• Easy-to-read numbers.
• Integrated, rechargeable Lithium battery.
MEASURE
5
1
2
3
4
7
68
8 COMPACT LASER MEASURING TOOL
DESCRIPTION
PARTS DESCRIPTION
1Power/Mode/Unit button
2LCD display
3Measure button
4Laser-receiving lens
5Laser-exit aperture
6Charging port
7USB charging cable
8Dust cover
LCD DISPLAY ICONS
Full battery indicator
Empty battery indicator
Indicates that the measurement is taken from the rear of the tool.
Laser beam indicator
MODE ICONS
Located below the LCD display
Single distance measurement indicator
Area measurement indicator
Continuous measurement indicator
COMPACT LASER MEASURING TOOL 9
OPERATION
1. HOW TO CHARGE THE COMPACT LASER MEASURING TOOL
NOTE: The compact laser measuring tool is shipped partially charged; charge the
battery before rst use.
Optimum performance can be reached by recharging the tool for approximately 2
hours after use. It is not recommended to recharge the tool for more than 24 hours
after each use.
a. Insert the USB interface of the USB charging cable into the USB port of a
USB wall charger (not included).
b. Open the dust cover and insert the charging plug into charging port on the
Laser Measuring Tool, making sure that they are properly connected.
c. Connect the wall charger (together with USB charging cable) to the power
outlet. The tool will turn on automatically. The battery indicator will begin
to icker on the LCD display to indicate that the compact compact laser
measuring tool is charging.
d. When charging is complete, the full-battery indicator will appear on the
LCD display. Remove the USB charging cable from the measuring tool;
the tool will turn off within 3 seconds. If the USB charging cable remains
connected to the compact laser measuring tool, the tool will remain “ON”.
NOTE: The compact laser measuring tool will not turn off when the USB charging
cable is removed during normal charging until 3 minutes have elapsed.
MEASURE
USB INTERFACE CHARGING PORT
CHARGING PLUG
1
(NOT INCLUDED)
10 COMPACT LASER MEASURING TOOL
OPERATION

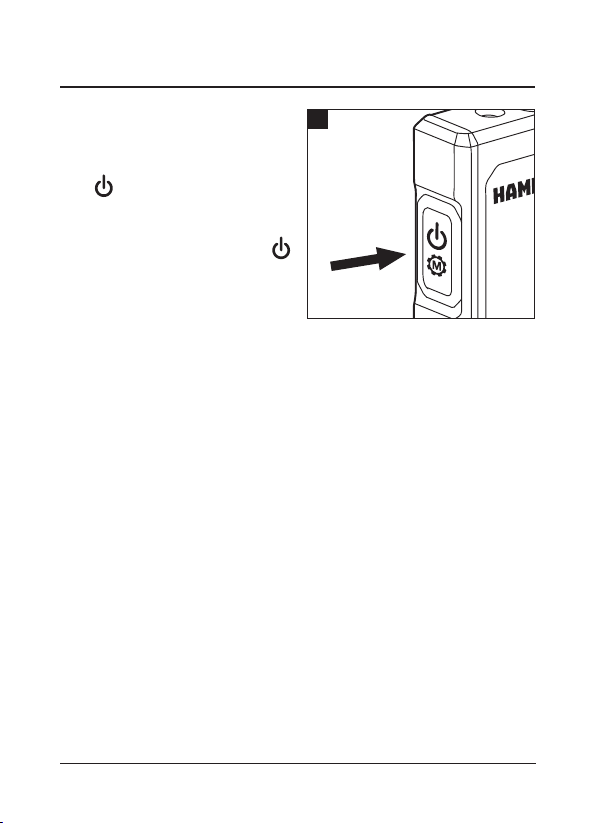

2. TO TURN THE COMPACT LASER
MEASURING TOOL ON AND OFF
a. Press the power/mode button
to turn on the tool. The tool
will default to the single distance
measuring mode.
b. Press the power/mode button
for about 1 second to turn off the
tool.
NOTE: When the measuring tool
is inactive for 3 minutes, it will
automatically turn off to save battery power.
NOTE: The display backlight or the laser beam will turn off after 20 seconds of
no operation. Press any button to recover the displayed value.
3. CHANGE THE UNIT OF MEASURE
a. Press and hold the power/mode button to turn the compact laser measuring
tool off.
2
