Graco EFC C Series Operation manual

Instructions – Parts List

GRACO, INC. P.O. Box 1441 MINNEAPOLIS, MN 55440–1441

Electronic Pulse Meters

For use with petroleum-based lubricants only.

1500 psi (10.3 MPa, 103 bar) Maximum Working Pressure

EFC (Electronic Fluid Commander):

Model No. 223655, Series C, Replacement Pulse Module

Model No. 236763, Series A, Pulse Module and Meter (pints, quarts, gallons)

Model No. 236764, Series A, Pulse Module and Meter (liters)

Horizont:

Model No. 239367, Series A, Replacement Pulse Module

Model No. 238618, Series A, Pulse Module and Meter (pints, quarts, gallons, liters)

308245N

TI1919A

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

Parts

2 308245

Installation

WARNING

To reduce the risk of serious injury, including elec-

tric shock or splashing fluid in the eyes or on the

skin, always follow this procedure before servicing

any part of the metering system and before check-

ing for loose or shorted wires.

1. Turn off the control, and unplug it.

2. Shut off the power to the pump(s).

3. Relieve the fluid pressure.

CAUTION

To avoid damaging the electronic components of the

pulse meter module (1)

DDo not lay anything on the module.

DBe sure the open side of the pulse module faces

up if you lay it down.

DDo not twist or force parts. Align parts properly

as instructed.

NOTE: All pulse meters are bi-directional.

To Install or Remove the Complete Pulse Meter

1. Observe the Warning and Caution above.

2. Disconnect the cable from the pulse module,

taking note of the wiring polarity.

3. Remove the old pulse meter and install the new

one, observing the original wiring polarity.

To Replace the Electronic Pulse Module

4. Observe the Warning and Caution at left.

5. If you are replacing the pulse module, disconnect

the cable, taking note of the wiring polarity.

6. Remove the screws, and lift off the pulse module.

7. Install a new pulse module (1). Align the notch on

the side of the pulse module with the notch on the

side of the metering unit. Use the new screws and

torque them oppositely and evenly to 3 to 5 in-lb

(0.34 to 0.57 N.m). See Fig. NO TAG.

8. Connect the pulse module wires to the cable,

observing the original wiring polarity.

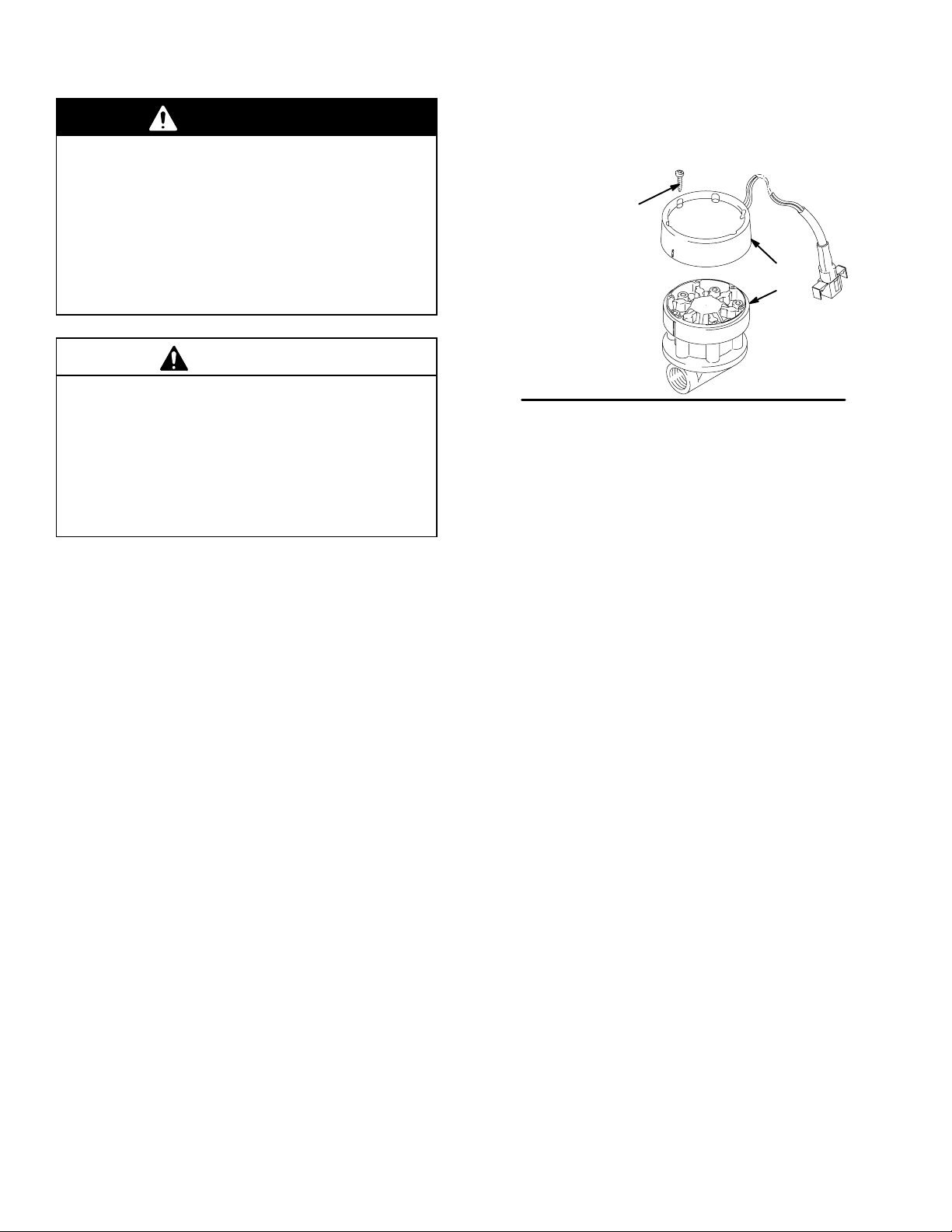

Fig. 1

Replacement screws

included

Torque oppositely and

evenly to 3 to 5 in-lb

(0.34 to 0.57 N.m)

040

To Verify the Accuracy of a Pulse Meter

Module

1. Use a clean, calibrated container. If using a single

container, be sure to clean it after each dispense.

2. Have pump air pressure at the lowest possible

setting for dispensing fluid.

3. Put the tip of the nozzle at the bottom of the

calibrated container.

4. If the tip of the dispense valve does not reach the

bottom of the calibrated container, use a length of

plastic tubing over the tip of the nozzle to ensure

liquid enters the container from the bottom.

5. Trigger the gun slowly so the fluid immediately

covers the tip of the dispense valve.

6. Dispense 1 quart of fluid according to the metered

display on the dispense valve.

7. Allow product to sit for 20 minutes, then compare

the actual, physical measurement in the calibrated

container to the measurement displayed on the

meter.

NOTE: The procedure above will determine if the

meter is accurately dispensing the product and mini-

mize testing errors. Some variance may occur depend-

ing on the viscosity of the fluid. If this procedure deter-

mines that the meter is not accurate, recalibrate the

meter as described in the service manual or replace

the meter or the electronics as necessary.

308245 3

Parts

Replacement screws

included

Electronic Pulse Meter – EFC

Model 236763, Series A

Measures in pints, quarts, or gallons

1 223655 Electronic Pulse Module 1

2*Metering Unit

(cannot be ordered separately) 1

Electronic Pulse Meter – EFC

Model 236764, Series A

Measures in liters

1 223655 Electronic Pulse Module 1

2*Metering Unit

(cannot be ordered separately) 1

Torque oppositely and

evenly to 3 to 5 in-lb

(0.34 to 0.57 N.m)

040

Wire Color Function

Red Power

Black Ground

Electronic Pulse Meter – Horizon

Model 238618, Series A

Measures in pints, quarts, gallons, or liters

1 239367 Electronic Pulse Module, Horizon 1

2*Metering Unit

(cannot be ordered separately) 1

Replacement screws

included

Torque oppositely and

evenly to 3 to 5 in-lb

(0.34 to 0.57 N.m

Wire Color Function

Red Power

Black Ground

White Signal

NOTE: 238618 Electronic Pulse Meter may be used

in place of 236763, but do not use the white

wire.

4 308245

Technical Data

Category Data

Electrical input voltage 15 V maximum

Current loop output Models 236763, 236764:

4 milliamps OFF

10 milliamps ON

Voltage loop output Model 238618:

0 V OFF, 15 V maximum ON

Wiring gauge required Models 236763, 236764:

Up to 200 ft (61 m), 18 AWG 2 Wire 90 Volt

201–500 ft (61.3–152.4 m), 16 AWG 2 Wire 90 Volt

501–1000 ft (152.7–305 m), 14 AWG 2 Wire 90 Volt

Model 238618:

Up to 50 ft (15.3 m), 18 AWG Shielded 3 Cable

Maximum fluid flow (see Pressure Drop Chart) 12 gpm (45.6 lpm) maximum

Maximum operating pressure 1500 psi (10.3 MPa, 103 bar)

Inlet/Outlet 1/2 npt

Pressure Drop Chart

Pulse Meter Pressure Loss

(Flow Rate – gpm)

Crankcase

Viscosity

Gear

Viscosity ISO No. 1234567891011 12

5w ––– 22 4 8 14 19 25 32 37 43 51 58 66 74

10w ––– 32 6 12 20 28 36 46 54 63 74 85 96 108

ATF ––– ––– 7 15 25 35 45 57 67 79 92 106 120 135

Hyd. ––– 46 9 17 29 40 52 66 78 91 106 122 138 155

20w ––– 68 13 25 42 59 76 100 115 134 157 181 204 229

30w ––– 100 19 37 62 87 112 144 169 197 231 266 300 337

40w ––– 150 28 56 94 131 169 216 253 295 347 398 450 506

50w 90w 220 41 82 137 192 247 316 371 433 509 584 660 742

––– ––– 320 60 120 200 280 360 460 540 630 740 850 960 1080

––– 140w 460 86 172 287 402 517 661 776 906 1064 1222 1380

The above table indicates the actual pressure drop through the bare meter at 70_F. The shaded area indicates a

flow rate for a given fluid that may not be a good choice for a cost effective system.

308245 5

Notes

6 308245

Graco Standard Warranty

Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the

date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,

Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be

defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written

recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by

faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-

stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of

Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,

installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for

verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The

equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect

in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and

transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT

NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other

remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any

other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the

date of sale.

Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection

with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured

by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide

purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment

hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,

breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings

entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnais-

sent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires

exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.

Graco Information

TO PLACE AN ORDER, contact your Graco distributor, or call one of the following numbers

to identify the distributor closest to you:

1–800–533–9655 Toll Free

612–623–6928

612–378–3590 Fax

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

MM 308245

Graco Headquarters: Minneapolis

International Offices: Belgium, Korea, China, Japan

www.graco.com

308245 09/1992, Revised 06/2006
