Electrolux T4130 User manual

Service manual

Compass Control

Tumble dryers

T4130, T4190

487 05 40 81/EN

08.36

Contents

Safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Generel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connector numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Usage of the connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Program unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Menu tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Engaging service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Config 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Config 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Generel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Error codes overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Check list - error codes related to overheating . . . . . . . . . . . . . . . . 43

E03 - E24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Contents

Safety rules

Programming is only to be carried out by qualiﬁed personnel.

High voltage on the printed circuit board.

IMPORTANT SERVICE NOTE!

Continuity and resistance measurements suggested by the procedures in this

manual require that power to the dryer be disconnected, and that the device

whose resistance is being measured be disconnected from all circuits that

might affect the accuracy of the measurement.

Note! It is very important that the board

is protected from static electricity

Remember!

• Always use an earthed wrist strap.

• Without the antistatic wrapping the board is unprotected.

• Keep all subjects away from the board which can cause static electricity.

• Subjects like plastic, foam plastic, nylon, or cellophane wrapping are

all big dischargers of static electricity.

• Static electricity can not always be felt, heard or seen.

• Board components can be damaged by static electricity under 100V.

• Static electricity can not be felt, heard or seen till the voltage reaches

2500V.

Safety rules

Description

Generel

From factory, the dryer has been set to speciﬁc values for:

Time, temperature, cooling, reversing, etc.

The above parameters are changeable by reprogramming the Selecta Control PCB.

Selecta Control PCB

The PCB Module is located under the top cover on the front of the machine, see the service

manual for the speciﬁc dryer.

In order to reprogramme the dryer it is necessary to switch the print board into programming

mode.

Glossary

Auto Stop The tumble dryer stops automatically when the clothes are dry.

AHL Apartment House Laundry - Communal laundries / Housing block laundries.

GN Natural gas

LPG Bottle gas

OPL On Premises Laundry - Institutional laundries.

PCB Printed Circuit Board.

RMC Residual Moisture Control - The tumble dryer has residual moisture control.

CP Central Payment

CMD Coin Meter Double

CMS Coin Meter Single

CMSNCB Coin Meter No Coin Box

ESS Electrolux Single System

PCR Prepared for Card Reader

Versions

Software version

The software version is only readable in menu 1-3-1, see section "Program Unit"

If the software has been upgraded a label has been afﬁxed.

Hardware version

The hardware data is printed on a label, see ﬁg. 1.

The label is afﬁxed on the print board which is facing downward towards the drum. The label

is only visible when the print board is demounted.

Parameter version

The parameter version is only readable in menu 1-3-2, see section "Program Unit"

Description

487027927002005450050

Hardware version

Part number = 487 02 79 27

Revision = 00

Year = 2005

Week = 45

Serial number = 0050

Connector numbers

In the error analyses in the section "Troubleshooting" later in this manual connections

P1-P23 are mentioned.

The P-numbers are printed on the print board.

The usage of the connections appears from the wiring diagrams supplied with the dryer.

The positionings of P1-P23 are shown on the following page.

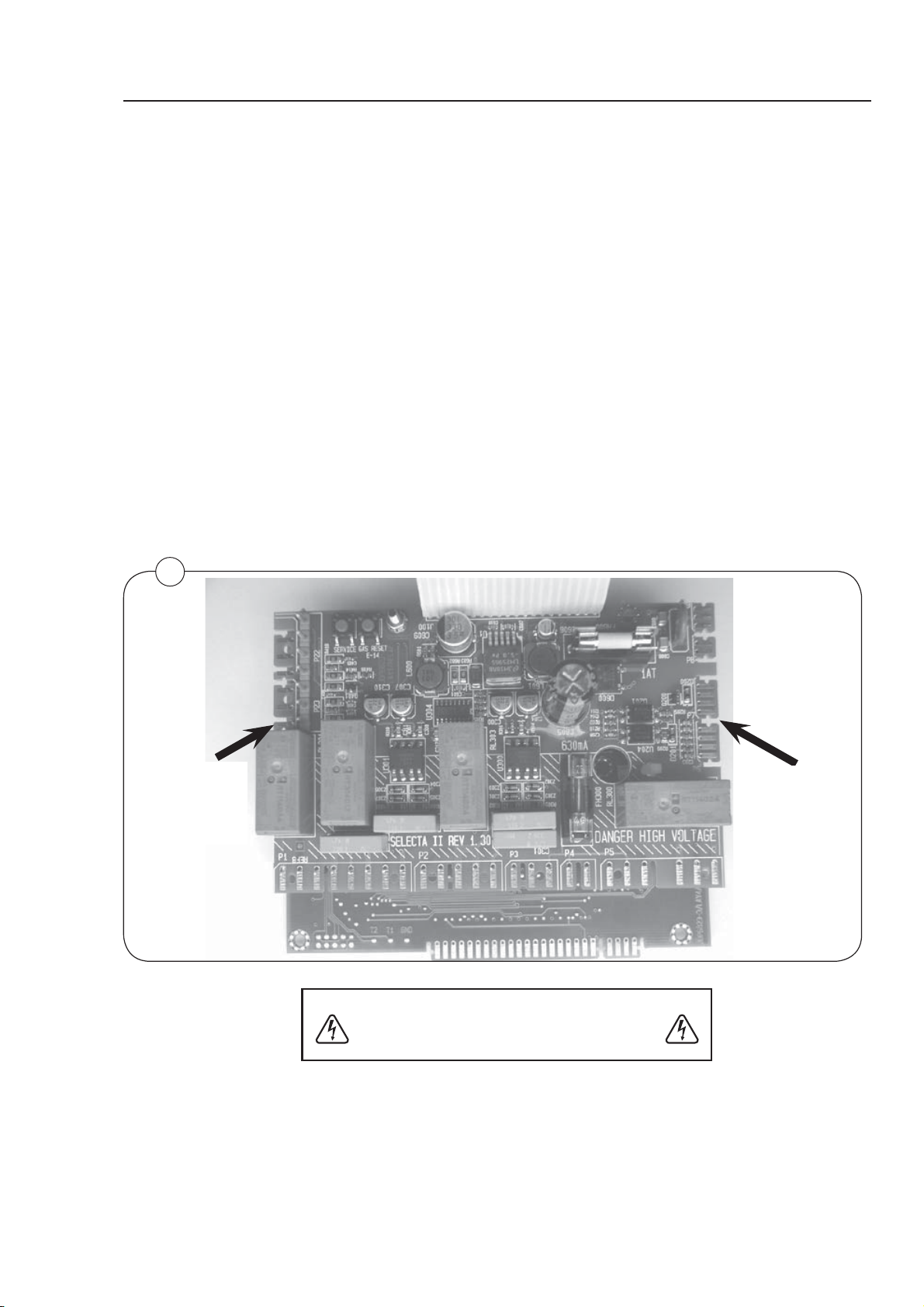

High voltage on the printed circuit board

Do not touch the printed circuit board.

The shaded areas indicate high voltage.

Description

Warning!

The shaded areas indicate high voltage

See view 2

See view 1

10 Description

P23

P19

P18

P2 P3 P4

P21

P16

P17

P22

P15 P14 P13 P12 P11 P10

Seeview 1

P8 P9
