Electrolux EDE1071PDW User manual

EDE1071PDW

EN Tumble Dryer User Manual 2

RU Сушильный барабан Инструкция по эксплуатации 18

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................5

3. PRODUCT DESCRIPTION................................................................................ 7

4. ACCESSORIES..................................................................................................7

5. CONTROL PANEL............................................................................................. 8

6. PROGRAMME TABLE....................................................................................... 8

7. OPTIONS............................................................................................................9

8. SETTINGS........................................................................................................10

9. BEFORE FIRST USE....................................................................................... 10

10. DAILY USE..................................................................................................... 10

11. HINTS AND TIPS........................................................................................... 11

12. CARE AND CLEANING..................................................................................12

13. TROUBLESHOOTING....................................................................................13

14. TECHNICAL DATA.........................................................................................14

15. INSTALLATION.............................................................................................. 15

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before beginning the installation and use of this

appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or

damages that are the result of incorrect installation or

usage. Always keep the instructions in a safe and

accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged 8 years

and above and by persons with reduced capabilities

provided that they have been given instruction and/or

supervision regarding the safe use of the appliance

and understand the potential hazards involved.

•Do not let children play with the appliance.

•Children under 3 years of age should be kept away

from the appliance unless continuously supervised.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•If the appliance has a child safety device, this should

be activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from

your authorized vendor, can be used only with the

appliance specified in the instructions, supplied with

ENGLISH 3

the accessory. Read it carefully before installation

(Refer to the Installation leaflet).

•The appliance can be installed as freestanding or

below the kitchen counter with correct space (Refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully opened.

•The ventilation opening in the base (if applicable) must

not be covered by a carpet, mat, or any floor covering.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation..

•Ensure good air ventilation in the located room to

avoid the back flow of gases into the room from

appliances burning gas or other fuels, including open

fires.

•Exhaust air must not be discharged into a flue which is

used for exhausting fumes from any appliances

burning gas or other fuels.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 7 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

www.electrolux.com4

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•Never stop a tumble dryer before the end of the drying

cycle unless all items are quickly removed and spread

out so that the heat is dissipated.

•The final part of a tumble dryer cycle occurs without

heat (cool down cycle) to ensure that the items are left

at a temperature that ensures that the items will not be

damaged.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Do not install or use a damaged

appliance.

• Follow the installation instruction

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be less

than 5°C or higher than 35°C.

• The floor area where the appliance is

to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when being moved.

• The rear surface of the appliance

must be put against the wall.

•When the appliance is in its

permanent position, check that it is

fully level with the aid of a spirit level.

If it is not, adjust the feet accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

•Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Always use a correctly installed

shockproof socket.

ENGLISH 5

• Do not use multi-plug adapters and

extension cables.

•Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• This appliance is for household use

only.

•Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• Only dry fabrics which are applicable

to dry in the tumble dryer. Follow the

instructions on the fabric label.

• If you have washed your laundry with

a stain remover start an extra rinse

cycle before you start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the

tumble dryer.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

•Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal

objects.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

•Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

www.electrolux.com6

3. PRODUCT DESCRIPTION

1Control panel

2Appliance door (reversible)

3Primary Filter

4Adjustable feet

5Plastic ring

6Side/rear ventilation opening

7Rating plate

4. ACCESSORIES

4.1 Stacking kit

Product name: SKP11.

Available from your authorized dealer.

Stacking kit can be used only with the

washing machines specified in the

leaflet. See leaflet attached. Read

carefully the instructions supplied with

the kit.

ENGLISH 7

4.2 Pedestal with the drawer

Product name: PDSTP10.

Available from your authorized dealer. To

put the appliance higher at the level

which helps to easy load and remove the

laundry.

The drawer can be use for laundry

storage e.g. : towels, cleaning products

and more. Read carefully the instructions

supplied with the accessory.

4.3 Vent kit

Universal kit for vented dryers where an

outdoor outlet is not possible. The tank

collects lint and condensation, thus

avoiding dirt and damage due to

moisture in the room where the tumble

dryer is placed.

Read carefully the instructions supplied

with the kit.

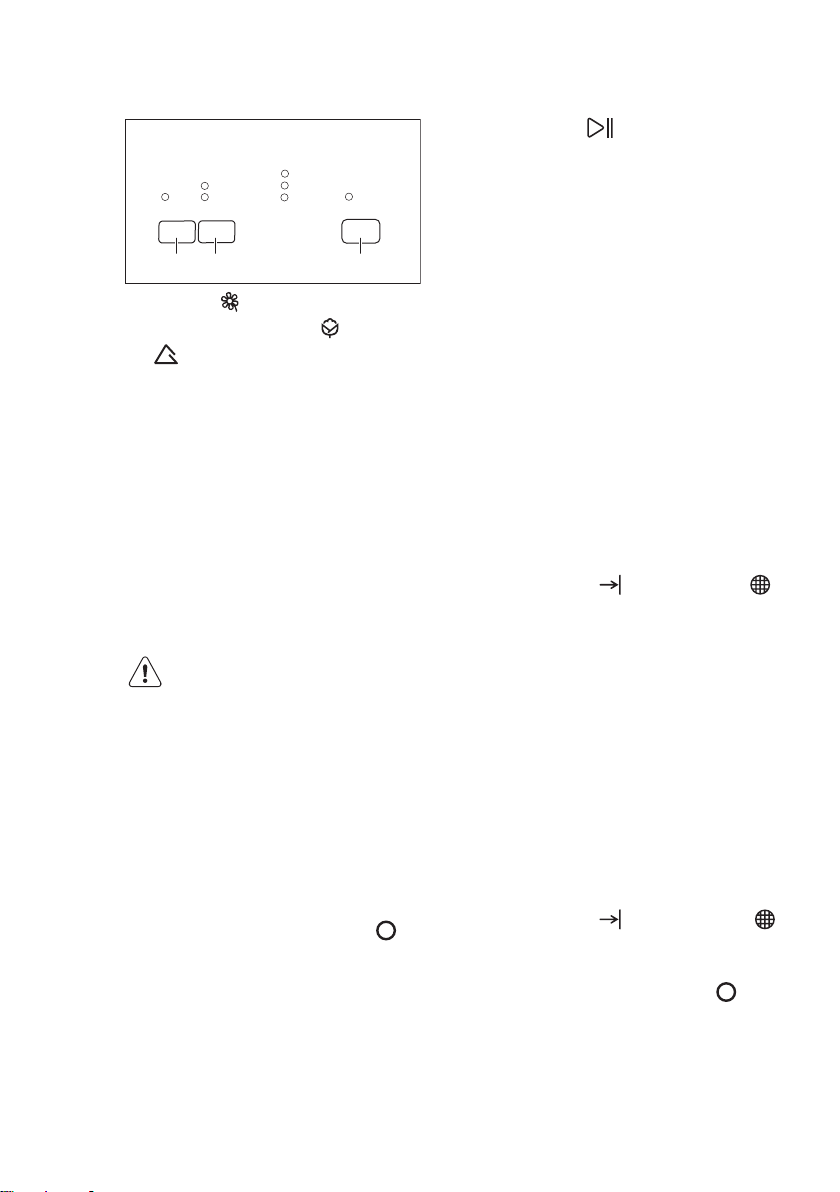

5. CONTROL PANEL

1 2 3 54

1Programme knob and OFF switch

2Delicate button

3Textile button: Cotton , Synthetic

4Indicators: Drying , Cooling ,

End/Anticrease , Filter

5Start/Pause button

6. PROGRAMME TABLE

Programmes Time in mi‐

nutes (about) Type of load Load (max.)1) /

Fabric mark

Cotton

www.electrolux.com8

Programmes Time in mi‐

nutes (about) Type of load Load (max.)1) /

Fabric mark

Extra Dry 140 Drying level: extra dry. 7kg/

Strong Dry 130 Drying level: strong

dry. 7kg/

Cupboard

Dry2)3) 115 Drying level: cupboard

dry. 7kg/

Damp 100

Drying level: textiles

which are still to be ir‐

oned. 7kg/

Iron Dry 3) 90 Drying level: suitable

for ironing. 7kg/

Synthetic

Extra Dry 50 Drying level: extra dry. 3kg/

Cupboard Dry 3) 45 Drying level: cupboard

dry. 3kg/

Iron Dry 30 Drying level: suitable

for ironing. 3kg/

Jeans 140

Leisure clothing such

as jeans, sweat-shirts

of different material

thicknesses (e.g. at the

neck, cuffs and

seams).

7kg/

1) The maximum weight refers to dry items.

2) The Cotton Cupboard Dry programme is the “Standard cotton programme”. It is

suitable for drying normal wet cotton laundry and it is the most efficient programme in terms

of energy consumption for drying wet cotton laundry.

3) For test institutes only: Standard programmes for tests are specified in the EN 61121

document.

7. OPTIONS

7.1 Delicate

With this option you can set a delicate

drying programme that has a low

temperature. Use this option with a

fabrics that have the symbol on the

fabric label (e.g. acrylic, viscose).

7.2 Textile

type of laundry: Cotton , Synthetic

Selection for time controlled programmes

ENGLISH 9

8. SETTINGS

A B C

A. Delicate button

B. Textile button: Cotton , Synthetic

C. Start/Pause button

8.1 Buzzer permanent off

To deactivate or activate the acoustic

signals, press and hold for approximately

2 seconds touchpads (A) and (B) at the

same time.

9. BEFORE FIRST USE

Before you use the appliance for the first

time:

•Clean the tumble dryer drum with a

moist cloth.

• Start a short programme (e.g. 30

minutes) with moist laundry.

10. DAILY USE

10.1 Start a programme

1. Prepare the laundry and load the

appliance.

CAUTION!

Make sure that when

you close the door, the

laundry does not catch

between the appliance

door and the rubber

seal.

2. Set the correct programme and

options for the type of load.

3. Press the Start/Pause touchpad.

The programme starts.

10.2 Change a programme

1. Turn the Programme knob to OFF

2. Set the programme.

10.3 At the end of the

programme

When the programme is completed:

•An intermittent acoustic signal

operates.

• The indicators End/Anticrease,

Filter comes on.

•The Start/Pause indicator is on.

The appliance continues to operate with

the crease guard phase for

approximately other 30 minutes.

The crease guard phase removes

creases from your laundry.

You can remove the laundry before the

crease guard phase is completed. We

recommend, for better results, that you

remove the laundry when the phase is

almost completed or completed.

When the crease guard phase is

completed:

• The indicators End/Anticrease ,

Filter comes on.

•Start/Pause indicator goes off.

1. Turn the Programme knob to OFF

2. Open the appliance door.

3. Remove the laundry.

4. Close the appliance door.

www.electrolux.com10

Table of contents

Languages:

Other Electrolux Dryer manuals

Electrolux

Electrolux 300 Series User manual

Electrolux

Electrolux TW L4 E User manual

Electrolux

Electrolux EDC 5369 Operation manual

Electrolux

Electrolux EDP2074PMW User manual

Electrolux

Electrolux LAVATHERM 58840B User manual

Electrolux

Electrolux T5290 User manual

Electrolux

Electrolux EFMG617STT0 User manual

Electrolux

Electrolux SEQ7000FS0 User manual

Electrolux

Electrolux EDH97950W User manual

Electrolux

Electrolux TWGL5IE300 User manual

Electrolux

Electrolux EDE 421 E User manual

Electrolux

Electrolux EFME617SIW User manual

Electrolux

Electrolux EIGD55H - Gas Dryer With 8.0 cu. Ft.... User manual

Electrolux

Electrolux ZANUSSI ZDC 5350 W User manual

Electrolux

Electrolux EDE 57150 W User manual

Electrolux

Electrolux EDE5100 User manual

Electrolux

Electrolux EDC 77150W User manual

Electrolux

Electrolux EFME417SIW User manual

Electrolux

Electrolux T5190 User manual

Electrolux

Electrolux EIMED60LSS User manual

Electrolux

Electrolux EDE 67550W User manual

Electrolux

Electrolux EDC804P5WB User manual

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer User manual

Electrolux

Electrolux EDE421E User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
